KZJ78G-MET (1993)

Toyota Land Cruiser S/T,H/T

Production May 1993 - Apr 1996
Engine 1KZTE
Transmission MTM
Displacement 2500cc
Power 168 HP (125 kW)

(9305- )KZJ7#

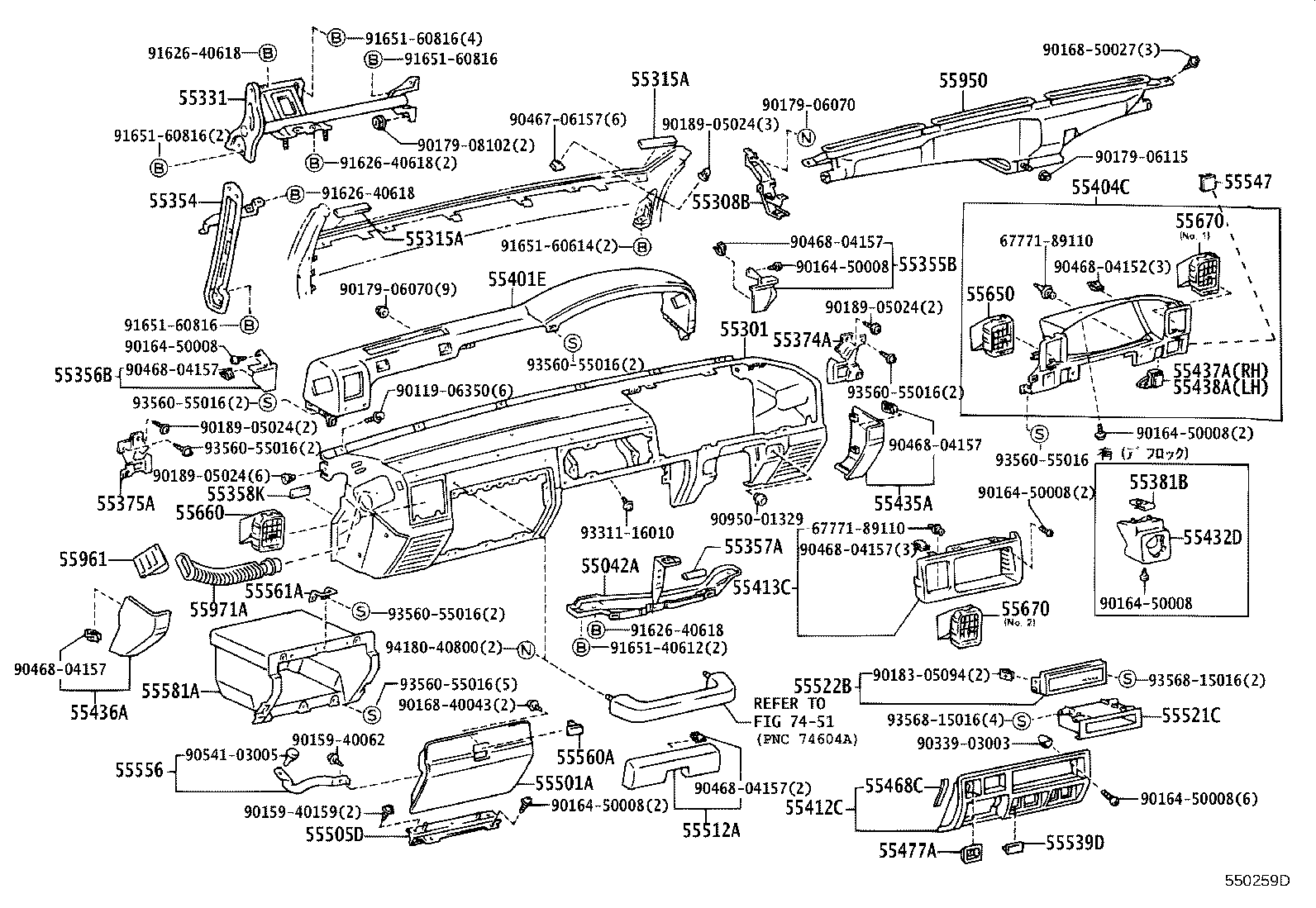

Click highlighted areas on diagram

diagram 55042A 55301 55308B 55315A 55315A 55331 55354 55355B 55356B 55357A 55358K 55374A 55375A 55381B 55401E 55404C 55412C 55413C 55432D 55435A 55436A 55437A 55438A 55468C 55477A 55501A 55505D 55512A 55521C 55522B 55539D 55547 55556 55560A 55561A 55581A 55650 55660 55670 55670 55950 55961 55971A 6777189110 6777189110 7451 9011906350 9015940062 9015940159 9016450008 9016450008 9016450008 9016450008 9016450008 9016450008 9016450008 9016840043 9016850027 9017906070 9017906070 9017906115 9017908102 9018305094 9018905024 9018905024 9018905024 9018905024 9033903003 9046706157 9046804152 9046804157 9046804157 9046804157 9046804157 9046804157 9046804157 9054103005 9095001329 9162640618 9162640618 9162640618 9162640618 9165140612 9165160614 9165160816 9165160816 9165160816 9165160816 9331116010 9356055016 9356055016 9356055016 9356055016 9356055016 9356055016 9356055016 9356815016 9356815016 9418040800
Part # Description Qty Price
55042A - REINFORCEMENT SUB-ASSY, CLUSTER FINISH PANEL
55042-90K0006

HZJ70,73,77,KZJ7#,PZJ7#..(HT,WG)..(EX,LX,SX)

LIGHT SABLE,TRIM4#

 1
55301 - PANEL SUB-ASSY, INSTRUMENT
55301-60330E1

KZJ7#

ｱﾘ(ﾃﾞﾌﾛﾂｸ),LT.OAK,TRIM4#

 1
55301-60320E0

KZJ7#

LIGHT SABLE,TRIM4#

 1
55301-60330B0

KZJ7#

ｱﾘ(ﾃﾞﾌﾛﾂｸ),LIGHT GRAY,TRIM1#

 1
55301-60320E1

KZJ7#

LT.OAK,TRIM4#

 1
55301-60330E0

KZJ7#

ｱﾘ(ﾃﾞﾌﾛﾂｸ),LIGHT SABLE,TRIM4#

 1
55301-60320B0

KZJ7#

LIGHT GRAY,TRIM1#

 1
55354 - BRACE, INSTRUMENT PANEL TO FLOOR
55309-90K0111

KZJ7#..SX

BLACK,TRIM1#,4#

 1
55355B - PLATE, INSTRUMENT PANEL, RH
55355-60030E0

KZJ7#

LIGHT SABLE,TRIM4#

 1
55355-60030B0

KZJ7#

LIGHT GRAY,TRIM1#

 1
55355-60030E1

KZJ7#

LT.OAK,TRIM4#

 1
55356B - PLATE, INSTRUMENT PANEL, LH
55356-60030B0

KZJ7#

LIGHT GRAY,TRIM1#

 1
55356-60030E1

KZJ7#

LT.OAK,TRIM4#

 1
55356-60030E0

KZJ7#

LIGHT SABLE,TRIM4#

 1
55374A - BRACKET, INSTRUMENT PANEL LOWER MOUNTING, RH
55374-60020

KZJ7#

 1
55375A - BRACKET, INSTRUMENT PANEL LOWER MOUNTING, LH
55375-60020

KZJ7#

 1
55401E - PAD SUB-ASSY, INSTRUMENT PANEL SAFETY
55401-60100B0

KZJ7#

BLUISH GRAY,TRIM1#

 1
55401-60100E0

KZJ7#

SABLE,TRIM4#

 1
55401-60100E1

KZJ7#

OAK,TRIM4#

 1
55404C - PANEL SUB-ASSY, INSTRUMENT CLUSTER FINISH, NO.2
55404-60060E0

KZJ7#

SABLE,TRIM4#

 1
55404-60060E1

KZJ7#

OAK,TRIM4#

 1
55404-60060B0

KZJ7#

BLUISH GRAY,TRIM1#

 1
55412C - PANEL, INSTRUMENT CLUSTER FINISH, CENTER NO.1
55412-90K0216

KZJ7#

LIGHT SABLE,TRIM4#

 1
55412-90K0213

KZJ7#

LIGHT GRAY,TRIM1#

 1
55412-90K02E0

KZJ7#

LT.OAK,TRIM4#

 1
55413C - PANEL, INSTRUMENT CLUSTER FINISH, CENTER NO.2
55413-60010E1

KZJ7#

OAK,TRIM4#

 1
55413-60010B0

KZJ7#

BLUISH GRAY,TRIM1#

 1
55413-60010E0

KZJ7#

SABLE,TRIM4#

 1
55432D - PANEL, INSTRUMENT PANEL FINISH, LOWER NO.1
55432-6009006

HZJ73,PZJ77..LX..U;HZJ70,77,KZJ7#,PZJ70..(HT,WG)..(EX,LX,SX)

LIGHT SABLE,TRIM4#

 1
55435A - PANEL, INSTRUMENT PANEL FINISH, END RH
55435-60010B0

KZJ7#

LIGHT GRAY,TRIM1#

 1
55435-60010E0

KZJ7#

LIGHT SABLE,TRIM4#

 1
55435-60010E1

KZJ7#

LT.OAK,TRIM4#

 1
55436A - PANEL, INSTRUMENT PANEL FINISH, END LH
55436-60010E1

KZJ7#

LT.OAK,TRIM4#

 1
55436-60010E0

KZJ7#

LIGHT SABLE,TRIM4#

 1
55436-60010B0

KZJ7#

LIGHT GRAY,TRIM1#

 1
55437A - RETAINER, INSTRUMENT PANEL FINISH PANEL, NO.1
55437-60010

KZJ7#

 1
55438A - RETAINER, INSTRUMENT PANEL FINISH PANEL, NO.2
55438-60010

KZJ7#

 1
55501A - DOOR SUB-ASSY, GLOVE COMPARTMENT
55501-60090E1

KZJ7#

LT.OAK,TRIM4#

 1
55501-60090E0

KZJ7#

LIGHT SABLE,TRIM4#

 1
55501-60090B0

KZJ7#

LIGHT GRAY,TRIM1#

 1
55512A - PLATE, GLOVE COMPARTMENT
55512-60020B0

KZJ7#

BLUISH GRAY,TRIM1#

 1
55512-60020E0

KZJ7#

SABLE,TRIM4#

 1
55512-60020E1

KZJ7#

OAK,TRIM4#

 1
55522B - COVER, RADIO TUNER OPENING
55522-32010

HZJ7#,KZJ7#..EX,STD,SX,ZX

 1
55539D - COVER, SPARE SWITCH HOLE
55539-3201011

KZJ7#,PZJ7#..EX,LX,SX

BLACK,TRIM1#,4#

 1
55650 - REGISTER ASSY, INSTRUMENT PANEL, NO.1
55650-60030

KZJ7#

 1
55660 - REGISTER ASSY, INSTRUMENT PANEL, NO.2
55660-60050

KZJ7#

 1
55670 - REGISTER ASSY, INSTRUMENT PANEL, NO.3
55650-60030

KZJ7#

NO.1

 1
55660-60050

KZJ7#

NO.2

 1
55670 - REGISTER ASSY, INSTRUMENT PANEL, NO.3
55650-60030

KZJ7#

NO.1

 1
55660-60050

KZJ7#

NO.2

 1
55961 - NOZZLE, SIDE DEFROSTER, NO.1
55961-60030E1

KZJ7#

OAK,TRIM4#

 2
55961-60030B0

KZJ7#

BLUISH GRAY,TRIM1#

 2
55961-60030E0

KZJ7#

SABLE,TRIM4#

 2
55971A - DUCT, SIDE DEFROSTER NOZZLE, NO.1
55971-60030

KZJ7#

 2
Common parts
67771-89110
90119-06350
90159-40062
90159-40159
90164-50008
90168-40043
90168-50027
90179-06070
90179-06115
90179-08102
90183-05094
90189-05024
90339-03003
90467-06157
90468-04152
90468-04157
90541-03005
90950-01329
91626-40618
91651-40612
91651-60614
91651-60816
93311-16010
93560-55016
93568-15016
94180-40800
Linked diagrams
7451
