KZJ71W-PET (1993)

Toyota Land Cruiser S/T,H/T

Production May 1993 - Apr 1996
Engine 1KZTE
Transmission ATM
Displacement 2500cc
Power 168 HP (125 kW)

(9305-9604)1KZTE

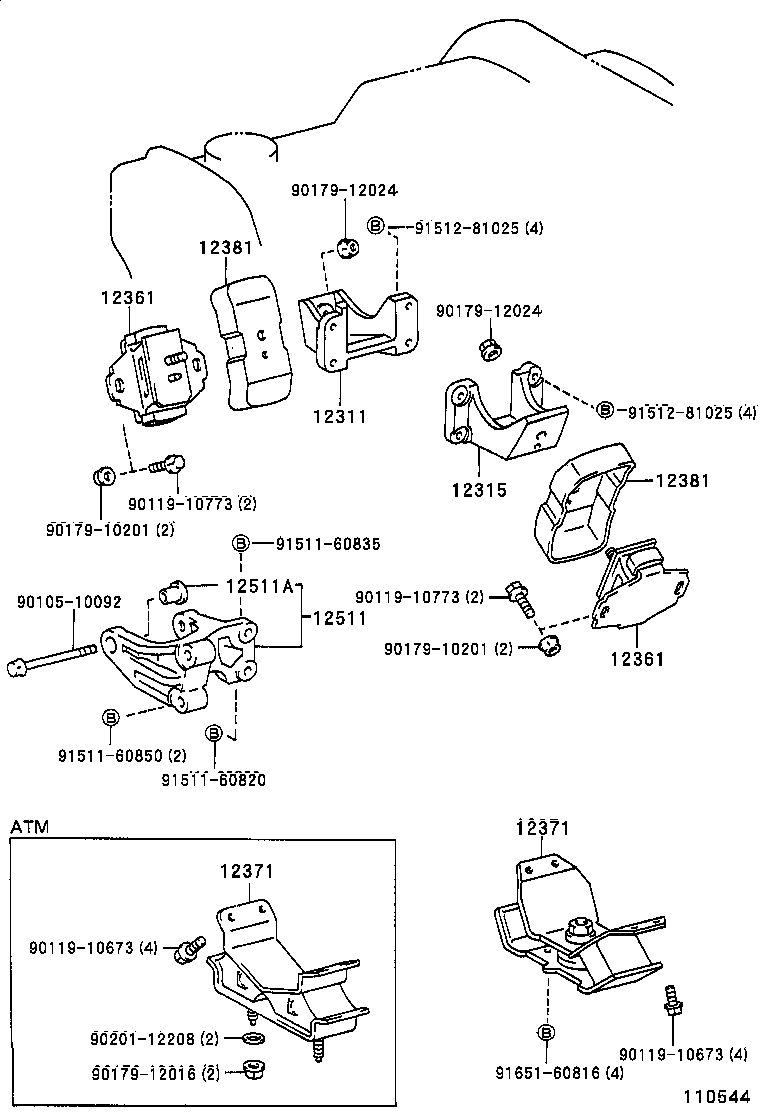

Click highlighted areas on diagram

diagram 12311 12315 12361 12361 12371 12371 12381 12381 12511 12511A 9010510092 9011910673 9011910673 9011910773 9011910773 9017910201 9017910201 9017912016 9017912024 9017912024 9020112208 9151160820 9151160835 9151160850 9151281025 9151281025 9165160816
Part # Description Qty Price
12311 - BRACKET, ENGINE MOUNTING, FRONT NO.1 RH
12311-67020

1KZTE..KZJ7#

 1
12315 - BRACKET, ENGINE MOUNTING, FRONT NO.1 LH
12315-67010

1KZTE..KZJ7#

 1
12361 - INSULATOR, ENGINE MOUNTING, FRONT
12361-67020

1KZTE..KZJ7#

 2
12361 - INSULATOR, ENGINE MOUNTING, FRONT
12361-67020

1KZTE..KZJ7#

 2
12371 - INSULATOR, ENGINE MOUNTING, REAR NO.1
12371-67030

1KZTE..KZJ7#..ATM

 1
12371 - INSULATOR, ENGINE MOUNTING, REAR NO.1
12371-67030

1KZTE..KZJ7#..ATM

 1
12381 - STABILIZER, ENGINE MOUNTING
12381-67010

1KZTE..KZJ7#

 2
12381 - STABILIZER, ENGINE MOUNTING
12381-67010

1KZTE..KZJ7#

 2
12511 - BRACKET, ALTERNATOR, NO.1
12511-67020

1KZTE..KZJ7#

 1
12511A - BUSH, ALTERNATOR BRACKET
90389-10039

1KZTE..KZJ7#

 1
Common parts
90105-10092
90119-10673
90119-10773
90179-10201
90179-12016
90179-12024
90201-12208
91511-60820
91511-60835
91511-60850
91512-81025
91651-60816
