KZJ71W-MET (1993)

Toyota Land Cruiser S/T,H/T

Production May 1993 - Apr 1996
Engine 1KZTE
Transmission MTM
Displacement 2500cc
Power 168 HP (125 kW)

ILLUST NO. 1 OF 2(9001-9908)

Click highlighted areas on diagram

diagram 46210 46217 46225A 46243 46304B 46341 46410 46410 46410 46410B 46420C 46443 46451C 46452 46452 46452B 46458 46469 8401 8401 8401 8401 9010908206 9010908244 9011908146 9011908703 9017908141 9046803006 9046814033 9161160816 91611G0820 91611G0820 91611G0820 91611G0820 9165140820 9165160814 9411040800 9412040600
Part # Description Qty Price
46210 - LEVER ASSY, PARKING BRAKE
46210-60170E0

HZJ70,73,77,KZJ7#,PZJ7#..(HT,WG)..(EX,LX,SX)

SABLE,TRIM4#

 1
46217 - KNOB, PARKING BRAKE RELEASE ROD
46217-2002046

HZJ70,73,77,KZJ7#,PZJ7#..(HT,WG)..(EX,LX,SX)

SABLE,TRIM4#

 1
46243 - COVER, PARKING BRAKE LEVER
46243-6006016

HZJ70,73,77,KZJ7#,PZJ7#..(HT,WG)..(EX,LX,SX)

SABLE,TRIM4#

 1
46410 - CABLE ASSY, PARKING BRAKE, NO.1
46410-60351

KZJ71

 1
46410 - CABLE ASSY, PARKING BRAKE, NO.1
46410-60351

KZJ71

 1
46410 - CABLE ASSY, PARKING BRAKE, NO.1
46410-60351

KZJ71

 1
Common parts
90109-08206
90109-08244
90119-08146
90119-08703
90179-08141
90468-03006
90468-14033
91611-60816
91611-G0820
91651-40820
91651-60814
94110-40800
94120-40600
Linked diagrams
8401

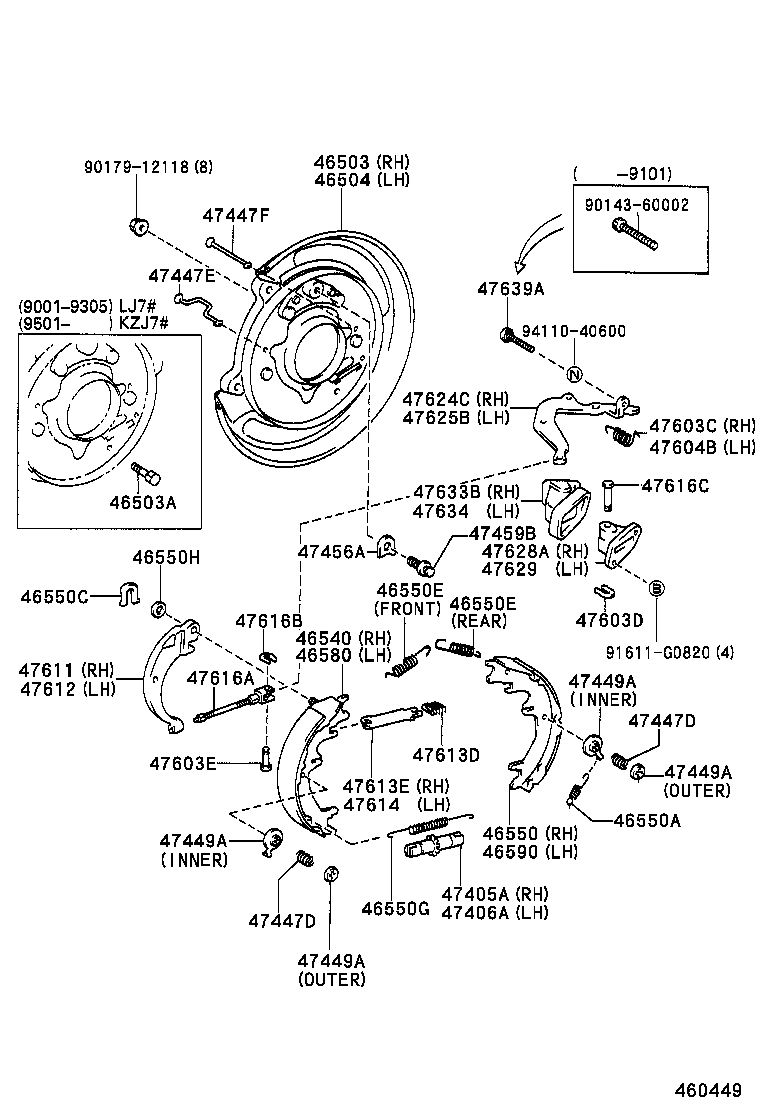

ILLUST NO. 2 OF 2(9001-9604)KZJ7#,LJ7#

Click highlighted areas on diagram

diagram 46503 46503A 46504 46540 46550 46550A 46550C 46550E 46550E 46550G 46550H 46580 46590 47405A 47406A 47447D 47447D 47447E 47447F 47449A 47449A 47449A 47449A 47456A 47459B 47603C 47603D 47603E 47604B 47611 47612 47613D 47613E 47614 47616A 47616B 47616C 47624C 47625B 47628A 47629 47633B 47634 47639A 9014360002 9017912118 91611G0820 9411040600
Part # Description Qty Price
46503 - PLATE SUB-ASSY, PARKING BRAKE, RH
46503-60072

KZJ7#

 1
46503-60071

KZJ7#

 1
46503A - BOLT(FOR PARKING BRAKE PLATE TO REAR AXLE HOUSING)
90114-12023

KZJ7#

 8
46504 - PLATE SUB-ASSY, PARKING BRAKE, LH
46504-60032

KZJ7#

 1
46504-60031

KZJ7#

 1
46540 - SHOE ASSY, PARKING BRAKE, RH OR CENTER NO.1
46540-60020

KZJ7#;HZJ73,77..ZX

 1
46550 - SHOE ASSY, PARKING BRAKE, RH OR CENTER NO.2
46550-60030

KZJ7#;HZJ73,77..ZX

 1
46580 - SHOE ASSY, PARKING BRAKE, LH NO.1
46580-60020

KZJ7#;HZJ73,77..ZX

 1
46590 - SHOE ASSY, PARKING BRAKE, LH NO.2
46550-60030

KZJ7#;HZJ73,77..ZX

 1
47624C - CRANK, PARKING BRAKE BELL, RH
47624-60021

KZJ7#;HZJ73,77..ZX

 1
47625B - CRANK, PARKING BRAKE BELL, LH
47625-60021

KZJ7#;HZJ73,77..ZX

 1
Common parts
90143-60002
90179-12118
91611-G0820
94110-40600
