KZJ71W-MET (1993)

Toyota Land Cruiser S/T,H/T

Production May 1993 - Apr 1996
Engine 1KZTE
Transmission MTM
Displacement 2500cc
Power 168 HP (125 kW)

(9305-9604)1KZTE

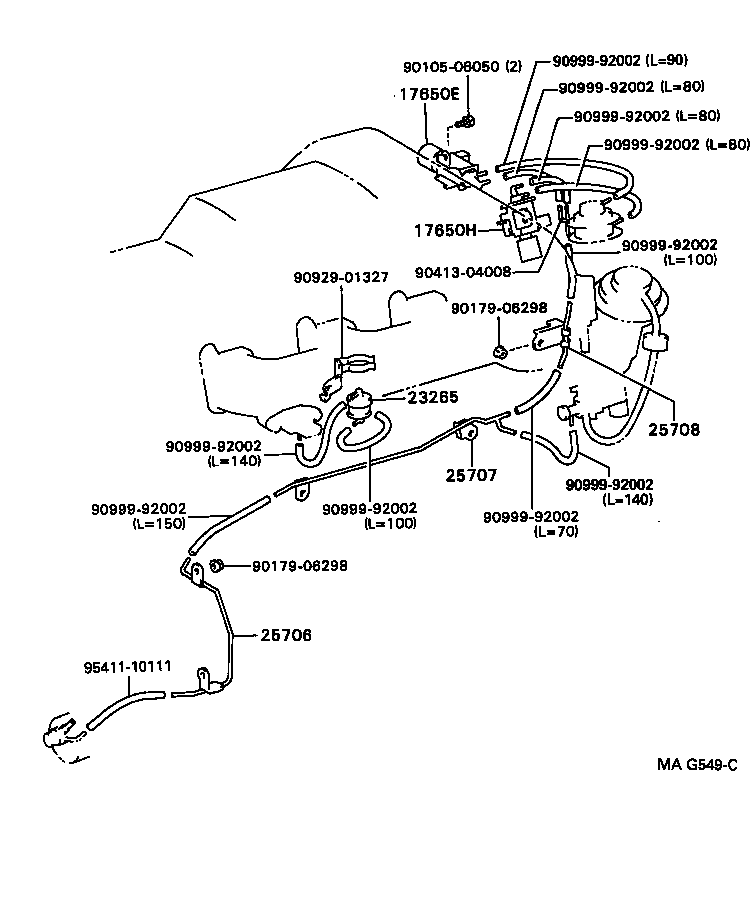

Click highlighted areas on diagram

diagram 17650E 17650H 23265 25706 25707 25708 9010506050 9017906298 9017906298 9041304008 9092901327 9099992002 9099992002 9099992002 9099992002 9099992002 9099992002 9099992002 9099992002 9099992002 9099992002 9541110111
Part # Description Qty Price
17650E - VALVE, VACUUM SWITCHING
90910-12126

1KZTE..KZJ7#

 1
17650H - VALVE, VACUUM SWITCHING
90910-12146

1KZTE..KZJ7#

 1
23265 - FILTER, GAS, NO.1
90917-11036

1KZTE..KZJ7#

 1
25706 - PIPE SUB-ASSY, VACUUM TRANSMITTING, NO.1
25706-67010

1KZTE..KZJ7#

 1
25707 - PIPE SUB-ASSY, VACUUM TRANSMITTING, NO.2
25707-67010

1KZTE..KZJ7#

 1
25708 - PIPE SUB-ASSY, VACUUM TRANSMITTING, NO.3
25708-67010

1KZTE..KZJ7#

 1
Common parts
90105-06050
90179-06298
90413-04008
90929-01327
90999-92002
95411-10111
