KZJ71W-MET (1993)

Toyota Land Cruiser S/T,H/T

Production May 1993 - Apr 1996
Engine 1KZTE
Transmission MTM
Displacement 2500cc
Power 168 HP (125 kW)

(9305-9604)1KZTE

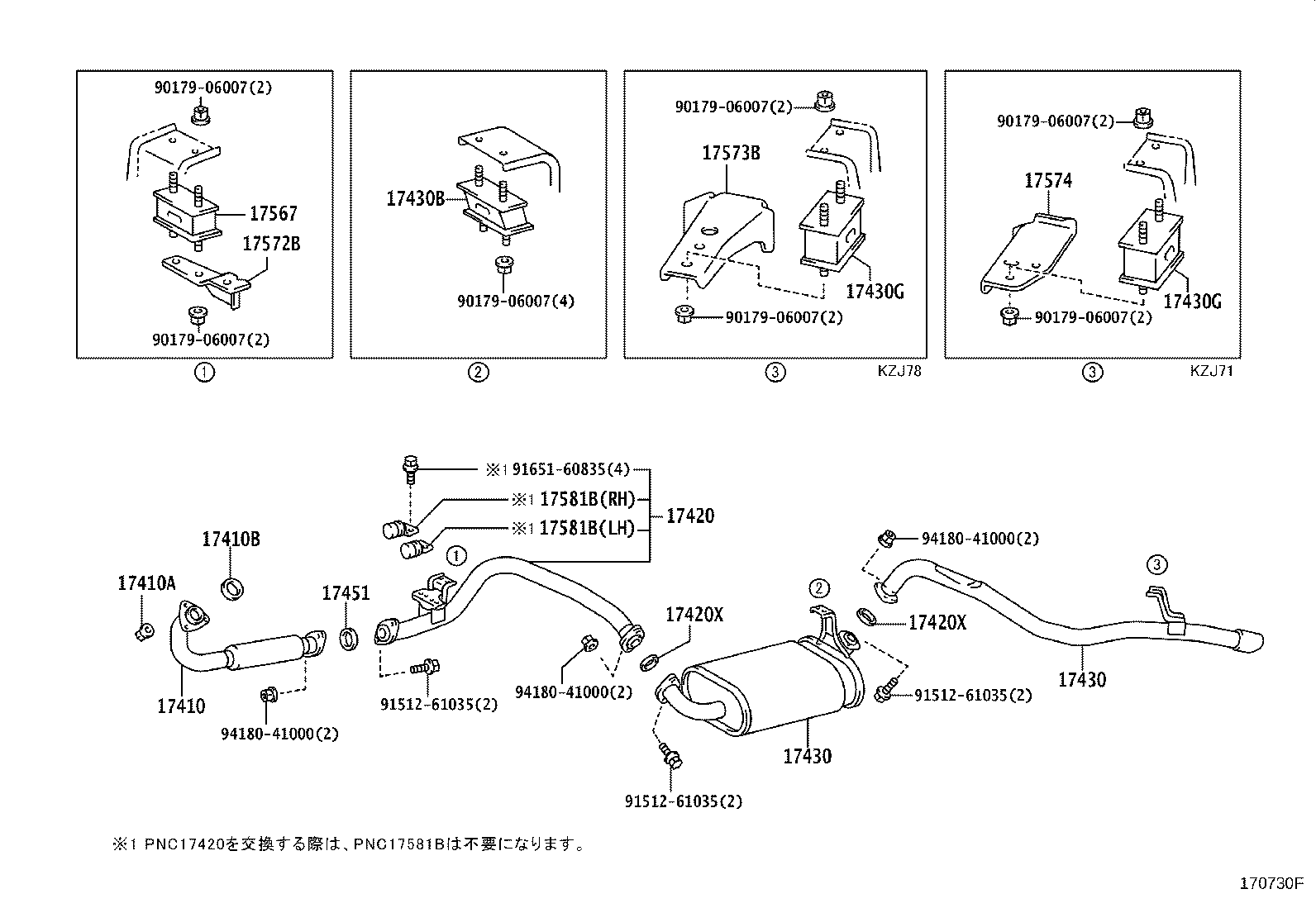

Click highlighted areas on diagram

diagram 17410 17410A 17410B 17420 17420X 17420X 17430 17430 17430B 17430G 17430G 17451 17567 17572B 17573B 17574 17581B 17581B 9017906007 9017906007 9017906007 9017906007 9017906007 9017906007 9017906007 9151261035 9151261035 9151261035 9165160835 9418041000 9418041000 9418041000
Part # Description Qty Price
17410 - PIPE ASSY, EXHAUST, FRONT
17401-67030

1KZTE..KZJ7#

 1
17420 - PIPE ASSY, EXHAUST, CENTER
17403-67010

1KZTE..KZJ7#

 1
17420X - GASKET, EXHAUST PIPE, CENTER
90917-06049

1KZTE..KZJ7#

 2
17420X - GASKET, EXHAUST PIPE, CENTER
90917-06049

1KZTE..KZJ7#

 2
17430 - PIPE ASSY, EXHAUST, TAIL
17405-67010

1KZTE..KZJ71

ﾌﾛﾝﾄ

 1
17430-67010

1KZTE..KZJ71

ﾘﾔ

 1
17430 - PIPE ASSY, EXHAUST, TAIL
17405-67010

1KZTE..KZJ71

ﾌﾛﾝﾄ

 1
17430-67010

1KZTE..KZJ71

ﾘﾔ

 1
17451 - GASKET, EXHAUST PIPE
90917-06049

1KZTE..KZJ7#

 1
17581B - DAMPER, EXHAUST PIPE, NO.2
17581-70080

1KZTE..KZJ7#

右側

 1
17581-67010

1KZTE..KZJ7#

左側

 1
17581B - DAMPER, EXHAUST PIPE, NO.2
17581-70080

1KZTE..KZJ7#

右側

 1
17581-67010

1KZTE..KZJ7#

左側

 1
Common parts
90179-06007
91512-61035
91651-60835
94180-41000
