KZJ71G-PET (1993)

Toyota Land Cruiser S/T,H/T

Production May 1993 - Apr 1996
Engine 1KZTE
Transmission ATM
Displacement 2500cc
Power 168 HP (125 kW)

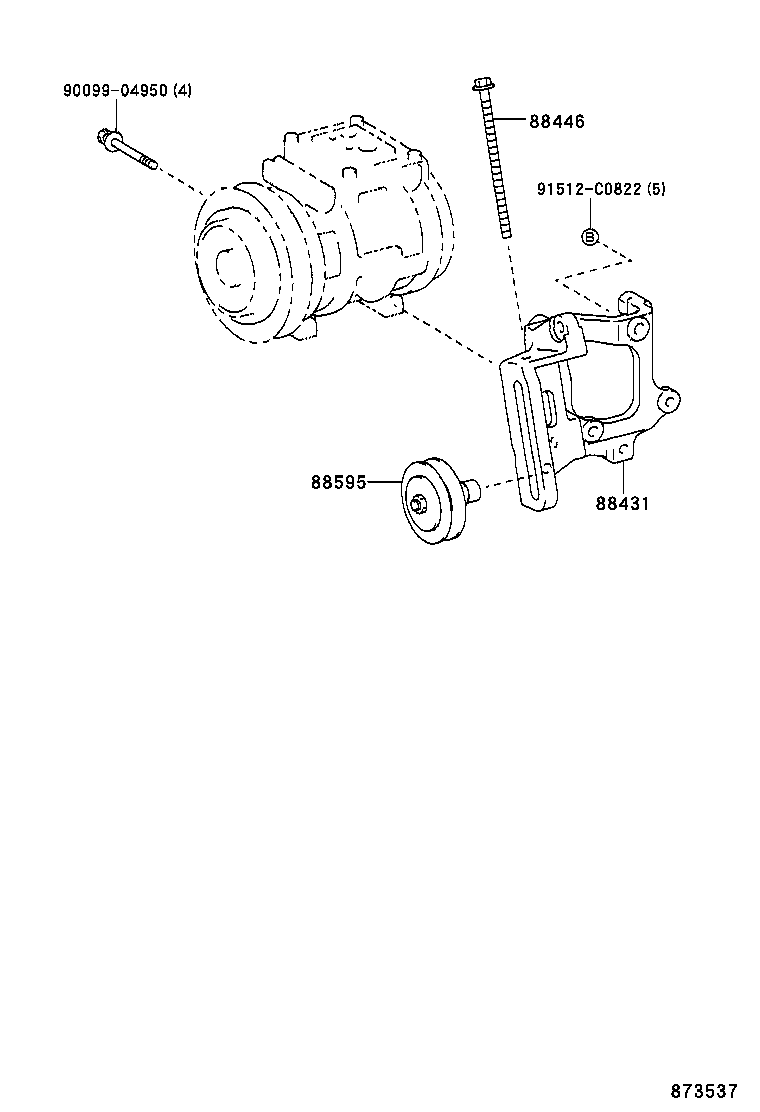

ILLUST NO. 1 OF 2(9305-9604)KZJ7#

Click highlighted areas on diagram

diagram 88431 88446 88595 9009904950 91512C0822
Part # Description Qty Price
88431 - BRACKET, COMPRESSOR MOUNTING, NO.1
88431-60220

KZJ7#

 1
88446 - BOLT, IDLE PULLEY
88446-60040

KZJ7#

 1
88595 - PULLEY, COOLER COMPRESSOR IDLE
88440-60050

KZJ7#

 1
Common parts
90099-04950
91512-C0822
