KZJ71G-MNT (1993)

Toyota Land Cruiser S/T,H/T

Production May 1993 - Apr 1996
Engine 1KZTE
Transmission MTM
Displacement 2500cc
Power 168 HP (125 kW)

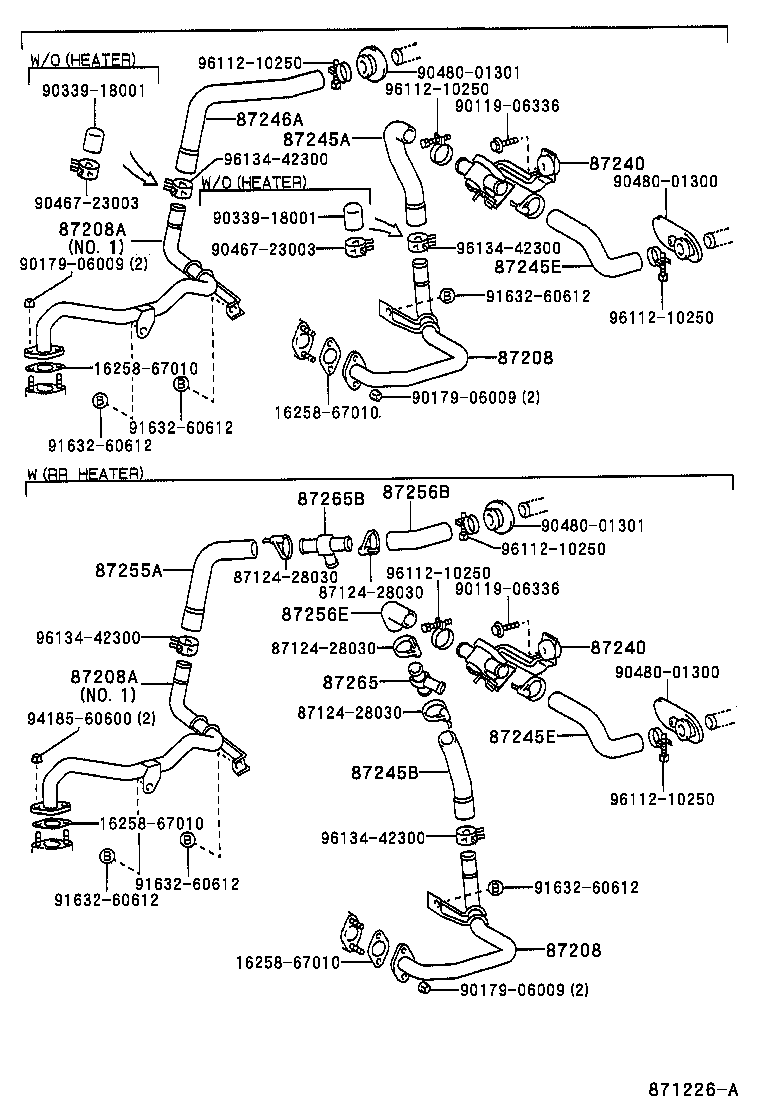

ILLUST NO. 1 OF 2(9305- )KZJ7#

Click highlighted areas on diagram

diagram 1625867010 1625867010 1625867010 1625867010 8712428030 8712428030 8712428030 8712428030 87208 87208 87208A 87208A 87240 87240 87245A 87245B 87245E 87245E 87246A 87255A 87256B 87256E 87265 87265B 9011906336 9011906336 9017906009 9017906009 9017906009 9033918001 9033918001 9046723003 9046723003 9048001300 9048001300 9048001301 9048001301 9163260612 9163260612 9163260612 9163260612 9163260612 9163260612 9418560600 9611210250 9611210250 9611210250 9611210250 9611210250 9611210250 9613442300 9613442300 9613442300 9613442300
Part # Description Qty Price
87208 - PIPE SUB-ASSY, HEATER WATER
87208-60330

KZJ7#

 1
87208 - PIPE SUB-ASSY, HEATER WATER
87208-60330

KZJ7#

 1
87208A - PIPE SUB-ASSY, HEATER WATER, A
87208-60220

KZJ7#

NO.2

 1
87208-60340

KZJ7#

NO.1

 1
87208A - PIPE SUB-ASSY, HEATER WATER, A
87208-60220

KZJ7#

NO.2

 1
87208-60340

KZJ7#

NO.1

 1
87240 - VALVE ASSY, HEATER WATER
87240-60100

KZJ7#

 1
87240 - VALVE ASSY, HEATER WATER
87240-60100

KZJ7#

 1
87245A - HOSE, HEATER WATER, INLET A
87245-60530

KZJ7#

 1
87245B - HOSE, HEATER WATER, INLET B
87245-60560

KZJ7#

ｱﾘ(ﾘﾔ ﾋ-ﾀ)

 1
87245E - HOSE, HEATER WATER, INLET E
87245-60220

KZJ7#

 1
87245E - HOSE, HEATER WATER, INLET E
87245-60220

KZJ7#

 1
87246A - HOSE, HEATER WATER, OUTLET A
87245-60541

KZJ7#

ｱﾘ(ﾘﾔ ﾋ-ﾀ)

 1
87245-60540

KZJ7#

ｱﾘ(ﾘﾔ ﾋ-ﾀ)

 1
87245-60520

KZJ7#

 1
87255A - HOSE, REAR HEATER WATER INLET, A(FROM ENGINE)
87245-60580

KZJ7#

 1
87256B - HOSE, REAR HEATER WATER OUTLET, B
87245-60590

KZJ7#

 1
87256E - HOSE, REAR HEATER WATER OUTLET, E (TO ENGINE)
87245-60570

KZJ7#

 1
87265 - CONNECTOR, HEATER WATER HOSE
87248-60460

KZJ7#

 1
87265B - CONNECTOR, HEATER WATER HOSE, NO.2
87248-60460

KZJ7#

 1
Common parts
16258-67010
87124-28030
90119-06336
90179-06009
90339-18001
90467-23003
90480-01300
90480-01301
91632-60612
94185-60600
96112-10250
96134-42300

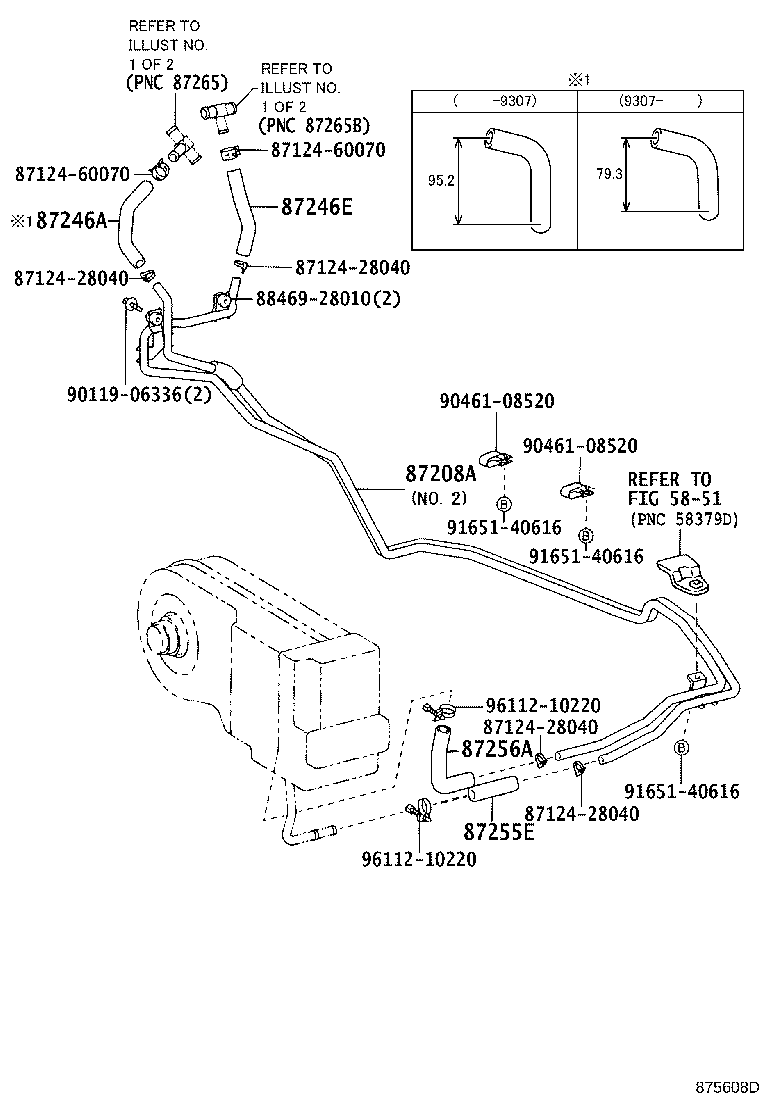

ILLUST NO. 2 OF 2(9305- )KZJ7#

Click highlighted areas on diagram

REAR HEATER

diagram 5851 8712428040 8712428040 8712428040 8712428040 8712460070 8712460070 87208A 87246A 87246E 87255E 87256A 8846928010 9011906336 9046108520 9046108520 9165140616 9165140616 9165140616 9611210220 9611210220
Part # Description Qty Price
87208A - PIPE SUB-ASSY, HEATER WATER, A
87208-60220

KZJ7#

NO.2

 1
87208-60340

KZJ7#

NO.1

 1
87246A - HOSE, HEATER WATER, OUTLET A
87245-60541

KZJ7#

ｱﾘ(ﾘﾔ ﾋ-ﾀ)

 1
87245-60540

KZJ7#

ｱﾘ(ﾘﾔ ﾋ-ﾀ)

 1
87245-60520

KZJ7#

 1
87246E - HOSE, HEATER WATER, OUTLET E
87245-60550

KZJ7#

 1
87255E - HOSE, REAR HEATER WATER INLET, E(TO HEATER UNIT)
99556-20200

HZJ70,73,77,KZJ7#,PZJ7#

*H,L=80

 1
99556-20200

KZJ7#

*H,L=80

 1
87256A - HOSE, REAR HEATER WATER OUTLET, A (FROM HEATER UNIT)
87245-90K16

HZJ70,73,77,KZJ7#,PZJ7#

 1
87245-90K16

KZJ7#

 1
Common parts
87124-28040
87124-60070
88469-28010
90119-06336
90461-08520
91651-40616
96112-10220
Linked diagrams
5851
