KZJ71G-MNT (1993)

Toyota Land Cruiser S/T,H/T

Production May 1993 - Apr 1996
Engine 1KZTE
Transmission MTM
Displacement 2500cc
Power 168 HP (125 kW)

(9305-9604)KZJ7#

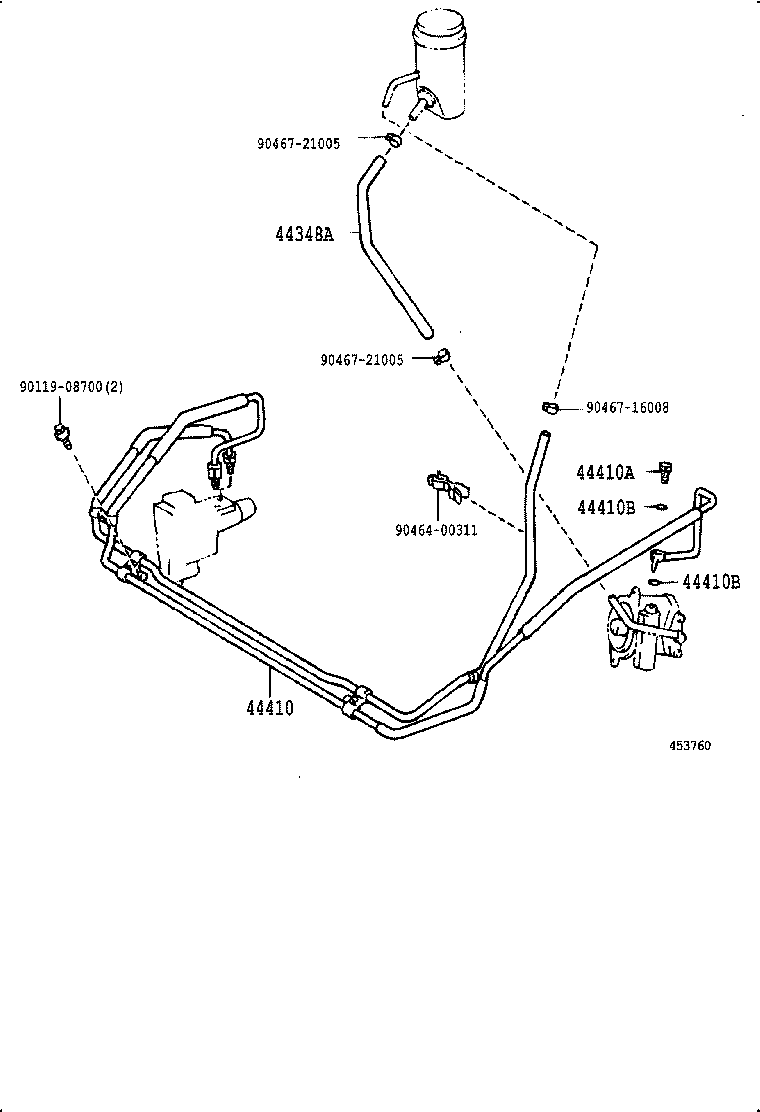

Click highlighted areas on diagram

diagram 44348A 44410 44410A 44410B 44410B 9011908700 9046400311 9046716008 9046721005 9046721005
Part # Description Qty Price
44348A - HOSE, OIL RESERVOIR TO PUMP, NO.1
44348-60190

KZJ7#

 1
44410 - TUBE ASSY, PRESSURE FEED
44410-60360

KZJ7#

 1
Common parts
90119-08700
90464-00311
90467-16008
90467-21005
