KZJ71G-MNT (1993)

Toyota Land Cruiser S/T,H/T

Production May 1993 - Apr 1996
Engine 1KZTE
Transmission MTM
Displacement 2500cc
Power 168 HP (125 kW)

(9305- )1KZTE

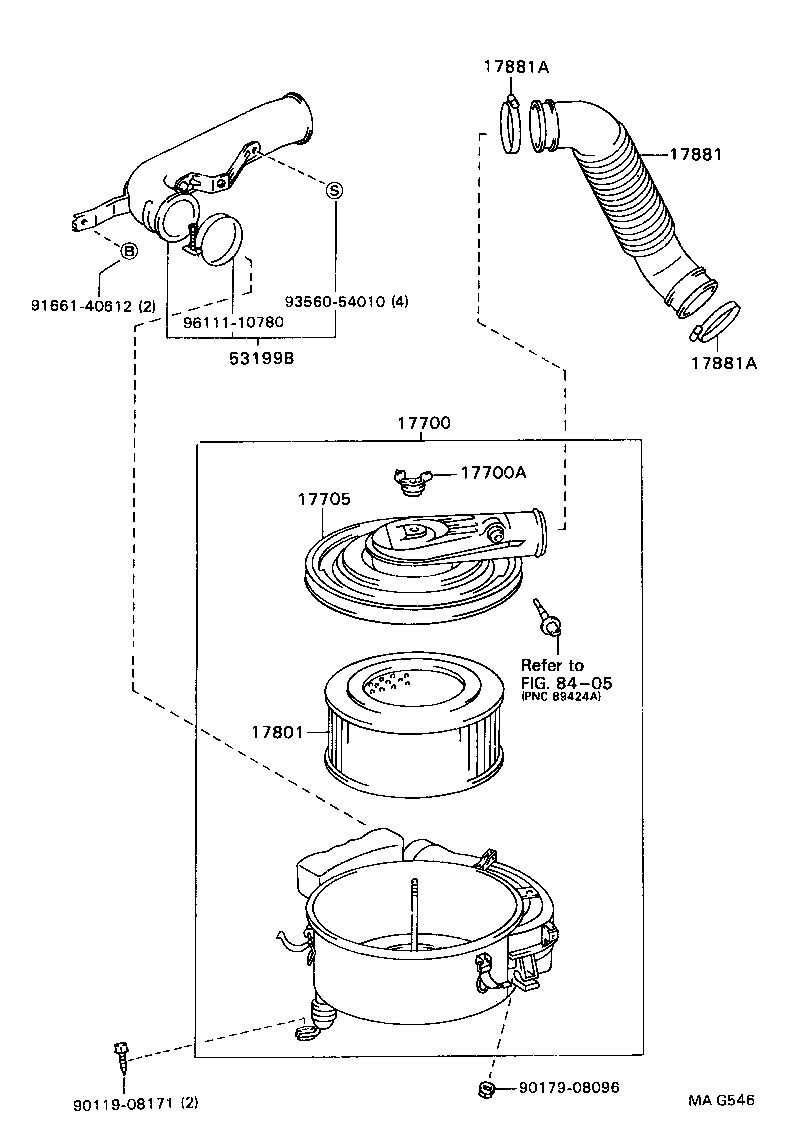

Click highlighted areas on diagram

diagram 17700 17700A 17705 17801 17881 17881A 17881A 53199B 8405 9011908171 9017908096 9166140612 9356054010 9611110780
Part # Description Qty Price
17700 - CLEANER ASSY, AIR
17700-67030

1KZTE..KZJ7#

 1
17700A - NUT, WING(FOR AIR CLEANER)
90175-08008

1KZTE..KZJ7#

 1
17705 - CAP SUB-ASSY, AIR CLEANER
17705-67020

1KZTE..KZJ7#

 1
17801 - ELEMENT SUB-ASSY, AIR CLEANER FILTER
17801-68030

1KZTE..KZJ7#

 1
17881 - HOSE, AIR CLEANER, NO.1
17881-67020

1KZTE..KZJ7#

 1
17881A - CLAMP(FOR AIR CLEANER HOSE, NO.1)
90460-77002

1KZTE..KZJ7#

AIR CLEANER SIDE

 1
90460-70002

1KZTE..KZJ7#

INLET ELBOW SIDE

 1
17881A - CLAMP(FOR AIR CLEANER HOSE, NO.1)
90460-77002

1KZTE..KZJ7#

AIR CLEANER SIDE

 1
90460-70002

1KZTE..KZJ7#

INLET ELBOW SIDE

 1
53199B - DUCT SUB-ASSY, COOL AIR INTAKE
53207-60160

KZJ7#

 1
Common parts
90119-08171
90179-08096
91661-40612
93560-54010
96111-10780
Linked diagrams
8405
