KZJ71G-MET (1993)

Toyota Land Cruiser S/T,H/T

Production May 1993 - Apr 1996
Engine 1KZTE
Transmission MTM
Displacement 2500cc
Power 168 HP (125 kW)

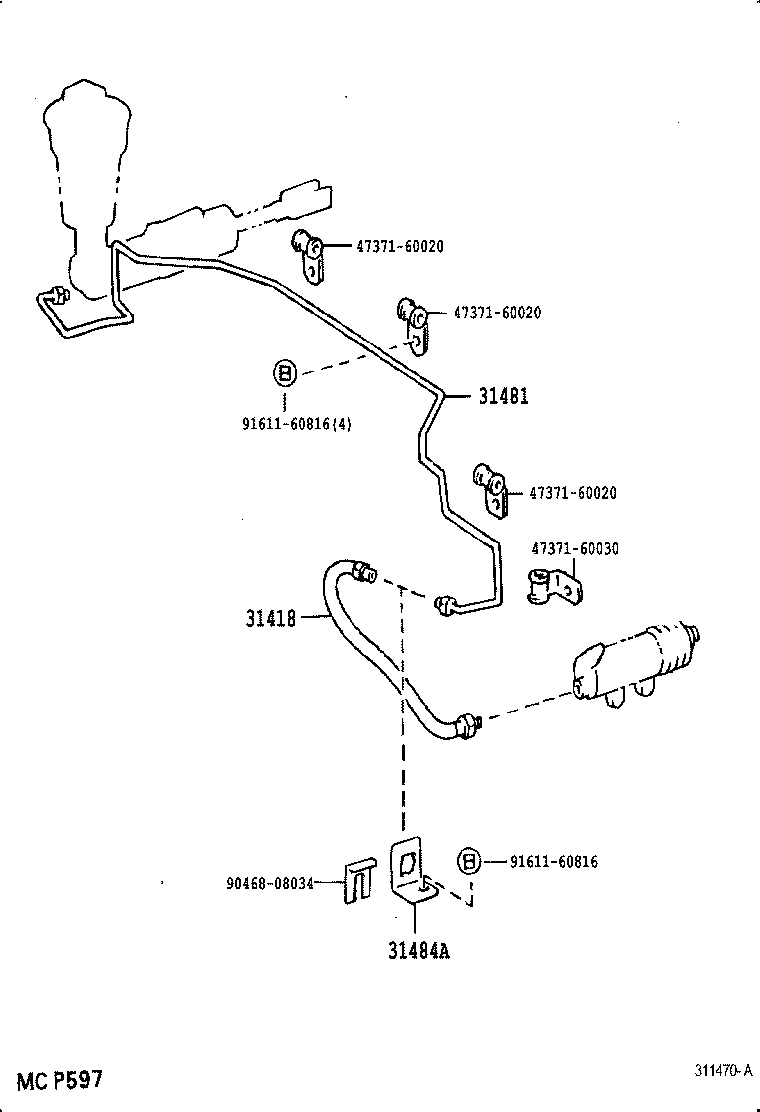

ILLUST NO. 2 OF 2(9305-9604)KZJ7#..MTM

Click highlighted areas on diagram

diagram 31418 31481 31484A 4737160020 4737160020 4737160020 4737160030 9046808034 9161160816 9161160816
Part # Description Qty Price
31418 - HOSE, CLUTCH
96812-50370

KZJ7#..MTM

 1
31481 - TUBE, CLUTCH MASTER CYLINDER TO FLEXIBLE HOSE
31481-60361

KZJ7#..MTM

 1
31484A - BRACKET, FLEXIBLE HOSE, NO.1(FOR CLUTCH)
31484-60040

KZJ7#..MTM

 1
Common parts
47371-60020
47371-60030
90468-08034
91611-60816
