KZJ71G-MET (1993)

Toyota Land Cruiser S/T,H/T

Production May 1993 - Apr 1996
Engine 1KZTE
Transmission MTM
Displacement 2500cc
Power 168 HP (125 kW)

(9305-9604)1KZTE

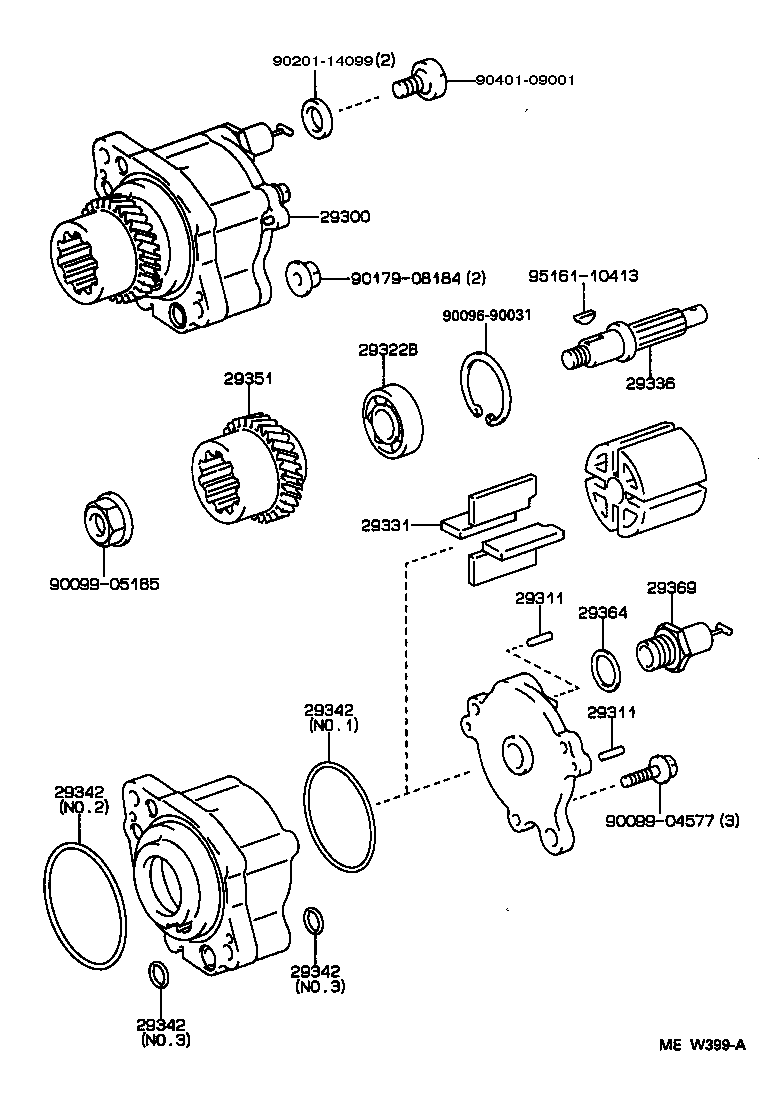

Click highlighted areas on diagram

diagram 29300 29311 29311 29322B 29331 29336 29342 29342 29342 29342 29351 29364 29369 9009690031 9009904577 9009905185 9017908184 9020114099 9040109001 9516110413
Part # Description Qty Price
29300 - PUMP ASSY, VACUUM
29300-67020

1KZTE..KZJ7#

 1
29331 - BLADE, VACUUM PUMP, A
29331-67020

1KZTE..KZJ7#

 5
29342 - PACKING, VACUUM PUMP
29342-68010

1KZTE..KZJ7#

NO.3

 2
29342-58010

1KZTE..KZJ7#

NO.1

 1
29342-67020

1KZTE..KZJ7#

NO.2

 1
29342 - PACKING, VACUUM PUMP
29342-68010

1KZTE..KZJ7#

NO.3

 2
29342-58010

1KZTE..KZJ7#

NO.1

 1
29342-67020

1KZTE..KZJ7#

NO.2

 1
29342 - PACKING, VACUUM PUMP
29342-68010

1KZTE..KZJ7#

NO.3

 2
29342-58010

1KZTE..KZJ7#

NO.1

 1
29342-67020

1KZTE..KZJ7#

NO.2

 1
29342 - PACKING, VACUUM PUMP
29342-68010

1KZTE..KZJ7#

NO.3

 2
29342-58010

1KZTE..KZJ7#

NO.1

 1
29342-67020

1KZTE..KZJ7#

NO.2

 1
29351 - GEAR, VACUUM PUMP
29351-67020

1KZTE..KZJ7#

 1
Common parts
90096-90031
90099-04577
90099-05185
90179-08184
90201-14099
90401-09001
95161-10413
