HZJ77V-PNU (1994)
Toyota Land Cruiser S/T,H/T

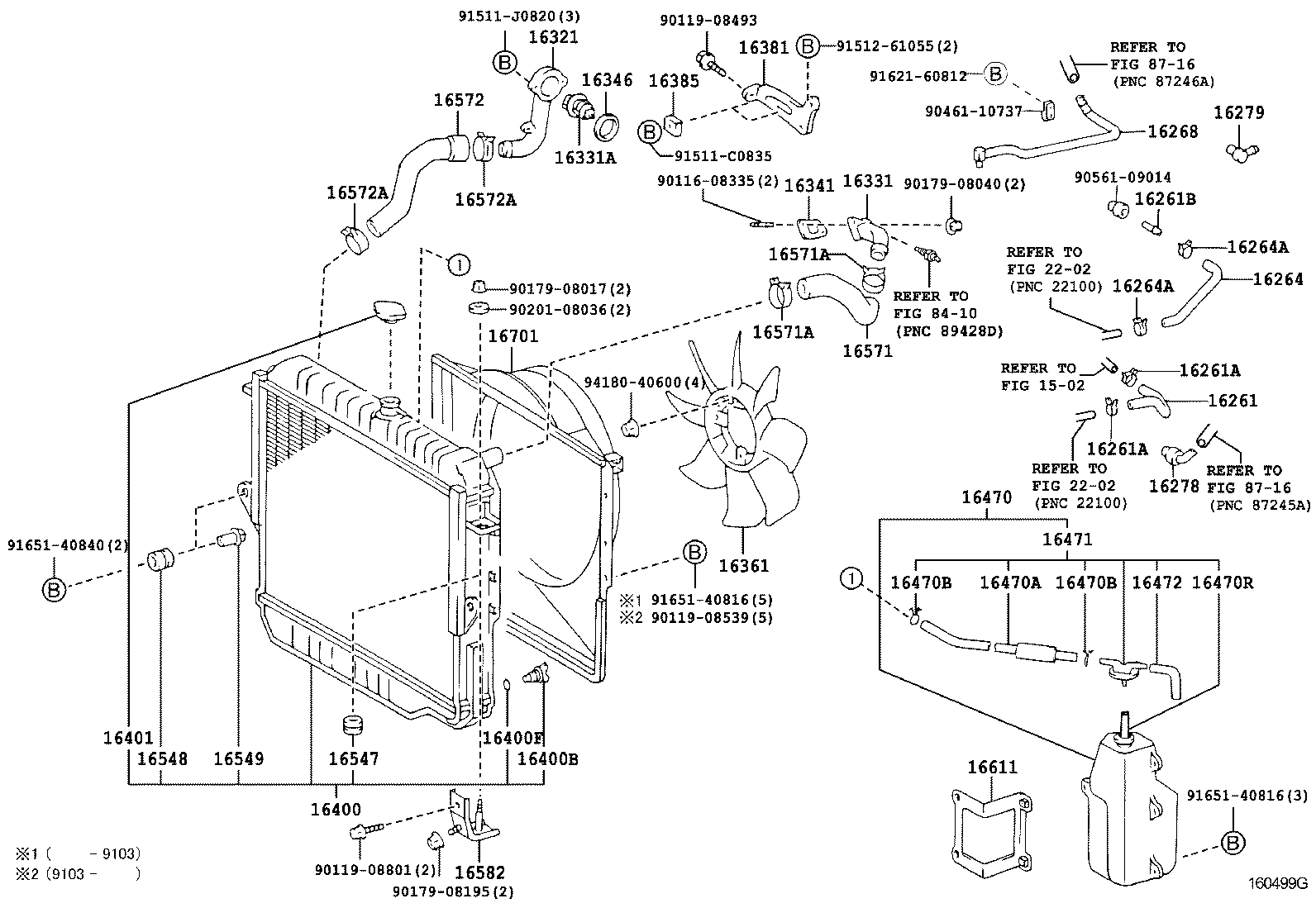

ILLUST NO. 1 OF 2(9608- )1HZ..HZJ70,71,73,74,76,77
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 16261 - HOSE, WATER BY-PASS | ||||
| 16261-17010 |
1HZ..HZJ7# ｶﾝﾚｲﾁ ｼﾖｳ OR ｼﾞﾕﾝ ｶﾝﾚｲﾁ ｼﾖｳ |
1 | ||
| 16261A - CLAMP OR CLIP, HOSE(FOR WATER BY-PASS HOSE) | ||||
| 90467-15022 |
1HZ..HZJ7# ｶﾝﾚｲﾁ ｼﾖｳ OR ｼﾞﾕﾝ ｶﾝﾚｲﾁ ｼﾖｳ |
2 | ||
| 16261A - CLAMP OR CLIP, HOSE(FOR WATER BY-PASS HOSE) | ||||
| 90467-15022 |
1HZ..HZJ7# ｶﾝﾚｲﾁ ｼﾖｳ OR ｼﾞﾕﾝ ｶﾝﾚｲﾁ ｼﾖｳ |
2 | ||
| 16261B - UNION(FOR WATER BY-PASS HOSE) | ||||
| 90406-10014 |
1HZ..HZJ7# ｶﾝﾚｲﾁ ｼﾖｳ OR ｼﾞﾕﾝ ｶﾝﾚｲﾁ ｼﾖｳ |
1 | ||
| 16264 - HOSE, WATER BY-PASS, NO.2 | ||||
| 16264-17010 |
1HZ..HZJ7# ｶﾝﾚｲﾁ ｼﾖｳ OR ｼﾞﾕﾝ ｶﾝﾚｲﾁ ｼﾖｳ |
1 | ||
| 16264-17011 |
1HZ..HZJ7# |
1 | ||
| 16264A - CLAMP OR CLIP(FOR WATER BY-PASS HOSE NO.2) | ||||
| 90467-15022 |
1HZ..HZJ7# ｶﾝﾚｲﾁ ｼﾖｳ OR ｼﾞﾕﾝ ｶﾝﾚｲﾁ ｼﾖｳ |
2 | ||
| 16264A - CLAMP OR CLIP(FOR WATER BY-PASS HOSE NO.2) | ||||
| 90467-15022 |
1HZ..HZJ7# ｶﾝﾚｲﾁ ｼﾖｳ OR ｼﾞﾕﾝ ｶﾝﾚｲﾁ ｼﾖｳ |
2 | ||
| 16268 - PIPE, WATER BY-PASS, NO.1 | ||||
| 16268-17010 |
1HZ..HZJ7# |
1 | ||
| 16278 - PIPE, WATER BY-PASS, NO.2 | ||||
| 16278-17010 |
1HZ..HZJ7# |
1 | ||
| 16279 - PIPE, WATER BY-PASS, NO.3 | ||||
| 16279-17010 |
1HZ..HZJ70,73,77 ｶﾝﾚｲﾁ ｼﾖｳ |
1 | ||
| 16279-17010 |
1HZ..HZJ73,77 |
1 | ||
| 16321 - INLET, WATER | ||||
| 16321-17010 |
1HZ..HZJ7# |
1 | ||
| 16331 - OUTLET, WATER | ||||
| 16331-17010 |
1HZ..HZJ7# |
1 | ||
| 16331A - THERMOSTAT | ||||
| 90916-03089 |
1HZ..HZJ7# *WAX 76−90 |
1 | ||
| 16341 - GASKET, WATER OUTLET | ||||
| 16341-17010 |
1HZ..HZJ7# |
1 | ||
| 16346 - GASKET, THERMOSTAT | ||||
| 16346-66020 |
1HZ..HZJ7# |
1 | ||
| 16361 - FAN | ||||
| 16361-17010 |
1HZ..HZJ7# |
1 | ||
| 16381 - BAR, FAN BELT ADJUSTING | ||||
| 16381-17010 |
1HZ..HZJ73,77 |
1 | ||
| 16385 - SLIDER, FAN BELT ADJUSTING | ||||
| 16385-17010 |
1HZ..HZJ7# |
1 | ||
| 16400 - RADIATOR ASSY | ||||
| 16400-17160 |
1HZ..HZJ73,77..ATM |
1 | ||
| 16400-17161 |
1HZ..HZJ73,77..ATM |
1 | ||
| 16470 - TANK ASSY, RADIATOR RESERVE | ||||
| 16470-17010 |
1HZ..HZJ7# |
1 | ||
| 16470A - HOSE OR PIPE(FOR RADIATOR RESERVE TANK) | ||||
| 90445-12078 |
1HZ..HZJ7# 長さ=315 |
1 | ||
| 90445-12078 |
1HZ..HZJ7# |
1 | ||
| 16470B - CLAMP OR CLIP(FOR RADIATOR RESERVE TANK HOSE) | ||||
| 90467-11085 |
1HZ..HZJ7# |
2 | ||
| 16470B - CLAMP OR CLIP(FOR RADIATOR RESERVE TANK HOSE) | ||||
| 90467-11085 |
1HZ..HZJ7# |
2 | ||
| 16471 - CAP SUB-ASSY, RESERVE TANK | ||||
| 16405-17010 |
1HZ..HZJ7# |
1 | ||
| 16472 - HOSE, BREATHER | ||||
| 85338-74040 |
1HZ..HZJ7# |
1 | ||
| 16571 - HOSE, RADIATOR, INLET | ||||
| 16571-17020 |
1HZ..HZJ7# |
1 | ||
| 16571A - CLAMP OR CLIP, HOSE(FOR RADIATOR INLET) | ||||
| 90467-42001 |
1HZ..HZJ73,77 |
2 | ||
| 16571A - CLAMP OR CLIP, HOSE(FOR RADIATOR INLET) | ||||
| 90467-42001 |
1HZ..HZJ73,77 |
2 | ||
| 16572 - HOSE, RADIATOR, OUTLET | ||||
| 16572-17020 |
1HZ..HZJ73,77 |
1 | ||
| 16572A - CLAMP OR CLIP, HOSE(FOR RADIATOR OUTLET NO.1) | ||||
| 96111-10530 |
1HZ..HZJ73,77 ｴﾝｼﾞﾝ側 |
1 | ||
| 90467-43002 |
1HZ..HZJ70,73,77 ｴﾝｼﾞﾝ側 |
1 | ||
| 96111-10490 |
1HZ..HZJ73,77 ﾗｼﾞｴｰﾀ側 |
1 | ||
| 90467-41002 |
1HZ..HZJ70,73,77 ﾗｼﾞｴｰﾀ側 |
1 | ||
| 16572A - CLAMP OR CLIP, HOSE(FOR RADIATOR OUTLET NO.1) | ||||
| 96111-10530 |
1HZ..HZJ73,77 ｴﾝｼﾞﾝ側 |
1 | ||
| 90467-43002 |
1HZ..HZJ70,73,77 ｴﾝｼﾞﾝ側 |
1 | ||
| 96111-10490 |
1HZ..HZJ73,77 ﾗｼﾞｴｰﾀ側 |
1 | ||
| 90467-41002 |
1HZ..HZJ70,73,77 ﾗｼﾞｴｰﾀ側 |
1 | ||
| 16582 - BRACKET, RADIATOR, NO.1 | ||||
| 16582-68010 |
1HZ..HZJ7# |
2 | ||
| 16611 - BRACKET, RADIATOR RESERVE TANK | ||||
| 16611-17010 |
1HZ..HZJ7# |
1 | ||
| 16611-17011 |
1HZ..HZJ7# |
1 | ||
| 16701 - SHROUD SUB-ASSY, FAN | ||||
| 16711-17021 |
1HZ..HZJ7# |
1 | ||
| 16711-17020 |
1HZ..HZJ7# |
1 | ||
| Common parts | ||||
| 90116-08335 | ||||
| 90119-08493 | ||||
| 90119-08539 | ||||
| 90119-08801 | ||||
| 90179-06080 | ||||
| 90179-08017 | ||||
| 90179-08040 | ||||
| 90179-08195 | ||||
| 90179-08233 | ||||
| 90201-08036 | ||||
| 90461-10737 | ||||
| 90561-09014 | ||||
| 91511-C0835 | ||||
| 91511-J0820 | ||||
| 91512-61055 | ||||
| 91621-60812 | ||||
| 91651-40816 | ||||
| 91651-40840 | ||||
| 91651-B0814 | ||||
| 91651-B0820 | ||||
| 94180-40600 | ||||
| Linked diagrams | ||||
| 1502 | ||||
| 2202 | ||||
| 8401 | ||||
| 8716 | ||||
(9001-9608)1HZ..HZJ70,73,77
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 16261 - HOSE, WATER BY-PASS | ||||
| 16261-17010 |
1HZ..HZJ7# ｶﾝﾚｲﾁ ｼﾖｳ OR ｼﾞﾕﾝ ｶﾝﾚｲﾁ ｼﾖｳ |
1 | ||
| 16261A - CLAMP OR CLIP, HOSE(FOR WATER BY-PASS HOSE) | ||||
| 90467-15022 |
1HZ..HZJ7# ｶﾝﾚｲﾁ ｼﾖｳ OR ｼﾞﾕﾝ ｶﾝﾚｲﾁ ｼﾖｳ |
2 | ||
| 16261A - CLAMP OR CLIP, HOSE(FOR WATER BY-PASS HOSE) | ||||
| 90467-15022 |
1HZ..HZJ7# ｶﾝﾚｲﾁ ｼﾖｳ OR ｼﾞﾕﾝ ｶﾝﾚｲﾁ ｼﾖｳ |
2 | ||
| 16261B - UNION(FOR WATER BY-PASS HOSE) | ||||
| 90406-10014 |
1HZ..HZJ7# ｶﾝﾚｲﾁ ｼﾖｳ OR ｼﾞﾕﾝ ｶﾝﾚｲﾁ ｼﾖｳ |
1 | ||
| 16264 - HOSE, WATER BY-PASS, NO.2 | ||||
| 16264-17010 |
1HZ..HZJ7# ｶﾝﾚｲﾁ ｼﾖｳ OR ｼﾞﾕﾝ ｶﾝﾚｲﾁ ｼﾖｳ |
1 | ||
| 16264-17011 |
1HZ..HZJ7# |
1 | ||
| 16264A - CLAMP OR CLIP(FOR WATER BY-PASS HOSE NO.2) | ||||
| 90467-15022 |
1HZ..HZJ7# ｶﾝﾚｲﾁ ｼﾖｳ OR ｼﾞﾕﾝ ｶﾝﾚｲﾁ ｼﾖｳ |
2 | ||
| 16264A - CLAMP OR CLIP(FOR WATER BY-PASS HOSE NO.2) | ||||
| 90467-15022 |
1HZ..HZJ7# ｶﾝﾚｲﾁ ｼﾖｳ OR ｼﾞﾕﾝ ｶﾝﾚｲﾁ ｼﾖｳ |
2 | ||
| 16268 - PIPE, WATER BY-PASS, NO.1 | ||||
| 16268-17010 |
1HZ..HZJ7# |
1 | ||
| 16278 - PIPE, WATER BY-PASS, NO.2 | ||||
| 16278-17010 |
1HZ..HZJ7# |
1 | ||
| 16279 - PIPE, WATER BY-PASS, NO.3 | ||||
| 16279-17010 |
1HZ..HZJ70,73,77 ｶﾝﾚｲﾁ ｼﾖｳ |
1 | ||
| 16279-17010 |
1HZ..HZJ73,77 |
1 | ||
| 16321 - INLET, WATER | ||||
| 16321-17010 |
1HZ..HZJ7# |
1 | ||
| 16331 - OUTLET, WATER | ||||
| 16331-17010 |
1HZ..HZJ7# |
1 | ||
| 16331A - THERMOSTAT | ||||
| 90916-03089 |
1HZ..HZJ7# *WAX 76−90 |
1 | ||
| 16341 - GASKET, WATER OUTLET | ||||
| 16341-17010 |
1HZ..HZJ7# |
1 | ||
| 16346 - GASKET, THERMOSTAT | ||||
| 16346-66020 |
1HZ..HZJ7# |
1 | ||
| 16361 - FAN | ||||
| 16361-17010 |
1HZ..HZJ7# |
1 | ||
| 16381 - BAR, FAN BELT ADJUSTING | ||||
| 16381-17010 |
1HZ..HZJ73,77 |
1 | ||
| 16385 - SLIDER, FAN BELT ADJUSTING | ||||
| 16385-17010 |
1HZ..HZJ7# |
1 | ||
| 16400 - RADIATOR ASSY | ||||
| 16400-17160 |
1HZ..HZJ73,77..ATM |
1 | ||
| 16400-17161 |
1HZ..HZJ73,77..ATM |
1 | ||
| 16400B - PLUG, RADIATOR DRAIN COCK | ||||
| 16417-15210 |
1HZ..HZJ7# |
1 | ||
| 16417-24200 |
1HZ..HZJ7# |
1 | ||
| 16400F - PACKING(FOR RADIATOR DRAIN COCK) | ||||
| 16418-24200 |
1HZ..HZJ7# |
1 | ||
| 16418-15520 |
1HZ..HZJ7# |
1 | ||
| 16401 - CAP SUB-ASSY, RADIATOR | ||||
| 16401-71010 |
1HZ..HZJ7# |
1 | ||
| 16470 - TANK ASSY, RADIATOR RESERVE | ||||
| 16470-17010 |
1HZ..HZJ7# |
1 | ||
| 16470A - HOSE OR PIPE(FOR RADIATOR RESERVE TANK) | ||||
| 90445-12078 |
1HZ..HZJ7# 長さ=315 |
1 | ||
| 90445-12078 |
1HZ..HZJ7# |
1 | ||
| 16470B - CLAMP OR CLIP(FOR RADIATOR RESERVE TANK HOSE) | ||||
| 90467-11085 |
1HZ..HZJ7# |
2 | ||
| 16470B - CLAMP OR CLIP(FOR RADIATOR RESERVE TANK HOSE) | ||||
| 90467-11085 |
1HZ..HZJ7# |
2 | ||
| 16471 - CAP SUB-ASSY, RESERVE TANK | ||||
| 16405-17010 |
1HZ..HZJ7# |
1 | ||
| 16472 - HOSE, BREATHER | ||||
| 85338-74040 |
1HZ..HZJ7# |
1 | ||
| 16547 - BUSH, RADIATOR SUPPORT, NO.1 | ||||
| 16547-68070 |
1HZ..HZJ7# |
2 | ||
| 16548 - BUSH, RADIATOR SUPPORT, NO.2 | ||||
| 16548-68070 |
1HZ..HZJ7# |
2 | ||
| 16549 - COLLAR, RADIATOR SUPPORT, NO.2 | ||||
| 16549-68070 |
1HZ..HZJ73,77 |
1 | ||
| 16549-68070 |
1HZ..HZJ7# |
2 | ||
| 16571 - HOSE, RADIATOR, INLET | ||||
| 16571-17020 |
1HZ..HZJ7# |
1 | ||
| 16571A - CLAMP OR CLIP, HOSE(FOR RADIATOR INLET) | ||||
| 90467-42001 |
1HZ..HZJ73,77 |
2 | ||
| 16571A - CLAMP OR CLIP, HOSE(FOR RADIATOR INLET) | ||||
| 90467-42001 |
1HZ..HZJ73,77 |
2 | ||
| 16572 - HOSE, RADIATOR, OUTLET | ||||
| 16572-17020 |
1HZ..HZJ73,77 |
1 | ||
| 16572A - CLAMP OR CLIP, HOSE(FOR RADIATOR OUTLET NO.1) | ||||
| 96111-10530 |
1HZ..HZJ73,77 ｴﾝｼﾞﾝ側 |
1 | ||
| 90467-43002 |
1HZ..HZJ70,73,77 ｴﾝｼﾞﾝ側 |
1 | ||
| 96111-10490 |
1HZ..HZJ73,77 ﾗｼﾞｴｰﾀ側 |
1 | ||
| 90467-41002 |
1HZ..HZJ70,73,77 ﾗｼﾞｴｰﾀ側 |
1 | ||
| 16572A - CLAMP OR CLIP, HOSE(FOR RADIATOR OUTLET NO.1) | ||||
| 96111-10530 |
1HZ..HZJ73,77 ｴﾝｼﾞﾝ側 |
1 | ||
| 90467-43002 |
1HZ..HZJ70,73,77 ｴﾝｼﾞﾝ側 |
1 | ||
| 96111-10490 |
1HZ..HZJ73,77 ﾗｼﾞｴｰﾀ側 |
1 | ||
| 90467-41002 |
1HZ..HZJ70,73,77 ﾗｼﾞｴｰﾀ側 |
1 | ||
| 16582 - BRACKET, RADIATOR, NO.1 | ||||
| 16582-68010 |
1HZ..HZJ7# |
2 | ||
| 16611 - BRACKET, RADIATOR RESERVE TANK | ||||
| 16611-17010 |
1HZ..HZJ7# |
1 | ||
| 16611-17011 |
1HZ..HZJ7# |
1 | ||
| 16701 - SHROUD SUB-ASSY, FAN | ||||
| 16711-17021 |
1HZ..HZJ7# |
1 | ||
| 16711-17020 |
1HZ..HZJ7# |
1 | ||
| Common parts | ||||
| 90116-08335 | ||||
| 90119-08493 | ||||
| 90119-08539 | ||||
| 90119-08801 | ||||
| 90179-08017 | ||||
| 90179-08040 | ||||
| 90179-08195 | ||||
| 90201-08036 | ||||
| 90461-10737 | ||||
| 90561-09014 | ||||
| 91511-C0835 | ||||
| 91511-J0820 | ||||
| 91512-61055 | ||||
| 91621-60812 | ||||
| 91651-40816 | ||||
| 91651-40840 | ||||
| 94180-40600 | ||||
| Linked diagrams | ||||
| 1502 | ||||
| 2202 | ||||
| 8410 | ||||
| 8716 | ||||

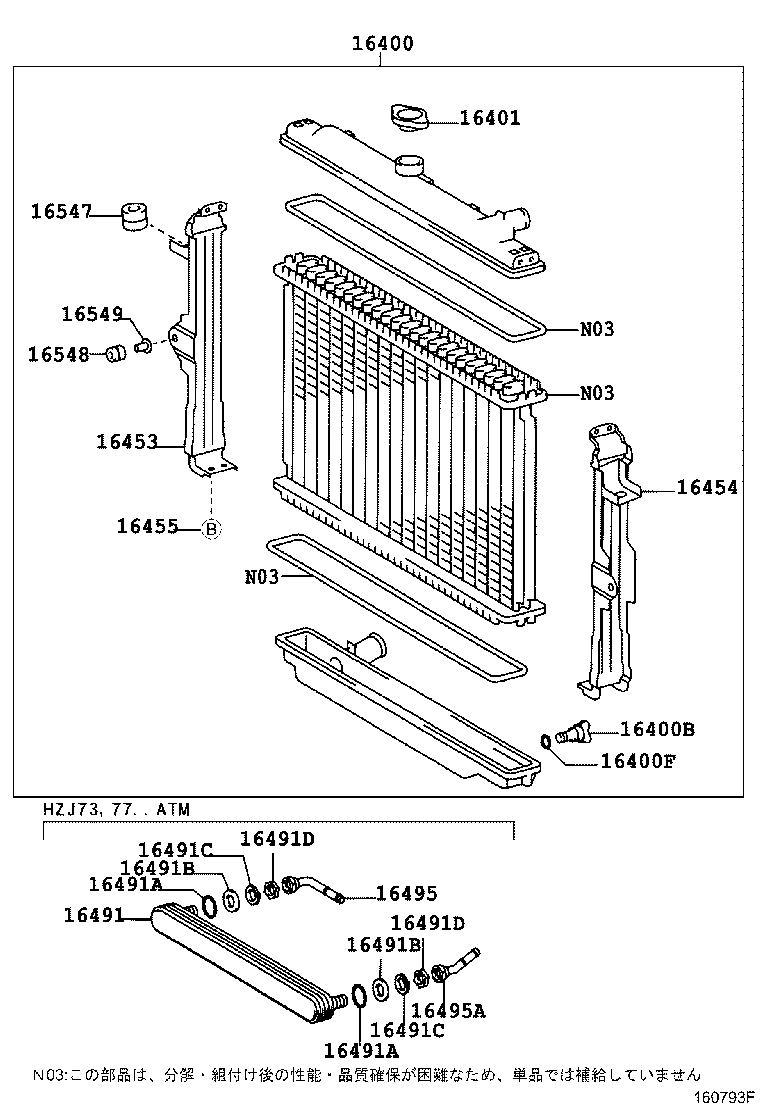

ILLUST NO. 2 OF 2(9608- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 16400 - RADIATOR ASSY | ||||
| 16400-17160 |
1HZ..HZJ73,77..ATM |
1 | ||
| 16400-17161 |
1HZ..HZJ73,77..ATM |
1 | ||
| 16400B - PLUG, RADIATOR DRAIN COCK | ||||
| 16417-15210 |
1HZ..HZJ7# |
1 | ||
| 16417-24200 |
1HZ..HZJ7# |
1 | ||
| 16400F - PACKING(FOR RADIATOR DRAIN COCK) | ||||
| 16418-24200 |
1HZ..HZJ7# |
1 | ||
| 16418-15520 |
1HZ..HZJ7# |
1 | ||
| 16401 - CAP SUB-ASSY, RADIATOR | ||||
| 16401-71010 |
1HZ..HZJ7# |
1 | ||
| 16453 - PLATE, RADIATOR SIDE | ||||
| 16453-17161 |
1HZ..HZJ73,77..ATM |
1 | ||
| 16454 - PLATE, RADIATOR SIDE | ||||
| 16454-17161 |
1HZ..HZJ73,77..ATM |
1 | ||
| 16455 - BOLT, RADIATOR SIDE SUPPORT PLATE | ||||
| 16455-67020 |
1HZ..HZJ7# |
8 | ||
| 16491 - COOLER, OIL(FOR ATM) | ||||
| 16491-67030 |
1HZ..HZJ73,77..ATM |
1 | ||
| 16491A - RING, O(FOR ATM OIL COOLER) | ||||
| 16492-61170 |
1HZ..HZJ73,77..ATM |
2 | ||
| 16491A - RING, O(FOR ATM OIL COOLER) | ||||
| 16492-61170 |
1HZ..HZJ73,77..ATM |
2 | ||
| 16491B - WASHER, PLATE(FOR ATM OIL COOLER) | ||||
| 16493-61170 |
1HZ..HZJ73,77..ATM |
2 | ||
| 16491B - WASHER, PLATE(FOR ATM OIL COOLER) | ||||
| 16493-61170 |
1HZ..HZJ73,77..ATM |
2 | ||
| 16491C - WASHER, SPRING(FOR ATM OIL COOLER) | ||||
| 16494-61170 |
1HZ..HZJ73,77..ATM |
2 | ||
| 16491C - WASHER, SPRING(FOR ATM OIL COOLER) | ||||
| 16494-61170 |
1HZ..HZJ73,77..ATM |
2 | ||
| 16491D - NUT(FOR ATM OIL COOLER) | ||||
| 16496-15580 |
1HZ..HZJ73,77..ATM |
2 | ||
| 16491D - NUT(FOR ATM OIL COOLER) | ||||
| 16496-15580 |
1HZ..HZJ73,77..ATM |
2 | ||
| 16495 - NUT, FLARE(FOR ATM OIL COOLER) | ||||
| 16495-17161 |
1HZ..HZJ73,77..ATM |
1 | ||
| 16495A - NUT, FLARE, NO.2(FOR ATM OIL COOLER) | ||||
| 16497-17161 |
1HZ..HZJ73,77..ATM |
1 | ||
| 16547 - BUSH, RADIATOR SUPPORT, NO.1 | ||||
| 16547-68070 |
1HZ..HZJ7# |
2 | ||
| 16548 - BUSH, RADIATOR SUPPORT, NO.2 | ||||
| 16548-68070 |
1HZ..HZJ7# |
2 | ||
| 16549 - COLLAR, RADIATOR SUPPORT, NO.2 | ||||
| 16549-68070 |
1HZ..HZJ73,77 |
1 | ||
| 16549-68070 |
1HZ..HZJ7# |
2 | ||
Part Price Details
Loading price information...
Part Number:
Price:
