HZJ77V-PNU (1994)

Toyota Land Cruiser S/T,H/T

Production Jan 1994 - Aug 1999
Engine 1HZ
Transmission ATM
Displacement 2500cc
Power 168 HP (125 kW)

(9001-0408)1HZ

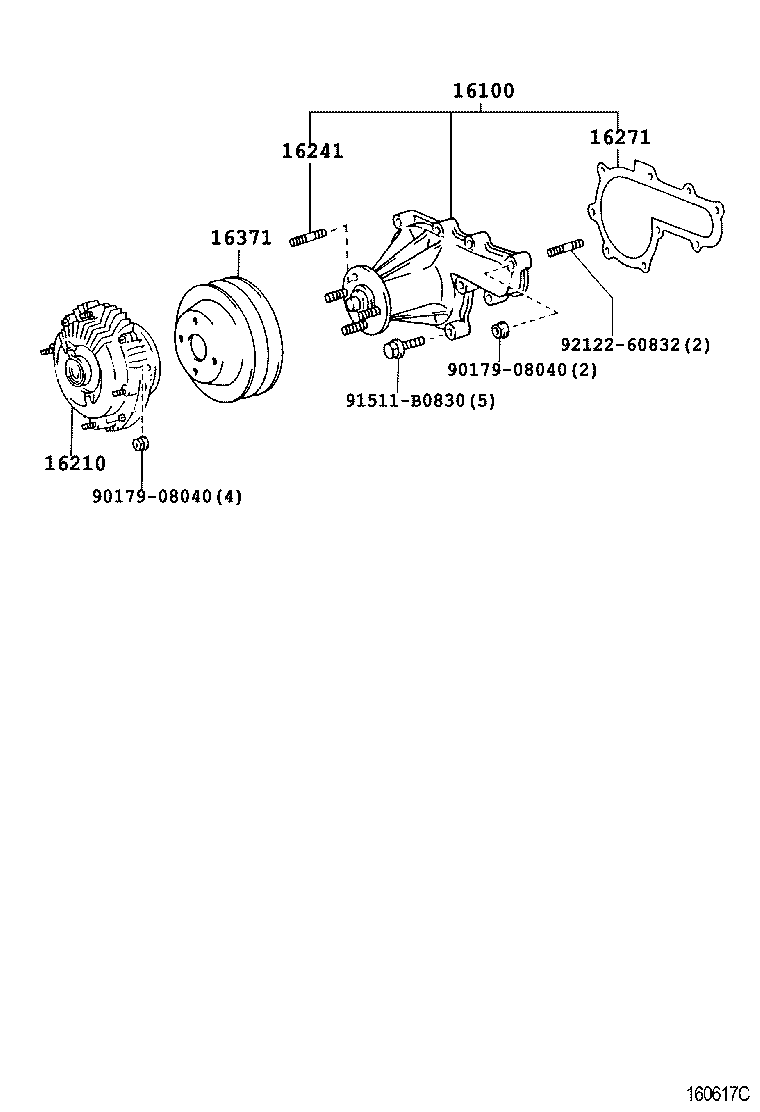

Click highlighted areas on diagram

diagram 16100 16210 16241 16271 16371 9017908040 9017908040 91511B0830 9212260832
Part # Description Qty Price
16100 - PUMP ASSY, ENGINE WATER
16100-19235

1HZ..HZJ7#

 1
16210 - COUPLING ASSY, FLUID
16210-17040

1HZ..HZJ7#

 1
16271 - GASKET, WATER PUMP
16271-17010

1HZ..HZJ7#

 1
16371 - PULLEY, FAN
16371-17010

1HZ..HZJ7#

 1
Common parts
90179-08040
91511-B0830
92122-60832
