HZJ77HV-PNU (1994)

Toyota Land Cruiser S/T,H/T

Production Jan 1994 - Aug 1999
Engine 1HZ
Transmission ATM
Displacement 2500cc
Power 168 HP (125 kW)

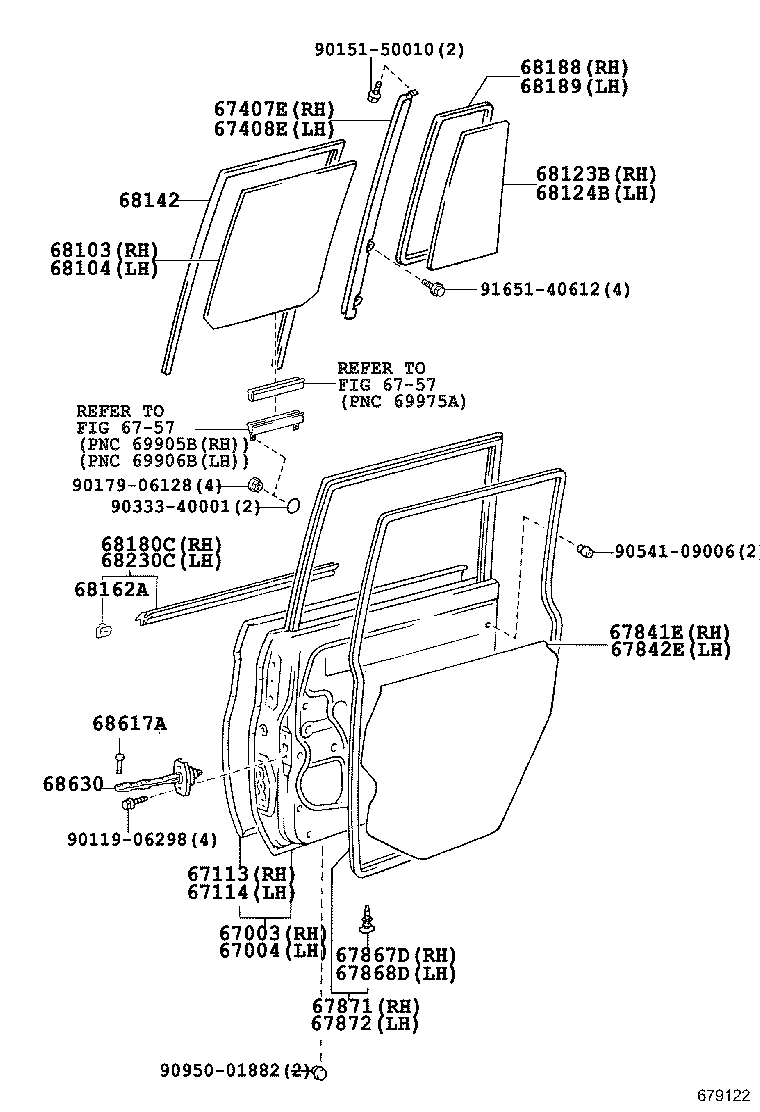

ILLUST NO. 1 OF 2(9608-9908)HZJ75,77..LX,STD ; (9908- )HZJ76,79

Click highlighted areas on diagram

ﾄﾞｱﾊﾟﾈﾙ

diagram 67003 67004 67113 67114 67407E 67408E 6757 6757 67841E 67842E 67867D 67868D 67871 67872 68103 68104 68123B 68124B 68142 68162A 68180C 68188 68189 68230C 68617A 68630 9011906298 9015150010 9017906128 9033340001 9054109006 9095001882 9165140612
Part # Description Qty Price
68103 - GLASS SUB-ASSY, REAR DOOR, RH
68113-60140

HZJ77..LX

*TT,厚さ=4.0,ｸﾞﾘｰﾝ

 1
68104 - GLASS SUB-ASSY, REAR DOOR, LH
68114-60140

HZJ77..LX

*TT,厚さ=4.0,ｸﾞﾘｰﾝ

 1
68123B - GLASS, REAR DOOR QUARTER WINDOW, RH
68123-60150

HZJ77..LX

*TT,厚さ=4.0,ｸﾞﾘｰﾝ

 1
68124B - GLASS, REAR DOOR QUARTER WINDOW, LH
68124-60150

HZJ77..LX

*TT,厚さ=4.0,ｸﾞﾘｰﾝ

 1
Common parts
90119-06298
90151-50010
90179-06128
90333-40001
90541-09006
90950-01882
91651-40612
Linked diagrams
6757
