HZJ77HV-PNU (1994)

Toyota Land Cruiser S/T,H/T

Production Jan 1994 - Aug 1999
Engine 1HZ
Transmission ATM
Displacement 2500cc
Power 168 HP (125 kW)

(9001-0408)ATM

Click highlighted areas on diagram

A440F,A442F,A343F

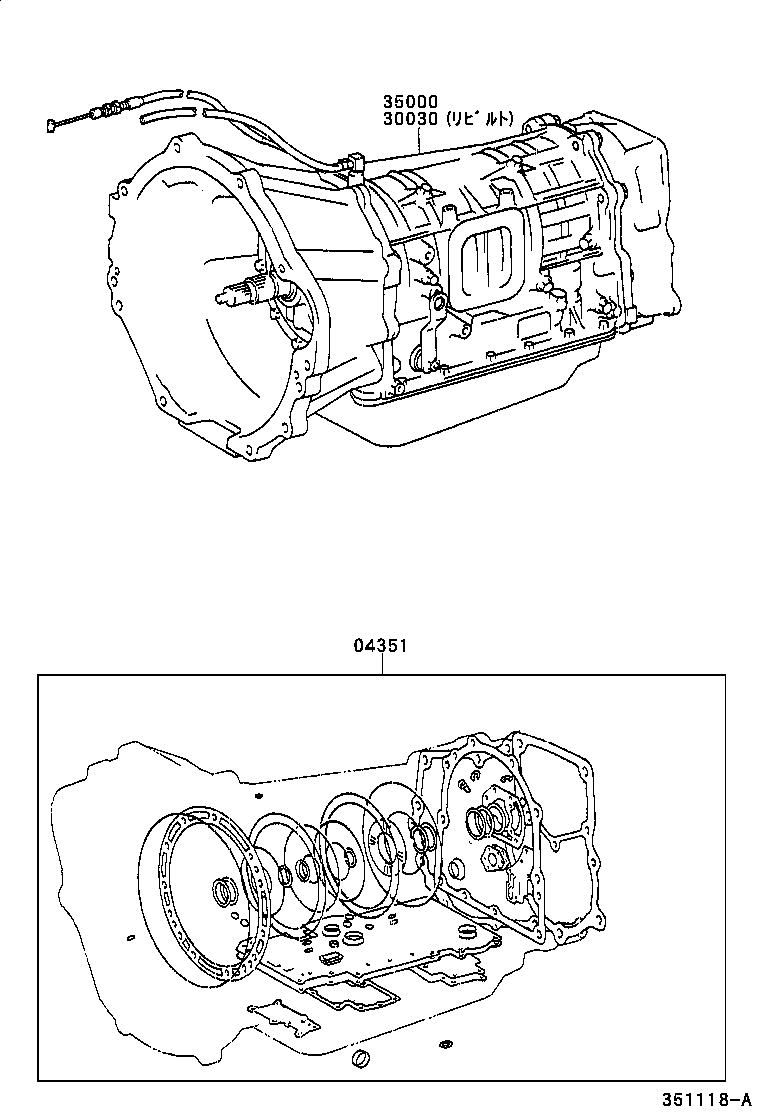

diagram 04351 30030 35000
Part # Description Qty Price
04351 - GASKET KIT, AUTOMATIC TRANSMISSION OVERHAUL
04351-60020

HZJ7#..ATM

 1
04351-60110

HZJ73,77..ATM

 1
30030 - TRANSMISSION ASSY, REBUILT
30030-60350

HZJ7#..ATM

 1
30030-60800

HZJ73,77..ATM

 1
30030-60801

HZJ73,77..ATM

 1
35000 - TRANSMISSION ASSY, AUTOMATIC
35000-60350

HZJ7#..ATM

A440F

 1
35000-60801

HZJ73,77..ATM

A442F

 1
35000-60800

HZJ73,77..ATM

A440F

 1
