HZJ77HV-PEU (1990)
Toyota Land Cruiser S/T,H/T

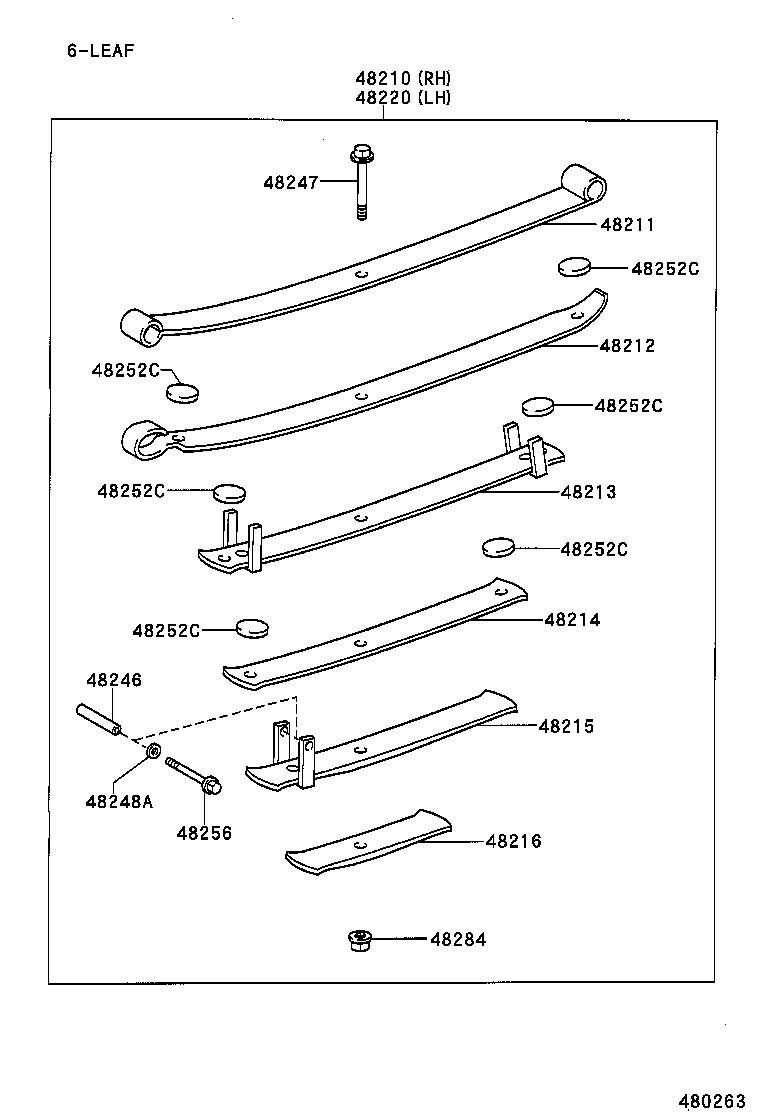

ILLUST NO. 2 OF 2(9608-9908)HZJ77
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 48210 - SPRING ASSY, REAR RH | ||||
| 48210-60760 |
HZJ77 6枚ﾘｰﾌ |
1 | ||
| 48210-60761 |
HZJ77 6枚ﾘｰﾌ |
1 | ||
| 48210-60761 |
HZJ77 6枚ﾘｰﾌ |
1 | ||
| 48210-60880 |
HZJ77 6枚ﾘｰﾌ |
1 | ||
| 48211 - LEAF, REAR SPRING, NO.1 | ||||
| 48211-60760 |
HZJ77,PZJ77 |
2 | ||
| 48211-60761 |
HZJ77,PZJ77 |
2 | ||
| 48211-60880 |
HZJ77 |
2 | ||
| 48211-60761 |
HZJ77,PZJ77 |
2 | ||
| 48212 - LEAF, REAR SPRING, NO.2 | ||||
| 48212-60760 |
HZJ77,PZJ77 |
2 | ||
| 48212-60761 |
HZJ77,PZJ77 |
2 | ||
| 48212-60761 |
HZJ77,PZJ77 |
2 | ||
| 48212-60880 |
HZJ77 |
2 | ||
| 48213 - LEAF, REAR SPRING, NO.3 | ||||
| 48213-60760 |
HZJ77,PZJ77 |
2 | ||
| 48202-60880 |
HZJ77 |
2 | ||
| 48213-60760 |
HZJ77,PZJ77 |
2 | ||
| 48214 - LEAF, REAR SPRING, NO.4 | ||||
| 48202-60760 |
HZJ77 |
2 | ||
| 48202-60760 |
HZJ77 |
2 | ||
| 48214-60880 |
HZJ77 |
2 | ||
| 48215 - LEAF, REAR SPRING, NO.5 | ||||
| 48203-60880 |
HZJ77 |
2 | ||
| 48215-60760 |
HZJ77,PZJ77 |
2 | ||
| 48215-60760 |
HZJ77,PZJ77 |
2 | ||
| 48216 - LEAF, REAR SPRING, NO.6 | ||||
| 48216-60880 |
HZJ77 |
2 | ||
| 48216-60760 |
HZJ77,PZJ77 |
2 | ||
| 48216-60760 |
HZJ77,PZJ77 |
2 | ||
| 48220 - SPRING ASSY, REAR LH | ||||
| 48210-60770 |
HZJ77 6枚ﾘｰﾌ |
1 | ||
| 48210-60771 |
HZJ77 6枚ﾘｰﾌ |
1 | ||
| 48210-60890 |
HZJ77 6枚ﾘｰﾌ |
1 | ||
| 48210-60771 |
HZJ77 6枚ﾘｰﾌ |
1 | ||
| 48246 - CASE, REAR SPRING CLIP BOLT | ||||
| 48146-60742 |
HZJ70,73,77 |
2 | ||
| 48247 - BOLT, REAR SPRING, CENTER | ||||
| 48289-60010 |
FJ75,HZJ7#,PZJ7# 長さ=120 |
2 | ||
| 48289-60010 |
HZJ70,73,77 |
4 | ||
| 48289-60010 |
HZJ70,73,77 長さ=120 |
2 | ||
| 48289-60010 |
HZJ73,77,PZJ7# |
2 | ||
| 48248A - WASHER(FOR REAR SPRING CLIP BOLT) | ||||
| 48148-37010 |
HZJ70,73,77 |
2 | ||
| 48252C - SILENCER, REAR SPRING, NO.2 | ||||
| 48154-60230 |
HZJ70,73,77,PZJ7# |
14 | ||
| 48154-60230 |
HZJ77 |
14 | ||
| 48154-60230 |
HZJ70,73,77 |
12 | ||
| 48154-60240 |
HZJ77 |
12 | ||
| 48252C - SILENCER, REAR SPRING, NO.2 | ||||
| 48154-60230 |
HZJ70,73,77,PZJ7# |
14 | ||
| 48154-60230 |
HZJ77 |
14 | ||
| 48154-60230 |
HZJ70,73,77 |
12 | ||
| 48154-60240 |
HZJ77 |
12 | ||
| 48252C - SILENCER, REAR SPRING, NO.2 | ||||
| 48154-60230 |
HZJ70,73,77,PZJ7# |
14 | ||
| 48154-60230 |
HZJ77 |
14 | ||
| 48154-60230 |
HZJ70,73,77 |
12 | ||
| 48154-60240 |
HZJ77 |
12 | ||
| 48252C - SILENCER, REAR SPRING, NO.2 | ||||
| 48154-60230 |
HZJ70,73,77,PZJ7# |
14 | ||
| 48154-60230 |
HZJ77 |
14 | ||
| 48154-60230 |
HZJ70,73,77 |
12 | ||
| 48154-60240 |
HZJ77 |
12 | ||
| 48252C - SILENCER, REAR SPRING, NO.2 | ||||
| 48154-60230 |
HZJ70,73,77,PZJ7# |
14 | ||
| 48154-60230 |
HZJ77 |
14 | ||
| 48154-60230 |
HZJ70,73,77 |
12 | ||
| 48154-60240 |
HZJ77 |
12 | ||
| 48252C - SILENCER, REAR SPRING, NO.2 | ||||
| 48154-60230 |
HZJ70,73,77,PZJ7# |
14 | ||
| 48154-60230 |
HZJ77 |
14 | ||
| 48154-60230 |
HZJ70,73,77 |
12 | ||
| 48154-60240 |
HZJ77 |
12 | ||
| 48256 - BOLT, HEXAGON(FOR REAR SPRING CLIP SET) | ||||
| 48156-60742 |
HZJ70,73,77 |
2 | ||
| 48284 - NUT, REAR SPRING CENTER BOLT | ||||
| 48284-60062 |
HZJ73,77..ZX;FJ75,HZJ71,74,75,76,79,PZJ7# |
2 | ||
| 48284-60062 |
HZJ7#,PZJ7# |
2 | ||

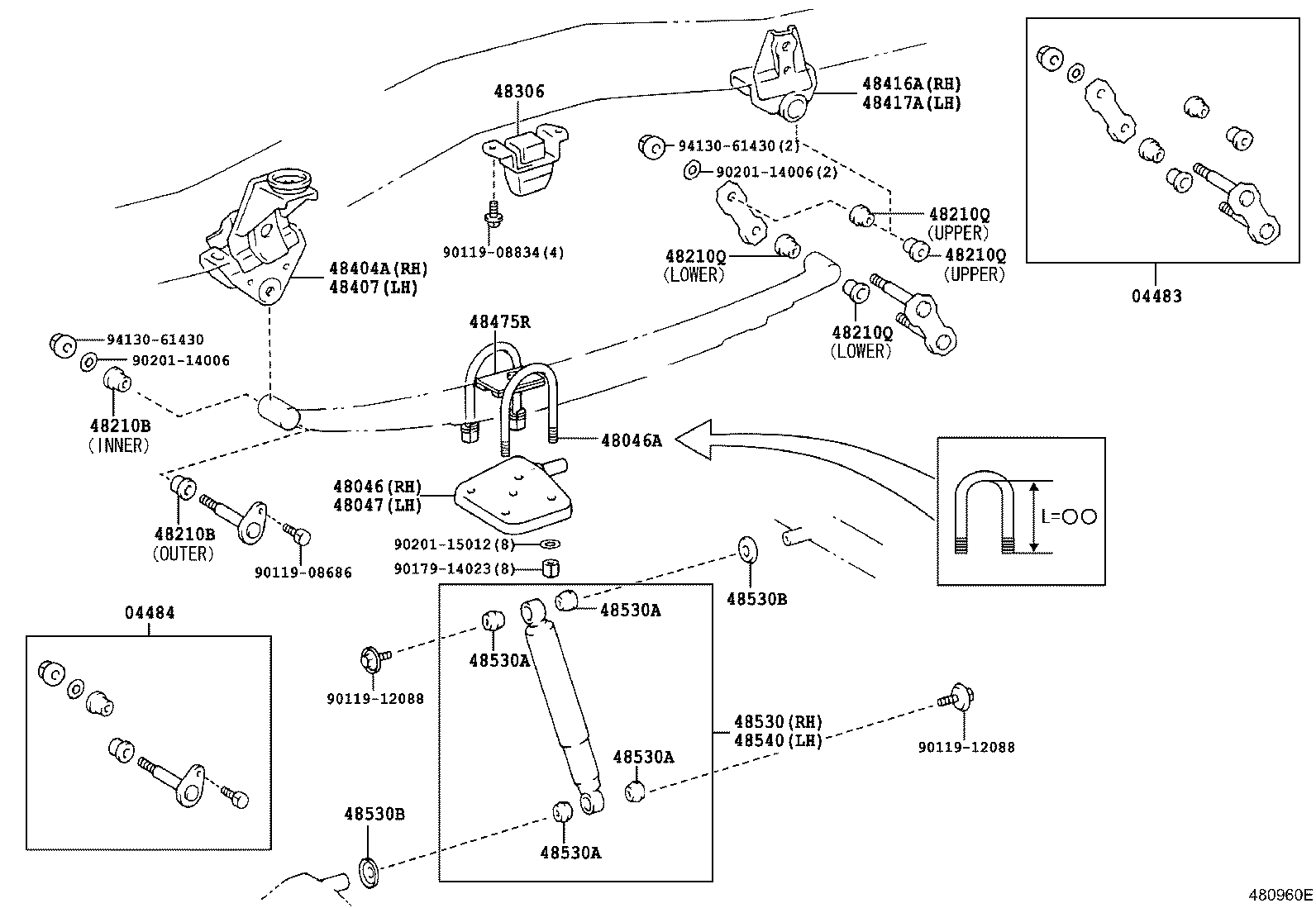

ILLUST NO. 1 OF 2(9001-9607)FJ75,HZJ7#,PZJ7#
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 04483 - SHACKLE KIT, REAR SPRING | ||||
| 04483-60080 |
FJ75,HZJ75,77,PZJ77 |
2 | ||
| 04483-60080 |
HZJ75,77,PZJ77 |
2 | ||
| 04484 - PIN KIT, REAR SPRING | ||||
| 04484-60020 |
FJ75,HZJ75,77,PZJ77 |
2 | ||
| 04484-60031 |
HZJ75,77,PZJ77 |
2 | ||
| 48046 - SEAT SUB-ASSY, SPRING U BOLT, RH | ||||
| 48046-60090 |
HZJ7#,PZJ7# |
1 | ||
| 48046-60090 |
HZJ73,77..ZX;FJ75,HZJ71,74,75,76,79,PZJ7# |
1 | ||
| 48046A - BOLT, U(FOR REAR SPRING) | ||||
| 90117-14178 |
HZJ77,PZJ77 長さ=185,ｱﾘ(PNC 48475R) |
2 | ||
| 90117-14177 |
HZJ77..ZX;HZJ71,74,PZJ77 長さ=175,ｱﾘ(PNC 48475R) |
2 | ||
| 90117-14178 |
HZJ77,PZJ77 長さ=185,ｱﾘ(PNC 48475R) |
2 | ||
| 90117-14177 |
HZJ77,PZJ77 長さ=175 |
4 | ||
| 90117-14021 |
HZJ77 長さ=190 |
4 | ||
| 90117-14032 |
HZJ77 長さ=200,ｱﾘ(PNC 48475R) |
2 | ||
| 48047 - SEAT SUB-ASSY, SPRING U BOLT, LH | ||||
| 48047-60080 |
HZJ7#,PZJ7# |
1 | ||
| 48047-60080 |
HZJ73,77..ZX;FJ75,HZJ71,74,75,76,79,PZJ7# |
1 | ||
| 48210B - BUSH(FOR REAR SPRING PIN) | ||||
| 90385-18009 |
HZJ75,77,PZJ77 |
4 | ||
| 90385-18009 |
FJ75,HZJ75,77,PZJ77 |
4 | ||
| 48210Q - BUSH(FOR REAR SPRING SHACKLE) | ||||
| 90385-18009 |
HZJ75,77,PZJ77 |
8 | ||
| 90385-18009 |
FJ75,HZJ75,77,PZJ77 |
8 | ||
| 48210Q - BUSH(FOR REAR SPRING SHACKLE) | ||||
| 90385-18009 |
HZJ75,77,PZJ77 |
8 | ||
| 90385-18009 |
FJ75,HZJ75,77,PZJ77 |
8 | ||
| 48306 - BUMPER SUB-ASSY, REAR SPRING | ||||
| 48306-60050 |
HZJ73,77,PZJ7# |
2 | ||
| 48306-60050 |
HZJ70,73,77,PZJ7# |
2 | ||
| 48404A - BRACKET SUB-ASSY, SPRING, NO.3 RH | ||||
| 48404-60050 |
HZJ77,PZJ77 |
1 | ||
| 48404-60050 |
HZJ77,PZJ77 |
1 | ||
| 48407 - BRACKET SUB-ASSY, SPRING, NO.3 LH | ||||
| 48407-60040 |
HZJ77,PZJ77 |
1 | ||
| 48407-60040 |
HZJ77,PZJ77 |
1 | ||
| 48416A - BRACKET, SPRING, NO.4 RH | ||||
| 48416-60070 |
FJ75,HZJ75,77,PZJ77 |
1 | ||
| 48416-60070 |
HZJ75,77,PZJ77 |
1 | ||
| 48417A - BRACKET, SPRING, NO.4 LH | ||||
| 48416-60070 |
FJ75,HZJ75,77,PZJ77 |
1 | ||
| 48416-60070 |
HZJ75,77,PZJ77 |
1 | ||
| 48475R - PLATE, DISTANCE(FOR REAR) | ||||
| 48475-60020 |
HZJ7#,PZJ7# |
1 | ||
| 48475-60020 |
HZJ73,77..ZX;FJ75,HZJ71,74,75,76,79,PZJ7# |
1 | ||
| 48530 - ABSORBER ASSY, SHOCK, REAR RH | ||||
| 48531-69295 |
HZJ70,73,77,PZJ7# |
1 | ||
| 48531-69295 |
HZJ73,77,PZJ7# |
1 | ||
| 48531-69515 |
HZJ77 |
1 | ||
| 48531-69296 |
HZJ70,73,77 |
1 | ||
| 48530A - BUSH(FOR REAR SHOCK ABSORBER) | ||||
| 90385-19003 |
HZJ73,77..ZX;FJ75,HZJ71,74,75,76,79,PZJ7# |
8 | ||
| 90385-19003 |
HZJ7#,PZJ7# |
8 | ||
| 48530A - BUSH(FOR REAR SHOCK ABSORBER) | ||||
| 90385-19003 |
HZJ73,77..ZX;FJ75,HZJ71,74,75,76,79,PZJ7# |
8 | ||
| 90385-19003 |
HZJ7#,PZJ7# |
8 | ||
| 48530A - BUSH(FOR REAR SHOCK ABSORBER) | ||||
| 90385-19003 |
HZJ73,77..ZX;FJ75,HZJ71,74,75,76,79,PZJ7# |
8 | ||
| 90385-19003 |
HZJ7#,PZJ7# |
8 | ||
| 48530A - BUSH(FOR REAR SHOCK ABSORBER) | ||||
| 90385-19003 |
HZJ73,77..ZX;FJ75,HZJ71,74,75,76,79,PZJ7# |
8 | ||
| 90385-19003 |
HZJ7#,PZJ7# |
8 | ||
| 48530B - WASHER, REAR SHOCK ABSORBER CUSHION, NO.1 | ||||
| 90948-03011 |
HZJ7#,PZJ7# |
4 | ||
| 90948-03011 |
HZJ73,77..ZX;FJ75,HZJ71,74,75,76,79,PZJ7# |
4 | ||
| 48530B - WASHER, REAR SHOCK ABSORBER CUSHION, NO.1 | ||||
| 90948-03011 |
HZJ7#,PZJ7# |
4 | ||
| 90948-03011 |
HZJ73,77..ZX;FJ75,HZJ71,74,75,76,79,PZJ7# |
4 | ||
| 48540 - ABSORBER ASSY, SHOCK, REAR LH | ||||
| 48531-69295 |
HZJ73,77,PZJ7# |
1 | ||
| 48531-69515 |
HZJ77 |
1 | ||
| 48531-69296 |
HZJ70,73,77 |
1 | ||
| 48531-69295 |
HZJ70,73,77,PZJ7# |
1 | ||
| Common parts | ||||
| 90119-08686 | ||||
| 90119-08834 | ||||
| 90119-12088 | ||||
| 90179-14023 | ||||
| 90201-14006 | ||||
| 90201-15012 | ||||
| 94115-51400 | ||||
ILLUST NO. 1 OF 2(9607- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 04483 - SHACKLE KIT, REAR SPRING | ||||
| 04483-60080 |
FJ75,HZJ75,77,PZJ77 |
2 | ||
| 04483-60080 |
HZJ75,77,PZJ77 |
2 | ||
| 04484 - PIN KIT, REAR SPRING | ||||
| 04484-60020 |
FJ75,HZJ75,77,PZJ77 |
2 | ||
| 04484-60031 |
HZJ75,77,PZJ77 |
2 | ||
| 48046 - SEAT SUB-ASSY, SPRING U BOLT, RH | ||||
| 48046-60090 |
HZJ7#,PZJ7# |
1 | ||
| 48046-60090 |
HZJ73,77..ZX;FJ75,HZJ71,74,75,76,79,PZJ7# |
1 | ||
| 48046A - BOLT, U(FOR REAR SPRING) | ||||
| 90117-14178 |
HZJ77,PZJ77 長さ=185,ｱﾘ(PNC 48475R) |
2 | ||
| 90117-14177 |
HZJ77..ZX;HZJ71,74,PZJ77 長さ=175,ｱﾘ(PNC 48475R) |
2 | ||
| 90117-14178 |
HZJ77,PZJ77 長さ=185,ｱﾘ(PNC 48475R) |
2 | ||
| 90117-14177 |
HZJ77,PZJ77 長さ=175 |
4 | ||
| 90117-14021 |
HZJ77 長さ=190 |
4 | ||
| 90117-14032 |
HZJ77 長さ=200,ｱﾘ(PNC 48475R) |
2 | ||
| 48047 - SEAT SUB-ASSY, SPRING U BOLT, LH | ||||
| 48047-60080 |
HZJ7#,PZJ7# |
1 | ||
| 48047-60080 |
HZJ73,77..ZX;FJ75,HZJ71,74,75,76,79,PZJ7# |
1 | ||
| 48210B - BUSH(FOR REAR SPRING PIN) | ||||
| 90385-18009 |
HZJ75,77,PZJ77 |
4 | ||
| 90385-18009 |
FJ75,HZJ75,77,PZJ77 |
4 | ||
| 48210B - BUSH(FOR REAR SPRING PIN) | ||||
| 90385-18009 |
HZJ75,77,PZJ77 |
4 | ||
| 90385-18009 |
FJ75,HZJ75,77,PZJ77 |
4 | ||
| 48210Q - BUSH(FOR REAR SPRING SHACKLE) | ||||
| 90385-18009 |
HZJ75,77,PZJ77 |
8 | ||
| 90385-18009 |
FJ75,HZJ75,77,PZJ77 |
8 | ||
| 48210Q - BUSH(FOR REAR SPRING SHACKLE) | ||||
| 90385-18009 |
HZJ75,77,PZJ77 |
8 | ||
| 90385-18009 |
FJ75,HZJ75,77,PZJ77 |
8 | ||
| 48210Q - BUSH(FOR REAR SPRING SHACKLE) | ||||
| 90385-18009 |
HZJ75,77,PZJ77 |
8 | ||
| 90385-18009 |
FJ75,HZJ75,77,PZJ77 |
8 | ||
| 48210Q - BUSH(FOR REAR SPRING SHACKLE) | ||||
| 90385-18009 |
HZJ75,77,PZJ77 |
8 | ||
| 90385-18009 |
FJ75,HZJ75,77,PZJ77 |
8 | ||
| 48306 - BUMPER SUB-ASSY, REAR SPRING | ||||
| 48306-60050 |
HZJ73,77,PZJ7# |
2 | ||
| 48306-60050 |
HZJ70,73,77,PZJ7# |
2 | ||
| 48404A - BRACKET SUB-ASSY, SPRING, NO.3 RH | ||||
| 48404-60050 |
HZJ77,PZJ77 |
1 | ||
| 48404-60050 |
HZJ77,PZJ77 |
1 | ||
| 48407 - BRACKET SUB-ASSY, SPRING, NO.3 LH | ||||
| 48407-60040 |
HZJ77,PZJ77 |
1 | ||
| 48407-60040 |
HZJ77,PZJ77 |
1 | ||
| 48416A - BRACKET, SPRING, NO.4 RH | ||||
| 48416-60070 |
FJ75,HZJ75,77,PZJ77 |
1 | ||
| 48416-60070 |
HZJ75,77,PZJ77 |
1 | ||
| 48417A - BRACKET, SPRING, NO.4 LH | ||||
| 48416-60070 |
FJ75,HZJ75,77,PZJ77 |
1 | ||
| 48416-60070 |
HZJ75,77,PZJ77 |
1 | ||
| 48475R - PLATE, DISTANCE(FOR REAR) | ||||
| 48475-60020 |
HZJ7#,PZJ7# |
1 | ||
| 48475-60020 |
HZJ73,77..ZX;FJ75,HZJ71,74,75,76,79,PZJ7# |
1 | ||
| 48530 - ABSORBER ASSY, SHOCK, REAR RH | ||||
| 48531-69295 |
HZJ70,73,77,PZJ7# |
1 | ||
| 48531-69295 |
HZJ73,77,PZJ7# |
1 | ||
| 48531-69515 |
HZJ77 |
1 | ||
| 48531-69296 |
HZJ70,73,77 |
1 | ||
| 48530A - BUSH(FOR REAR SHOCK ABSORBER) | ||||
| 90385-19003 |
HZJ73,77..ZX;FJ75,HZJ71,74,75,76,79,PZJ7# |
8 | ||
| 90385-19003 |
HZJ7#,PZJ7# |
8 | ||
| 48530A - BUSH(FOR REAR SHOCK ABSORBER) | ||||
| 90385-19003 |
HZJ73,77..ZX;FJ75,HZJ71,74,75,76,79,PZJ7# |
8 | ||
| 90385-19003 |
HZJ7#,PZJ7# |
8 | ||
| 48530A - BUSH(FOR REAR SHOCK ABSORBER) | ||||
| 90385-19003 |
HZJ73,77..ZX;FJ75,HZJ71,74,75,76,79,PZJ7# |
8 | ||
| 90385-19003 |
HZJ7#,PZJ7# |
8 | ||
| 48530A - BUSH(FOR REAR SHOCK ABSORBER) | ||||
| 90385-19003 |
HZJ73,77..ZX;FJ75,HZJ71,74,75,76,79,PZJ7# |
8 | ||
| 90385-19003 |
HZJ7#,PZJ7# |
8 | ||
| 48530B - WASHER, REAR SHOCK ABSORBER CUSHION, NO.1 | ||||
| 90948-03011 |
HZJ7#,PZJ7# |
4 | ||
| 90948-03011 |
HZJ73,77..ZX;FJ75,HZJ71,74,75,76,79,PZJ7# |
4 | ||
| 48530B - WASHER, REAR SHOCK ABSORBER CUSHION, NO.1 | ||||
| 90948-03011 |
HZJ7#,PZJ7# |
4 | ||
| 90948-03011 |
HZJ73,77..ZX;FJ75,HZJ71,74,75,76,79,PZJ7# |
4 | ||
| 48540 - ABSORBER ASSY, SHOCK, REAR LH | ||||
| 48531-69295 |
HZJ73,77,PZJ7# |
1 | ||
| 48531-69515 |
HZJ77 |
1 | ||
| 48531-69296 |
HZJ70,73,77 |
1 | ||
| 48531-69295 |
HZJ70,73,77,PZJ7# |
1 | ||
| Common parts | ||||
| 90119-08686 | ||||
| 90119-08834 | ||||
| 90119-12088 | ||||
| 90179-14023 | ||||
| 90201-14006 | ||||
| 90201-15012 | ||||
| 94130-61430 | ||||
ILLUST NO. 2 OF 2(9006- )FJ75,HZJ70,73,75,77,PZJ7#
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 48210 - SPRING ASSY, REAR RH | ||||
| 48210-60760 |
HZJ77 6枚ﾘｰﾌ |
1 | ||
| 48210-60761 |
HZJ77 6枚ﾘｰﾌ |
1 | ||
| 48210-60761 |
HZJ77 6枚ﾘｰﾌ |
1 | ||
| 48210-60880 |
HZJ77 6枚ﾘｰﾌ |
1 | ||
| 48211 - LEAF, REAR SPRING, NO.1 | ||||
| 48211-60760 |
HZJ77,PZJ77 |
2 | ||
| 48211-60761 |
HZJ77,PZJ77 |
2 | ||
| 48211-60880 |
HZJ77 |
2 | ||
| 48211-60761 |
HZJ77,PZJ77 |
2 | ||
| 48211 - LEAF, REAR SPRING, NO.1 | ||||
| 48211-60760 |
HZJ77,PZJ77 |
2 | ||
| 48211-60761 |
HZJ77,PZJ77 |
2 | ||
| 48211-60880 |
HZJ77 |
2 | ||
| 48211-60761 |
HZJ77,PZJ77 |
2 | ||
| 48212 - LEAF, REAR SPRING, NO.2 | ||||
| 48212-60760 |
HZJ77,PZJ77 |
2 | ||
| 48212-60761 |
HZJ77,PZJ77 |
2 | ||
| 48212-60761 |
HZJ77,PZJ77 |
2 | ||
| 48212-60880 |
HZJ77 |
2 | ||
| 48212 - LEAF, REAR SPRING, NO.2 | ||||
| 48212-60760 |
HZJ77,PZJ77 |
2 | ||
| 48212-60761 |
HZJ77,PZJ77 |
2 | ||
| 48212-60761 |
HZJ77,PZJ77 |
2 | ||
| 48212-60880 |
HZJ77 |
2 | ||
| 48213 - LEAF, REAR SPRING, NO.3 | ||||
| 48213-60760 |
HZJ77,PZJ77 |
2 | ||
| 48202-60880 |
HZJ77 |
2 | ||
| 48213-60760 |
HZJ77,PZJ77 |
2 | ||
| 48214 - LEAF, REAR SPRING, NO.4 | ||||
| 48202-60760 |
HZJ77 |
2 | ||
| 48202-60760 |
HZJ77 |
2 | ||
| 48214-60880 |
HZJ77 |
2 | ||
| 48215 - LEAF, REAR SPRING, NO.5 | ||||
| 48203-60880 |
HZJ77 |
2 | ||
| 48215-60760 |
HZJ77,PZJ77 |
2 | ||
| 48215-60760 |
HZJ77,PZJ77 |
2 | ||
| 48216 - LEAF, REAR SPRING, NO.6 | ||||
| 48216-60880 |
HZJ77 |
2 | ||
| 48216-60760 |
HZJ77,PZJ77 |
2 | ||
| 48216-60760 |
HZJ77,PZJ77 |
2 | ||
| 48220 - SPRING ASSY, REAR LH | ||||
| 48210-60770 |
HZJ77 6枚ﾘｰﾌ |
1 | ||
| 48210-60771 |
HZJ77 6枚ﾘｰﾌ |
1 | ||
| 48210-60890 |
HZJ77 6枚ﾘｰﾌ |
1 | ||
| 48210-60771 |
HZJ77 6枚ﾘｰﾌ |
1 | ||
| 48246 - CASE, REAR SPRING CLIP BOLT | ||||
| 48146-60742 |
HZJ70,73,77 |
2 | ||
| 48246 - CASE, REAR SPRING CLIP BOLT | ||||
| 48146-60742 |
HZJ70,73,77 |
2 | ||
| 48246 - CASE, REAR SPRING CLIP BOLT | ||||
| 48146-60742 |
HZJ70,73,77 |
2 | ||
| 48247 - BOLT, REAR SPRING, CENTER | ||||
| 48289-60010 |
FJ75,HZJ7#,PZJ7# 長さ=120 |
2 | ||
| 48289-60010 |
HZJ70,73,77 |
4 | ||
| 48289-60010 |
HZJ70,73,77 長さ=120 |
2 | ||
| 48289-60010 |
HZJ73,77,PZJ7# |
2 | ||
| 48248A - WASHER(FOR REAR SPRING CLIP BOLT) | ||||
| 48148-37010 |
HZJ70,73,77 |
2 | ||
| 48248A - WASHER(FOR REAR SPRING CLIP BOLT) | ||||
| 48148-37010 |
HZJ70,73,77 |
2 | ||
| 48248A - WASHER(FOR REAR SPRING CLIP BOLT) | ||||
| 48148-37010 |
HZJ70,73,77 |
2 | ||
| 48256 - BOLT, HEXAGON(FOR REAR SPRING CLIP SET) | ||||
| 48156-60742 |
HZJ70,73,77 |
2 | ||
| 48256 - BOLT, HEXAGON(FOR REAR SPRING CLIP SET) | ||||
| 48156-60742 |
HZJ70,73,77 |
2 | ||
| 48256 - BOLT, HEXAGON(FOR REAR SPRING CLIP SET) | ||||
| 48156-60742 |
HZJ70,73,77 |
2 | ||
| 48284 - NUT, REAR SPRING CENTER BOLT | ||||
| 48284-60062 |
HZJ73,77..ZX;FJ75,HZJ71,74,75,76,79,PZJ7# |
2 | ||
| 48284-60062 |
HZJ7#,PZJ7# |
2 | ||
Part Price Details
Loading price information...
Part Number:
Price:
