HZJ76K-RKMNS (1999)
Toyota Land Cruiser S/T,H/T
Production
Aug 1999
-
Aug 2004
Engine
1HZ
Transmission
MTM
Displacement
2500cc
Power
168 HP (125 kW)
(9908- )

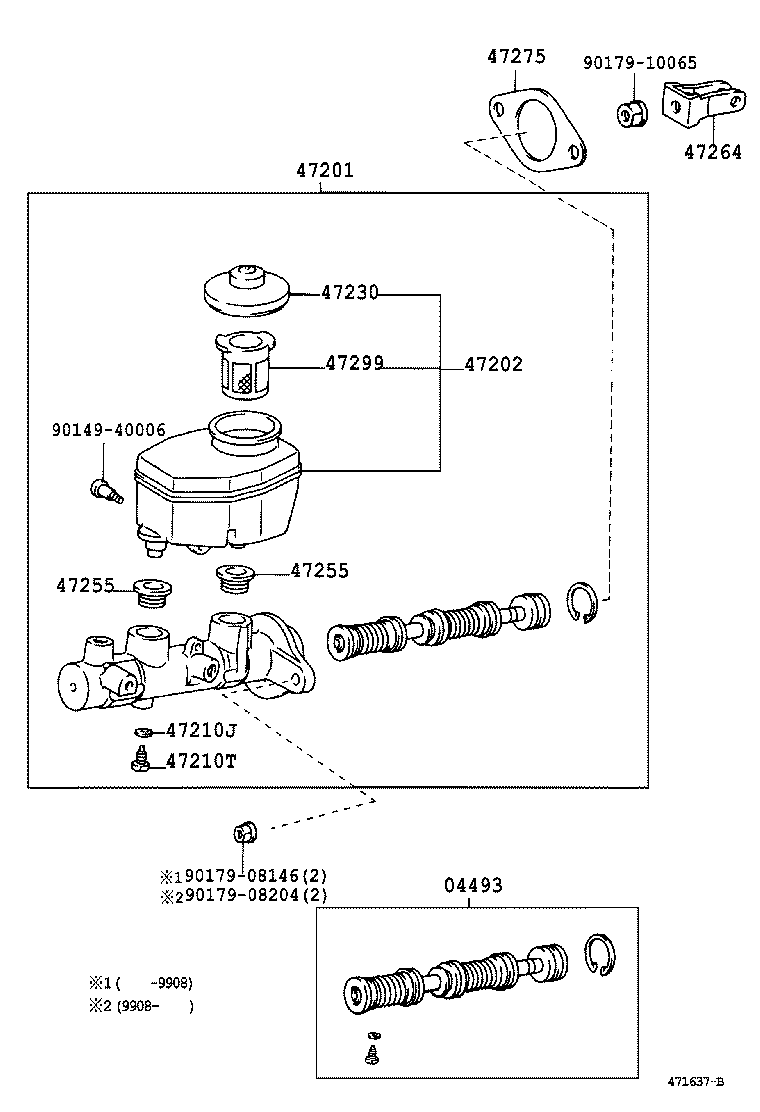

Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 04493 - CYLINDER KIT, BRAKE MASTER | ||||
| 04493-60230 |
FJ75,HZJ7#,LJ7#,PZJ7# |
1 | ||
| 04493-60300 |
HZJ7# |
1 | ||
| 04493-60300 |
HZJ7# |
1 | ||
| 47201 - CYLINDER SUB-ASSY, BRAKE MASTER | ||||
| 47201-60831 |
HZJ7# |
1 | ||
| 47201-60420 |
FJ75,HZJ7#,PZJ7# |
1 | ||
| 47201-60831 |
HZJ7# |
1 | ||
| 47202 - RESERVOIR SUB-ASSY, BRAKE MASTER CYLINDER | ||||
| 47220-35010 |
HZJ7# |
1 | ||
| 47202-60160 |
FJ75,HZJ7#,LJ7#,PZJ7# |
1 | ||
| 47220-35010 |
HZJ7# |
1 | ||
| 47210J - GASKET(FOR MASTER CYLINDER) | ||||
| 90430-06104 |
HZJ73,77..ZX;FJ75,HZJ71,74,75,76,79,LJ7#,PZJ7# |
1 | ||
| 90430-06104 |
HZJ7# |
1 | ||
| 47210T - BOLT(FOR BRAKE MASTER CYLINDER) | ||||
| 90109-06077 |
HZJ7# |
1 | ||
| 90109-06008 |
FJ75,HZJ7#,LJ7#,PZJ7# |
1 | ||
| 47230 - CAP ASSY, BRAKE MASTER CYLINDER RESERVOIR FILLER | ||||
| 84460-12070 |
FJ75,HZJ7#,LJ7#,PZJ7# |
1 | ||
| 47230-12040 |
HZJ7# |
1 | ||
| 47230-12040 |
HZJ7# |
1 | ||
| 47255 - GROMMET, MASTER CYLINDER RESERVOIR | ||||
| 47255-16010 |
HZJ7# |
2 | ||
| 47255 - GROMMET, MASTER CYLINDER RESERVOIR | ||||
| 47255-16010 |
HZJ7# |
2 | ||
| 47264 - CLEVIS, MASTER CYLINDER PUSH ROD | ||||
| 47264-28010 |
HZJ7# |
1 | ||
| 47264-30040 |
FJ75,HZJ7#,LJ7#,PZJ7# |
1 | ||
| 47264-28010 |
HZJ7# |
1 | ||
| 47275 - GASKET, BRAKE MASTER CYLINDER | ||||
| 47275-12020 |
HZJ7# |
1 | ||
| 47275-24010 |
FJ75,HZJ7#,LJ7#,PZJ7# |
1 | ||
| 47299 - STRAINER, BRAKE MASTER CYLINDER RESERVOIR | ||||
| 47299-24010 |
HZJ7# |
1 | ||
| 47299-32010 |
FJ75,HZJ7#,LJ7#,PZJ7# |
1 | ||
| Common parts | ||||
| 90149-40006 | ||||
| 90179-08146 | ||||
| 90179-08204 | ||||
| 90179-10065 | ||||
