HZJ76K-RKMES (1999)

Toyota Land Cruiser S/T,H/T

Production Aug 1999 - Aug 2004
Engine 1HZ
Transmission MTM
Displacement 2500cc
Power 168 HP (125 kW)

(9908- )ZX

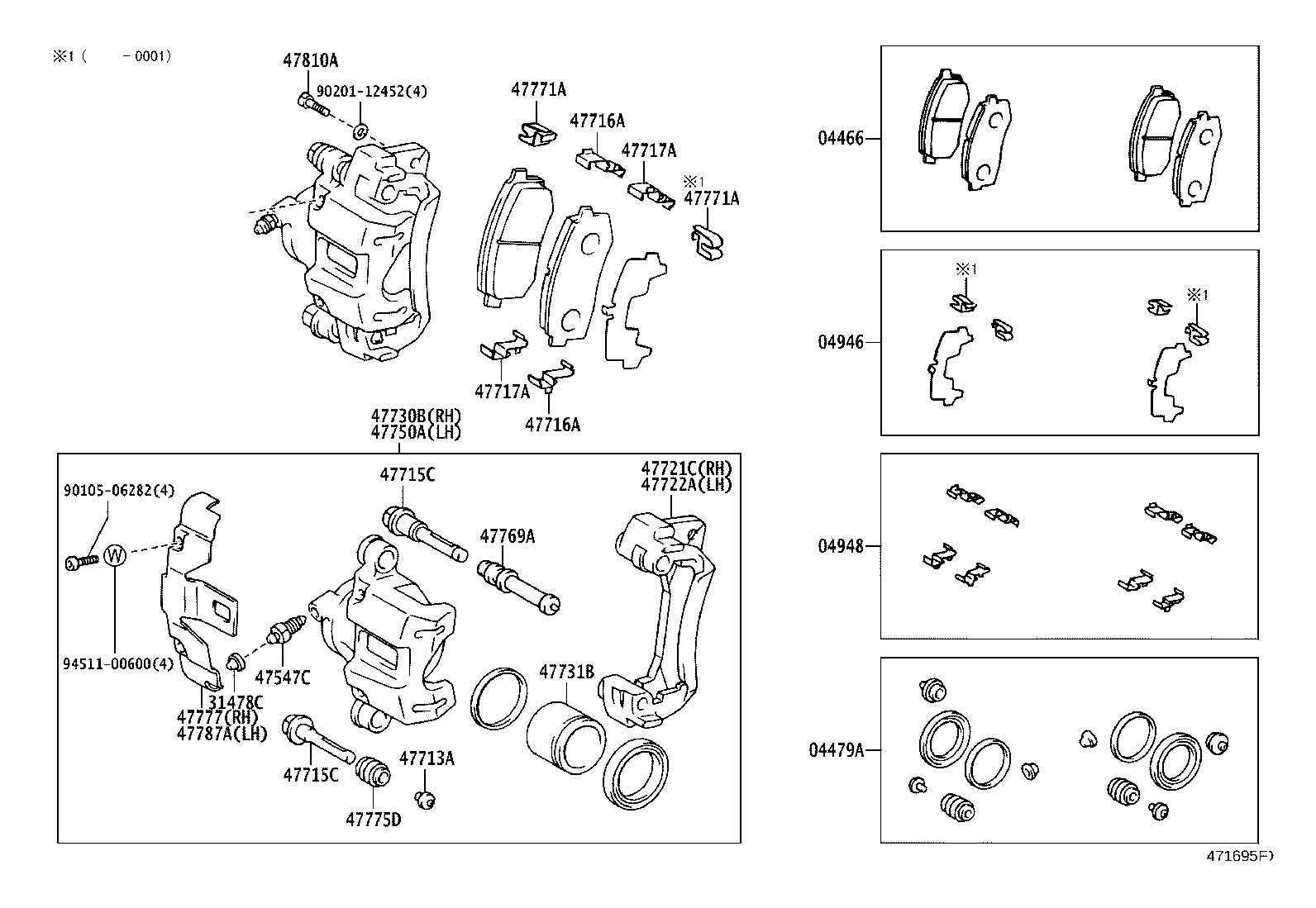

Click highlighted areas on diagram

diagram 04466 04479A 04946 04948 31478C 47547C 47713A 47715C 47715C 47716A 47716A 47717A 47717A 47721C 47722A 47730B 47731B 47750A 47769A 47771A 47771A 47775D 47777 47787A 47810A 9010506282 9020112452 9451100600
Part # Description Qty Price
04466 - PAD KIT, DISC BRAKE, REAR
04466-60010

HZJ73,74,76,77,LJ7#..EX,EX5,LX5,SX5,ZX

 1
04466-60010

HZJ74,76..ZX

ﾏｰｸ NBK PN524

 1
04466-60080

HZJ74,76..ZX

ﾏｰｸ NBK PN524−EE

 1
04479A - CYLINDER KIT, DISC BRAKE, REAR
04479-60030

HZJ73,74,76,77,LJ7#..EX,EX5,LX5,SX5,ZX

 1
04479-60030

HZJ74,76..ZX

 1
04479-60030

HZJ74,76..ZX

 1
04946 - SHIM KIT, ANTI SQUEAL(FOR REAR DISC BRAKE)
04946-60010

HZJ74,76..ZX

 1
04946-60010

HZJ73,74,76,77,LJ7#..EX,EX5,LX5,SX5,ZX

 1
04946-30100

HZJ74,76..ZX

 1
04946-30100

HZJ74,76..ZX

 1
04948 - FITTING KIT, DISC BRAKE, REAR
04947-22050

HZJ73,74,76,77,LJ7#..EX,EX5,LX5,SX5,ZX

 1
04947-22050

HZJ74,76..ZX

 1
31478C - CAP, BLEEDER PLUG(FOR REAR DISC BRAKE)
31478-30010

HZJ73,74,76,77,LJ7#..EX,EX5,LX5,SX5,ZX

 2
31478-30010

HZJ74,76..ZX

 2
47547C - PLUG, BLEEDER(FOR REAR DISC BRAKE)
47547-12030

HZJ74,76..ZX

 2
47547-12030

HZJ73,74,76,77,LJ7#..EX,EX5,LX5,SX5,ZX

 2
47713A - PLUG, HOLE(FOR REAR DISC BRAKE CYLINDER)
90950-01301

HZJ73,74,76,77,LJ7#..EX,EX5,LX5,SX5,ZX

 2
90950-01301

HZJ74,76..ZX

 2
47715C - PIN, CYLINDER SLIDE(FOR REAR DISC BRAKE)
47715-22010

HZJ74,76..ZX

 4
47715-22010

HZJ73,74,76,77,LJ7#..EX,EX5,LX5,SX5,ZX

 4
47715-43010

HZJ74,76..ZX

 4
47715C - PIN, CYLINDER SLIDE(FOR REAR DISC BRAKE)
47715-22010

HZJ74,76..ZX

 4
47715-22010

HZJ73,74,76,77,LJ7#..EX,EX5,LX5,SX5,ZX

 4
47715-43010

HZJ74,76..ZX

 4
47716A - PLATE, PAD SUPPORT, NO.1(FOR REAR DISC BRAKE)
47716-22010

HZJ74,76..ZX

 4
47716-22010

HZJ73,74,76,77,LJ7#..EX,EX5,LX5,SX5,ZX

 4
47716A - PLATE, PAD SUPPORT, NO.1(FOR REAR DISC BRAKE)
47716-22010

HZJ74,76..ZX

 4
47716-22010

HZJ73,74,76,77,LJ7#..EX,EX5,LX5,SX5,ZX

 4
47717A - PLATE, PAD SUPPORT, NO.2(FOR REAR DISC BRAKE)
47717-22010

HZJ74,76..ZX

 4
47717-22010

HZJ73,74,76,77,LJ7#..EX,EX5,LX5,SX5,ZX

 4
47717A - PLATE, PAD SUPPORT, NO.2(FOR REAR DISC BRAKE)
47717-22010

HZJ74,76..ZX

 4
47717-22010

HZJ73,74,76,77,LJ7#..EX,EX5,LX5,SX5,ZX

 4
47721C - MOUNTING, REAR DISC BRAKE CYLINDER, RH
47721-60020

HZJ74,76..ZX

 1
47721-60010

HZJ7#,LJ7#

 1
47722A - MOUNTING, REAR DISC BRAKE CYLINDER, LH
47722-60010

HZJ7#,LJ7#

 1
47722-60020

HZJ74,76..ZX

 1
47730B - CYLINDER ASSY, REAR DISC BRAKE, RH
47730-60110

HZJ74,76..ZX

 1
47730-60040

HZJ7#,LJ7#

 1
47731B - PISTON, REAR DISC BRAKE
47731-60020

HZJ73,74,76,77,LJ7#..EX,EX5,LX5,SX5,ZX

 2
47731-60020

HZJ74,76..ZX

 2
47750A - CYLINDER ASSY, DISC BRAKE, REAR LH
47750-60040

HZJ7#,LJ7#

 1
47750-60110

HZJ74,76..ZX

 1
47769A - BUSH, CYLINDER SLIDE, NO.1(FOR REAR DISC BRAKE)
47769-22010

HZJ74,76..ZX

 2
47771A - PLATE, PAD WEAR INDICATOR(FOR REAR DISC BRAKE)
47771-22030

HZJ73,74,76,77,LJ7#..EX,EX5,LX5,SX5,ZX

 4
47771-22030

HZJ74,76..ZX

 4
47771A - PLATE, PAD WEAR INDICATOR(FOR REAR DISC BRAKE)
47771-22030

HZJ73,74,76,77,LJ7#..EX,EX5,LX5,SX5,ZX

 4
47771-22030

HZJ74,76..ZX

 4
47775D - BOOT, BUSH DUST(FOR REAR DISC BRAKE)
47775-22010

HZJ74,76..ZX

 2
47777 - PROTECTOR, DUST BOOT, RH
47777-60010

HZJ73,74,76,77,LJ7#..EX,EX5,LX5,SX5,ZX

 1
47777-60010

HZJ74,76..ZX

 1
47787A - PROTECTOR, DUST BOOT, LH
47777-60010

HZJ74,76..ZX

 1
47777-60010

HZJ73,74,76,77,LJ7#..EX,EX5,LX5,SX5,ZX

 1
47810A - BOLT, HEXAGON(FOR REAR CALIPER)
90101-12167

HZJ74,76..ZX

 4
90101-12167

HZJ73,74,76,77,LJ7#..EX,EX5,LX5,SX5,ZX

 4
Common parts
90105-06282
90201-12452
94511-00600
