HZJ75-MRU3 (1992)
Toyota Land Cruiser S/T,H/T

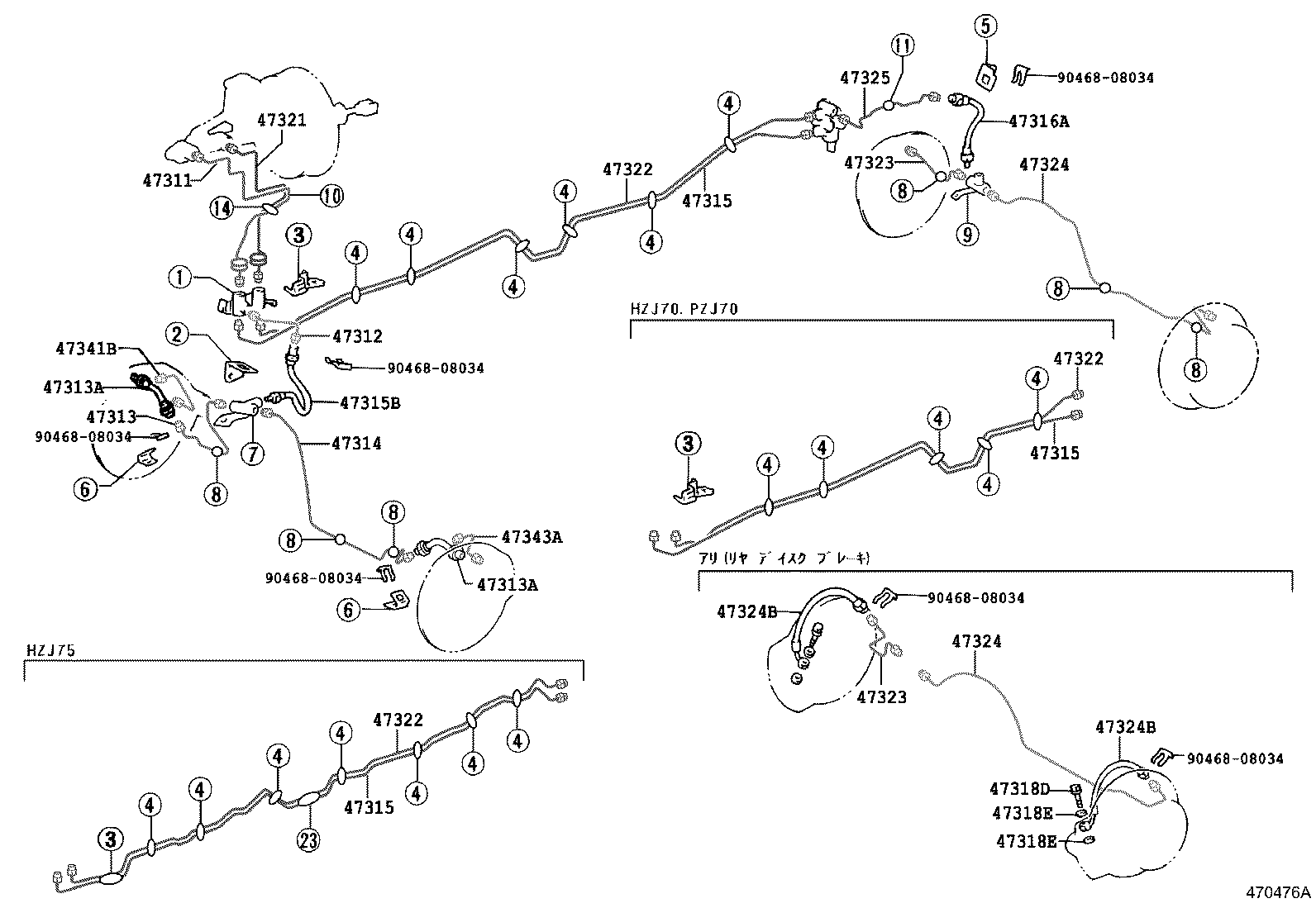

ILLUST NO. 1 OF 3(9001-9908)HZJ7#,PZJ7#
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 47311 - TUBE, FRONT BRAKE, NO.1 | ||||
| 47312-60670 |
HZJ7#,PZJ7# |
1 | ||
| 47312-60671 |
HZJ7#,PZJ7# |
1 | ||
| 47312 - TUBE, FRONT BRAKE, NO.2 | ||||
| 47313-60190 |
HZJ7#,PZJ7# |
1 | ||
| 47313-60190 |
HZJ73..1NO;HZJ73..LX..U;HZJ70,75,77..U |
1 | ||
| 47313 - TUBE, FRONT BRAKE, NO.3 | ||||
| 47314-60190 |
FJ75,HZJ7#,PZJ7# |
1 | ||
| 47314-60190 |
HZJ75,77;HZJ73..1NO;HZJ73..LX..U;HZJ70..SOT..U |
1 | ||
| 47313A - HOSE, FLEXIBLE, NO.1(FOR FRONT) | ||||
| 96940-39855 |
FJ75,HZJ7#,LJ7#,PZJ7# |
2 | ||
| 96940-39855 |
HZJ73..1NO;HZJ73..LX..U;HZJ70,75,77..U |
2 | ||
| 47313A - HOSE, FLEXIBLE, NO.1(FOR FRONT) | ||||
| 96940-39855 |
FJ75,HZJ7#,LJ7#,PZJ7# |
2 | ||
| 96940-39855 |
HZJ73..1NO;HZJ73..LX..U;HZJ70,75,77..U |
2 | ||
| 47314 - TUBE, FRONT BRAKE, NO.4 | ||||
| 47315-60310 |
FJ75,HZJ7#,PZJ7# |
1 | ||
| 47315-60310 |
HZJ73..1NO;HZJ73..LX..U;HZJ70,75,77..U |
1 | ||
| 47315 - TUBE, FRONT BRAKE, NO.5 | ||||
| 47316-60480 |
HZJ75 |
1 | ||
| 47316-60480 |
HZJ75 |
1 | ||
| 47315 - TUBE, FRONT BRAKE, NO.5 | ||||
| 47316-60480 |
HZJ75 |
1 | ||
| 47316-60480 |
HZJ75 |
1 | ||
| 47315 - TUBE, FRONT BRAKE, NO.5 | ||||
| 47316-60480 |
HZJ75 |
1 | ||
| 47316-60480 |
HZJ75 |
1 | ||
| 47315B - HOSE, FLEXIBLE(FOR BRAKE TUBE) | ||||
| 96940-33105 |
FJ75,HZJ7#,PZJ7# |
1 | ||
| 96940-33105 |
HZJ73..1NO;HZJ73..LX..U;HZJ70,75,77..U |
1 | ||
| 47316A - HOSE, FLEXIBLE(FOR REAR BRAKE TUBE) | ||||
| 96940-34405 |
FJ75,HZJ7#,PZJ7# |
1 | ||
| 96940-34405 |
HZJ7#,PZJ7# |
1 | ||
| 47321 - TUBE, REAR BRAKE, NO.1 | ||||
| 47322-60550 |
HZJ7#,PZJ7# |
1 | ||
| 47322-60551 |
HZJ7#,PZJ7# |
1 | ||
| 47322 - TUBE, REAR BRAKE, NO.2 | ||||
| 47323-60580 |
HZJ75 |
1 | ||
| 47323-60580 |
HZJ75 |
1 | ||
| 47322 - TUBE, REAR BRAKE, NO.2 | ||||
| 47323-60580 |
HZJ75 |
1 | ||
| 47323-60580 |
HZJ75 |
1 | ||
| 47322 - TUBE, REAR BRAKE, NO.2 | ||||
| 47323-60580 |
HZJ75 |
1 | ||
| 47323-60580 |
HZJ75 |
1 | ||
| 47323 - TUBE, REAR BRAKE, NO.3 | ||||
| 47324-60201 |
HZJ7#,PZJ7#..LX,STD |
1 | ||
| 47323 - TUBE, REAR BRAKE, NO.3 | ||||
| 47324-60201 |
HZJ7#,PZJ7#..LX,STD |
1 | ||
| 47324 - TUBE, REAR BRAKE, NO.4 | ||||
| 47325-60161 |
HZJ7#,PZJ7#..LX,STD |
1 | ||
| 47324 - TUBE, REAR BRAKE, NO.4 | ||||
| 47325-60161 |
HZJ7#,PZJ7#..LX,STD |
1 | ||
| 47325 - TUBE, REAR BRAKE, NO.5 | ||||
| 47326-60091 |
HZJ7#,PZJ7# |
1 | ||
| 47326-60091 |
FJ75,HZJ7#,PZJ7# |
1 | ||
| 47341B - TUBE, WHEEL CYLINDER, FRONT RH NO.1 | ||||
| 47341-60031 |
HZJ7#,PZJ7# |
1 | ||
| 47343A - TUBE, WHEEL CYLINDER, FRONT LH NO.1 | ||||
| 47343-60021 |
HZJ7#,PZJ7# |
1 | ||
| Common parts | ||||
| 90468-08034 | ||||
ILLUST NO. 3 OF 3(9001-9908)
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 04477 - BUSH & BOOT KIT, LOAD SENSING SPRING | ||||
| 04477-60010 |
FJ75,HZJ7#,LJ7#,PZJ7# |
1 | ||
| 04477-60010 |
HZJ7#,KZJ7#,PZJ7# |
1 | ||
| 47910 - VALVE ASSY, LOAD SENSING PROPORTIONING | ||||
| 47910-26040 |
HZJ7#,PZJ7# |
1 | ||
| 47910-26040 |
FJ75,HZJ7#,PZJ7# |
1 | ||
| 47920 - SPRING ASSY, LOAD SENSING | ||||
| 47920-60050 |
FJ75,HZJ7#,PZJ7# |
1 | ||
| 47920-60050 |
HZJ7#,PZJ7# |
1 | ||
| 47920A - COLLAR(FOR LOAD SENSING SPRING) | ||||
| 90387-08099 |
HZJ7#,KZJ7#,PZJ7# |
2 | ||
| 90387-08099 |
HZJ73,77..ZX;FJ75,HZJ71,74,75,76,79,LJ7#,PZJ7# |
2 | ||
| 47920A - COLLAR(FOR LOAD SENSING SPRING) | ||||
| 90387-08099 |
HZJ7#,KZJ7#,PZJ7# |
2 | ||
| 90387-08099 |
HZJ73,77..ZX;FJ75,HZJ71,74,75,76,79,LJ7#,PZJ7# |
2 | ||
| 47920B - CLIP(FOR LOAD SENSING VALVE BOOT) | ||||
| 90467-31110 |
HZJ7#,KZJ7#,PZJ7# |
1 | ||
| 90467-31110 |
HZJ73,77..ZX;FJ75,HZJ71,74,75,76,79,LJ7#,PZJ7# |
1 | ||
| 47920C - WASHER(FOR LOAD SENSING SPRING) | ||||
| 90202-10103 |
HZJ73,77..ZX;FJ75,HZJ71,74,75,76,79,LJ7#,PZJ7# |
2 | ||
| 90202-10103 |
HZJ7#,KZJ7#,PZJ7# |
2 | ||
| 47920C - WASHER(FOR LOAD SENSING SPRING) | ||||
| 90202-10103 |
HZJ73,77..ZX;FJ75,HZJ71,74,75,76,79,LJ7#,PZJ7# |
2 | ||
| 90202-10103 |
HZJ7#,KZJ7#,PZJ7# |
2 | ||
| 47931 - BRACKET, LOAD SENSING VALVE | ||||
| 47931-60080 |
HZJ7#,PZJ7# |
1 | ||
| 47931-60080 |
HZJ73,77..ZX;FJ75,HZJ71,74,75,76,79,PZJ7# |
1 | ||
| 47931 - BRACKET, LOAD SENSING VALVE | ||||
| 47931-60080 |
HZJ7#,PZJ7# |
1 | ||
| 47931-60080 |
HZJ73,77..ZX;FJ75,HZJ71,74,75,76,79,PZJ7# |
1 | ||
| 47932A - BRACKET, LOAD SENSING VALVE UNION | ||||
| 47932-60020 |
HZJ73,77..ZX;FJ75,HZJ71,74,75,76,79,PZJ7# |
1 | ||
| 47932-60020 |
HZJ7#,PZJ7# |
1 | ||
| 47932A - BRACKET, LOAD SENSING VALVE UNION | ||||
| 47932-60020 |
HZJ73,77..ZX;FJ75,HZJ71,74,75,76,79,PZJ7# |
1 | ||
| 47932-60020 |
HZJ7#,PZJ7# |
1 | ||
| 47933 - BRACKET, LOAD SENSING SHACKLE, NO.1 | ||||
| 47933-60100 |
FJ75,HZJ7#,PZJ7# |
1 | ||
| 47933-60100 |
HZJ7#,PZJ7# |
1 | ||
| 47933-60101 |
HZJ7# |
1 | ||
| 47933 - BRACKET, LOAD SENSING SHACKLE, NO.1 | ||||
| 47933-60100 |
FJ75,HZJ7#,PZJ7# |
1 | ||
| 47933-60100 |
HZJ7#,PZJ7# |
1 | ||
| 47933-60101 |
HZJ7# |
1 | ||
| 47935 - SHACKLE, LOAD SENSING SPRING, NO.1 | ||||
| 47935-35010 |
FJ75,HZJ7#,PZJ7# |
1 | ||
| 47935-35010 |
HZJ7#,PZJ7# |
1 | ||
| 47935A - COLLAR(FOR LOAD SENSING SPRING SHACKLE) | ||||
| 90387-08099 |
HZJ73,77..ZX;FJ75,HZJ71,74,75,76,79,LJ7#,PZJ7# |
1 | ||
| 90387-08099 |
HZJ7#,KZJ7#,PZJ7# |
1 | ||
| 47935B - BUSH(FOR LOAD SENSING SPRING SHACKLE) | ||||
| 90385-10064 |
HZJ73,77..ZX;FJ75,HZJ71,74,75,76,79,LJ7#,PZJ7# |
2 | ||
| 90385-10064 |
HZJ7#,KZJ7#,PZJ7# |
2 | ||
| 47935B - BUSH(FOR LOAD SENSING SPRING SHACKLE) | ||||
| 90385-10064 |
HZJ73,77..ZX;FJ75,HZJ71,74,75,76,79,LJ7#,PZJ7# |
2 | ||
| 90385-10064 |
HZJ7#,KZJ7#,PZJ7# |
2 | ||
| 47935C - RETAINER(FOR LOAD SENSING SPRING SHACKLE) | ||||
| 90948-02033 |
HZJ7#,PZJ7# |
2 | ||
| 90201-08062 |
HZJ7# |
1 | ||
| 47935C - RETAINER(FOR LOAD SENSING SPRING SHACKLE) | ||||
| 90948-02033 |
HZJ7#,PZJ7# |
2 | ||
| 90201-08062 |
HZJ7# |
1 | ||
| 47935C - RETAINER(FOR LOAD SENSING SPRING SHACKLE) | ||||
| 90948-02033 |
HZJ7#,PZJ7# |
2 | ||
| 90201-08062 |
HZJ7# |
1 | ||
| 47936 - SHACKLE, LOAD SENSING SPRING, NO.2 | ||||
| 47936-35010 |
HZJ7#,PZJ7# |
1 | ||
| 47936-35010 |
HZJ73,77..ZX;FJ75,HZJ71,74,75,76,79,PZJ7# |
1 | ||
| 47937 - PLATE, LOAD SENSING VALVE SET | ||||
| 47937-60010 |
HZJ73,77..ZX;FJ75,HZJ71,74,75,76,79,LJ7#,PZJ7# |
1 | ||
| 47937-60010 |
HZJ7#,KZJ7#,PZJ7# |
1 | ||
| 47938 - INSULATOR, LOAD SENSING SPRING SHACKLE HAET | ||||
| 47938-60010 |
FJ75,HZJ7#,PZJ7# |
1 | ||
| 47938-60020 |
HZJ7#,PZJ7# |
1 | ||
| Common parts | ||||
| 90119-08834 | ||||
| 90179-10132 | ||||
| 90201-23360 | ||||
| 91131-50840 | ||||
| 91611-B0816 | ||||
| 91651-B0820 | ||||
| 94110-41000 | ||||
| 94130-00802 | ||||
| 94141-40800 | ||||
| 94512-00800 | ||||
| 94512-01000 | ||||
| 95381-02020 | ||||
ILLUST NO. 2 OF 3(9001-9908)
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 47311B - WAY, NO.1(FOR FRONT BRAKE TUBE) | ||||
| 47391-60020 |
HZJ7#,PZJ7# |
1 | ||
| 47391-60020 |
HZJ7#,PZJ7# |
1 | ||
| 47311B - WAY, NO.1(FOR FRONT BRAKE TUBE) | ||||
| 47391-60020 |
HZJ7#,PZJ7# |
1 | ||
| 47391-60020 |
HZJ7#,PZJ7# |
1 | ||
| 47311B - WAY, NO.1(FOR FRONT BRAKE TUBE) | ||||
| 47391-60020 |
HZJ7#,PZJ7# |
1 | ||
| 47391-60020 |
HZJ7#,PZJ7# |
1 | ||
| 47311H - GROMMET(FOR BRAKE TUBE) | ||||
| 90480-01069 |
HZJ75 |
7 | ||
| 47311H - GROMMET(FOR BRAKE TUBE) | ||||
| 90480-01069 |
HZJ75 |
7 | ||
| 47312E - WAY, NO.2(FOR FRONT BRAKE TUBE) | ||||
| 47395-60020 |
HZJ73,77..ZX;FJ75,HZJ71,74,75,76,79,PZJ7# |
1 | ||
| 47395-60020 |
HZJ73..1NO;HZJ73..LX..U;HZJ70,75,77..U |
1 | ||
| 47312E - WAY, NO.2(FOR FRONT BRAKE TUBE) | ||||
| 47395-60020 |
HZJ73,77..ZX;FJ75,HZJ71,74,75,76,79,PZJ7# |
1 | ||
| 47395-60020 |
HZJ73..1NO;HZJ73..LX..U;HZJ70,75,77..U |
1 | ||
| 47321A - WAY(FOR REAR BRAKE TUBE) | ||||
| 47395-60031 |
HZJ7#,PZJ7# |
1 | ||
| 47352B - BRACKET, FLEXIBLE HOSE, NO.2 | ||||
| 47354-60100 |
HZJ73..1NO;HZJ73..LX..U;HZJ70,75,77..U |
1 | ||
| 47354-60100 |
FJ75,HZJ7#,PZJ7# |
1 | ||
| 47352B - BRACKET, FLEXIBLE HOSE, NO.2 | ||||
| 47354-60100 |
HZJ73..1NO;HZJ73..LX..U;HZJ70,75,77..U |
1 | ||
| 47354-60100 |
FJ75,HZJ7#,PZJ7# |
1 | ||
| 47353B - BRACKET, FLEXIBLE HOSE, NO.3 | ||||
| 47351-60150 |
FJ75,HZJ7#,PZJ7# |
1 | ||
| 47351-60150 |
HZJ73..1NO;HZJ73..LX..U;HZJ70,75,77..U |
1 | ||
| 47353B - BRACKET, FLEXIBLE HOSE, NO.3 | ||||
| 47351-60150 |
FJ75,HZJ7#,PZJ7# |
1 | ||
| 47351-60150 |
HZJ73..1NO;HZJ73..LX..U;HZJ70,75,77..U |
1 | ||
| 47354B - BRACKET, FLEXIBLE HOSE, NO.4 | ||||
| 47352-60080 |
HZJ73..1NO;HZJ73..LX..U;HZJ70,75,77..U |
1 | ||
| 47352-60080 |
FJ75,HZJ7#,PZJ7# |
1 | ||
| 47354B - BRACKET, FLEXIBLE HOSE, NO.4 | ||||
| 47352-60080 |
HZJ73..1NO;HZJ73..LX..U;HZJ70,75,77..U |
1 | ||
| 47352-60080 |
FJ75,HZJ7#,PZJ7# |
1 | ||
| 47355A - BRACKET, FLEXIBLE HOSE, NO.5 | ||||
| 47355-60110 |
HZJ75,77,PZJ77 |
1 | ||
| 47355A - BRACKET, FLEXIBLE HOSE, NO.5 | ||||
| 47355-60110 |
HZJ75,77,PZJ77 |
1 | ||
| 47355A - BRACKET, FLEXIBLE HOSE, NO.5 | ||||
| 47355-60110 |
HZJ75,77,PZJ77 |
1 | ||
| 47371A - CLAMP, BRAKE TUBE, NO.1 | ||||
| 47372-35010 |
HZJ7#,PZJ7# |
1 | ||
| 47372-60060 |
HZJ7#,PZJ7# |
1 | ||
| 47371A - CLAMP, BRAKE TUBE, NO.1 | ||||
| 47372-35010 |
HZJ7#,PZJ7# |
1 | ||
| 47372-60060 |
HZJ7#,PZJ7# |
1 | ||
| 47393 - INSULATOR, BRAKE TUBE HEAT | ||||
| 47393-60031 |
HZJ7#,PZJ7# ﾌﾛﾝﾄ |
1 | ||
| 47393-60030 |
HZJ7#,PZJ7# |
1 | ||
| 47393-60050 |
HZJ75 ﾘﾔ |
1 | ||
| 47393-60050 |
HZJ75 ﾘﾔ |
1 | ||
| 47393 - INSULATOR, BRAKE TUBE HEAT | ||||
| 47393-60031 |
HZJ7#,PZJ7# ﾌﾛﾝﾄ |
1 | ||
| 47393-60030 |
HZJ7#,PZJ7# |
1 | ||
| 47393-60050 |
HZJ75 ﾘﾔ |
1 | ||
| 47393-60050 |
HZJ75 ﾘﾔ |
1 | ||
| Common parts | ||||
| 90119-08701 | ||||
| 90119-10121 | ||||
| 90461-08706 | ||||
| 90461-10793 | ||||
| 90464-00208 | ||||
| 90949-01183 | ||||
| 90949-01854 | ||||
| 91611-B0816 | ||||
| 91621-J0814 | ||||
