HZJ74V-FJMNS (1999)

Toyota Land Cruiser S/T,H/T

Production Aug 1999 - Aug 2004
Engine 1HZ
Transmission MTM
Displacement 2500cc
Power 168 HP (125 kW)

(9908- )

Click highlighted areas on diagram

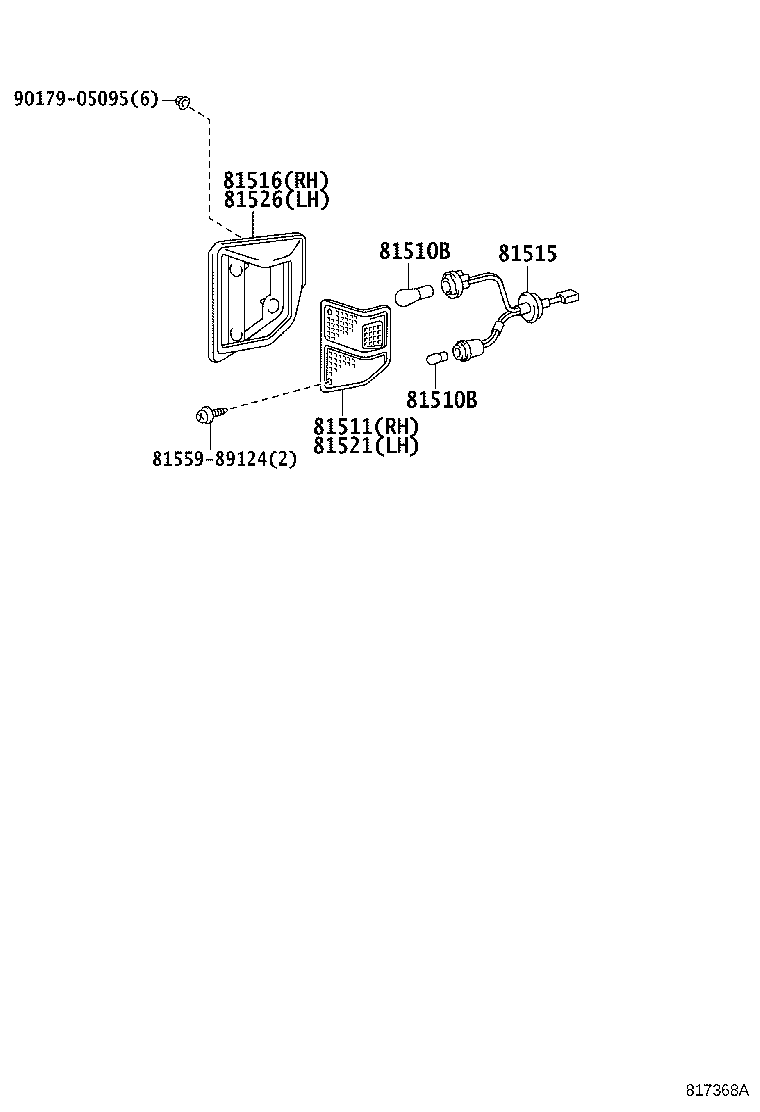

diagram 81510B 81510B 81511 81515 81516 81521 81526 8155989124 9017905095
Part # Description Qty Price
81510B - BULB (FOR FRONT TURN SIGNAL LAMP)
99132-11210

HZJ7#

12V 21W

 2
99132-12050

HZJ7#

12V 5W

 2
81510B - BULB (FOR FRONT TURN SIGNAL LAMP)
99132-11210

HZJ7#

12V 21W

 2
99132-12050

HZJ7#

12V 5W

 2
81511 - LENS, FRONT TURN SIGNAL LAMP, RH
81511-60560

HZJ71,74,76

 1
81511-90K02

FJ75,HZJ7#,PZJ7#

 1
81515 - WIRE SUB-ASSY, FRONT TURN SIGNAL LAMP BODY
81525-60400

HZJ7#

左側

 1
81515-60530

HZJ7#

右側

 1
81516 - RIM, FRONT TURN SIGNAL LAMP, RH
81516-60540

HZJ71,74,76

 1
81521 - LENS, FRONT TURN SIGNAL LAMP, LH
81521-90K02

FJ75,HZJ7#,PZJ7#

 1
81521-60430

HZJ71,74,76

 1
81526 - RIM, FRONT TURN SIGNAL LAMP, LH
81526-60410

HZJ71,74,76

 1
Common parts
81559-89124
90179-05095
