HZJ74V-FJMNS (1999)
Toyota Land Cruiser S/T,H/T
Production
Aug 1999
-
Aug 2004
Engine
1HZ
Transmission
MTM
Displacement
2500cc
Power
168 HP (125 kW)

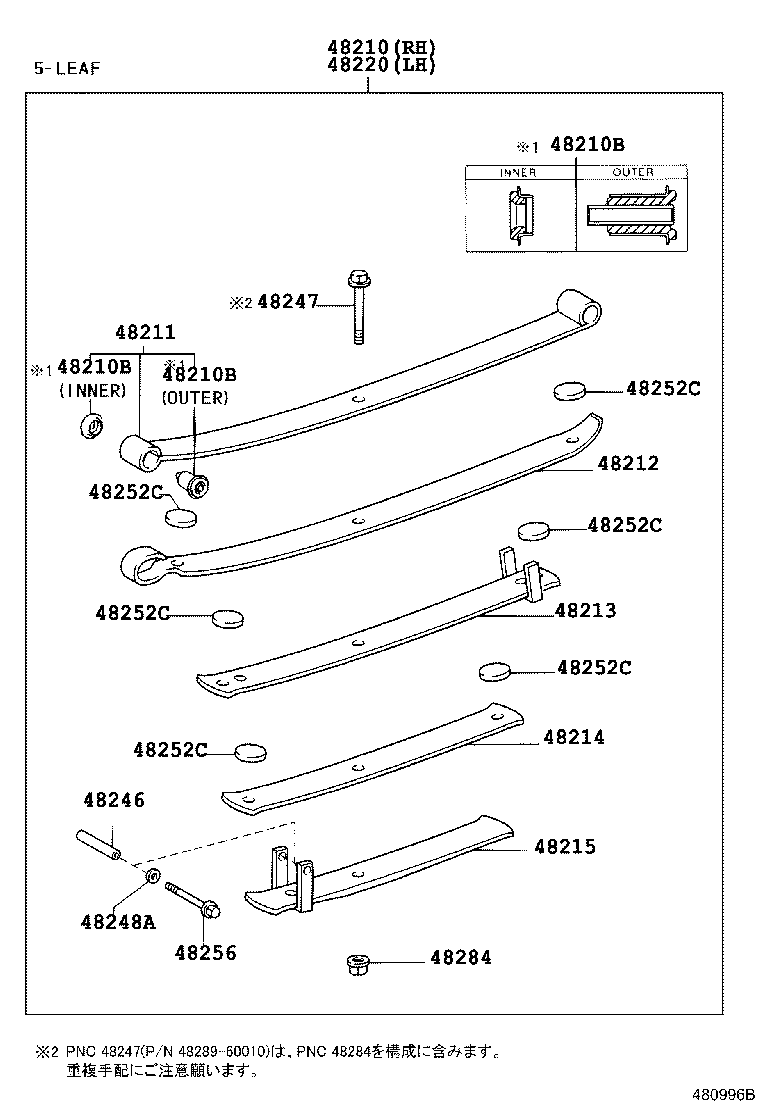

ILLUST NO. 2 OF 2(9908- )HZJ71,74
Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 48210 - SPRING ASSY, REAR RH | ||||
| 48210-6A050 |
HZJ71,74 5枚ﾘｰﾌ |
1 | ||
| 48210B - BUSH(FOR REAR SPRING PIN) | ||||
| 90389-14056 |
HZJ7# 外側 |
2 | ||
| 90389-22003 |
HZJ7# 内側 |
2 | ||
| 48210B - BUSH(FOR REAR SPRING PIN) | ||||
| 90389-14056 |
HZJ7# 外側 |
2 | ||
| 90389-22003 |
HZJ7# 内側 |
2 | ||
| 48210B - BUSH(FOR REAR SPRING PIN) | ||||
| 90389-14056 |
HZJ7# 外側 |
2 | ||
| 90389-22003 |
HZJ7# 内側 |
2 | ||
| 48211 - LEAF, REAR SPRING, NO.1 | ||||
| 48031-60110 |
HZJ71,74 左側 |
1 | ||
| 48201-6A050 |
HZJ71,74 右側 |
1 | ||
| 48212 - LEAF, REAR SPRING, NO.2 | ||||
| 48276-60110 |
HZJ71,74 左側 |
1 | ||
| 48212-6A050 |
HZJ71,74 右側 |
1 | ||
| 48213 - LEAF, REAR SPRING, NO.3 | ||||
| 48202-6A050 |
HZJ71,74 右側 |
1 | ||
| 48032-60110 |
HZJ71,74 左側 |
1 | ||
| 48214 - LEAF, REAR SPRING, NO.4 | ||||
| 48214-6A050 |
HZJ71,74 右側 |
1 | ||
| 48278-60110 |
HZJ71,74 左側 |
1 | ||
| 48215 - LEAF, REAR SPRING, NO.5 | ||||
| 48207-6A050 |
HZJ71,74 右側 |
1 | ||
| 48209-60110 |
HZJ71,74 左側 |
1 | ||
| 48220 - SPRING ASSY, REAR LH | ||||
| 48220-60110 |
HZJ71,74 5枚ﾘｰﾌ |
1 | ||
| 48246 - CASE, REAR SPRING CLIP BOLT | ||||
| 48146-60742 |
HZJ71,74,76 |
2 | ||
| 48247 - BOLT, REAR SPRING, CENTER | ||||
| 48289-60010 |
FJ75,HZJ7#,PZJ7# 長さ=120 |
2 | ||
| 48289-60010 |
HZJ71,74 |
2 | ||
| 48248A - WASHER(FOR REAR SPRING CLIP BOLT) | ||||
| 48148-37010 |
HZJ71,74,76 |
2 | ||
| 48252C - SILENCER, REAR SPRING, NO.2 | ||||
| 48154-60230 |
HZJ71,74,76 |
12 | ||
| 48252C - SILENCER, REAR SPRING, NO.2 | ||||
| 48154-60230 |
HZJ71,74,76 |
12 | ||
| 48252C - SILENCER, REAR SPRING, NO.2 | ||||
| 48154-60230 |
HZJ71,74,76 |
12 | ||
| 48252C - SILENCER, REAR SPRING, NO.2 | ||||
| 48154-60230 |
HZJ71,74,76 |
12 | ||
| 48252C - SILENCER, REAR SPRING, NO.2 | ||||
| 48154-60230 |
HZJ71,74,76 |
12 | ||
| 48252C - SILENCER, REAR SPRING, NO.2 | ||||
| 48154-60230 |
HZJ71,74,76 |
12 | ||
| 48256 - BOLT, HEXAGON(FOR REAR SPRING CLIP SET) | ||||
| 48156-60742 |
HZJ71,74,76 |
2 | ||
| 48284 - NUT, REAR SPRING CENTER BOLT | ||||
| 48284-60062 |
HZJ73,77..ZX;FJ75,HZJ71,74,75,76,79,PZJ7# |
2 | ||
| 48284-60062 |
HZJ7# |
2 | ||
