HZJ74K-FJPES (1999)
Toyota Land Cruiser S/T,H/T
Production
Aug 1999
-
Aug 2004
Engine
1HZ
Transmission
ATM
Displacement
2500cc
Power
168 HP (125 kW)
(9908- )

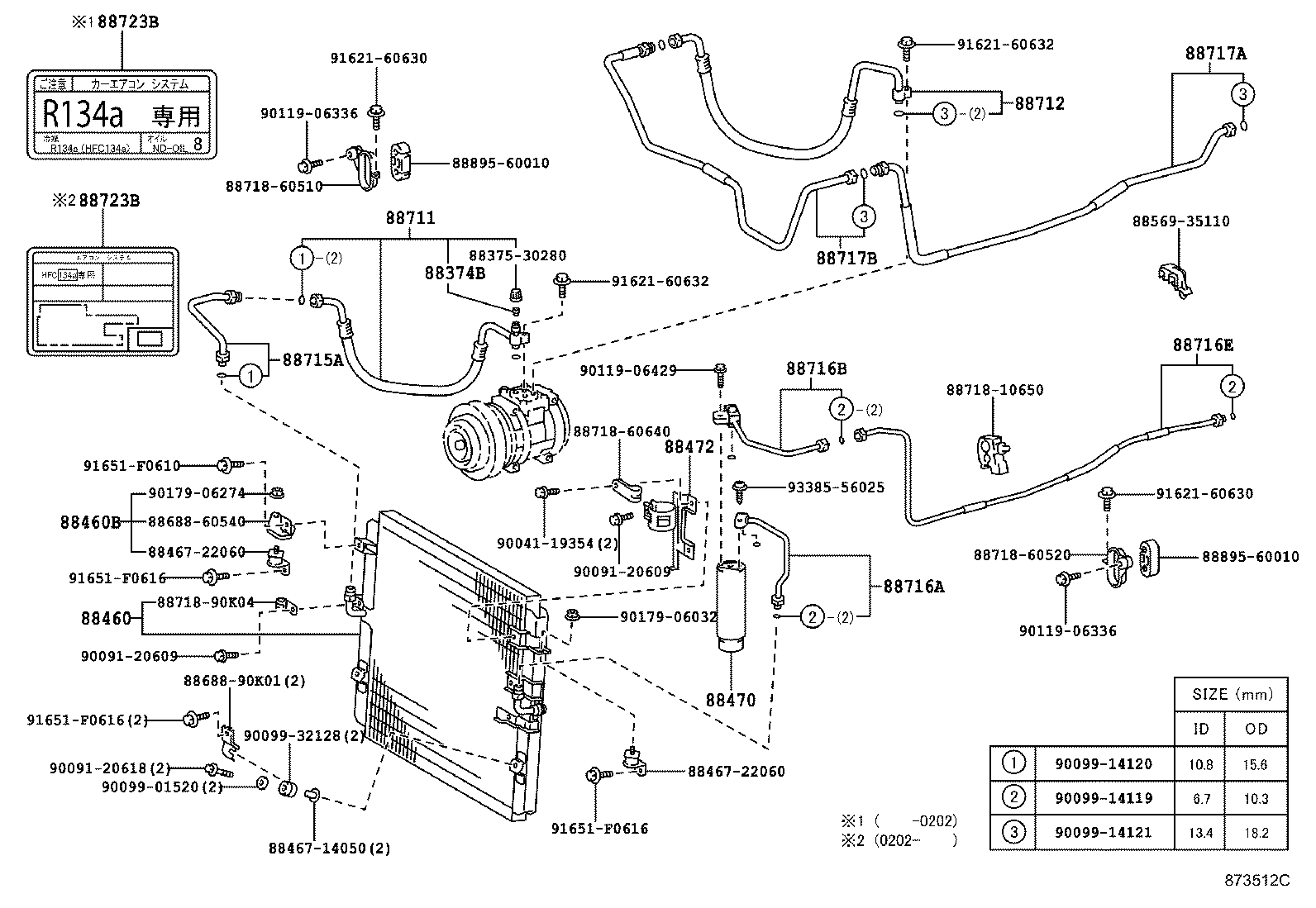

Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 88374B - VALVE, SERVICE, NO.1 | ||||
| 88374-30010 |
HZJ7# |
1 | ||
| 88374-30010 |
HZJ7# |
1 | ||
| 88460 - CONDENSER ASSY, COOLER | ||||
| 88460-60180 |
HZJ71,74,76 |
1 | ||
| 88460-60180 |
HZJ71,74,76 |
1 | ||
| 88460B - BRACKET, COOLER CONDENSER, NO.1 | ||||
| 88409-60020 |
HZJ7# |
1 | ||
| 88409-60020 |
HZJ7# |
1 | ||
| 88470 - RECEIVER & DRYER ASSY, COOLER | ||||
| 88470-14010 |
HZJ7#,PZJ7# |
1 | ||
| 88471-34010 |
HZJ7# |
1 | ||
| 88471-34010 |
HZJ7# |
1 | ||
| 88472 - BRACKET, RECEIVER TANK, NO.1 | ||||
| 88472-60090 |
HZJ7# |
1 | ||
| 88472-60090 |
HZJ7# |
2 | ||
| 88472-22090 |
HZJ7#,PZJ7# |
2 | ||
| 88711 - HOSE, COOLER REFRIGERANT DISCHARGE, NO.1 | ||||
| 88711-60550 |
HZJ7# |
1 | ||
| 88711-60220 |
HZJ7# |
1 | ||
| 88711-60550 |
HZJ7# |
1 | ||
| 88712 - HOSE, COOLER REFRIGERANT SUCTION, NO.1 | ||||
| 88712-60210 |
HZJ7# |
1 | ||
| 88712-60880 |
HZJ7# |
1 | ||
| 88712-60880 |
HZJ7# |
1 | ||
| 88715A - PIPE, COOLER REFRIGERANT DISCHARGE, A | ||||
| 88715-60040 |
HZJ7#,PZJ7# |
1 | ||
| 88715-60100 |
HZJ7# |
1 | ||
| 88715-60100 |
HZJ7# |
1 | ||
| 88716A - PIPE, COOLER REFRIGERANT LIQUID, A | ||||
| 88716-6A290 |
HZJ7# |
1 | ||
| 88716-60550 |
HZJ7#,PZJ7# |
1 | ||
| 88716-6A290 |
HZJ7# |
1 | ||
| 88716B - PIPE, COOLER REFRIGERANT LIQUID, B | ||||
| 88716-60500 |
HZJ7#,PZJ7# |
1 | ||
| 88716-6A220 |
HZJ7# |
1 | ||
| 88716-6A220 |
HZJ7# |
1 | ||
| 88716E - PIPE, COOLER REFRIGERANT LIQUID, E | ||||
| 88716-6B140 |
HZJ7# |
1 | ||
| 88716-6B140 |
HZJ7# |
1 | ||
| 88716-60510 |
HZJ7#,PZJ7# |
1 | ||
| 88717A - PIPE, COOLER REFRIGERANT SUCTION, A | ||||
| 88717-60270 |
HZJ7#,PZJ7# |
1 | ||
| 88717-6A370 |
HZJ7# |
1 | ||
| 88717-6A370 |
HZJ7# |
1 | ||
| 88717B - PIPE, COOLER REFRIGERANT SUCTION, B | ||||
| 88717-60410 |
HZJ7#,PZJ7# |
1 | ||
| 88717-60610 |
HZJ7# |
1 | ||
| 88717-60610 |
HZJ7# |
1 | ||
| 88723B - LABEL, COOLER SERVICE CAUTION | ||||
| 88723-22040 |
HZJ7#,LJ7#,PZJ7# |
1 | ||
| 88733-30040 |
HZJ7# |
1 | ||
| 88723-20030 |
HZJ7# |
1 | ||
| 88723-20030 |
HZJ7# |
1 | ||
| 88733-30040 |
HZJ7# |
1 | ||
| 88723B - LABEL, COOLER SERVICE CAUTION | ||||
| 88723-22040 |
HZJ7#,LJ7#,PZJ7# |
1 | ||
| 88733-30040 |
HZJ7# |
1 | ||
| 88723-20030 |
HZJ7# |
1 | ||
| 88723-20030 |
HZJ7# |
1 | ||
| 88733-30040 |
HZJ7# |
1 | ||
| Common parts | ||||
| 88375-30280 | ||||
| 88467-14050 | ||||
| 88467-22060 | ||||
| 88569-35110 | ||||
| 88688-60540 | ||||
| 88688-90K01 | ||||
| 88718-10650 | ||||
| 88718-60510 | ||||
| 88718-60520 | ||||
| 88718-60640 | ||||
| 88718-90K04 | ||||
| 88895-60010 | ||||
| 90041-19354 | ||||
| 90091-20609 | ||||
| 90091-20618 | ||||
| 90099-01520 | ||||
| 90099-14119 | ||||
| 90099-14120 | ||||
| 90099-14121 | ||||
| 90099-32128 | ||||
| 90119-06336 | ||||
| 90119-06429 | ||||
| 90179-06032 | ||||
| 90179-06274 | ||||
| 91621-60630 | ||||
| 91621-60632 | ||||
| 91651-F0610 | ||||
| 91651-F0616 | ||||
| 93385-56025 | ||||
