HZJ74K-FJPES (1999)

Toyota Land Cruiser S/T,H/T

Production Aug 1999 - Aug 2004
Engine 1HZ
Transmission ATM
Displacement 2500cc
Power 168 HP (125 kW)

(9908- )HZJ71,74,76

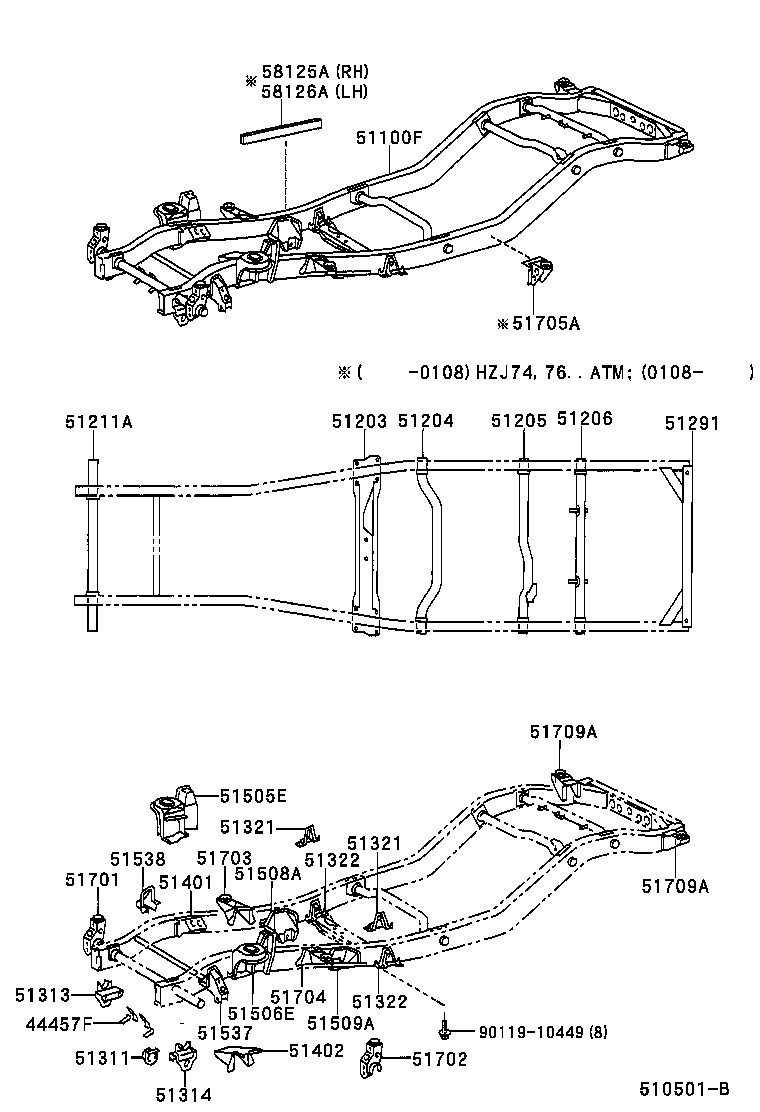

Click highlighted areas on diagram

diagram 44457F 51100F 51203 51204 51205 51206 51211A 51291 51311 51313 51314 51321 51321 51322 51322 51401 51402 51505E 51506E 51508A 51509A 51537 51538 51701 51702 51703 51704 51705A 51709A 51709A 58125A 58126A 9011910449
Part # Description Qty Price
44457F - BRACKET, TUBE SUPPORT
44457-60150

HZJ73,77..ZX;FJ75,HZJ71,74,75,76,79,PZJ7#

 4
44457-60150

HZJ7#

 4
51100F - FRAME SUB-ASSY
51003-6A640

HZJ74..ATM

 1
51003-6A641

HZJ74..ATM

 1
51203 - CROSSMEMBER SUB-ASSY, FRAME, NO.2
51202-60250

HZJ74,76..ATM

 1
51202-60120

HZJ71,74,76,79;HZJ73,77,LJ7#..ATM..(EX,EX5,SX5,ZX)

 1
51202-60120

HZJ7#

 1
51204 - CROSSMEMBER SUB-ASSY, FRAME, NO.3
51203-60132

HZJ73,77..ZX;HZJ71,74,76,LJ7#,PZJ7#

 1
51203-60132

HZJ71,74,76

 1
51205 - CROSSMEMBER SUB-ASSY, FRAME, NO.4
51204-60071

HZJ73,77..ZX;HZJ71,74,76,PZJ7#

 1
51204-60071

HZJ71,74,76

 1
51206 - CROSSMEMBER SUB-ASSY, FRAME, NO.5
51205-60021

FJ75,HZJ7#,PZJ7#

 1
51205-60160

HZJ7#

 1
51250-60050

HZJ7#

 1
51211A - CROSSMEMBER, FRAME, FRONT
51211-60050

HZJ7#

 1
51211-60050

HZJ73,77..ZX;FJ75,HZJ71,74,75,76,79,PZJ7#

 1
51291 - CROSSMEMBER, FRAME, REAR
51209-60130

HZJ73..ZX;HZJ71,74,LJ71,PZJ70

 1
51209-60130

HZJ71,74

 1
51311 - GUSSET, FRAME FRONT CROSSMEMBER
51311-60041

FJ75,HZJ7#,PZJ7#

 2
51311-60042

HZJ7#

 2
51313 - GUSSET, FRONT FRAME, LOWER RH
51313-60030

HZJ7#

 1
51314 - GUSSET, FRONT FRAME, LOWER LH
51314-60030

HZJ7#

 1
51321 - GUSSET, CROSSMEMBER, NO.2 RH
51321-60090

HZJ7#

 2
51322-60080

HZJ7#

 2
51321-60090

HZJ7#

 2
51321 - GUSSET, CROSSMEMBER, NO.2 RH
51321-60090

HZJ7#

 2
51322-60080

HZJ7#

 2
51321-60090

HZJ7#

 2
51322 - GUSSET, CROSSMEMBER, NO.2 LH
51322-60040

LJ7#..ATM;FJ75,HZJ7#

 2
51322-60070

HZJ7#

 2
51322-60080

HZJ7#

 2
51322 - GUSSET, CROSSMEMBER, NO.2 LH
51322-60040

LJ7#..ATM;FJ75,HZJ7#

 2
51322-60070

HZJ7#

 2
51322-60080

HZJ7#

 2
51401 - BRACKET SUB-ASSY, ENGINE FRONT MOUNTING, RH
51421-60140

HZJ73,77..ZX;HZJ71,74,75,76,79,PZJ7#

 1
51421-60140

HZJ7#

 1
51402 - BRACKET SUB-ASSY, ENGINE FRONT MOUNTING, LH
51422-60190

HZJ7#

 1
51505E - BRACKET SUB-ASSY, FRONT SPRING SUPPORT, RH
51505-60030

HZJ7#

 1
51506E - BRACKET SUB-ASSY, FRONT SPRING SUPPORT, LH
51506-60030

HZJ7#

 1
51508A - BRACKET SUB-ASSY, LOWER ARM, RH
51518-60050

HZJ7#

 1
51509A - BRACKET SUB-ASSY, LOWER ARM, LH
51519-60030

HZJ7#

 1
51537 - BRACKET, LATERAL ROD SUPPORT
51537-60060

HZJ7#

 1
51538 - STAY, LATERAL ROD SUPPORT
51548-60010

HZJ7#

 1
51701 - BRACKET SUB-ASSY, CAB MOUNTING, NO.1 RH
51701-60070

HZJ7#

 1
51701-60070

FJ75,HZJ7#,PZJ7#

 2
51702 - BRACKET SUB-ASSY, CAB MOUNTING, NO.1 LH
51701-60070

HZJ7#

 1
51703 - BRACKET SUB-ASSY, CAB MOUNTING, NO.2, RH
51703-60030

FJ75,HZJ7#,LJ7#,PZJ7#

 1
51703-60080

HZJ7#

 1
51704 - BRACKET SUB-ASSY, CAB MOUNTING, NO.2 LH
51704-60020

FJ75,HZJ7#,LJ7#,PZJ7#

 1
51704-60070

HZJ7#

 1
51705A - BRACKET SUB-ASSY, CAB MOUNTING, NO.3
51705-60130

HZJ74,76

 2
51709A - BRACKET SUB-ASSY, BODY REAR END MOUNTING
51709-60040

HZJ71,74,76

 2
51709A - BRACKET SUB-ASSY, BODY REAR END MOUNTING
51709-60040

HZJ71,74,76

 2
58125A - SEAL, FRONT FLOOR TO FRAME, RH
58125-60030

HZJ71,74,76

 1
58125-60010

HZJ73,77..ATM..ZX;HZJ74,76,LJ7#..ATM

 1
58126A - SEAL, FRONT FLOOR TO FRAME, LH
58126-60040

HZJ7#

 1
58126-60020

HZJ74,76..ATM

 1
Common parts
90119-10449
