HZJ74K-FJPES (1999)

Toyota Land Cruiser S/T,H/T

Production Aug 1999 - Aug 2004
Engine 1HZ
Transmission ATM
Displacement 2500cc
Power 168 HP (125 kW)

(9908- )ATM

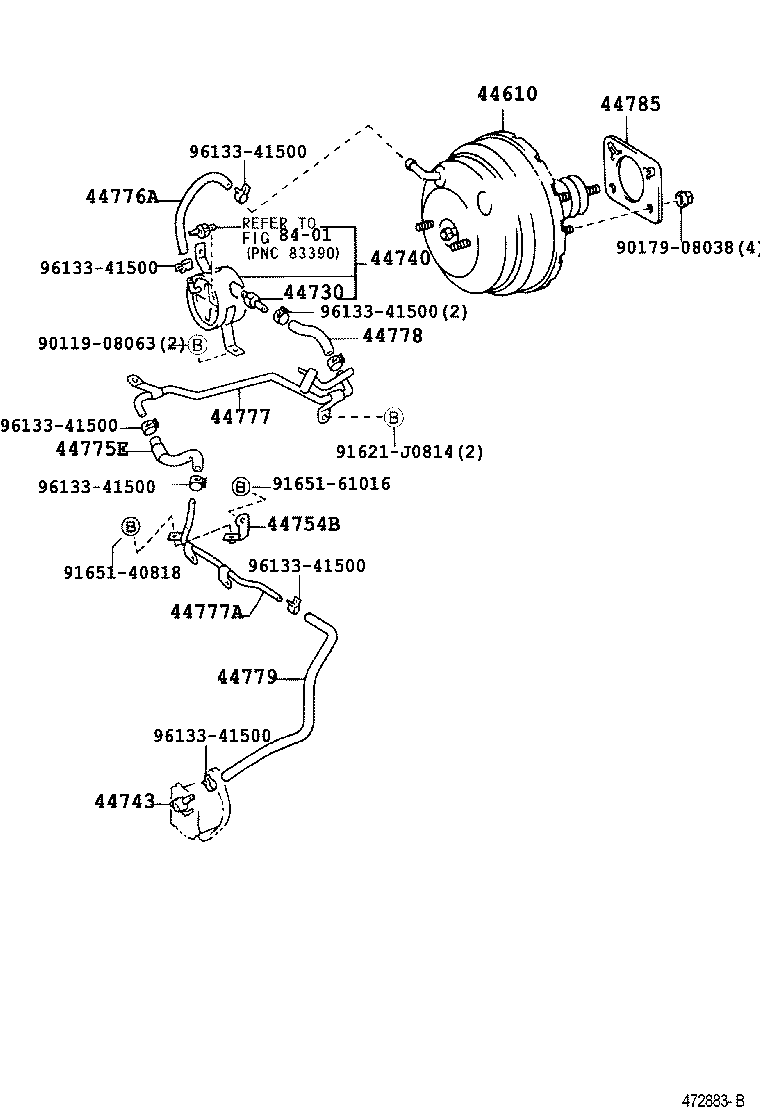

Click highlighted areas on diagram

diagram 44610 44730 44740 44743 44754B 44775E 44776A 44777 44777A 44778 44779 44785 8401 9011908063 9017908038 91621J0814 9165140818 9165161016 9613341500 9613341500 9613341500 9613341500 9613341500 9613341500 9613341500
Part # Description Qty Price
44610 - BOOSTER ASSY, BRAKE
44610-6A140

HZJ7#

 1
44730 - VALVE ASSY, VACUUM CHECK(FOR BRAKE)
44730-60050

HZJ74,76..ATM

 1
44730-60040

HZJ7#,LJ7#,PZJ7#

 1
44740 - RESERVOIR ASSY, VACUUM
44740-60230

HZJ74,76..ATM

 1
44740-60090

HZJ7#,PZJ7#

 1
44743 - UNION(FOR VACUUM PUMP)
90405-09141

HZJ7#,PZJ7#

 1
90405-09142

HZJ73,77..ZX;HZJ71,74,75,76,79,PZJ7#

ｱﾘ(ｴｱｺﾝﾃﾞｲｼﾖﾅ)

 1
90405-09142

HZJ7#

ｱﾘ(ｴｱｺﾝﾃﾞｲｼﾖﾅ)

 1
44754B - BRACKET, VACUUM TUBE
44754-60010

HZJ7#

 1
44754-60020

HZJ7#

 1
44754-60010

HZJ73,77..ZX;HZJ71,74,75,76,79,PZJ7#

 1
44775E - HOSE, WAY TO CONNECTOR
44775-60070

HZJ7#

 1
44775-60040

HZJ7#

 1
44775-60060

HZJ7#

 1
44776A - HOSE, VACUUM RESERVOIR TO BRAKE BOOSTER
95441-09300

HZJ7#,LJ7#,PZJ7#

 1
95446-09280

HZJ74,76..ATM

 1
44777 - CONNECTOR, VACUUM HOSE, NO.1
44769-60010

HZJ74,76..ATM

 1
44769-60040

HZJ74,76..ATM

 1
44777A - CONNECTOR, VACUUM HOSE, NO.2
44777-60360

HZJ7#

 1
44777-60220

HZJ73,77..ZX;HZJ71,74,75,76,79,PZJ7#

 1
44777-60220

HZJ7#

 1
44778 - HOSE, CONNECTOR TO CHECK VALVE
95446-09170

HZJ74,76..ATM

 1
44779 - HOSE, UNION TO CONNECTOR
44774-60130

HZJ7#

 1
44774-60131

HZJ7#

 1
44774-60130

HZJ73,77..ZX;HZJ71,74,75,76,79,PZJ7#

 1
44785 - GASKET, BRAKE BOOSTER
44785-35020

HZJ7#

 1
44785-35030

HZJ7#

 1
44785-35020

HZJ73,77..ZX;FJ75,HZJ71,74,75,76,79,LJ7#,PZJ7#

 1
Common parts
90119-08063
90179-08038
91621-J0814
91651-40818
91651-61016
96133-41500
Linked diagrams
8401
