HZJ74K-FJPES (1999)

Toyota Land Cruiser S/T,H/T

Production Aug 1999 - Aug 2004
Engine 1HZ
Transmission ATM
Displacement 2500cc
Power 168 HP (125 kW)

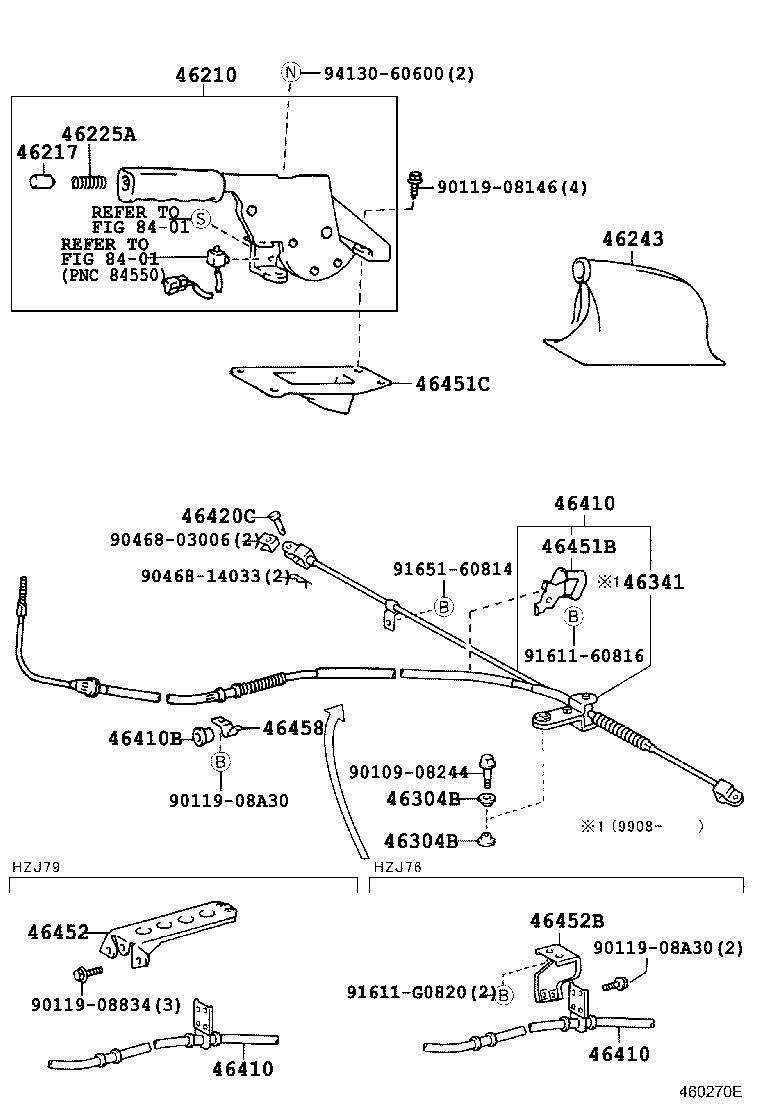

ILLUST NO. 1 OF 2(9908- )

Click highlighted areas on diagram

diagram 46210 46217 46225A 46243 46304B 46304B 46341 46410 46410 46410 46410B 46420C 46451B 46451C 46452 46452B 46458 8401 8401 9010908244 9011908146 9011908834 9011908A30 9011908A30 9046803006 9046814033 9161160816 91611G0820 9165160814 9413060600
Part # Description Qty Price
46210 - LEVER ASSY, PARKING BRAKE
46210-60230B0

HZJ7#

SHADOW GRAY,TRIM1#

 1
46210-6006203

FJ75,HZJ7#,LJ7#,PZJ7#

BLUEISH GRAY,TRIM1#

 1
46210-60230B0

HZJ7#

SHADOW GRAY,TRIM1#

 1
46217 - KNOB, PARKING BRAKE RELEASE ROD
46217-2002053

FJ75,HZJ7#,LJ7#,PZJ7#

BLUISH GRAY,TRIM1#

 1
46217-20020B3

HZJ7#

SHADOW GRAY,TRIM1#

 1
46217-20020B3

HZJ7#

SHADOW GRAY,TRIM1#

 1
46225A - SPRING, COMPRESSION(FOR PARKING BRAKE PAWL ROD)
90501-10138

HZJ73,77..ZX;FJ75,HZJ71,74,75,76,79,LJ7#,PZJ7#

 1
90501-10138

HZJ7#

 1
46243 - COVER, PARKING BRAKE LEVER
46243-6006003

FJ75,HZJ7#,LJ7#,PZJ7#

BLUISH GRAY,TRIM1#

 1
46243-60060B0

HZJ7#

BLUISH GRAY,TRIM1#

 1
46243-60060B0

HZJ7#

BLUISH GRAY,TRIM1#

 1
46304B - BUSH(FOR PARKING BRAKE EQUALIZER)
90385-12012

HZJ7#

 2
90385-12012

FJ75,HZJ7#,LJ78,PZJ7#

 2
46304B - BUSH(FOR PARKING BRAKE EQUALIZER)
90385-12012

HZJ7#

 2
90385-12012

FJ75,HZJ7#,LJ78,PZJ7#

 2
46341 - EQUALIZER, PARKING BRAKE
46341-35030

HZJ74,PZJ7#;FJ75,HZJ73,75,76,77,79,LJ7#..EX,EX5,LX5,STD,SX5,ZX

 2
46341-35030

HZJ76..ZX;HZJ71,74,79

 2
46410 - CABLE ASSY, PARKING BRAKE, NO.1
46410-60880

HZJ74..1NO

 1
46410-60880

HZJ74..1NO

 1
46410 - CABLE ASSY, PARKING BRAKE, NO.1
46410-60880

HZJ74..1NO

 1
46410-60880

HZJ74..1NO

 1
46410 - CABLE ASSY, PARKING BRAKE, NO.1
46410-60880

HZJ74..1NO

 1
46410-60880

HZJ74..1NO

 1
46410B - GROMMET(FOR PARKING BRAKE FRONT CABLE)
90480-17158

HZJ7#

 1
90480-17158

HZJ73,77..ZX;FJ75,HZJ71,74,75,76,79,LJ7#,PZJ7#

 1
46420C - PIN, W/HOLE(FOR PARKING BRAKE CABLE)
90240-08059

HZJ7#

 2
90240-08059

HZJ7#

 2
90240-08042

FJ75,HZJ7#,LJ7#,PZJ7#

 2
46451B - BRACKET, PARKING BRAKE CABLE SUPPORT
46451-60180

HZJ7#

 1
46451-60180

HZJ7#

 1
46451C - BRACKET, PARKING BRAKE CABLE SUPPORT, NO.1
46451-60070

HZJ7#,LJ7#,PZJ7#..HT,WG

 1
46451-60130

HZJ7#..HT,PIC

 1
46452B - BRACKET, CABLE SUPPORT, NO.2
46452-60080

FJ75,HZJ7#,PZJ7#

 1
46458 - RETAINER, CABLE
46458-30020

HZJ7#

 1
46458-30020

HZJ73,77..ZX;FJ75,HZJ71,74,75,76,79,LJ7#,PZJ7#

 1
Common parts
90109-08244
90119-08146
90119-08834
90119-08A30
90468-03006
90468-14033
91611-60816
91611-G0820
91651-60814
94130-60600
Linked diagrams
8401
