HZJ74K-FJMES (1999)

Toyota Land Cruiser S/T,H/T

Production Aug 1999 - Aug 2004
Engine 1HZ
Transmission MTM
Displacement 2500cc
Power 168 HP (125 kW)

(9908- )ZX

Click highlighted areas on diagram

DISC BRAKE

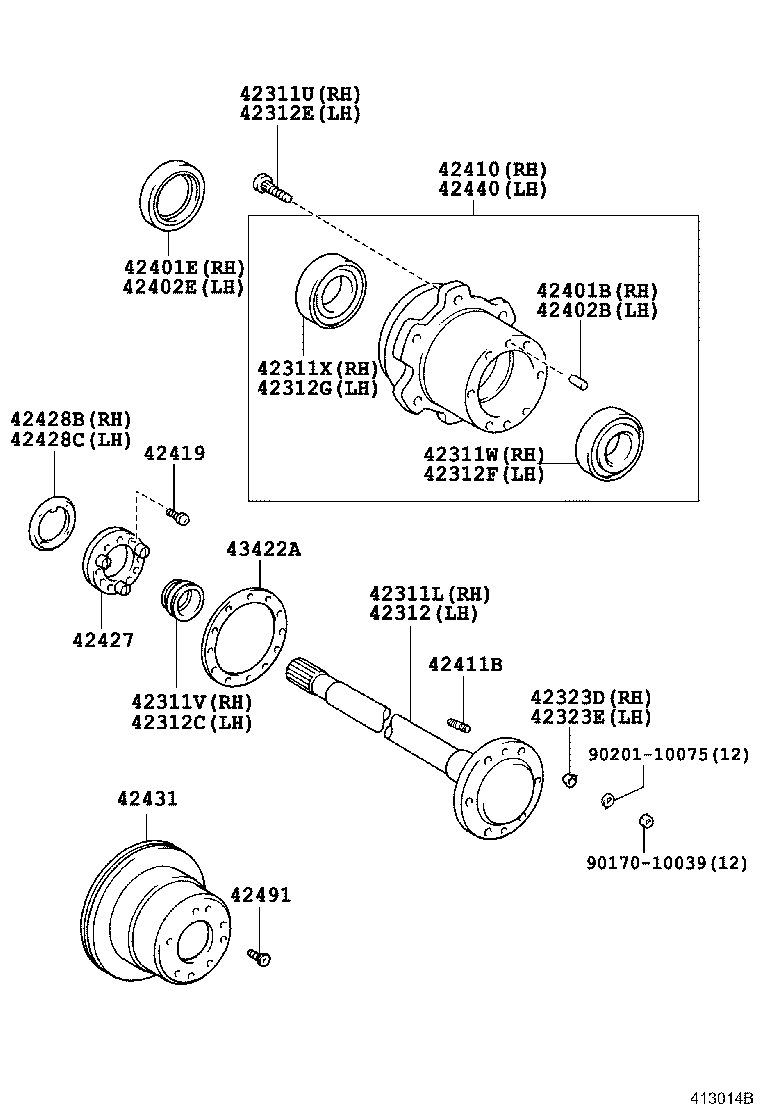

diagram 42311L 42311U 42311V 42311W 42311X 42312 42312C 42312E 42312F 42312G 42323D 42323E 42401B 42401E 42402B 42402E 42410 42411B 42419 42427 42428B 42428C 42431 42440 42491 43422A 9017010039 9020110075
Part # Description Qty Price
42311L - SHAFT, REAR AXLE, RH
42311-60080

HZJ7#,PZJ7#..LX,ZX

ｱﾘ(ﾃﾞﾌﾛﾂｸ)

 1
42311-60052

FJ75,HZJ7#

 1
42311-60190

HZJ7#

 1
42311-60200

HZJ71,74,76

ｱﾘ(ﾃﾞﾌﾛﾂｸ)

 1
42311U - BOLT, HUB (FOR REAR AXLE RH)
90942-02077

HZJ7#

 5
90942-02052

FJ75,HZJ7#,LJ7#,PZJ7#

 6
42311V - SEAL, OIL (FOR REAR AXLE SHAFT RH)
90310-36003

HZJ7#

 1
42311W - BEARING (FOR REAR AXLE SHAFT OUTER RH)
90080-36067

HZJ7#

TIMKEN

 1
90368-45087

HZJ7#

NSK

 1
42311X - BEARING (FOR REAR AXLE SHAFT INNER RH)
90080-36064

HZJ7#

TIMKEN

 1
90368-49084

HZJ7#

NSK

 1
42312 - SHAFT, REAR AXLE, LH
42312-60042

FJ75,HZJ7#

 1
42312-60140

HZJ7#

 1
42312C - SEAL, OIL (FOR REAR AXLE SHAFT LH)
90310-36003

HZJ7#

 1
42312E - BOLT, HUB (FOR REAR AXLE LH)
90942-02052

FJ75,HZJ7#,LJ7#,PZJ7#

 6
90942-02077

HZJ7#

 5
42312F - BEARING (FOR REAR AXLE SHAFT OUTER LH)
90080-36067

HZJ7#

TIMKEN

 1
90368-45087

HZJ7#

NSK

 1
42312G - BEARING (FOR REAR AXLE SHAFT INNER LH)
90368-49084

HZJ7#

NSK

 1
90080-36064

HZJ7#

TIMKEN

 1
42323D - WASHER, CONE (FOR REAR AXLE SHAFT RH)
42323-60030

HZJ7#

 6
42323E - WASHER, CONE (FOR REAR AXLE SHAFT LH)
42323-60030

HZJ7#

 6
42401B - PIN, STRAIGHT (FOR REAR AXLE HUB RH)
90250-07057

PZJ77..4NO;PZJ77..LX..1NO;FJ75,HZJ7#,PZJ70

 2
90250-10032

HZJ7#

 2
42401E - SEAL, OIL (FOR REAR AXLE HUB RH)
90311-62002

HZJ74,76..ZX

 1
42402B - PIN, STRAIGHT (FOR REAR AXLE HUB LH)
90250-10032

HZJ7#

 2
90250-07057

PZJ77..4NO;PZJ77..LX..1NO;FJ75,HZJ7#,PZJ70

 2
42402E - SEAL, OIL (FOR REAR AXLE HUB LH)
90311-62002

HZJ74,76..ZX

 1
42410 - HUB & BEARING ASSY, REAR AXLE, RH
42410-69025

HZJ74,76..ZX

 1
42411B - BOLT, STUD (FOR REAR AXLE HUB)
90116-10201

HZJ7#

 12
90116-08325

PZJ77..4NO;PZJ77..LX..1NO;FJ75,HZJ7#,PZJ70

 12
42419 - SCREW, REAR AXLE BEARING LOCK NUT
42419-60011

PZJ77..4NO;PZJ77..LX..1NO;FJ75,HZJ7#,PZJ70

 4
42419-60011

HZJ7#

 4
42427 - NUT, REAR AXLE BEARING LOCK
42427-60021

PZJ77..4NO;PZJ77..LX..1NO;FJ75,HZJ7#,PZJ70

 2
42427-60021

HZJ7#

 2
42428B - PLATE, REAR AXLE LOCK NUT, RH
42428-60011

HZJ7#

 1
42428C - PLATE, REAR AXLE LOCK NUT, LH
42428-60011

HZJ7#

 1
42431 - DISC, REAR
42431-60260

HZJ74,76..ZX

 2
42440 - HUB & BEARING ASSY, REAR AXLE, LH
42410-69025

HZJ74,76..ZX

 1
42491 - PLUG, SHOE ADJUSTING HOLE (FOR PARKING BRAKE)
47491-22020

HZJ73,74,76,77..ZX

 2
47491-22020

HZJ74,76..ZX

 2
43422A - GASKET, REAR AXLE OUTER SHAFT FLANGE
43422-60070

HZJ7#

 2
Common parts
90170-10039
90201-10075
