HZJ73V-PEU (1991)
Toyota Land Cruiser S/T,H/T

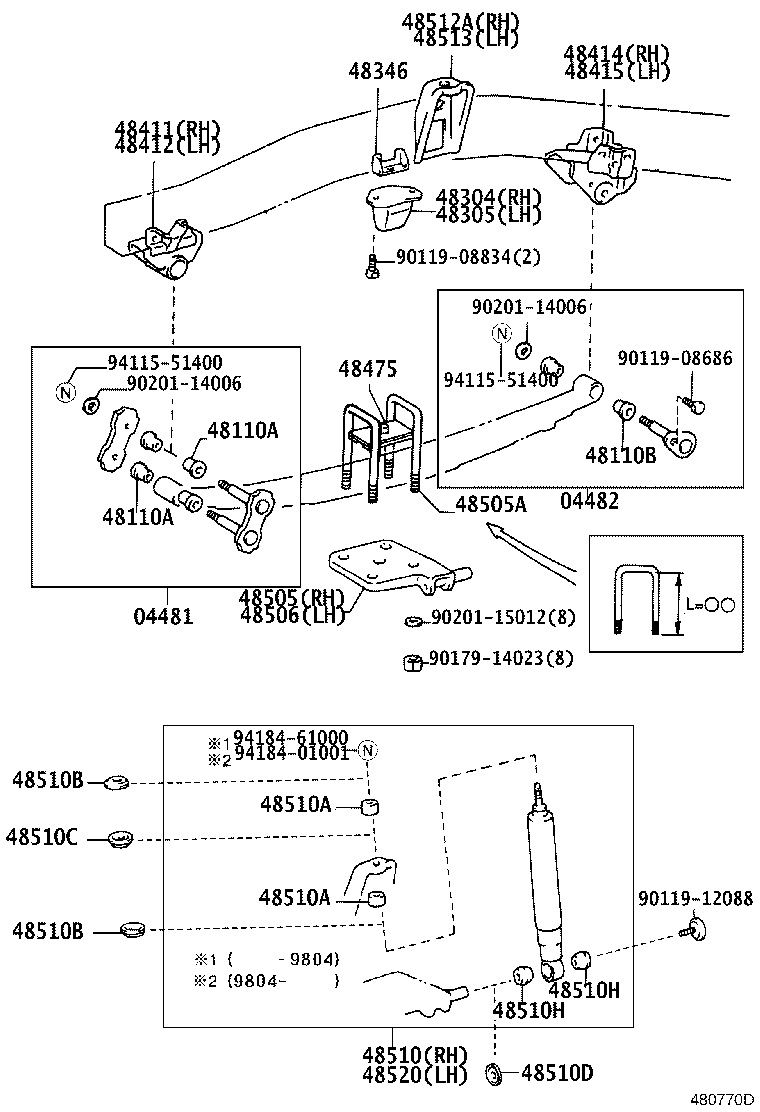

ILLUST NO. 1 OF 3(9001-9908)FJ75,HZJ7#,PZJ7#
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 04481 - SHACKLE KIT, FRONT SPRING | ||||
| 04483-60060 |
HZJ73,PZJ70 |
2 | ||
| 04482 - PIN KIT, FRONT SPRING | ||||
| 04482-60040 |
HZJ73,PZJ70 |
2 | ||
| 48110A - BUSH(FOR FRONT SPRING SHACKLE) | ||||
| 90389-18002 |
HZJ73,PZJ70 |
8 | ||
| 48110A - BUSH(FOR FRONT SPRING SHACKLE) | ||||
| 90389-18002 |
HZJ73,PZJ70 |
8 | ||
| 48110B - BUSH(FOR FRONT SPRING PIN) | ||||
| 90389-18002 |
HZJ73,PZJ70 |
4 | ||
| 48304 - BUMPER SUB-ASSY, FRONT SPRING, NO.1 | ||||
| 48304-60051 |
HZJ73,PZJ70 |
1 | ||
| 48304-60070 |
HZJ73,77,PZJ7# |
1 | ||
| 48305 - BUMPER SUB-ASSY, FRONT SPRING, NO.2 | ||||
| 48305-60021 |
HZJ73,PZJ70 |
1 | ||
| 48305-60040 |
HZJ73,77,PZJ7# |
1 | ||
| 48346 - STOPPER, BUMPER, FRONT | ||||
| 48346-60010 |
HZJ73,PZJ70 |
2 | ||
| 48411 - BRACKET, FRONT SPRING(FOR FRONT RH) | ||||
| 48411-60050 |
HZJ73,PZJ70 |
1 | ||
| 48412 - BRACKET, FRONT SPRING(FOR FRONT LH) | ||||
| 48412-60010 |
HZJ73,PZJ70 |
1 | ||
| 48414 - BRACKET, FRONT SPRING(FOR REAR RH) | ||||
| 48433-60020 |
HZJ73,PZJ70 |
1 | ||
| 48415 - BRACKET, FRONT SPRING(FOR REAR LH) | ||||
| 48434-60020 |
HZJ73,PZJ70 |
1 | ||
| 48475 - PLATE, DISTANCE(FOR FRONT) | ||||
| 48475-60020 |
HZJ73,PZJ70 |
1 | ||
| 48505 - SEAT, FRONT SPRING, RH | ||||
| 48048-60021 |
HZJ73,PZJ70 |
1 | ||
| 48505A - BOLT, U(FOR FRONT SPRING) | ||||
| 90117-14036 |
HZJ73 長さ=190 |
4 | ||
| 90117-14020 |
HZJ73 長さ=205,ｱﾘ(PNC 48475) |
2 | ||
| 48506 - SEAT, FRONT SPRING, LH | ||||
| 48049-60021 |
HZJ73,PZJ70 |
1 | ||
| 48510 - ABSORBER ASSY, SHOCK, FRONT RH | ||||
| 48511-69345 |
HZJ7#,PZJ7# |
1 | ||
| 48511-69346 |
HZJ73,77,PZJ7# |
1 | ||
| 48510A - CUSHION, FRONT SHOCK ABSORBER | ||||
| 90948-01031 |
HZJ73,PZJ70 |
4 | ||
| 48510A - CUSHION, FRONT SHOCK ABSORBER | ||||
| 90948-01031 |
HZJ73,PZJ70 |
4 | ||
| 48510B - RETAINER, CUSHION, NO.1(FOR FRONT SHOCK ABSORBER) | ||||
| 90948-02114 |
FJ75,HZJ7#,LJ7#,PZJ7# |
4 | ||
| 48510B - RETAINER, CUSHION, NO.1(FOR FRONT SHOCK ABSORBER) | ||||
| 90948-02114 |
FJ75,HZJ7#,LJ7#,PZJ7# |
4 | ||
| 48510C - RETAINER, CUSHION, NO.2(FOR FRONT SHOCK ABSORBER) | ||||
| 90948-02017 |
FJ75,HZJ7#,LJ7#,PZJ7# |
2 | ||
| 48510D - WASHER, FRONT SHOCK ABSORBER CUSHION, NO.1 | ||||
| 90948-03011 |
HZJ73,PZJ70 |
2 | ||
| 48510H - BUSH(FOR FRONT SHOCK ABSORBER) | ||||
| 90385-19003 |
HZJ73,PZJ70 |
4 | ||
| 48510H - BUSH(FOR FRONT SHOCK ABSORBER) | ||||
| 90385-19003 |
HZJ73,PZJ70 |
4 | ||
| 48512A - BRACKET, FRONT SHOCK ABSORBER, UPPER RH | ||||
| 48501-60010 |
HZJ73,PZJ70 |
1 | ||
| 48513 - BRACKET, FRONT SHOCK ABSORBER, UPPER LH | ||||
| 48502-60010 |
HZJ73,PZJ70 |
1 | ||
| 48520 - ABSORBER ASSY, SHOCK, FRONT LH | ||||
| 48511-69345 |
HZJ7#,PZJ7# |
1 | ||
| 48511-69346 |
HZJ73,77,PZJ7# |
1 | ||
| Common parts | ||||
| 90119-08686 | ||||
| 90119-08834 | ||||
| 90119-12088 | ||||
| 90179-14023 | ||||
| 90201-14006 | ||||
| 90201-15012 | ||||
| 94115-51400 | ||||
| 94184-01001 | ||||
| 94184-61000 | ||||
ILLUST NO. 2 OF 3(9001-9908)FJ75,HZJ7#,PZJ7#
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 48811 - BAR, STABILIZER, FRONT | ||||
| 48811-60100 |
HZJ73,77,PZJ7# |
1 | ||
| 48811-60051 |
HZJ73,PZJ70 |
1 | ||
| 48811A - BUSH(FOR FRONT STABILIZER BAR) | ||||
| 90440-14024 |
HZJ73,PZJ70 |
2 | ||
| 48815 - BUSH, FRONT STABILIZER BAR, NO.1 | ||||
| 48815-26040 |
HZJ73,PZJ70 |
2 | ||
| 48815-26020 |
HZJ73,77,LJ78,PZJ7# |
2 | ||
| 48817 - CUSHION, FRONT STABILIZER | ||||
| 90948-01003 |
HZJ73,PZJ70 |
8 | ||
| 48817 - CUSHION, FRONT STABILIZER | ||||
| 90948-01003 |
HZJ73,PZJ70 |
8 | ||
| 48817 - CUSHION, FRONT STABILIZER | ||||
| 90948-01003 |
HZJ73,PZJ70 |
8 | ||
| 48817 - CUSHION, FRONT STABILIZER | ||||
| 90948-01003 |
HZJ73,PZJ70 |
8 | ||
| 48817A - RETAINER, CUSHION, NO.1(FOR FRONT STABILIZER BAR) | ||||
| 90948-02017 |
HZJ73,PZJ70 |
2 | ||
| 48817B - RETAINER, CUSHION, NO.2(FOR FRONT STABILIZER BAR) | ||||
| 90948-02002 |
HZJ73,PZJ70 |
8 | ||
| 48817B - RETAINER, CUSHION, NO.2(FOR FRONT STABILIZER BAR) | ||||
| 90948-02002 |
HZJ73,PZJ70 |
8 | ||
| 48817B - RETAINER, CUSHION, NO.2(FOR FRONT STABILIZER BAR) | ||||
| 90948-02002 |
HZJ73,PZJ70 |
8 | ||
| 48817B - RETAINER, CUSHION, NO.2(FOR FRONT STABILIZER BAR) | ||||
| 90948-02002 |
HZJ73,PZJ70 |
8 | ||
| 48817D - BOLT(FOR FRONT STABILIZER) | ||||
| 90101-10157 |
HZJ73,PZJ70 |
2 | ||
| 48817F - NUT(FOR FRONT STABILIZER BAR) | ||||
| 94184-61000 |
HZJ73,PZJ70 |
2 | ||
| 48823B - COVER, FRONT STABILIZER BRACKET | ||||
| 48823-60030 |
HZJ73,77..ZX;FJ75,HZJ71,74,75,76,79,LJ7#,PZJ7# |
2 | ||
| 48824 - BRACKET, STABILIZER, FRONT | ||||
| 48825-60020 |
HZJ73,PZJ70 |
2 | ||
| Common parts | ||||
| 90119-08834 | ||||

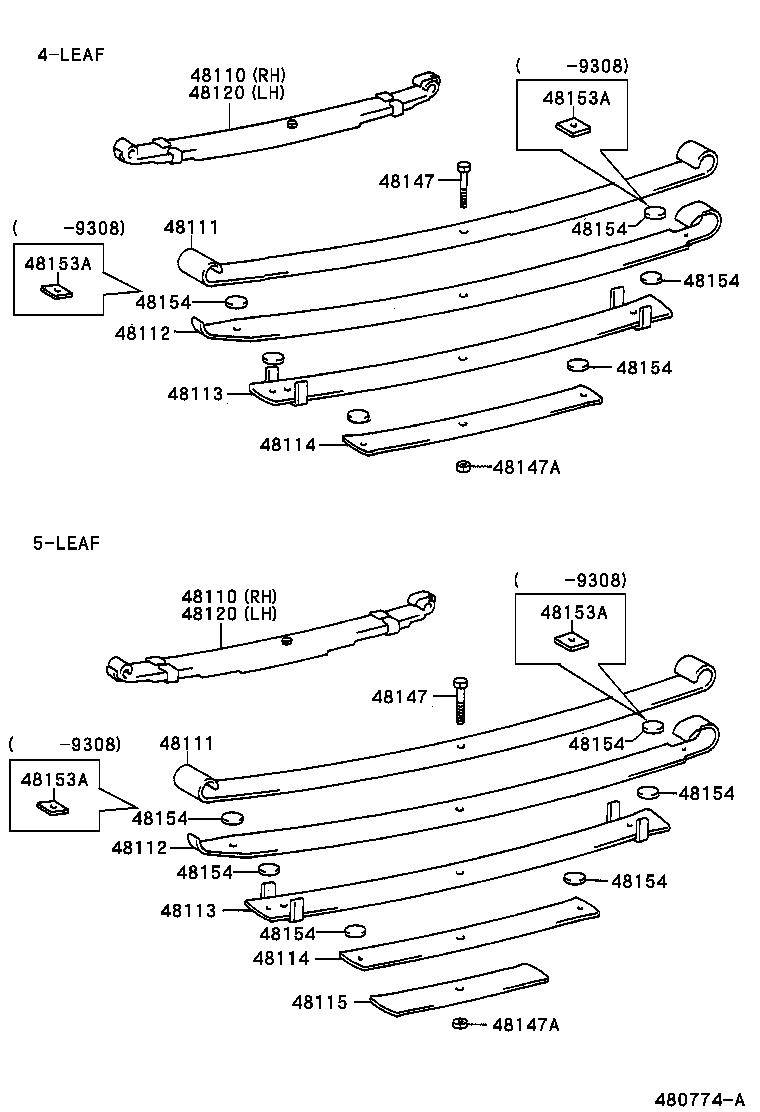

ILLUST NO. 3 OF 3(9001-9908)FJ75,HZJ7#,PZJ7#
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 48110 - SPRING ASSY, FRONT, RH | ||||
| 48110-60500 |
HZJ73..S..1NO;HZJ73..ATM..1NO;HZJ73,PZJ77..4NO 5枚ﾘｰﾌ |
1 | ||
| 48110-60640 |
HZJ73,77 5枚ﾘｰﾌ,ｱﾘ(ｳｲﾝﾁ) |
1 | ||
| 48110-60640 |
HZJ73,77 5枚ﾘｰﾌ,ｱﾘ(ｳｲﾝﾁ) |
1 | ||
| 48110-60500 |
HZJ73..4NO;HZJ73..ATM..1NO;HZJ77,PZJ77..1NO 5枚ﾘｰﾌ |
1 | ||
| 48110-60500 |
HZJ73,77;PZJ77..1NO 5枚ﾘｰﾌ |
1 | ||
| 48110-60510 |
HZJ73..U..4NO;HZJ73..ATM..1NO 5枚ﾘｰﾌ,ｱﾘ(ｳｲﾝﾁ) |
1 | ||
| 48110 - SPRING ASSY, FRONT, RH | ||||
| 48110-60500 |
HZJ73..S..1NO;HZJ73..ATM..1NO;HZJ73,PZJ77..4NO 5枚ﾘｰﾌ |
1 | ||
| 48110-60640 |
HZJ73,77 5枚ﾘｰﾌ,ｱﾘ(ｳｲﾝﾁ) |
1 | ||
| 48110-60640 |
HZJ73,77 5枚ﾘｰﾌ,ｱﾘ(ｳｲﾝﾁ) |
1 | ||
| 48110-60500 |
HZJ73..4NO;HZJ73..ATM..1NO;HZJ77,PZJ77..1NO 5枚ﾘｰﾌ |
1 | ||
| 48110-60500 |
HZJ73,77;PZJ77..1NO 5枚ﾘｰﾌ |
1 | ||
| 48110-60510 |
HZJ73..U..4NO;HZJ73..ATM..1NO 5枚ﾘｰﾌ,ｱﾘ(ｳｲﾝﾁ) |
1 | ||
| 48111 - LEAF, FRONT SPRING, NO.1 | ||||
| 48111-60490 |
HZJ73,77;PZJ77..1NO |
2 | ||
| 48111-60490 |
HZJ7#,PZJ7# |
2 | ||
| 48111-60490 |
HZJ73,77;PZJ77..1NO |
2 | ||
| 48111 - LEAF, FRONT SPRING, NO.1 | ||||
| 48111-60490 |
HZJ73,77;PZJ77..1NO |
2 | ||
| 48111-60490 |
HZJ7#,PZJ7# |
2 | ||
| 48111-60490 |
HZJ73,77;PZJ77..1NO |
2 | ||
| 48112 - LEAF, FRONT SPRING, NO.2 | ||||
| 48112-60490 |
HZJ7#,PZJ7# |
2 | ||
| 48112-60490 |
HZJ73,77;PZJ77..1NO |
2 | ||
| 48112-60490 |
HZJ73,77;PZJ77..1NO |
2 | ||
| 48112 - LEAF, FRONT SPRING, NO.2 | ||||
| 48112-60490 |
HZJ73,77;PZJ77..1NO |
2 | ||
| 48112-60490 |
HZJ7#,PZJ7# |
2 | ||
| 48112-60490 |
HZJ73,77;PZJ77..1NO |
2 | ||
| 48113 - LEAF, FRONT SPRING, NO.3 | ||||
| 48102-60510 |
HZJ73..U..4NO;HZJ73..ATM..1NO ｱﾘ(ｳｲﾝﾁ) |
2 | ||
| 48102-60500 |
HZJ73..4NO;HZJ73..ATM..1NO;HZJ77,PZJ77..1NO |
2 | ||
| 48102-60500 |
HZJ73,77;PZJ77..1NO |
2 | ||
| 48102-60500 |
HZJ73..S..1NO;HZJ73..ATM..1NO;HZJ73,PZJ77..4NO |
2 | ||
| 48113 - LEAF, FRONT SPRING, NO.3 | ||||
| 48102-60510 |
HZJ73..U..4NO;HZJ73..ATM..1NO ｱﾘ(ｳｲﾝﾁ) |
2 | ||
| 48102-60500 |
HZJ73..4NO;HZJ73..ATM..1NO;HZJ77,PZJ77..1NO |
2 | ||
| 48102-60500 |
HZJ73,77;PZJ77..1NO |
2 | ||
| 48102-60500 |
HZJ73..S..1NO;HZJ73..ATM..1NO;HZJ73,PZJ77..4NO |
2 | ||
| 48114 - LEAF, FRONT SPRING, NO.4 | ||||
| 48114-60500 |
HZJ73..S..1NO;HZJ73..ATM..1NO;HZJ73,PZJ77..4NO |
2 | ||
| 48114-60510 |
HZJ73..U..4NO;HZJ73..ATM..1NO ｱﾘ(ｳｲﾝﾁ) |
2 | ||
| 48114-60500 |
HZJ73..4NO;HZJ73..ATM..1NO;HZJ77,PZJ77..1NO |
2 | ||
| 48114-60500 |
HZJ73,77;PZJ77..1NO |
2 | ||
| 48114 - LEAF, FRONT SPRING, NO.4 | ||||
| 48114-60500 |
HZJ73..S..1NO;HZJ73..ATM..1NO;HZJ73,PZJ77..4NO |
2 | ||
| 48114-60510 |
HZJ73..U..4NO;HZJ73..ATM..1NO ｱﾘ(ｳｲﾝﾁ) |
2 | ||
| 48114-60500 |
HZJ73..4NO;HZJ73..ATM..1NO;HZJ77,PZJ77..1NO |
2 | ||
| 48114-60500 |
HZJ73,77;PZJ77..1NO |
2 | ||
| 48115 - LEAF, FRONT SPRING, NO.5 | ||||
| 48115-60500 |
HZJ73..S..1NO;HZJ73..ATM..1NO;HZJ73,PZJ7#..4NO |
2 | ||
| 48115-60500 |
HZJ73,77;PZJ77..1NO |
2 | ||
| 48115-60500 |
HZJ73..4NO;HZJ73..ATM..1NO;HZJ77,PZJ77..1NO |
2 | ||
| 48115-60510 |
HZJ73..U..4NO;HZJ73..ATM..1NO ｱﾘ(ｳｲﾝﾁ) |
2 | ||
| 48120 - SPRING ASSY, FRONT, LH | ||||
| 48110-60500 |
HZJ73..S..1NO;HZJ73..ATM..1NO;HZJ73,PZJ77..4NO 5枚ﾘｰﾌ |
1 | ||
| 48110-60510 |
HZJ73..U..4NO;HZJ73..ATM..1NO 5枚ﾘｰﾌ,ｱﾘ(ｳｲﾝﾁ) |
1 | ||
| 48110-60500 |
HZJ73..4NO;HZJ73..ATM..1NO;HZJ77,PZJ77..1NO 5枚ﾘｰﾌ |
1 | ||
| 48110-60500 |
HZJ73,77;PZJ77..1NO 5枚ﾘｰﾌ |
1 | ||
| 48110-60640 |
HZJ73,77 5枚ﾘｰﾌ,ｱﾘ(ｳｲﾝﾁ) |
1 | ||
| 48110-60640 |
HZJ73,77 5枚ﾘｰﾌ,ｱﾘ(ｳｲﾝﾁ) |
1 | ||
| 48120 - SPRING ASSY, FRONT, LH | ||||
| 48110-60500 |
HZJ73..S..1NO;HZJ73..ATM..1NO;HZJ73,PZJ77..4NO 5枚ﾘｰﾌ |
1 | ||
| 48110-60510 |
HZJ73..U..4NO;HZJ73..ATM..1NO 5枚ﾘｰﾌ,ｱﾘ(ｳｲﾝﾁ) |
1 | ||
| 48110-60500 |
HZJ73..4NO;HZJ73..ATM..1NO;HZJ77,PZJ77..1NO 5枚ﾘｰﾌ |
1 | ||
| 48110-60500 |
HZJ73,77;PZJ77..1NO 5枚ﾘｰﾌ |
1 | ||
| 48110-60640 |
HZJ73,77 5枚ﾘｰﾌ,ｱﾘ(ｳｲﾝﾁ) |
1 | ||
| 48110-60640 |
HZJ73,77 5枚ﾘｰﾌ,ｱﾘ(ｳｲﾝﾁ) |
1 | ||
| 48147 - BOLT, FRONT SPRING, CENTER | ||||
| 48147-60290 |
HZJ73,77,PZJ77 長さ=45 |
2 | ||
| 48289-60010 |
HZJ73,77,PZJ7# 長さ=120 |
2 | ||
| 48147 - BOLT, FRONT SPRING, CENTER | ||||
| 48147-60290 |
HZJ73,77,PZJ77 長さ=45 |
2 | ||
| 48289-60010 |
HZJ73,77,PZJ7# 長さ=120 |
2 | ||
| 48147A - NUT, FRONT SPRING CENTER BOLT | ||||
| 48284-60062 |
HZJ73,77,PZJ7# |
2 | ||
| 48147A - NUT, FRONT SPRING CENTER BOLT | ||||
| 48284-60062 |
HZJ73,77,PZJ7# |
2 | ||
| 48153A - SILENCER, FRONT SPRING, NO.1 | ||||
| 48153-60230 |
HZJ73,77,PZJ7# |
4 | ||
| 48153-60230 |
HZJ73,77,PZJ7# |
4 | ||
| 48153A - SILENCER, FRONT SPRING, NO.1 | ||||
| 48153-60230 |
HZJ73,77,PZJ7# |
4 | ||
| 48153-60230 |
HZJ73,77,PZJ7# |
4 | ||
| 48153A - SILENCER, FRONT SPRING, NO.1 | ||||
| 48153-60230 |
HZJ73,77,PZJ7# |
4 | ||
| 48153-60230 |
HZJ73,77,PZJ7# |
4 | ||
| 48153A - SILENCER, FRONT SPRING, NO.1 | ||||
| 48153-60230 |
HZJ73,77,PZJ7# |
4 | ||
| 48153-60230 |
HZJ73,77,PZJ7# |
4 | ||
| 48154 - SILENCER, FRONT SPRING, NO.2 | ||||
| 48154-60230 |
HZJ73,77,PZJ77 |
8 | ||
| 48154-60240 |
HZJ73,77 ｱﾘ(ｳｲﾝﾁ) |
8 | ||
| 48154-60240 |
HZJ73,77 ｱﾘ(ｳｲﾝﾁ) |
8 | ||
| 48154-60230 |
HZJ7#,PZJ7# |
8 | ||
| 48154 - SILENCER, FRONT SPRING, NO.2 | ||||
| 48154-60230 |
HZJ73,77,PZJ77 |
8 | ||
| 48154-60240 |
HZJ73,77 ｱﾘ(ｳｲﾝﾁ) |
8 | ||
| 48154-60240 |
HZJ73,77 ｱﾘ(ｳｲﾝﾁ) |
8 | ||
| 48154-60230 |
HZJ7#,PZJ7# |
8 | ||
| 48154 - SILENCER, FRONT SPRING, NO.2 | ||||
| 48154-60230 |
HZJ73,77,PZJ77 |
8 | ||
| 48154-60240 |
HZJ73,77 ｱﾘ(ｳｲﾝﾁ) |
8 | ||
| 48154-60240 |
HZJ73,77 ｱﾘ(ｳｲﾝﾁ) |
8 | ||
| 48154-60230 |
HZJ7#,PZJ7# |
8 | ||
| 48154 - SILENCER, FRONT SPRING, NO.2 | ||||
| 48154-60230 |
HZJ73,77,PZJ77 |
8 | ||
| 48154-60240 |
HZJ73,77 ｱﾘ(ｳｲﾝﾁ) |
8 | ||
| 48154-60240 |
HZJ73,77 ｱﾘ(ｳｲﾝﾁ) |
8 | ||
| 48154-60230 |
HZJ7#,PZJ7# |
8 | ||
| 48154 - SILENCER, FRONT SPRING, NO.2 | ||||
| 48154-60230 |
HZJ73,77,PZJ77 |
8 | ||
| 48154-60240 |
HZJ73,77 ｱﾘ(ｳｲﾝﾁ) |
8 | ||
| 48154-60240 |
HZJ73,77 ｱﾘ(ｳｲﾝﾁ) |
8 | ||
| 48154-60230 |
HZJ7#,PZJ7# |
8 | ||
| 48154 - SILENCER, FRONT SPRING, NO.2 | ||||
| 48154-60230 |
HZJ73,77,PZJ77 |
8 | ||
| 48154-60240 |
HZJ73,77 ｱﾘ(ｳｲﾝﾁ) |
8 | ||
| 48154-60240 |
HZJ73,77 ｱﾘ(ｳｲﾝﾁ) |
8 | ||
| 48154-60230 |
HZJ7#,PZJ7# |
8 | ||
| 48154 - SILENCER, FRONT SPRING, NO.2 | ||||
| 48154-60230 |
HZJ73,77,PZJ77 |
8 | ||
| 48154-60240 |
HZJ73,77 ｱﾘ(ｳｲﾝﾁ) |
8 | ||
| 48154-60240 |
HZJ73,77 ｱﾘ(ｳｲﾝﾁ) |
8 | ||
| 48154-60230 |
HZJ7#,PZJ7# |
8 | ||
| 48154 - SILENCER, FRONT SPRING, NO.2 | ||||
| 48154-60230 |
HZJ73,77,PZJ77 |
8 | ||
| 48154-60240 |
HZJ73,77 ｱﾘ(ｳｲﾝﾁ) |
8 | ||
| 48154-60240 |
HZJ73,77 ｱﾘ(ｳｲﾝﾁ) |
8 | ||
| 48154-60230 |
HZJ7#,PZJ7# |
8 | ||
| 48154 - SILENCER, FRONT SPRING, NO.2 | ||||
| 48154-60230 |
HZJ73,77,PZJ77 |
8 | ||
| 48154-60240 |
HZJ73,77 ｱﾘ(ｳｲﾝﾁ) |
8 | ||
| 48154-60240 |
HZJ73,77 ｱﾘ(ｳｲﾝﾁ) |
8 | ||
| 48154-60230 |
HZJ7#,PZJ7# |
8 | ||
| 48154 - SILENCER, FRONT SPRING, NO.2 | ||||
| 48154-60230 |
HZJ73,77,PZJ77 |
8 | ||
| 48154-60240 |
HZJ73,77 ｱﾘ(ｳｲﾝﾁ) |
8 | ||
| 48154-60240 |
HZJ73,77 ｱﾘ(ｳｲﾝﾁ) |
8 | ||
| 48154-60230 |
HZJ7#,PZJ7# |
8 | ||
Part Price Details
Loading price information...
Part Number:
Price:
