HZJ73V-MNU (1994)
Toyota Land Cruiser S/T,H/T

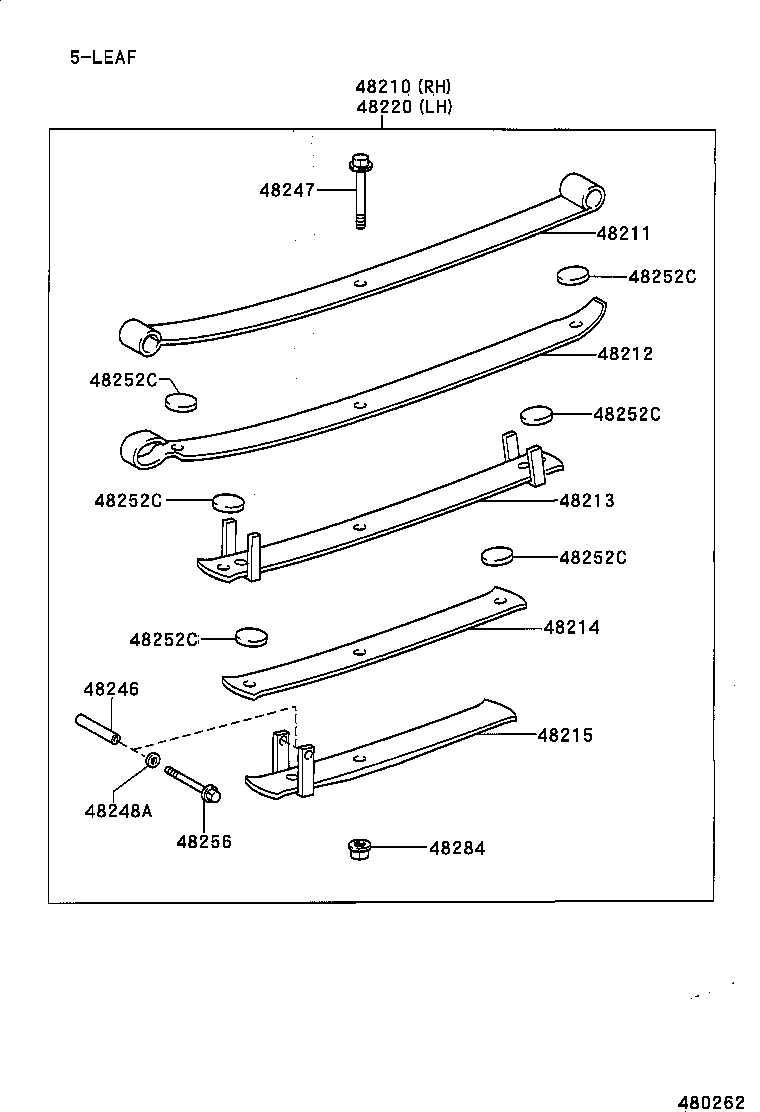

ILLUST NO. 2 OF 2(9608-9908)HZJ70,73
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 48210 - SPRING ASSY, REAR RH | ||||
| 48210-60721 |
HZJ73,PZJ70 6枚ﾘｰﾌ |
1 | ||
| 48210-60860 |
HZJ70,73 5枚ﾘｰﾌ |
1 | ||
| 48211 - LEAF, REAR SPRING, NO.1 | ||||
| 48211-60460 |
HZJ73,PZJ70 |
2 | ||
| 48211-60860 |
HZJ70,73 |
2 | ||
| 48212 - LEAF, REAR SPRING, NO.2 | ||||
| 48212-60461 |
HZJ73,PZJ70 |
2 | ||
| 48212-60860 |
HZJ70,73 |
2 | ||
| 48213 - LEAF, REAR SPRING, NO.3 | ||||
| 48213-60720 |
HZJ73,PZJ70 |
2 | ||
| 48202-60860 |
HZJ70,73 |
2 | ||
| 48214 - LEAF, REAR SPRING, NO.4 | ||||
| 48202-60720 |
HZJ73,PZJ70 |
2 | ||
| 48214-60860 |
HZJ70,73 |
2 | ||
| 48215 - LEAF, REAR SPRING, NO.5 | ||||
| 48215-60720 |
HZJ73,PZJ70 |
2 | ||
| 48203-60860 |
HZJ70,73 |
2 | ||
| 48220 - SPRING ASSY, REAR LH | ||||
| 48210-60731 |
HZJ73,PZJ70 6枚ﾘｰﾌ |
1 | ||
| 48210-60870 |
HZJ70,73 5枚ﾘｰﾌ |
1 | ||
| 48246 - CASE, REAR SPRING CLIP BOLT | ||||
| 48146-60742 |
HZJ70,73,77 |
2 | ||
| 48247 - BOLT, REAR SPRING, CENTER | ||||
| 48289-60010 |
FJ75,HZJ7#,PZJ7# 長さ=120 |
2 | ||
| 48289-60010 |
HZJ70,73,77 |
4 | ||
| 48289-60010 |
HZJ70,73,77 長さ=120 |
2 | ||
| 48248A - WASHER(FOR REAR SPRING CLIP BOLT) | ||||
| 48148-37010 |
HZJ70,73,77 |
2 | ||
| 48252C - SILENCER, REAR SPRING, NO.2 | ||||
| 48154-60230 |
HZJ73,PZJ70 |
12 | ||
| 48154-60230 |
HZJ70,73,77 |
12 | ||
| 48252C - SILENCER, REAR SPRING, NO.2 | ||||
| 48154-60230 |
HZJ73,PZJ70 |
12 | ||
| 48154-60230 |
HZJ70,73,77 |
12 | ||
| 48252C - SILENCER, REAR SPRING, NO.2 | ||||
| 48154-60230 |
HZJ73,PZJ70 |
12 | ||
| 48154-60230 |
HZJ70,73,77 |
12 | ||
| 48252C - SILENCER, REAR SPRING, NO.2 | ||||
| 48154-60230 |
HZJ73,PZJ70 |
12 | ||
| 48154-60230 |
HZJ70,73,77 |
12 | ||
| 48252C - SILENCER, REAR SPRING, NO.2 | ||||
| 48154-60230 |
HZJ73,PZJ70 |
12 | ||
| 48154-60230 |
HZJ70,73,77 |
12 | ||
| 48252C - SILENCER, REAR SPRING, NO.2 | ||||
| 48154-60230 |
HZJ73,PZJ70 |
12 | ||
| 48154-60230 |
HZJ70,73,77 |
12 | ||
| 48256 - BOLT, HEXAGON(FOR REAR SPRING CLIP SET) | ||||
| 48156-60742 |
HZJ70,73,77 |
2 | ||
ILLUST NO. 1 OF 2(9001-9607)FJ75,HZJ7#,PZJ7#
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 04483 - SHACKLE KIT, REAR SPRING | ||||
| 04483-60101 |
HZJ73,PZJ70 |
2 | ||
| 04484 - PIN KIT, REAR SPRING | ||||
| 04484-60060 |
HZJ73,PZJ70 |
2 | ||
| 48046A - BOLT, U(FOR REAR SPRING) | ||||
| 90117-14177 |
HZJ73,PZJ70 長さ=175,ｱﾘ(PNC 48475R) |
2 | ||
| 90117-14177 |
HZJ70,73 長さ=175,ｱﾘ(PNC 48475R) |
2 | ||
| 90117-14001 |
HZJ73,PZJ70 長さ=170 |
4 | ||
| 90117-14001 |
HZJ70,73 長さ=170 |
4 | ||
| 90117-14004 |
HZJ70,73 長さ=180,ｱﾘ(PNC 48475R) |
2 | ||
| 48210B - BUSH(FOR REAR SPRING PIN) | ||||
| 90389-18002 |
HZJ73,PZJ70 |
4 | ||
| 48210Q - BUSH(FOR REAR SPRING SHACKLE) | ||||
| 90389-18002 |
HZJ73,PZJ70 |
8 | ||
| 48210Q - BUSH(FOR REAR SPRING SHACKLE) | ||||
| 90389-18002 |
HZJ73,PZJ70 |
8 | ||
| 48306 - BUMPER SUB-ASSY, REAR SPRING | ||||
| 48306-60050 |
HZJ73,77,PZJ7# |
2 | ||
| 48404A - BRACKET SUB-ASSY, SPRING, NO.3 RH | ||||
| 48404-60020 |
HZJ73 |
1 | ||
| 48407 - BRACKET SUB-ASSY, SPRING, NO.3 LH | ||||
| 48407-60020 |
HZJ73 |
1 | ||
| 48416A - BRACKET, SPRING, NO.4 RH | ||||
| 48416-60060 |
HZJ73,PZJ70 |
1 | ||
| 48417A - BRACKET, SPRING, NO.4 LH | ||||
| 48417-60010 |
HZJ73,PZJ70 |
1 | ||
| 48530 - ABSORBER ASSY, SHOCK, REAR RH | ||||
| 48531-69296 |
HZJ70,73 |
1 | ||
| 48531-69295 |
HZJ73,77,PZJ7# |
1 | ||
| 48531-69296 |
HZJ70,73,77 |
1 | ||
| 48540 - ABSORBER ASSY, SHOCK, REAR LH | ||||
| 48531-69295 |
HZJ73,77,PZJ7# |
1 | ||
| 48531-69296 |
HZJ70,73,77 |
1 | ||
| 48531-69296 |
HZJ70,73 |
1 | ||
| Common parts | ||||
| 90119-08686 | ||||
| 90119-08834 | ||||
| 90119-12088 | ||||
| 90179-14023 | ||||
| 90201-14006 | ||||
| 90201-15012 | ||||
| 94115-51400 | ||||
ILLUST NO. 1 OF 2(9607- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 04483 - SHACKLE KIT, REAR SPRING | ||||
| 04483-60101 |
HZJ73,PZJ70 |
2 | ||
| 04484 - PIN KIT, REAR SPRING | ||||
| 04484-60060 |
HZJ73,PZJ70 |
2 | ||
| 48046A - BOLT, U(FOR REAR SPRING) | ||||
| 90117-14177 |
HZJ73,PZJ70 長さ=175,ｱﾘ(PNC 48475R) |
2 | ||
| 90117-14177 |
HZJ70,73 長さ=175,ｱﾘ(PNC 48475R) |
2 | ||
| 90117-14001 |
HZJ73,PZJ70 長さ=170 |
4 | ||
| 90117-14001 |
HZJ70,73 長さ=170 |
4 | ||
| 90117-14004 |
HZJ70,73 長さ=180,ｱﾘ(PNC 48475R) |
2 | ||
| 48210B - BUSH(FOR REAR SPRING PIN) | ||||
| 90389-18002 |
HZJ73,PZJ70 |
4 | ||
| 48210B - BUSH(FOR REAR SPRING PIN) | ||||
| 90389-18002 |
HZJ73,PZJ70 |
4 | ||
| 48210Q - BUSH(FOR REAR SPRING SHACKLE) | ||||
| 90389-18002 |
HZJ73,PZJ70 |
8 | ||
| 48210Q - BUSH(FOR REAR SPRING SHACKLE) | ||||
| 90389-18002 |
HZJ73,PZJ70 |
8 | ||
| 48210Q - BUSH(FOR REAR SPRING SHACKLE) | ||||
| 90389-18002 |
HZJ73,PZJ70 |
8 | ||
| 48210Q - BUSH(FOR REAR SPRING SHACKLE) | ||||
| 90389-18002 |
HZJ73,PZJ70 |
8 | ||
| 48306 - BUMPER SUB-ASSY, REAR SPRING | ||||
| 48306-60050 |
HZJ73,77,PZJ7# |
2 | ||
| 48404A - BRACKET SUB-ASSY, SPRING, NO.3 RH | ||||
| 48404-60020 |
HZJ73 |
1 | ||
| 48407 - BRACKET SUB-ASSY, SPRING, NO.3 LH | ||||
| 48407-60020 |
HZJ73 |
1 | ||
| 48416A - BRACKET, SPRING, NO.4 RH | ||||
| 48416-60060 |
HZJ73,PZJ70 |
1 | ||
| 48417A - BRACKET, SPRING, NO.4 LH | ||||
| 48417-60010 |
HZJ73,PZJ70 |
1 | ||
| 48530 - ABSORBER ASSY, SHOCK, REAR RH | ||||
| 48531-69296 |
HZJ70,73 |
1 | ||
| 48531-69295 |
HZJ73,77,PZJ7# |
1 | ||
| 48531-69296 |
HZJ70,73,77 |
1 | ||
| 48540 - ABSORBER ASSY, SHOCK, REAR LH | ||||
| 48531-69295 |
HZJ73,77,PZJ7# |
1 | ||
| 48531-69296 |
HZJ70,73,77 |
1 | ||
| 48531-69296 |
HZJ70,73 |
1 | ||
| Common parts | ||||
| 90119-08686 | ||||
| 90119-08834 | ||||
| 90119-12088 | ||||
| 90179-14023 | ||||
| 90201-14006 | ||||
| 90201-15012 | ||||
| 94130-61430 | ||||
