HZJ73V-MNU (1994)

Toyota Land Cruiser S/T,H/T

Production Jan 1994 - Aug 1999
Engine 1HZ
Transmission MTM
Displacement 2500cc
Power 168 HP (125 kW)

(9001-9908)FJ75,HZJ7#,PZJ7#..LX,STD

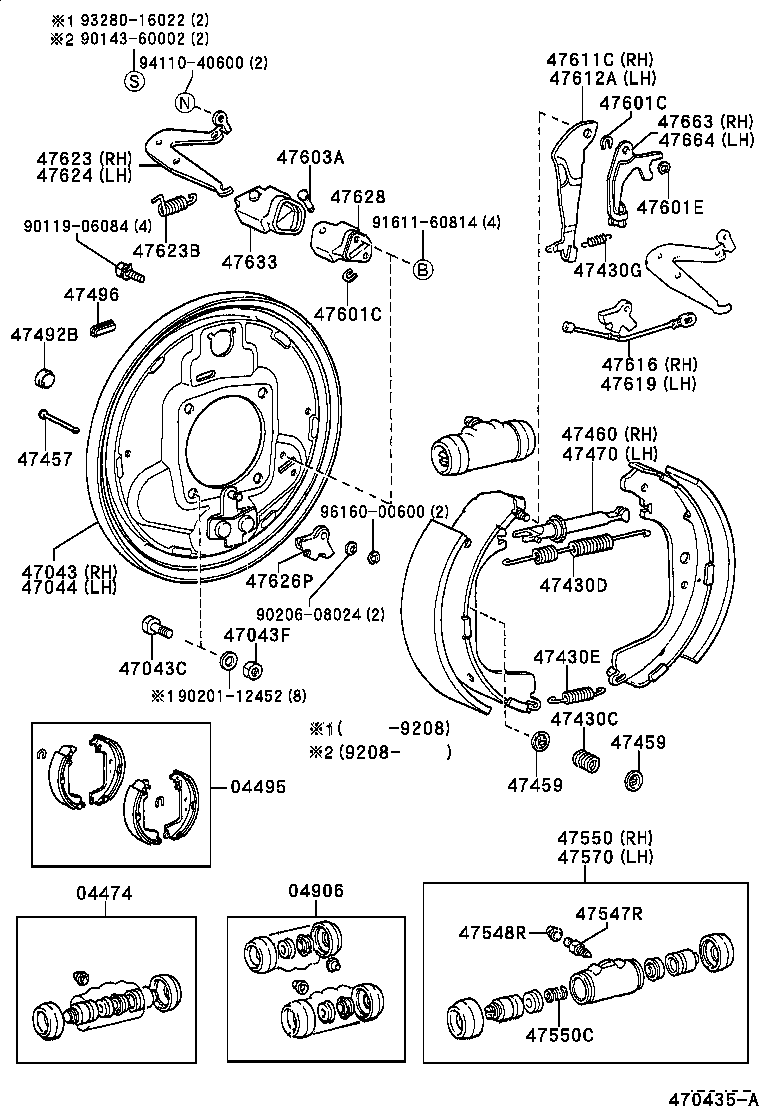

Click highlighted areas on diagram

diagram 04474 04495 04906 47043 47043C 47043F 47044 47430C 47430D 47430E 47430G 47457 47459 47459 47460 47470 47492B 47496 47547R 47548R 47550 47550C 47570 47601C 47601C 47601E 47603A 47611C 47612A 47616 47619 47623 47623B 47624 47626P 47628 47633 47663 47664 9011906084 9014360002 9020112452 9020608024 9161160814 9328016022 9411040600 9616000600
Part # Description Qty Price
04474 - CYLINDER KIT, REAR WHEEL
04474-35100

HZJ7#..LX,STD

 2
04906 - CUP KIT, REAR WHEEL CYLINDER
04906-35130

HZJ7#..LX,STD

 1
47550C - SPRING, COMPRESSION(FOR REAR WHEEL BRAKE CYLINDER)
90029-60009

HZJ7#..LX,STD

 2
Common parts
90119-06084
90143-60002
90201-12452
90206-08024
91611-60814
93280-16022
94110-40600
96160-00600
