HZJ73V-MNU (1994)

Toyota Land Cruiser S/T,H/T

Production Jan 1994 - Aug 1999
Engine 1HZ
Transmission MTM
Displacement 2500cc
Power 168 HP (125 kW)

(9001-9908)1HZ

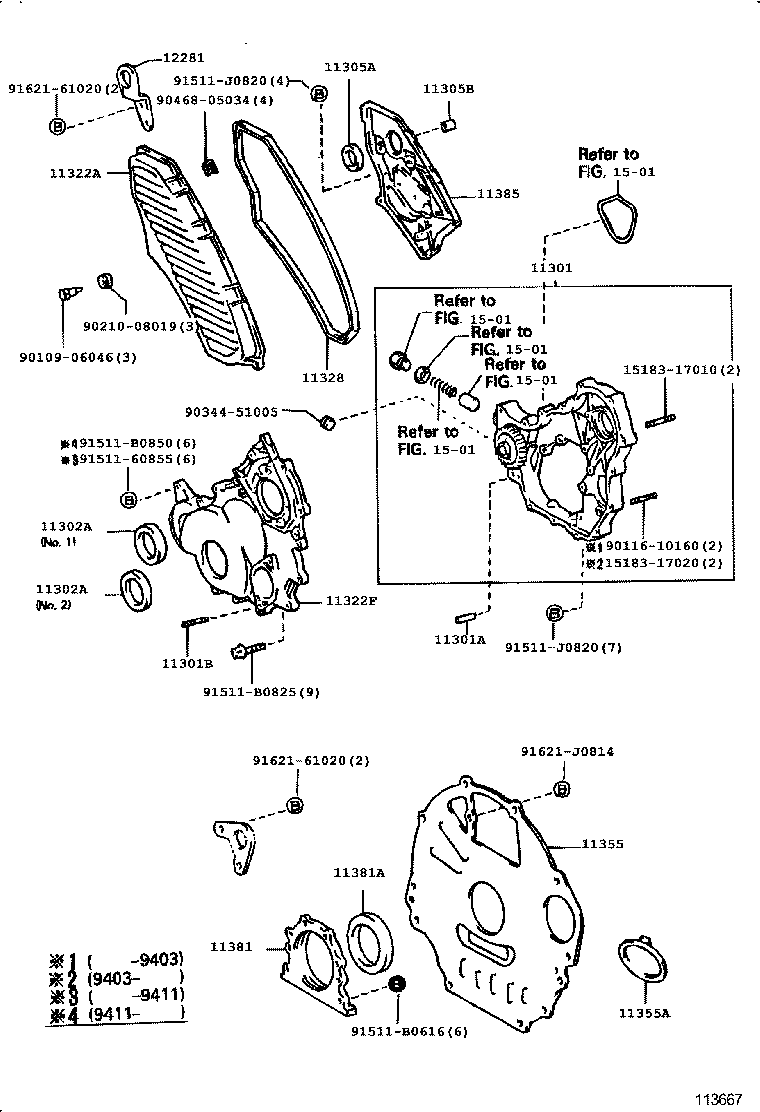

Click highlighted areas on diagram

diagram 11301 11301A 11301B 11302A 11302A 11305A 11305B 11322A 11322F 11328 11355 11355A 11381 11381A 11385 12281 1501 1501 1501 1501 1501 1518317010 1518317020 9010906046 9011610160 9021008019 9034451005 9046805034 9151160855 91511B0616 91511B0825 91511B0850 91511J0820 91511J0820 9162161020 9162161020 91621J0814
Part # Description Qty Price
11301 - CASE SUB-ASSY, TIMING GEAR
11301-17020

1HZ..HZJ73,77

 1
11301-17021

1HZ..HZJ70,73,77

 1
11301A - PIN, STRAIGHT(FOR TIMING GEAR CASE)
90250-08054

1HZ..HZJ7#

長さ=23,外径=8

 1
11301B - BOLT,STUD(FOR TIMING GEAR CASE)
90116-10160

1HZ..HZJ7#

 2
11302A - SEAL, OIL(FOR TIMING CHAIN OR BELT COVER)
90311-58006

1HZ..HZJ7#

NO.1

 1
90311-58007

1HZ..HZJ7#

NO.2

 1
11302A - SEAL, OIL(FOR TIMING CHAIN OR BELT COVER)
90311-58006

1HZ..HZJ7#

NO.1

 1
90311-58007

1HZ..HZJ7#

NO.2

 1
11305A - SEAL, OIL(FOR OIL SEAL RETAINER, NO.2)
90311-32019

1HZ..HZJ7#

 1
90311-32017

1HZ..HZJ7#

 1
11305B - PIN, RING(FOR OIL SEAL RETAINER, NO.2)
90253-11021

1HZ..HZJ7#

 2
11322A - COVER, TIMING BELT, NO.1
11321-17010

1HZ..HZJ7#

 1
11322F - COVER, TIMING GEAR, NO.2
11322-17011

1HZ..HZJ7#

 1
11322-17010

1HZ..HZJ7#

 1
11328 - GASKET, TIMING GEAR OR CHAIN COVER
11328-17010

1HZ..HZJ7#

 1
11355 - PLATE, REAR END
11355-17010

1HZ..HZJ7#..MTM

 1
11355-17011

1HZ..HZJ7#..MTM

 1
11355A - PLUG, HOLE(FOR REAR END PLATE)
90950-01458

1HZ..HZJ7#

 1
11381 - RETAINER, ENGINE REAR OIL SEAL
11381-17010

1HZ..HZJ7#

 1
11381A - SEAL, ENGINE REAR OIL
90311-95008

1HZ..HZJ7#

 1
11385 - RETAINER, CAMSHAFT OIL SEAL
11382-17010

1HZ..HZJ7#

 1
12281 - HANGER, ENGINE, NO.1
12281-17020

1HZ..HZJ7#

 1
12281-17021

1HZ..HZJ7#

 1
Common parts
15183-17010
15183-17020
90109-06046
90116-10160
90210-08019
90344-51005
90468-05034
91511-60855
91511-B0616
91511-B0825
91511-B0850
91511-J0820
91621-61020
91621-J0814
Linked diagrams
1501
