HZJ73V-MNS (1994)

Toyota Land Cruiser S/T,H/T

Production Jan 1994 - Aug 1996
Engine 1HZ
Transmission MTM
Displacement 2500cc
Power 168 HP (125 kW)

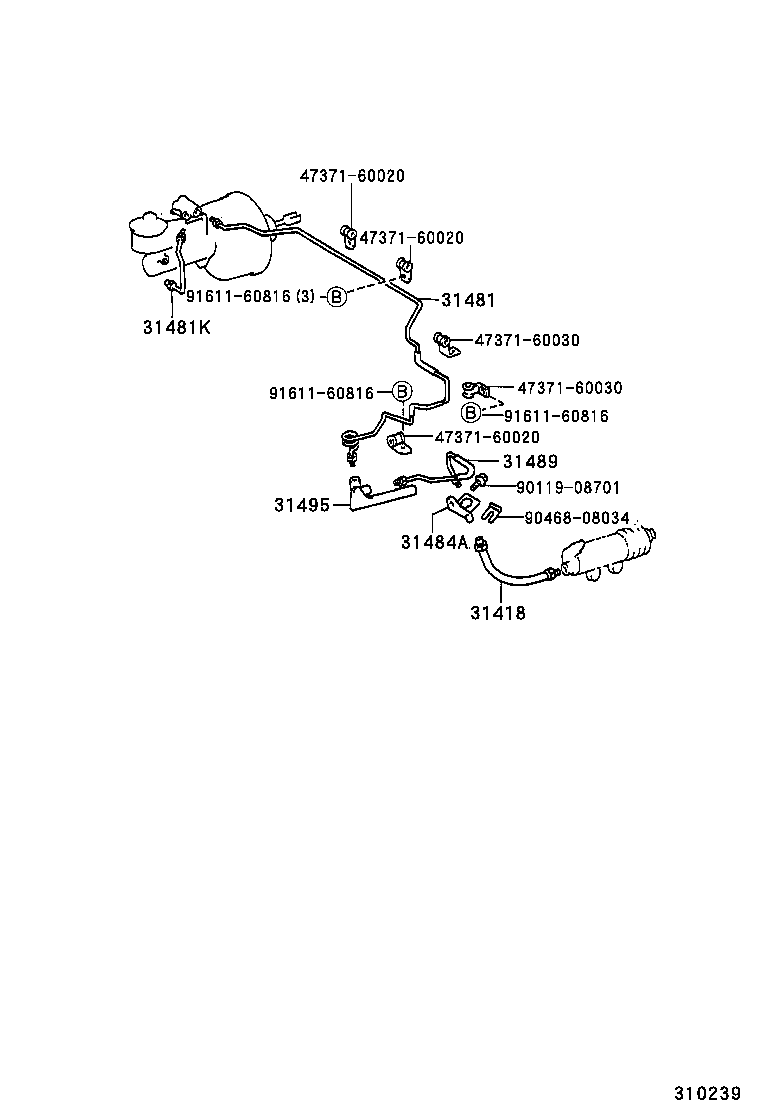

ILLUST NO. 2 OF 2(9001-9908)HZJ7#,PZJ7#..MTM

Click highlighted areas on diagram

diagram 31418 31481 31481K 31484A 31489 31495 4737160020 4737160020 4737160020 4737160030 4737160030 9011908701 9046808034 9161160816 9161160816 9161160816
Part # Description Qty Price
31418 - HOSE, CLUTCH
96812-50260

HZJ73..MTM

 1
31481 - TUBE, CLUTCH MASTER CYLINDER TO FLEXIBLE HOSE
31481-60412

PZJ7#..LX;HZJ7#..MTM

 1
31481K - TUBE, MASTER CYLINDER TO TUBE CONNECTOR
31481-60620

HZJ7#,PZJ7#..MTM

 1
31484A - BRACKET, FLEXIBLE HOSE, NO.1(FOR CLUTCH)
31484-60100

PZJ77..4NO;PZJ77..LX..1NO;HZJ7#,PZJ70..MTM

 1
31489 - TUBE, TUBE CONNECTOR TO FLEXIBLE HOSE
31489-60040

PZJ77..4NO;PZJ77..LX..1NO;HZJ7#,PZJ70..MTM

 1
31495 - WAY, CLUTCH TUBE
31495-60040

PZJ77..4NO;PZJ77..LX..1NO;HZJ7#,PZJ70..MTM

 1
Common parts
47371-60020
47371-60030
90119-08701
90468-08034
91611-60816

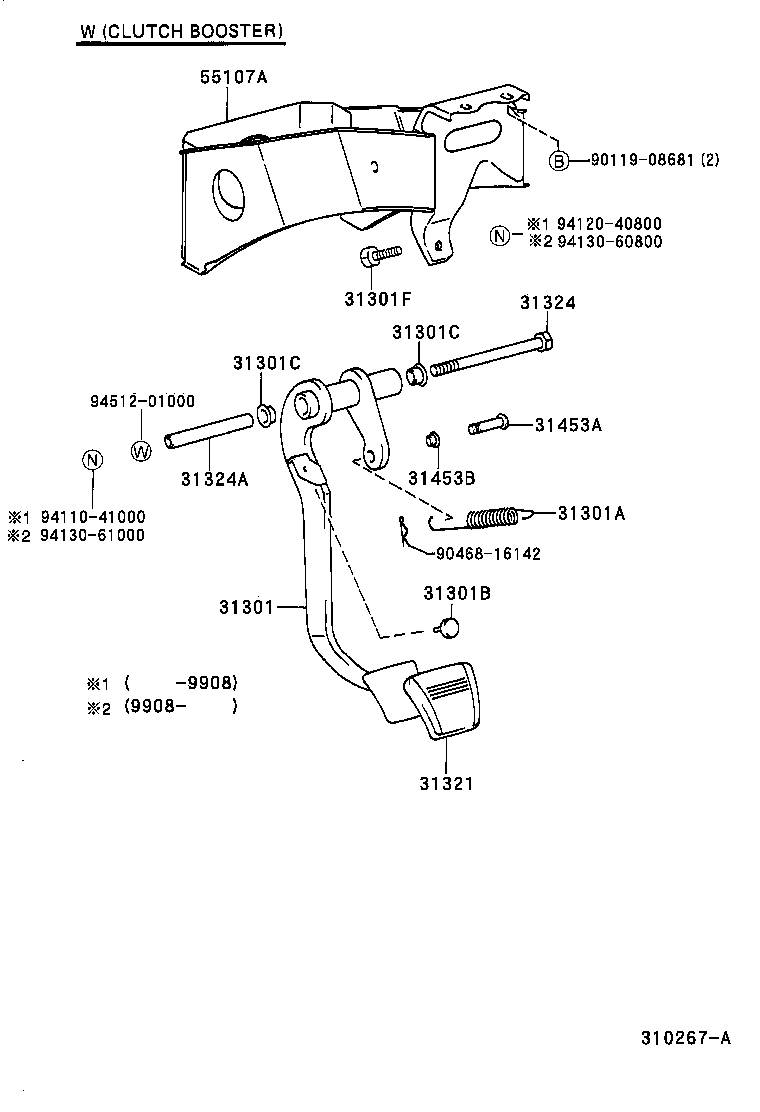

ILLUST NO. 1 OF 2(9001-0108)HZJ7#,PZJ7#..MTM

Click highlighted areas on diagram

diagram 31301 31301A 31301B 31301C 31301C 31301F 31321 31324 31324A 31453A 31453B 55107A 9011908681 9046816142 9411041000 9412040800 9413060800 9413061000 9451201000
Part # Description Qty Price
31301B - CUSHION, NO.1(FOR CLUTCH PEDAL)
90541-06008

HZJ73,PZJ70..MTM

 1
31301C - BUSH(FOR CLUTCH PEDAL)
90386-13192

PZJ77..4NO;PZJ77..LX..1NO;FJ75,HZJ7#,LJ7#,PZJ70..MTM

 2
31301C - BUSH(FOR CLUTCH PEDAL)
90386-13192

PZJ77..4NO;PZJ77..LX..1NO;FJ75,HZJ7#,LJ7#,PZJ70..MTM

 2
Common parts
90119-08681
90468-16142
94110-41000
94120-40800
94130-60800
94130-61000
94512-01000
