HZJ73V-MEU (1991)
Toyota Land Cruiser S/T,H/T
ILLUST NO. 1 OF 2(9001-9210)HZJ7#,LJ7#
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 04479A - CYLINDER KIT, DISC BRAKE, REAR | ||||
| 04479-60030 |
HZJ73,74,76,77,LJ7#..EX,EX5,LX5,SX5,ZX |
1 | ||
| 04492 - PAD KIT, DISC BRAKE, REAR | ||||
| 04492-60010 |
HZJ73,77,LJ7# |
1 | ||
| 31478C - CAP, BLEEDER PLUG(FOR REAR DISC BRAKE) | ||||
| 31478-30010 |
HZJ73,74,76,77,LJ7#..EX,EX5,LX5,SX5,ZX |
2 | ||
| 47547C - PLUG, BLEEDER(FOR REAR DISC BRAKE) | ||||
| 47547-12030 |
HZJ73,74,76,77,LJ7#..EX,EX5,LX5,SX5,ZX |
2 | ||
| 47713A - PLUG, HOLE(FOR REAR DISC BRAKE CYLINDER) | ||||
| 90950-01301 |
HZJ73,74,76,77,LJ7#..EX,EX5,LX5,SX5,ZX |
2 | ||
| 47715C - PIN, CYLINDER SLIDE(FOR REAR DISC BRAKE) | ||||
| 47715-22010 |
HZJ73,74,76,77,LJ7#..EX,EX5,LX5,SX5,ZX |
4 | ||
| 47715C - PIN, CYLINDER SLIDE(FOR REAR DISC BRAKE) | ||||
| 47715-22010 |
HZJ73,74,76,77,LJ7#..EX,EX5,LX5,SX5,ZX |
4 | ||
| 47716A - PLATE, PAD SUPPORT, NO.1(FOR REAR DISC BRAKE) | ||||
| 47716-22010 |
HZJ73,74,76,77,LJ7#..EX,EX5,LX5,SX5,ZX |
4 | ||
| 47716A - PLATE, PAD SUPPORT, NO.1(FOR REAR DISC BRAKE) | ||||
| 47716-22010 |
HZJ73,74,76,77,LJ7#..EX,EX5,LX5,SX5,ZX |
4 | ||
| 47717A - PLATE, PAD SUPPORT, NO.2(FOR REAR DISC BRAKE) | ||||
| 47717-22010 |
HZJ73,74,76,77,LJ7#..EX,EX5,LX5,SX5,ZX |
4 | ||
| 47717A - PLATE, PAD SUPPORT, NO.2(FOR REAR DISC BRAKE) | ||||
| 47717-22010 |
HZJ73,74,76,77,LJ7#..EX,EX5,LX5,SX5,ZX |
4 | ||
| 47721C - MOUNTING, REAR DISC BRAKE CYLINDER, RH | ||||
| 47721-60010 |
HZJ7#,LJ7# |
1 | ||
| 47721-60020 |
HZJ73,74,76,77,LJ7#..EX,LX5,SX5,ZX |
1 | ||
| 47722A - MOUNTING, REAR DISC BRAKE CYLINDER, LH | ||||
| 47722-60020 |
HZJ73,74,76,77,LJ7#..EX,LX5,SX5,ZX |
1 | ||
| 47722-60010 |
HZJ7#,LJ7# |
1 | ||
| 47730B - CYLINDER ASSY, REAR DISC BRAKE, RH | ||||
| 47730-60070 |
HZJ73,77,LJ7# |
1 | ||
| 47730-60040 |
HZJ7#,LJ7# |
1 | ||
| 47731B - PISTON, REAR DISC BRAKE | ||||
| 47731-60020 |
HZJ73,74,76,77,LJ7#..EX,EX5,LX5,SX5,ZX |
2 | ||
| 47744C - SHIM, ANTI-SQUEAL, NO.1(FOR REAR DISC BRAKE) | ||||
| 47744-60010 |
HZJ73,77,LJ7# |
2 | ||
| 47750A - CYLINDER ASSY, DISC BRAKE, REAR LH | ||||
| 47750-60070 |
HZJ73,77,LJ7# |
1 | ||
| 47750-60040 |
HZJ7#,LJ7# |
1 | ||
| 47771A - PLATE, PAD WEAR INDICATOR(FOR REAR DISC BRAKE) | ||||
| 47771-22030 |
HZJ73,74,76,77,LJ7#..EX,EX5,LX5,SX5,ZX |
4 | ||
| 47771A - PLATE, PAD WEAR INDICATOR(FOR REAR DISC BRAKE) | ||||
| 47771-22030 |
HZJ73,74,76,77,LJ7#..EX,EX5,LX5,SX5,ZX |
4 | ||
| 47777 - PROTECTOR, DUST BOOT, RH | ||||
| 47777-60010 |
HZJ73,74,76,77,LJ7#..EX,EX5,LX5,SX5,ZX |
1 | ||
| 47787A - PROTECTOR, DUST BOOT, LH | ||||
| 47777-60010 |
HZJ73,74,76,77,LJ7#..EX,EX5,LX5,SX5,ZX |
1 | ||
| 47810A - BOLT, HEXAGON(FOR REAR CALIPER) | ||||
| 90101-12167 |
HZJ73,74,76,77,LJ7#..EX,EX5,LX5,SX5,ZX |
4 | ||
| Common parts | ||||
| 90110-06007 | ||||
| 90201-12452 | ||||
| 94511-00600 | ||||

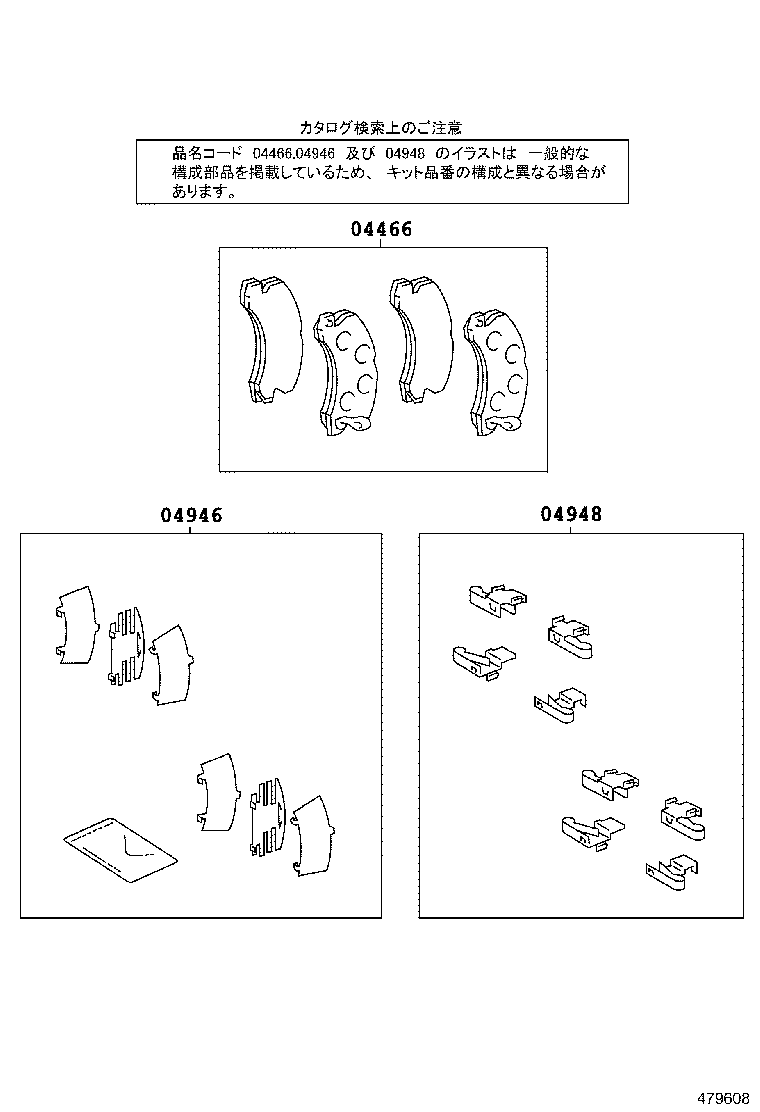

ILLUST NO. 2 OF 2(9001-9604)KZJ7# ; (9001-9908)HZJ73,77,LJ7#..EX,EX5,LX5,SX5,ZX
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 04466 - PAD KIT, DISC BRAKE, REAR | ||||
| 04466-60010 |
HZJ73,74,76,77,LJ7#..EX,EX5,LX5,SX5,ZX |
1 | ||
| 04946 - SHIM KIT, ANTI SQUEAL(FOR REAR DISC BRAKE) | ||||
| 04946-60010 |
HZJ73,74,76,77,LJ7#..EX,EX5,LX5,SX5,ZX |
1 | ||
| 04948 - FITTING KIT, DISC BRAKE, REAR | ||||
| 04947-22050 |
HZJ73,74,76,77,LJ7#..EX,EX5,LX5,SX5,ZX |
1 | ||
