HZJ73HV-PEU (1990)

Toyota Land Cruiser S/T,H/T

Production Jan 1990 - Aug 1999
Engine 1HZ
Transmission ATM
Displacement 2500cc
Power 168 HP (125 kW)

(9001-9501)FJ75,HZJ7#,PZJ7#

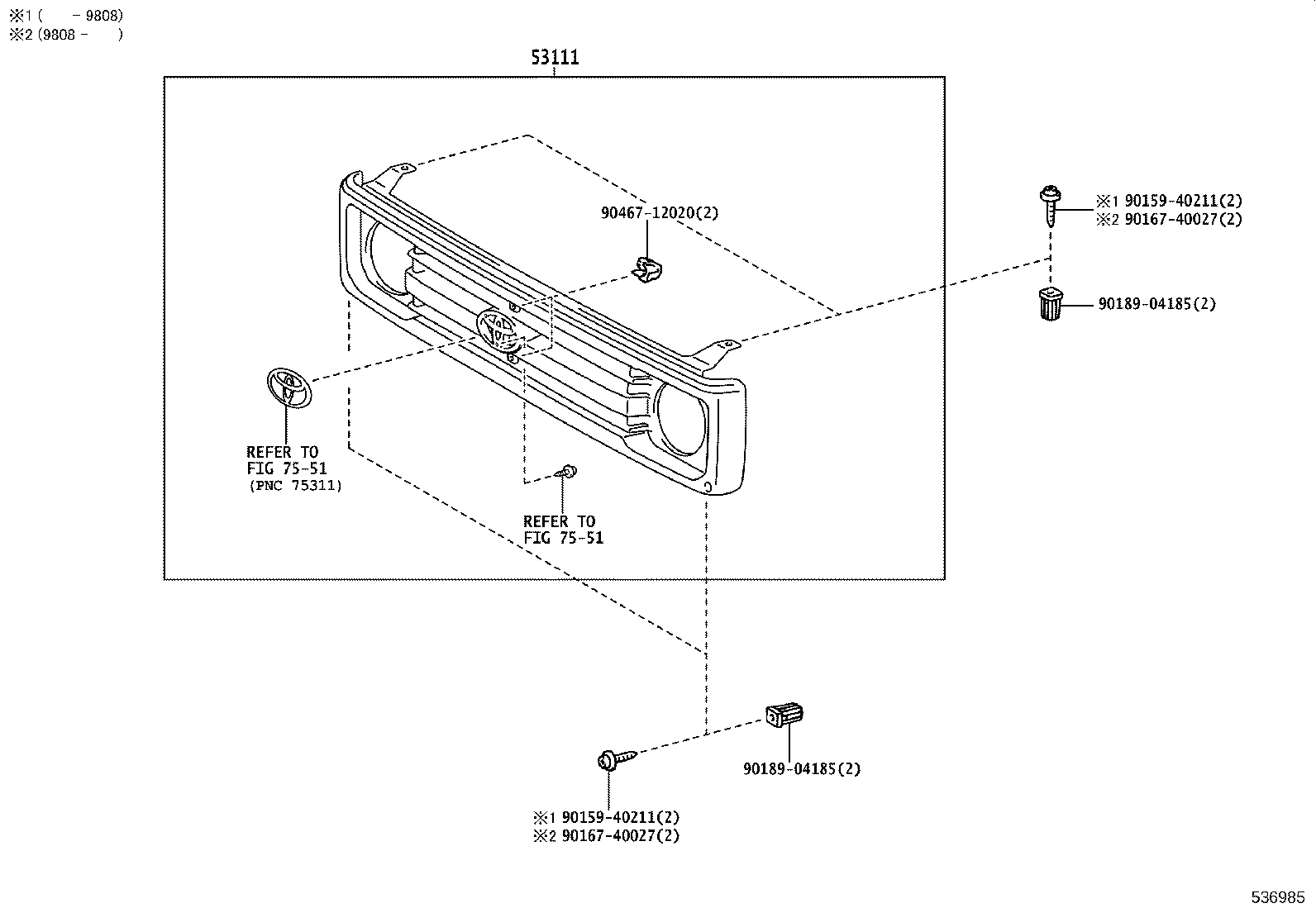

Click highlighted areas on diagram

diagram 53111 53119B 53149C 75318A 9015940211 9015940211 9016740027 9016740027 9018904185 9018904185 9046712020
Part # Description Qty Price
53111 - GRILLE, RADIATOR
53101-60060

HZJ70,73,77,PZJ7#..LX,ZX

ﾒｯｷ

 1
53101-60060

HZJ73,77,PZJ7#..LX,ZX

ﾒｯｷ

 1
53101-60160

HZJ70,73,77

ﾒｯｷ

 1
Common parts
90159-40211
90167-40027
90189-04185
90467-12020

(9501-9908)HZJ7#

Click highlighted areas on diagram

diagram 53111 7551 7551 9015940211 9015940211 9016740027 9016740027 9018904185 9018904185 9046712020
Part # Description Qty Price
53111 - GRILLE, RADIATOR
53101-60060

HZJ70,73,77,PZJ7#..LX,ZX

ﾒｯｷ

 1
53101-60060

HZJ73,77,PZJ7#..LX,ZX

ﾒｯｷ

 1
53101-60160

HZJ70,73,77

ﾒｯｷ

 1
Common parts
90159-40211
90167-40027
90189-04185
90467-12020
Linked diagrams
7551
