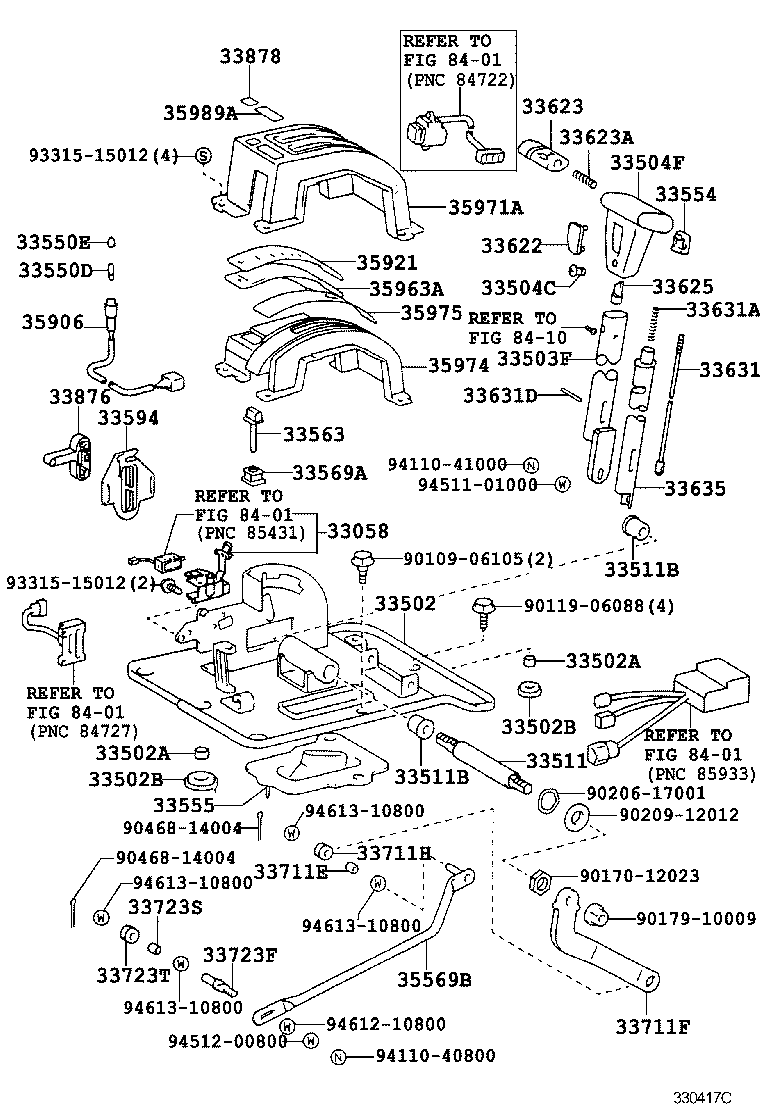

HZJ73HV-PEU (1990)
Toyota Land Cruiser S/T,H/T
(9001-9908)ATM
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 33058 - BRACKET SUB-ASSY, SHIFT LOCK SOLENOID | ||||
| 33058-60030 |
HZJ73,77..ATM |
1 | ||
| 33058-60030 |
HZJ73,77..ATM |
1 | ||
| 33502 - PLATE SUB-ASSY, SHIFT LEVER | ||||
| 33502-60130 |
HZJ7#..ATM |
1 | ||
| 33502-60180 |
HZJ73,77..ATM |
1 | ||
| 33502-60180 |
HZJ73,77..ATM |
1 | ||
| 33502A - COLLAR (FOR FLOOR SHIFT SETTING) | ||||
| 90387-06065 |
HZJ73,77,LJ7#..ATM 外径=8.8 |
3 | ||
| 90387-09018 |
HZJ73,77..ATM..ZX;HZJ74,76,LJ7#..ATM 外径=12.2 |
3 | ||
| 90387-09018 |
HZJ73,77,KZJ7#..ATM 外径=12.2 |
3 | ||
| 90387-06065 |
HZJ73,77,KZJ7#..ATM 外径=8.8 |
3 | ||
| 33502A - COLLAR (FOR FLOOR SHIFT SETTING) | ||||
| 90387-06065 |
HZJ73,77,LJ7#..ATM 外径=8.8 |
3 | ||
| 90387-09018 |
HZJ73,77..ATM..ZX;HZJ74,76,LJ7#..ATM 外径=12.2 |
3 | ||
| 90387-09018 |
HZJ73,77,KZJ7#..ATM 外径=12.2 |
3 | ||
| 90387-06065 |
HZJ73,77,KZJ7#..ATM 外径=8.8 |
3 | ||
| 33502B - GROMMET (FOR SHIFT LEVER PLATE) | ||||
| 90480-18003 |
HZJ73,77..ATM..ZX;HZJ74,76,LJ7#..ATM 内径=12.0 |
3 | ||
| 90480-13018 |
HZJ73,77..ATM..ZX;HZJ74,76,LJ7#..ATM 内径=8.5 |
3 | ||
| 90480-18003 |
HZJ73,77,KZJ7#..ATM 内径=12.0 |
3 | ||
| 90480-13018 |
HZJ73,77,KZJ7#..ATM 内径=8.5 |
3 | ||
| 33502B - GROMMET (FOR SHIFT LEVER PLATE) | ||||
| 90480-18003 |
HZJ73,77..ATM..ZX;HZJ74,76,LJ7#..ATM 内径=12.0 |
3 | ||
| 90480-13018 |
HZJ73,77..ATM..ZX;HZJ74,76,LJ7#..ATM 内径=8.5 |
3 | ||
| 90480-18003 |
HZJ73,77,KZJ7#..ATM 内径=12.0 |
3 | ||
| 90480-13018 |
HZJ73,77,KZJ7#..ATM 内径=8.5 |
3 | ||
| 33503F - LEVER SUB-ASSY, SHIFT(FOR FLOOR SHIFT) | ||||
| 33503-60100 |
HZJ74,76..ATM;HZJ73,77..ATM..ZX |
1 | ||
| 33503-60070 |
HZJ7#..ATM |
1 | ||
| 33503-60100 |
HZJ73,77..ATM |
1 | ||
| 33504C - SCREW (FOR SHIFT LEVER KNOB SETTING) | ||||
| 90159-40109 |
HZJ73,77..ATM..ZX;HZJ74,76,LJ7#..ATM |
2 | ||
| 90159-40109 |
HZJ73,77,KZJ7#..ATM |
2 | ||
| 33504F - KNOB SUB-ASSY, SHIFT LEVER | ||||
| 33542-20100B0 |
HZJ73,77,LJ7#..ATM BLUISH GRAY,TRIM1# |
1 | ||
| 33542-6006003 |
HZJ7#..ATM GRAY,TRIM1# |
1 | ||
| 33542-20100B0 |
HZJ73,77,KZJ7#..ATM BLUISH GRAY,TRIM1# |
1 | ||
| 33511 - SHAFT, CONTROL (FOR FLOOR SHIFT) | ||||
| 33511-60110 |
HZJ73,77,KZJ7#..ATM |
1 | ||
| 33511-60110 |
HZJ73,77,LJ7#..ATM |
1 | ||
| 33511B - BUSH (FOR CONTROL SHAFT) | ||||
| 90385-15003 |
HZJ73,77,KZJ7#..ATM |
2 | ||
| 90385-15003 |
HZJ73,77,LJ7#..ATM |
2 | ||
| 33511B - BUSH (FOR CONTROL SHAFT) | ||||
| 90385-15003 |
HZJ73,77,KZJ7#..ATM |
2 | ||
| 90385-15003 |
HZJ73,77,LJ7#..ATM |
2 | ||
| 33550D - BULB, POSITION INDICATOR LAMP | ||||
| 90981-16020 |
HZJ73,77..ATM 24V 1.8W |
1 | ||
| 90981-16020 |
HZJ73,77..ATM 24V 1.8W |
1 | ||
| 33550E - CAP, POSITION INDICATOR LAMP | ||||
| 90339-04014 |
HZJ73,77,KZJ7#..ATM |
1 | ||
| 90339-04014 |
HZJ73,77..ATM..ZX;HZJ74,76,LJ7#..ATM |
1 | ||
| 33554 - CAP, SHIFT LEVER | ||||
| 33554-6007003 |
HZJ73,77..ATM..1NO BLUISH GRAY,TRIM1# |
1 | ||
| 33554-6007003 |
HZJ7#..ATM BLUISH GRAY,TRIM1# |
1 | ||
| 33555 - BOOT, SHIFT LEVER | ||||
| 33555-60020 |
HZJ73,77,LJ7#..ATM |
1 | ||
| 33555-60020 |
HZJ73,77,KZJ7#..ATM |
1 | ||
| 33563 - BUTTON, SHIFT LOCK RELEASE | ||||
| 33563-60030 |
HZJ73,77,KZJ7#..ATM |
1 | ||
| 33563-60030 |
HZJ73,77..ATM..ZX;HZJ74,76,LJ7#..ATM |
1 | ||
| 33569A - GUIDE, SHIFT LOCK RELEASE BUTTON | ||||
| 33569-60020 |
HZJ73,77..ATM..ZX;HZJ74,76,LJ7#..ATM |
1 | ||
| 33569-60020 |
HZJ73,77,KZJ7#..ATM |
1 | ||
| 33594 - PLATE, SHIFT LOCK (FOR FLOOR SHIFT) | ||||
| 33594-60010 |
HZJ73,77,KZJ7#..ATM |
1 | ||
| 33594-60010 |
HZJ73,77..ATM..ZX;HZJ74,76,LJ7#..ATM |
1 | ||
| 33622 - COVER, SHIFT LEVER KNOB, NO.1 | ||||
| 33622-1601043 |
HZJ7#,LJ7#..ATM BLUISHGRAY,TRIM1# |
1 | ||
| 33623 - BUTTON, SHIFT LEVER KNOB | ||||
| 33623-1602043 |
HZJ7#,LJ7#..ATM BLUISH GRAY,TRIM1# |
1 | ||
| 33623-20060B0 |
HZJ73,77,KZJ7#..ATM BLUISH GRAY,TRIM1# |
1 | ||
| 33623-20060B0 |
HZJ73,77,LJ7#..ATM BLUISH GRAY,TRIM1# |
1 | ||
| 33623A - SPRING, COMPRESSION (FOR SHIFT LEVER KNOB BUTTON) | ||||
| 90501-07009 |
HZJ73,77..ATM..ZX;HZJ74,76,LJ7#..ATM |
1 | ||
| 90501-07009 |
HZJ73,77,KZJ7#..ATM |
1 | ||
| 33625 - SLEEVE, SHIFT LEVER KNOB | ||||
| 33625-32010 |
HZJ7#,LJ7#..ATM |
1 | ||
| 33625-24010 |
HZJ73,77,KZJ7#..ATM |
1 | ||
| 33625-24010 |
HZJ73,77..ATM..ZX;HZJ74,76,LJ7#..ATM |
1 | ||
| 33631 - ROD, DETENT | ||||
| 33631-60030 |
HZJ73,77..ATM..ZX;HZJ74,76,LJ7#..ATM |
1 | ||
| 33631-60030 |
HZJ73,77,KZJ7#..ATM |
1 | ||
| 33631A - SPRING, COMPRESSION (FOR DETENT ROD) | ||||
| 90501-07074 |
HZJ73,77..ATM..ZX;HZJ74,76,LJ7#..ATM |
1 | ||
| 90501-07074 |
HZJ73,77,KZJ7#..ATM |
1 | ||
| 33631D - PIN, GROOVED (FOR DETENT ROD) | ||||
| 90256-04007 |
HZJ73,77,KZJ7#..ATM |
1 | ||
| 90256-04007 |
HZJ73,77..ATM..ZX;HZJ74,76,LJ7#..ATM |
1 | ||
| 33635 - GUIDE, WIRE (FOR SHIFT LEVER) | ||||
| 33635-60040 |
HZJ73,77..ATM..ZX;HZJ74,76,LJ7#..ATM |
1 | ||
| 33635-60020 |
HZJ7#,LJ7#..ATM |
1 | ||
| 33635-60040 |
HZJ73,77,KZJ7#..ATM |
1 | ||
| 33711E - BUSH (FOR CONTROL SHAFT LEVER) | ||||
| 90389-08005 |
HZJ73,77..ATM..ZX;HZJ74,76,LJ7#..ATM |
1 | ||
| 90389-08005 |
HZJ73,77,KZJ7#..ATM |
1 | ||
| 33711F - LEVER, CONTROL SHAFT (FOR FLOOR SHIFT) | ||||
| 33711-60010 |
HZJ73,77..ATM |
1 | ||
| 33711-60010 |
HZJ74,76..ATM;HZJ73,77..ATM..ZX |
1 | ||
| 33711H - GROMMET (FOR CONTROL SHAFT LEVER) | ||||
| 90480-17177 |
HZJ73,77,KZJ7#..ATM |
1 | ||
| 90480-17177 |
HZJ73,77..ATM..ZX;HZJ74,76,LJ7#..ATM |
1 | ||
| 33723F - SWIVEL, CONNECTING ROD (FOR FLOOR SHIFT) | ||||
| 33723-22010 |
HZJ73,77,KZJ7#..ATM |
1 | ||
| 33723-22010 |
HZJ73,77..ATM..ZX;HZJ74,76,LJ7#..ATM |
1 | ||
| 33723S - BUSH (FOR CONNECTING ROD SWIVEL) | ||||
| 90389-08005 |
HZJ73,77..ATM..ZX;HZJ74,76,LJ7#..ATM |
1 | ||
| 90389-08005 |
HZJ73,77,KZJ7#..ATM |
1 | ||
| 33723T - GROMMET (FOR CONNECTING ROD SWIVEL) | ||||
| 90480-17177 |
HZJ73,77..ATM..ZX;HZJ74,76,LJ7#..ATM |
1 | ||
| 90480-17177 |
HZJ73,77,KZJ7#..ATM |
1 | ||
| 33876 - GUIDE, SHIFT LOCK PLATE | ||||
| 33876-60030 |
HZJ73,77..ATM..ZX;HZJ74,76,LJ7#..ATM |
1 | ||
| 33876-60030 |
HZJ73,77,KZJ7#..ATM |
1 | ||
| 33878 - LABEL, SHIFT LOCK INFORMATION, NO.2 | ||||
| 33878-27010 |
HZJ73,77..ATM..ZX;HZJ74,76,LJ7#..ATM |
1 | ||
| 33878-27010 |
HZJ73,77,KZJ7#..ATM |
1 | ||
| 35569B - ROD, TRANSMISSION CONTROL (FOR FLOOR SHIFT) | ||||
| 35569-60060 |
HZJ73,77..ATM |
1 | ||
| 35569-60060 |
HZJ74,76..ATM;HZJ73,77..ATM..ZX |
1 | ||
| 35906 - WIRE SUB-ASSY, INDICATOR LAMP | ||||
| 35906-60090 |
HZJ73,77..ATM |
1 | ||
| 35906-60090 |
HZJ73,77..ATM |
1 | ||
| 35921 - PLATE, CONTROL POSITION INDICATOR | ||||
| 35921-60080 |
HZJ7#..ATM |
1 | ||
| 35921-60120 |
HZJ74,76..ATM;HZJ73,77..ATM..ZX |
1 | ||
| 35921-60120 |
HZJ73,77..ATM |
1 | ||
| 35963A - PLATE, INDICATOR LAMP EARTH (FOR FLOOR SHIFT) | ||||
| 35963-60020 |
HZJ73,77..ATM..ZX;HZJ74,76,LJ7#..ATM |
1 | ||
| 35963-60020 |
HZJ73,77,KZJ7#..ATM |
1 | ||
| 35971A - HOUSING, POSITION INDICATOR, UPPER | ||||
| 35971-60090 |
HZJ73,77,LJ7#..ATM |
1 | ||
| 35971-60091 |
HZJ73,77,KZJ7#..ATM |
1 | ||
| 35971-60090 |
HZJ73,77,KZJ7#..ATM |
1 | ||
| 35974 - HOUSING, POSITION INDICATOR, LOWER | ||||
| 35974-60070 |
HZJ73,77..ATM..ZX;HZJ74,76,LJ7#..ATM |
1 | ||
| 35974-60070 |
HZJ73,77,KZJ7#..ATM |
1 | ||
| 35975 - COVER, SLIDE (FOR POSITION INDICATOR) | ||||
| 35975-60080 |
HZJ73,77..ATM..ZX;HZJ74,76,LJ7#..ATM |
1 | ||
| 35975-60080 |
HZJ73,77,KZJ7#..ATM |
1 | ||
| 35975-60070 |
HZJ7#,LJ7#..ATM |
1 | ||
| 35989A - PLATE, TRANSMISSION NAME | ||||
| 35989-60030 |
HZJ73,77,LJ7#..ATM |
1 | ||
| 35989-60030 |
HZJ73,77,KZJ7#..ATM |
1 | ||
| Common parts | ||||
| 90109-06105 | ||||
| 90119-06088 | ||||
| 90170-12023 | ||||
| 90179-10009 | ||||
| 90206-17001 | ||||
| 90209-12012 | ||||
| 90468-14004 | ||||
| 93315-15012 | ||||
| 94110-40800 | ||||
| 94110-41000 | ||||
| 94511-01000 | ||||
| 94512-00800 | ||||
| 94612-10800 | ||||
| 94613-10800 | ||||
| Linked diagrams | ||||
| 8401 | ||||
| 8410 | ||||
