HZJ73HV-MEU (1990)
Toyota Land Cruiser S/T,H/T

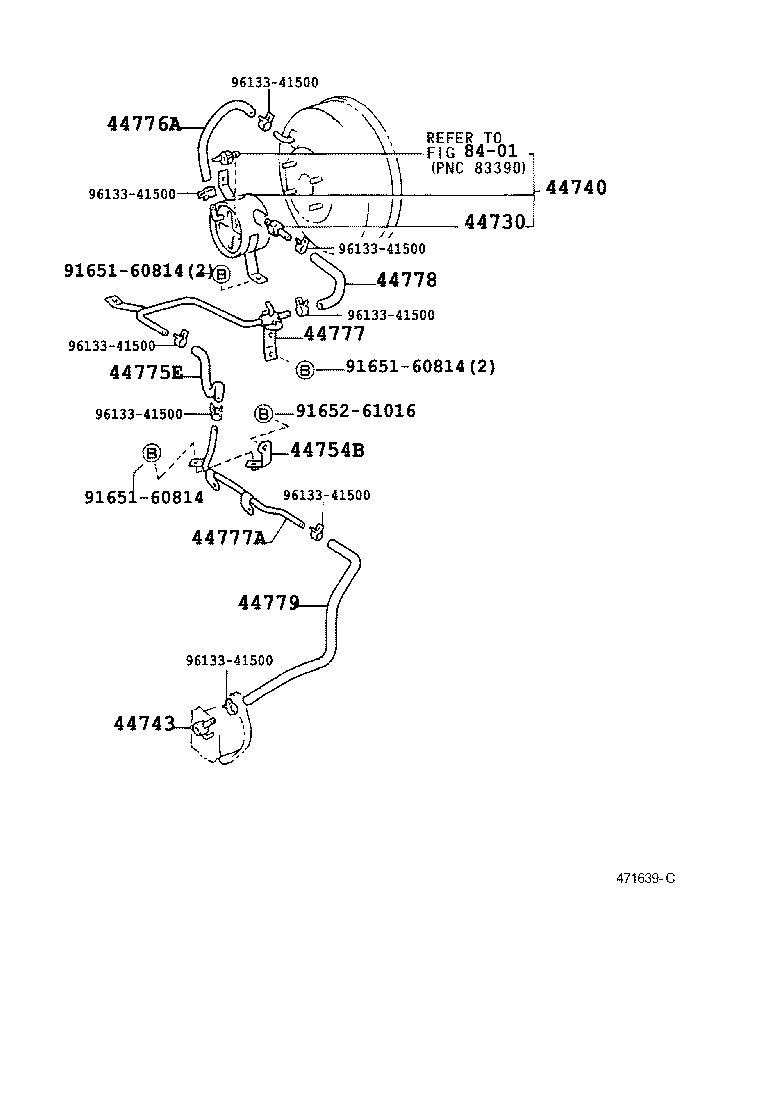

ILLUST NO. 2 OF 2(9001-9908)HZJ7#,PZJ7#
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 44730 - VALVE ASSY, VACUUM CHECK(FOR BRAKE) | ||||
| 44730-60040 |
HZJ7#,KZJ7#,PZJ7# |
1 | ||
| 44730-60040 |
HZJ7#,LJ7#,PZJ7# |
1 | ||
| 44740 - RESERVOIR ASSY, VACUUM | ||||
| 44740-60090 |
HZJ7#,PZJ7# |
1 | ||
| 44740-60090 |
HZJ7#,KZJ7#,PZJ7# |
1 | ||
| 44743 - UNION(FOR VACUUM PUMP) | ||||
| 90405-09141 |
HZJ7#,PZJ7# |
1 | ||
| 90405-09142 |
HZJ73,77..ZX;HZJ71,74,75,76,79,PZJ7# ｱﾘ(ｴｱｺﾝﾃﾞｲｼﾖﾅ) |
1 | ||
| 90405-09142 |
HZJ7#,PZJ7# ｱﾘ(ｴｱｺﾝﾃﾞｲｼﾖﾅ) |
1 | ||
| 44754B - BRACKET, VACUUM TUBE | ||||
| 44754-60010 |
HZJ73,77..ZX;HZJ71,74,75,76,79,PZJ7# |
1 | ||
| 44754-60010 |
HZJ7#,PZJ7# |
1 | ||
| 44775E - HOSE, WAY TO CONNECTOR | ||||
| 44775-60040 |
HZJ7# |
1 | ||
| 44775-60040 |
HZJ7# |
1 | ||
| 44776A - HOSE, VACUUM RESERVOIR TO BRAKE BOOSTER | ||||
| 95446-09280 |
PZJ7#;HZJ74,76..ATM;HZJ73,75,77,LJ7#..EX,LX5,STD,SX5,ZX |
1 | ||
| 95441-09300 |
HZJ7#,LJ7#,PZJ7# |
1 | ||
| 95446-09280 |
HZJ7#,PZJ7# |
1 | ||
| 44777 - CONNECTOR, VACUUM HOSE, NO.1 | ||||
| 44799-60070 |
HZJ73,77,PZJ7#..MTM..(LX,ZX) |
1 | ||
| 44799-60070 |
HZJ70,73,77,PZJ7#..HT..MTM..(LX,ZX) |
1 | ||
| 44777A - CONNECTOR, VACUUM HOSE, NO.2 | ||||
| 44777-60220 |
HZJ73,77..ZX;HZJ71,74,75,76,79,PZJ7# |
1 | ||
| 44777-60220 |
HZJ7#,PZJ7# |
1 | ||
| 44778 - HOSE, CONNECTOR TO CHECK VALVE | ||||
| 44778-60030 |
HZJ71,74,75,76,79,PZJ7#..MTM;HZJ73,77,LJ7#..EX,EX5,LX5,SX5,ZX |
1 | ||
| 44778-60030 |
HZJ7#,KZJ7#,PZJ7# |
1 | ||
| 44779 - HOSE, UNION TO CONNECTOR | ||||
| 44774-60130 |
HZJ7#,PZJ7# |
1 | ||
| 44774-60130 |
HZJ73,77..ZX;HZJ71,74,75,76,79,PZJ7# |
1 | ||
| Common parts | ||||
| 91651-60814 | ||||
| 91652-61016 | ||||
| 96133-41500 | ||||
| Linked diagrams | ||||
| 8401 | ||||
ILLUST NO. 1 OF 2(9001-9908)
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 44610 - BOOSTER ASSY, BRAKE | ||||
| 44610-60460 |
HZJ73,77,LJ7#,PZJ7# |
1 | ||
| 44610-60460 |
HZJ70,73,77,PZJ7# |
1 | ||
| 44610 - BOOSTER ASSY, BRAKE | ||||
| 44610-60460 |
HZJ73,77,LJ7#,PZJ7# |
1 | ||
| 44610-60460 |
HZJ70,73,77,PZJ7# |
1 | ||
| 44730 - VALVE ASSY, VACUUM CHECK(FOR BRAKE) | ||||
| 44730-60040 |
HZJ7#,KZJ7#,PZJ7# |
1 | ||
| 44730-60040 |
HZJ7#,LJ7#,PZJ7# |
1 | ||
| 44785 - GASKET, BRAKE BOOSTER | ||||
| 44785-35020 |
HZJ7#,KZJ7#,PZJ7# |
1 | ||
| 44785-35020 |
HZJ73,77..ZX;FJ75,HZJ71,74,75,76,79,LJ7#,PZJ7# |
1 | ||
| 44785 - GASKET, BRAKE BOOSTER | ||||
| 44785-35020 |
HZJ7#,KZJ7#,PZJ7# |
1 | ||
| 44785-35020 |
HZJ73,77..ZX;FJ75,HZJ71,74,75,76,79,LJ7#,PZJ7# |
1 | ||
| Common parts | ||||
| 90179-08038 | ||||
