HZJ73HV-MES (1990)

Toyota Land Cruiser S/T,H/T

Production Jan 1990 - Aug 1991
Engine 1HZ
Transmission MTM
Displacement 2500cc
Power 168 HP (125 kW)

(9001- )

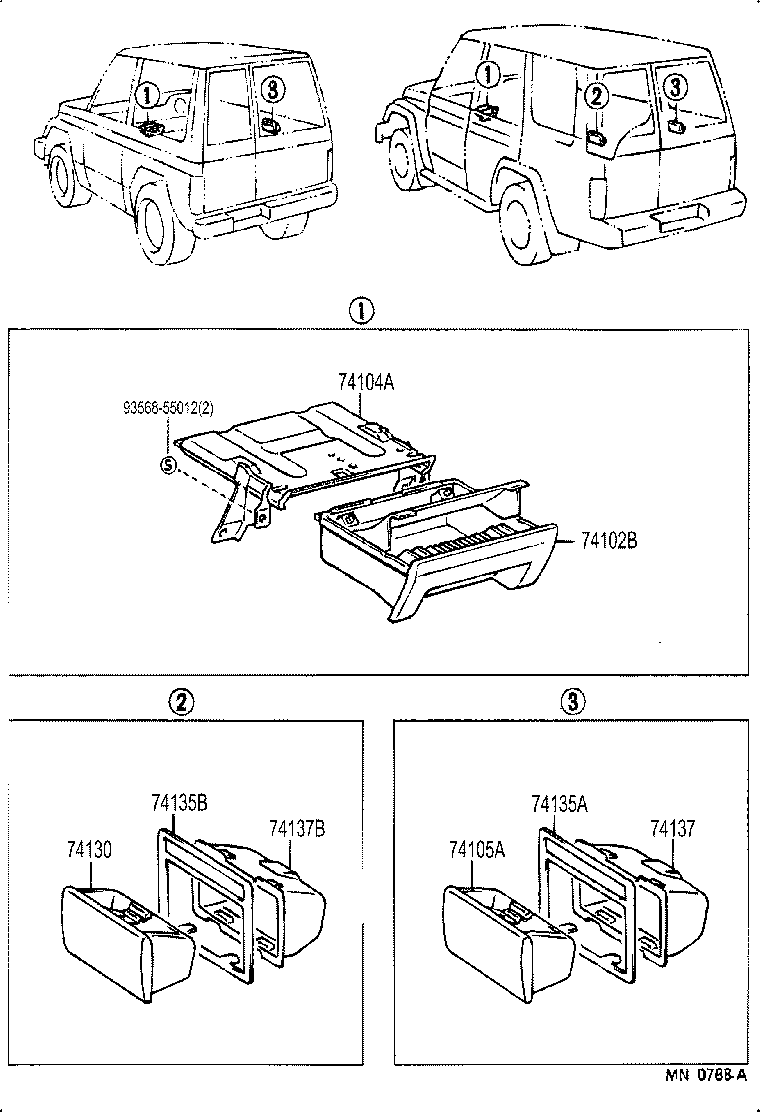

Click highlighted areas on diagram

diagram 74102B 74104A 74105A 74130 74135A 74135B 74137 74137B 9356855012
Part # Description Qty Price
74102B - BOX SUB-ASSY, FRONT ASH RECEPTACLE
74102-6004003

FJ75,HZJ7#,LJ7#,PZJ7#

LIGHT GRAY,TRIM1#

 1
74104A - RETAINER SUB-ASSY, FRONT ASH RECEPTACLE
74104-60030

FJ75,HZJ7#,LJ7#,PZJ7#

 1
74105A - RECEPTACLE SUB-ASSY, REAR ASH
74105-1001033

HZJ73,LJ7#..EX,EX5,SX5,ZX

GRAY,TRIM1#

 1
74135A - RETAINER, REAR ASH RECEPTACLE, NO.1
74135-10030

HZJ74,LJ7#;HZJ73..1NO;HZJ73..ZX..S..4NO

 1
74137 - RETAINER, REAR ASH RECEPTACLE, INNER RH
74137-10030

HZJ74,LJ7#;HZJ73..1NO;HZJ73..ZX..S..4NO

 1
Common parts
93568-55012
