HZJ73HV-MES (1990)

Toyota Land Cruiser S/T,H/T

Production Jan 1990 - Aug 1991
Engine 1HZ
Transmission MTM
Displacement 2500cc
Power 168 HP (125 kW)

(9001- )1HZ

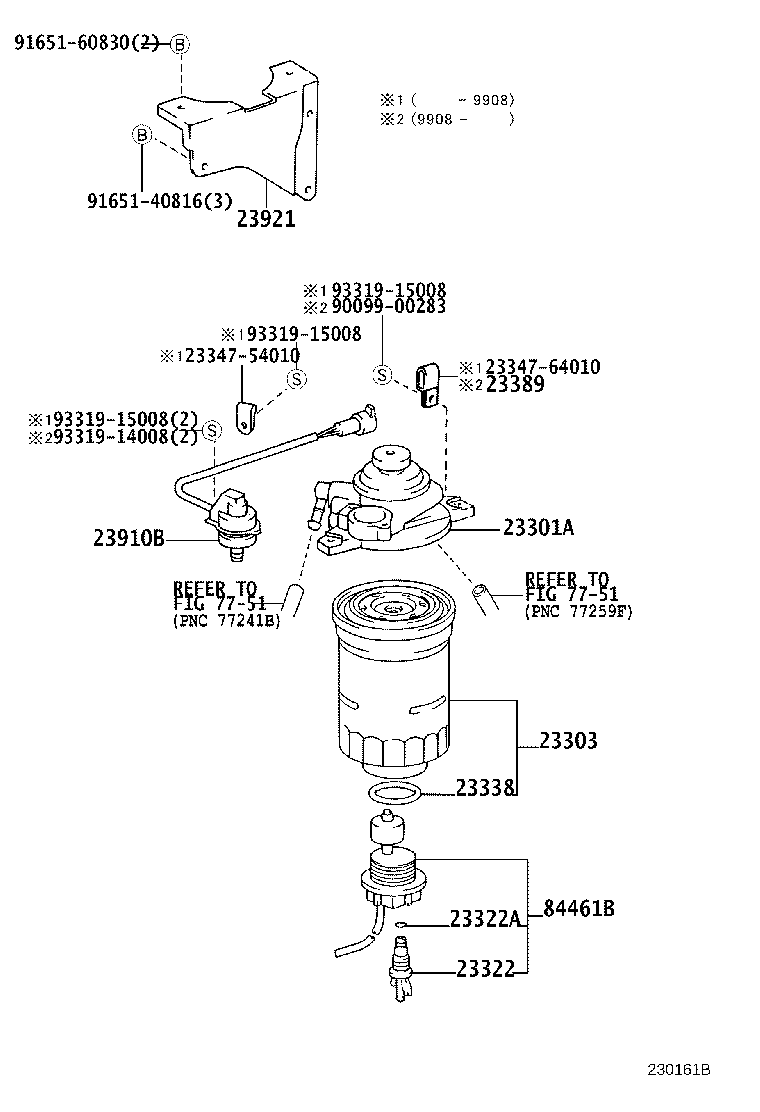

Click highlighted areas on diagram

diagram 23301A 23303 23322 23322A 23338 2334754010 2334764010 23389 23910B 23921 7751 7751 84461B 9009900283 9165140816 9165160830 9331914008 9331915008 9331915008 9331915008
Part # Description Qty Price
23301A - CAP ASSY, FUEL FILTER
23301-17080

1HZ..HZJ7#

ｱﾘ(ﾌﾕ-ｴﾙ ﾋ-ﾀ)

 1
23301-17050

1HZ..HZJ7#

 1
23303 - ELEMENT SUB-ASSY, FUEL FILTER
23303-64010

1HZ..HZJ7#

 1
23322 - PLUG, DRAIN(FOR FUEL FILTER)
23322-64010

1HZ..HZJ7#

 1
23322A - RING, O(FOR DRAIN PLUG)
23344-54010

1HZ..HZJ7#

 1
23338 - GASKET(FOR WARNING SWITCH)
23344-64010

1HZ..HZJ7#

 1
23910B - HEATER ASSY, FUEL
23910-17010

1HZ..HZJ7#

 1
23921 - SUPPORT, FUEL FILTER
23921-58010

1HZ..HZJ7#

 1
84461B - SWITCH, LEVEL WARNING
84461-35060

HZJ7#

 1
Common parts
23347-54010
23347-64010
90099-00283
91651-40816
91651-60830
93319-14008
93319-15008
Linked diagrams
7751
