HZJ73HV-MES (1990)

Toyota Land Cruiser S/T,H/T

Production Jan 1990 - Aug 1991
Engine 1HZ
Transmission MTM
Displacement 2500cc
Power 168 HP (125 kW)

(9001- )1HZ

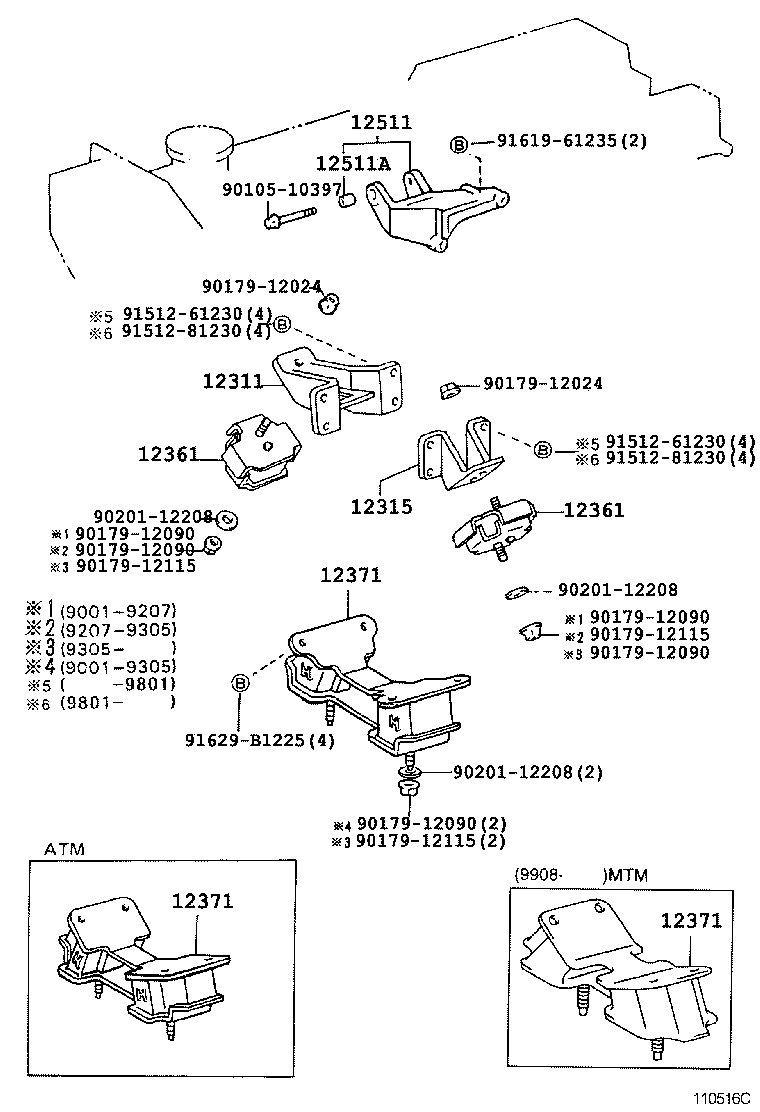

Click highlighted areas on diagram

diagram 12311 12315 12361 12361 12371 12371 12371 12511 12511A 9010510397 9017912024 9017912024 9017912090 9017912090 9017912090 9017912090 9017912090 9017912115 9017912115 9017912115 9020112208 9020112208 9020112208 9151261230 9151261230 9151281230 9151281230 9161961235 91629B1225
Part # Description Qty Price
12311 - BRACKET, ENGINE MOUNTING, FRONT NO.1 RH
12311-17020

1HZ..HZJ7#

 1
12315 - BRACKET, ENGINE MOUNTING, FRONT NO.1 LH
12315-17020

1HZ..HZJ7#

 1
12361 - INSULATOR, ENGINE MOUNTING, FRONT
12361-17020

1HZ..HZJ7#

 2
12361 - INSULATOR, ENGINE MOUNTING, FRONT
12361-17020

1HZ..HZJ7#

 2
12371 - INSULATOR, ENGINE MOUNTING, REAR NO.1
12371-17010

1HZ..HZJ7#..MTM

 1
12371 - INSULATOR, ENGINE MOUNTING, REAR NO.1
12371-17010

1HZ..HZJ7#..MTM

 1
12371 - INSULATOR, ENGINE MOUNTING, REAR NO.1
12371-17010

1HZ..HZJ7#..MTM

 1
12511 - BRACKET, ALTERNATOR, NO.1
12511-17010

1HZ..HZJ7#

 1
12511A - BUSH, ALTERNATOR BRACKET
90387-10101

1HZ..HZJ7#

 1
Common parts
90105-10397
90179-12024
90179-12090
90179-12115
90201-12208
91512-61230
91512-81230
91619-61235
91629-B1225
