HZJ70V-MNU (1994)

Toyota Land Cruiser S/T,H/T

Production Jan 1994 - Aug 1999
Engine 1HZ
Transmission MTM
Displacement 2500cc
Power 168 HP (125 kW)

(9001-9908)1HZ

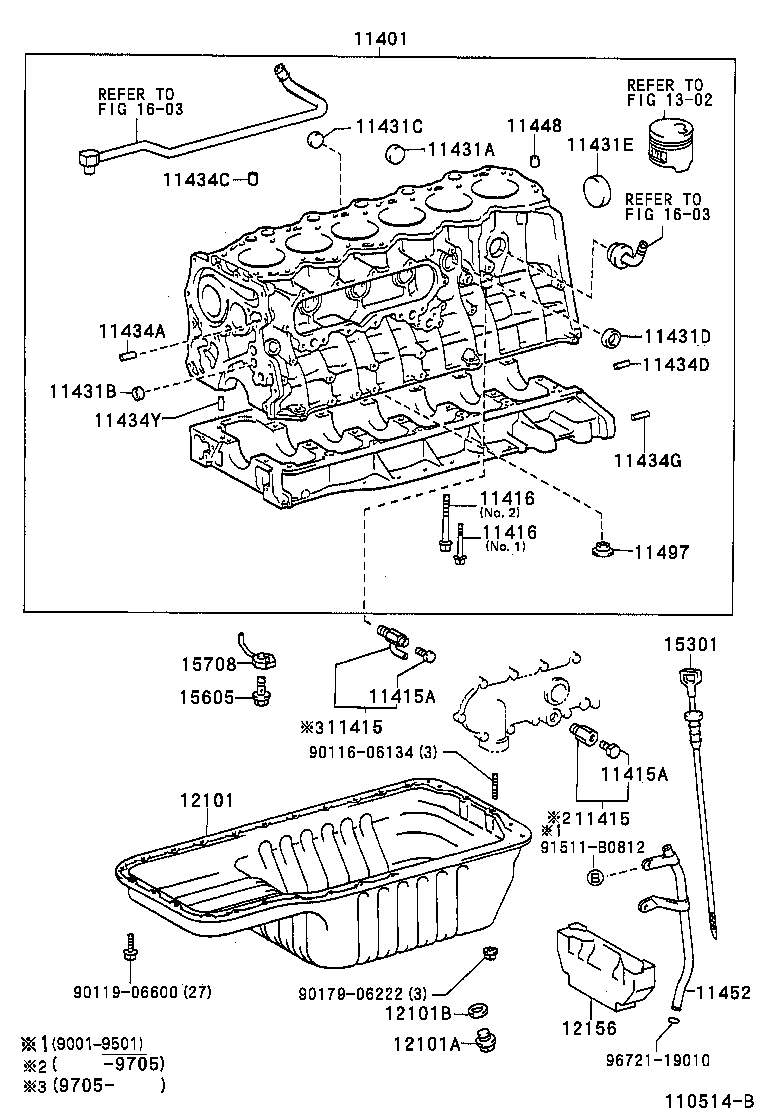

Click highlighted areas on diagram

diagram 11401 11415 11415 11415A 11415A 11416 11416 11431A 11431B 11431C 11431D 11431E 11434A 11434C 11434D 11434G 11434Y 11448 11452 11497 12101 12101A 12101B 12156 1302 15301 15605 15708 1603 1603 9011606134 9011906600 9017906222 91511B0812 9672119010
Part # Description Qty Price
11401 - BLOCK SUB-ASSY, CYLINDER
11401-19635

1HZ..HZJ7#

 1
11401-19826

1HZ..HZJ7#

 1
11401-19828

1HZ..HZJ7#

 1
11401-19829

1HZ..HZJ7#

 1
11401-19637

1HZ..HZJ7#..U

 1
11401-19827

1HZ..HZJ7#

 1
11415 - COCK SUB-ASSY, WATER DRAIN(FOR CYLINDER BLOCK)
90345-52003

1HZ..HZJ7#

 1
90910-09075

1HZ..HZJ7#

 1
90910-09088

1HZ..HZJ7#

 1
11415 - COCK SUB-ASSY, WATER DRAIN(FOR CYLINDER BLOCK)
90345-52003

1HZ..HZJ7#

 1
90910-09075

1HZ..HZJ7#

 1
90910-09088

1HZ..HZJ7#

 1
11415A - PLUG, WATER DRAIN COCK(FOR CYLINDER BLOCK)
90910-09087

1HZ..HZJ7#

 1
90910-09087

1HZ..HZJ7#

 1
11415A - PLUG, WATER DRAIN COCK(FOR CYLINDER BLOCK)
90910-09087

1HZ..HZJ7#

 1
90910-09087

1HZ..HZJ7#

 1
11452 - GUIDE, OIL LEVEL GAGE
11452-17010

1HZ..HZJ7#

 1
11452-17011

1HZ..HZJ7#

 1
11452-17040

1HZ..HZJ7#

 1
12101 - PAN SUB-ASSY, OIL
12101-17030

1HZ..HZJ7#

 1
12101A - PLUG(FOR OIL PAN DRAIN)
90341-12012

1HZ..HZJ7#

 1
12101B - GASKET(FOR OIL PAN DRAIN PLUG)
90430-12027

1HZ..HZJ7#

 1
15301 - GAGE SUB-ASSY, OIL LEVEL
15301-17060

1HZ..HZJ7#

 1
15301-17010

1HZ..HZJ7#

 1
15301-17030

1HZ..HZJ7#

 1
15605 - VALVE SUB-ASSY, OIL CHECK
15605-54010

1HZ..HZJ7#

 6
15605-17030

1HZ..HZJ7#

 6
Common parts
90116-06134
90119-06600
90179-06222
91511-B0812
96721-19010
Linked diagrams
1302
1603
