HZJ70V-MNS (1994)

Toyota Land Cruiser S/T,H/T

Production Jan 1994 - Aug 1996
Engine 1HZ
Transmission MTM
Displacement 2500cc
Power 168 HP (125 kW)

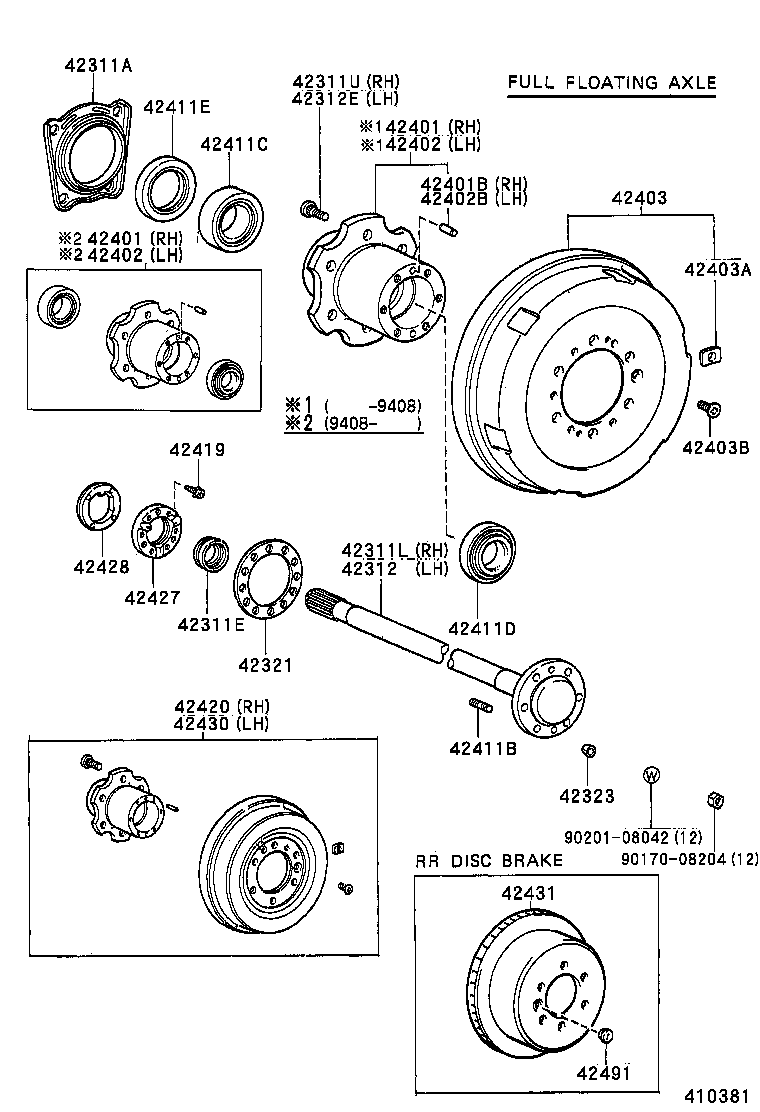

(9001-9908)FJ75,HZJ7#,PZJ7#

Click highlighted areas on diagram

diagram 42311A 42311E 42311L 42311U 42312 42312E 42321 42323 42401 42401 42401B 42402 42402 42402B 42403 42403A 42403B 42411B 42411C 42411D 42411E 42419 42420 42427 42428 42430 42431 42491 9017008204 9020108042
Part # Description Qty Price
42311E - SEAL, OIL (FOR REAR AXLE SHAFT OUTER)
90310-35001

FJ75,HZJ7#

 2
42311L - SHAFT, REAR AXLE, RH
42311-60080

HZJ7#,PZJ7#..LX,ZX

ｱﾘ(ﾃﾞﾌﾛﾂｸ)

 1
42311-60052

FJ75,HZJ7#

 1
42311U - BOLT, HUB (FOR REAR AXLE RH)
90942-02052

FJ75,HZJ7#,LJ7#,PZJ7#

 6
42312 - SHAFT, REAR AXLE, LH
42312-60042

FJ75,HZJ7#

 1
42312E - BOLT, HUB (FOR REAR AXLE LH)
90942-02052

FJ75,HZJ7#,LJ7#,PZJ7#

 6
42321 - GASKET, REAR AXLE SHAFT
43422-60040

PZJ77..4NO;PZJ77..LX..1NO;FJ75,HZJ7#,PZJ70

 2
42323 - WASHER, CONE (FOR REAR AXLE SHAFT)
42323-60010

PZJ77..4NO;PZJ77..LX..1NO;FJ75,HZJ7#,PZJ70

 12
42401B - PIN, STRAIGHT (FOR REAR AXLE HUB RH)
90250-07057

PZJ77..4NO;PZJ77..LX..1NO;FJ75,HZJ7#,PZJ70

 2
42402B - PIN, STRAIGHT (FOR REAR AXLE HUB LH)
90250-07057

PZJ77..4NO;PZJ77..LX..1NO;FJ75,HZJ7#,PZJ70

 2
42411B - BOLT, STUD (FOR REAR AXLE HUB)
90116-08325

PZJ77..4NO;PZJ77..LX..1NO;FJ75,HZJ7#,PZJ70

 12
42411C - BEARING, TAPERED ROLLER (FOR REAR AXLE INNER BEARING)
90368-49084

PZJ77..4NO;PZJ77..LX..1NO;FJ75,HZJ7#,PZJ70

 2
42411D - BEARING, TAPERED ROLLER (FOR REAR AXLE OUTER BEARING)
90368-45087

PZJ77..4NO;PZJ77..LX..1NO;FJ75,HZJ7#,PZJ70

 2
42419 - SCREW, REAR AXLE BEARING LOCK NUT
42419-60011

PZJ77..4NO;PZJ77..LX..1NO;FJ75,HZJ7#,PZJ70

 4
42427 - NUT, REAR AXLE BEARING LOCK
42427-60021

PZJ77..4NO;PZJ77..LX..1NO;FJ75,HZJ7#,PZJ70

 2
42428 - PLATE, REAR AXLE LOCK NUT
42428-60011

PZJ77..4NO;PZJ77..LX..1NO;FJ75,HZJ7#,PZJ70

 2
Common parts
90170-08204
90201-08042

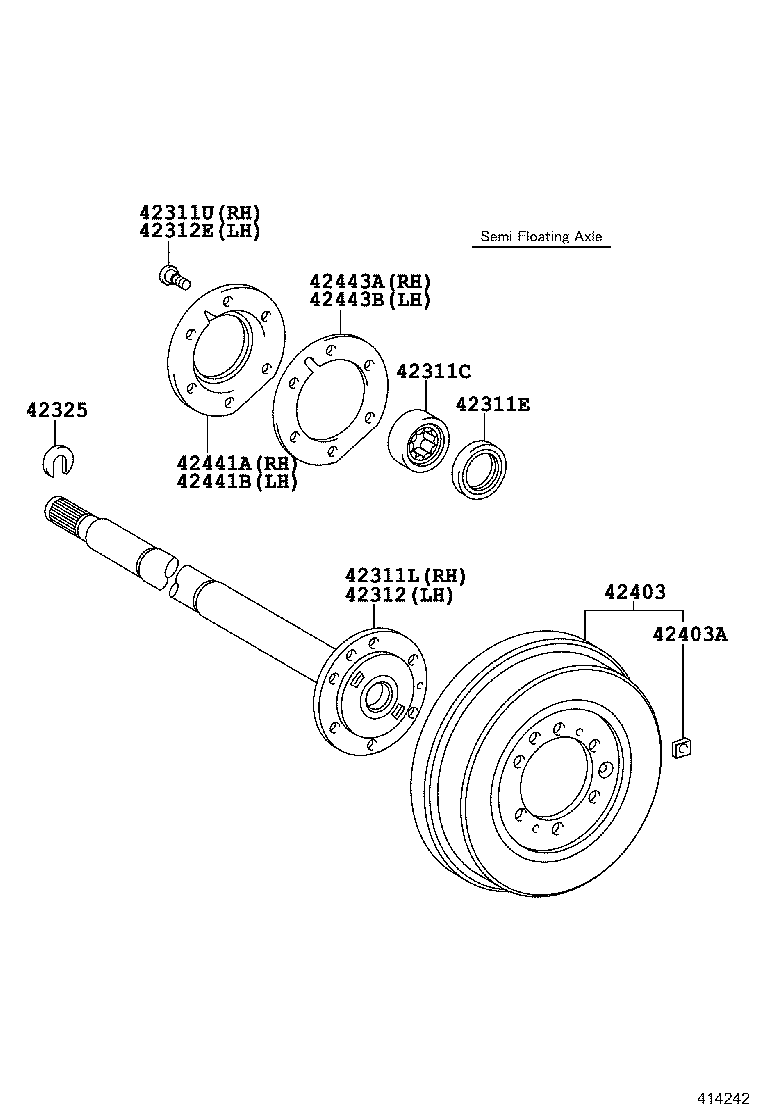

(9001-9908)HZJ70,73,77,PZJ7#

Click highlighted areas on diagram

diagram 42311C 42311E 42311L 42311U 42312 42312E 42325 42403 42403A 42441A 42441B 42443A 42443B
Part # Description Qty Price
42311E - SEAL, OIL (FOR REAR AXLE SHAFT OUTER)
90310-35001

FJ75,HZJ7#

 2
42311L - SHAFT, REAR AXLE, RH
42311-60080

HZJ7#,PZJ7#..LX,ZX

ｱﾘ(ﾃﾞﾌﾛﾂｸ)

 1
42311-60052

FJ75,HZJ7#

 1
42311U - BOLT, HUB (FOR REAR AXLE RH)
90942-02052

FJ75,HZJ7#,LJ7#,PZJ7#

 6
42312 - SHAFT, REAR AXLE, LH
42312-60042

FJ75,HZJ7#

 1
42312E - BOLT, HUB (FOR REAR AXLE LH)
90942-02052

FJ75,HZJ7#,LJ7#,PZJ7#

 6
