HZJ70-MNS (1994)
Toyota Land Cruiser S/T,H/T

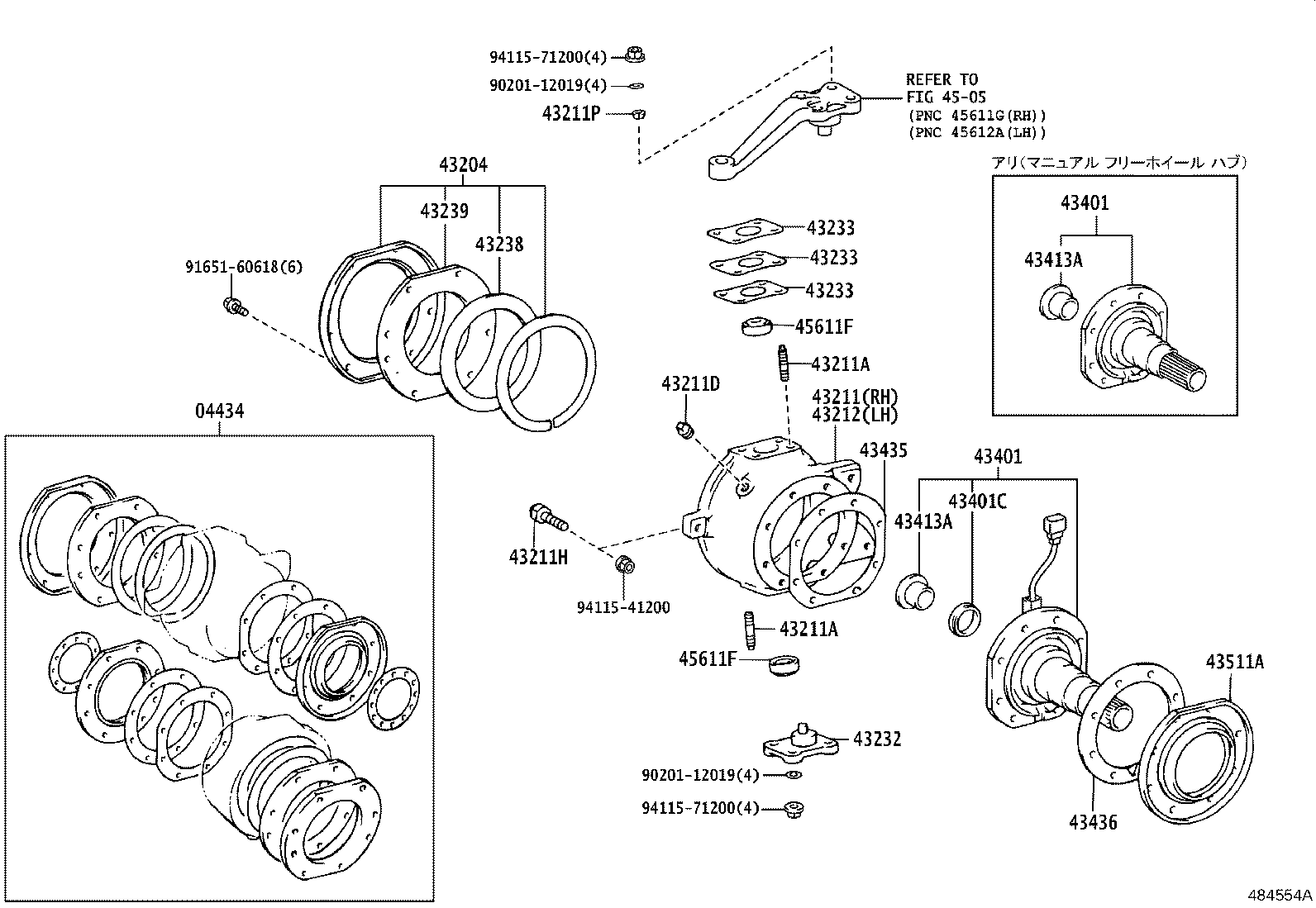

ILLUST NO. 1 OF 2(9001-9908)FJ75,HZJ7#,PZJ7#
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 04434 - GASKET KIT, FRONT AXLE OVERHAUL | ||||
| 04434-60060 |
HZJ70..SOT ｱﾘ(ﾊﾟﾜ- ﾛﾂｷﾝｸﾞ ﾊﾌﾞ) |
1 | ||
| 43204 - SEAL SUB-ASSY, STEERING KNUCKLE OIL | ||||
| 43204-60040 |
FJ75,HZJ7#,LJ7#,PZJ7# |
2 | ||
| 43211 - KNUCKLE, STEERING, RH | ||||
| 43211-60100 |
HZJ70..SOT ｱﾘ(ﾊﾟﾜ- ﾛﾂｷﾝｸﾞ ﾊﾌﾞ) |
1 | ||
| 43211A - BOLT, STUD (FOR STEERING SET) | ||||
| 90116-12007 |
FJ75,HZJ7#,LJ7#,PZJ7# |
16 | ||
| 43211A - BOLT, STUD (FOR STEERING SET) | ||||
| 90116-12007 |
FJ75,HZJ7#,LJ7#,PZJ7# |
16 | ||
| 43212 - KNUCKLE, STEERING, LH | ||||
| 43212-60100 |
HZJ70..SOT ｱﾘ(ﾊﾟﾜ- ﾛﾂｷﾝｸﾞ ﾊﾌﾞ) |
1 | ||
| 43232 - CAP, STEERING KNUCKLE BEARING | ||||
| 43232-35010 |
FJ75,HZJ7#,LJ7#,PZJ7# |
2 | ||
| 43233 - SHIM, STEERING KNUCKLE ADJUST, NO.1 | ||||
| 43236-60010 |
FJ75,HZJ7#,LJ7#,PZJ7# 厚さ=0.1 |
1 | ||
| 43233-60011 |
FJ75,HZJ7#,LJ7#,PZJ7# 厚さ=0.20 |
1 | ||
| 43235-60010 |
FJ75,HZJ7#,LJ7#,PZJ7# 厚さ=1.0 |
1 | ||
| 43237-60030 |
FJ75,HZJ7#,LJ7#,PZJ7# 厚さ=0.30 |
1 | ||
| 43234-60011 |
FJ75,HZJ7#,LJ7#,PZJ7# 厚さ=0.50 |
1 | ||
| 43233 - SHIM, STEERING KNUCKLE ADJUST, NO.1 | ||||
| 43234-60011 |
FJ75,HZJ7#,LJ7#,PZJ7# 厚さ=0.50 |
1 | ||
| 43236-60010 |
FJ75,HZJ7#,LJ7#,PZJ7# 厚さ=0.1 |
1 | ||
| 43233-60011 |
FJ75,HZJ7#,LJ7#,PZJ7# 厚さ=0.20 |
1 | ||
| 43235-60010 |
FJ75,HZJ7#,LJ7#,PZJ7# 厚さ=1.0 |
1 | ||
| 43237-60030 |
FJ75,HZJ7#,LJ7#,PZJ7# 厚さ=0.30 |
1 | ||
| 43233 - SHIM, STEERING KNUCKLE ADJUST, NO.1 | ||||
| 43236-60010 |
FJ75,HZJ7#,LJ7#,PZJ7# 厚さ=0.1 |
1 | ||
| 43233-60011 |
FJ75,HZJ7#,LJ7#,PZJ7# 厚さ=0.20 |
1 | ||
| 43235-60010 |
FJ75,HZJ7#,LJ7#,PZJ7# 厚さ=1.0 |
1 | ||
| 43237-60030 |
FJ75,HZJ7#,LJ7#,PZJ7# 厚さ=0.30 |
1 | ||
| 43234-60011 |
FJ75,HZJ7#,LJ7#,PZJ7# 厚さ=0.50 |
1 | ||
| 43238 - SEAL, STEERING KNUCKLE OIL, INNER | ||||
| 43238-60030 |
FJ75,HZJ7#,LJ7#,PZJ7# |
2 | ||
| 43401 - SPINDLE SUB-ASSY, STEERING KNUCKLE | ||||
| 43490-60030 |
HZJ70..SOT ｱﾘ(ﾊﾟﾜ- ﾛﾂｷﾝｸﾞ ﾊﾌﾞ) |
2 | ||
| 43401 - SPINDLE SUB-ASSY, STEERING KNUCKLE | ||||
| 43490-60030 |
HZJ70..SOT ｱﾘ(ﾊﾟﾜ- ﾛﾂｷﾝｸﾞ ﾊﾌﾞ) |
2 | ||
| 43435 - GASKET, KNUCKLE SPINDLE | ||||
| 43435-60011 |
FJ75,HZJ7#,LJ7#,PZJ7# |
2 | ||
| 43511A - SEAL, DUST (FOR FRONT AXLE HUB) | ||||
| 90313-93011 |
FJ75,HZJ7#,LJ7#,PZJ7# |
2 | ||
| 45611F - BEARING(FOR STEERING KNUCKLE ARM) | ||||
| 90366-17007 |
FJ75,HZJ7#,LJ7#,PZJ7# |
4 | ||
| 45611F - BEARING(FOR STEERING KNUCKLE ARM) | ||||
| 90366-17007 |
FJ75,HZJ7#,LJ7#,PZJ7# |
4 | ||
| Common parts | ||||
| 90201-12019 | ||||
| 91651-60618 | ||||
| 94115-41200 | ||||
| 94115-71200 | ||||
| Linked diagrams | ||||
| 4505 | ||||
