FJ75-MR3 (1990)

Toyota Land Cruiser S/T,H/T

Production Jun 1990 - Aug 1992
Engine 3F
Transmission MTM
Displacement 2500cc
Power 168 HP (125 kW)

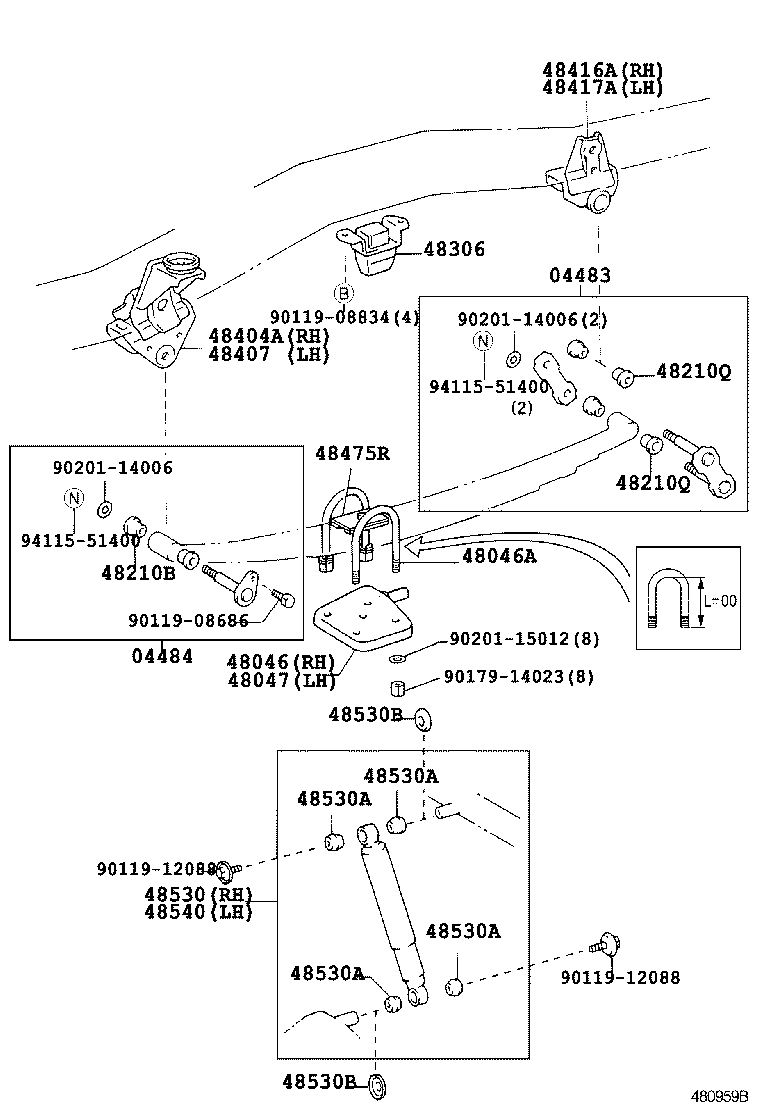

ILLUST NO. 1 OF 2(9001-9607)FJ75,HZJ7#,PZJ7#

Click highlighted areas on diagram

diagram 04483 04484 48046 48046A 48047 48210B 48210Q 48210Q 48306 48404A 48407 48416A 48417A 48475R 48530 48530A 48530A 48530A 48530A 48530B 48530B 48540 9011908686 9011908834 9011912088 9011912088 9017914023 9020114006 9020114006 9020115012 9411551400 9411551400
Part # Description Qty Price
48046 - SEAT SUB-ASSY, SPRING U BOLT, RH
48046-60090

HZJ73,77..ZX;FJ75,HZJ71,74,75,76,79,PZJ7#

 1
48047 - SEAT SUB-ASSY, SPRING U BOLT, LH
48047-60080

HZJ73,77..ZX;FJ75,HZJ71,74,75,76,79,PZJ7#

 1
48475R - PLATE, DISTANCE(FOR REAR)
48475-60020

HZJ73,77..ZX;FJ75,HZJ71,74,75,76,79,PZJ7#

 1
48530A - BUSH(FOR REAR SHOCK ABSORBER)
90385-19003

HZJ73,77..ZX;FJ75,HZJ71,74,75,76,79,PZJ7#

 8
48530A - BUSH(FOR REAR SHOCK ABSORBER)
90385-19003

HZJ73,77..ZX;FJ75,HZJ71,74,75,76,79,PZJ7#

 8
48530A - BUSH(FOR REAR SHOCK ABSORBER)
90385-19003

HZJ73,77..ZX;FJ75,HZJ71,74,75,76,79,PZJ7#

 8
48530A - BUSH(FOR REAR SHOCK ABSORBER)
90385-19003

HZJ73,77..ZX;FJ75,HZJ71,74,75,76,79,PZJ7#

 8
48530B - WASHER, REAR SHOCK ABSORBER CUSHION, NO.1
90948-03011

HZJ73,77..ZX;FJ75,HZJ71,74,75,76,79,PZJ7#

 4
48530B - WASHER, REAR SHOCK ABSORBER CUSHION, NO.1
90948-03011

HZJ73,77..ZX;FJ75,HZJ71,74,75,76,79,PZJ7#

 4
Common parts
90119-08686
90119-08834
90119-12088
90179-14023
90201-14006
90201-15012
94115-51400

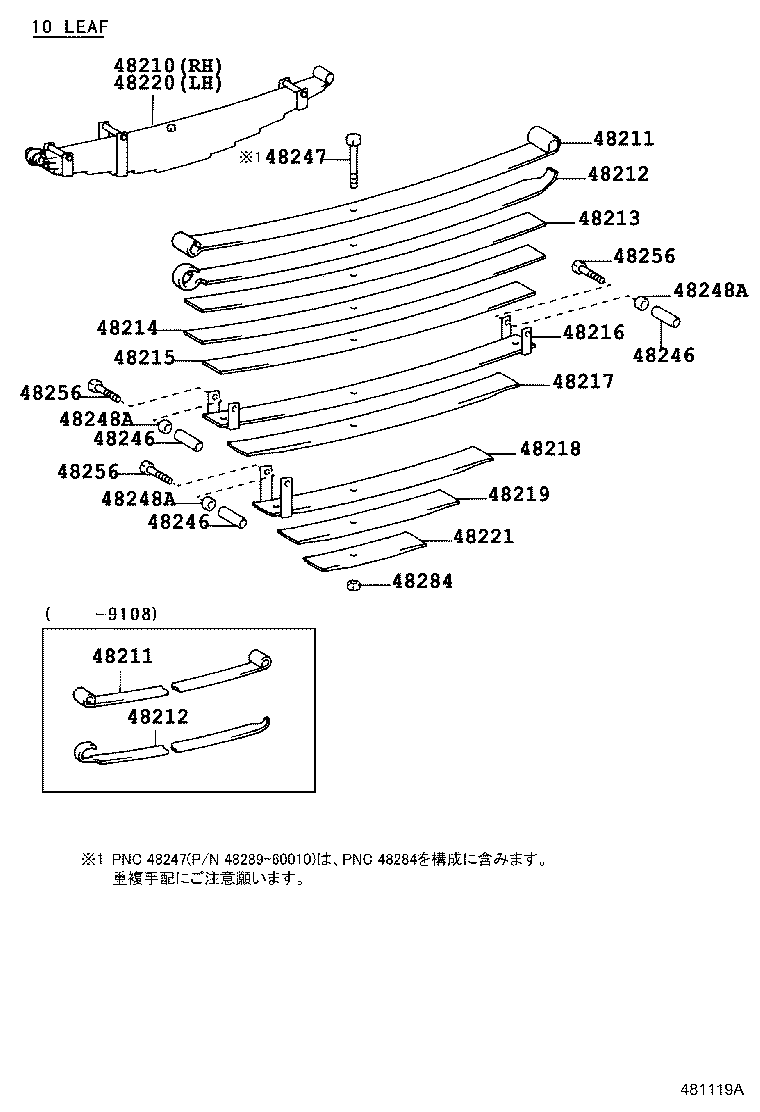

ILLUST NO. 2 OF 2(9006- )FJ75,HZJ70,73,75,77,PZJ7#

Click highlighted areas on diagram

diagram 48210 48211 48211 48212 48212 48213 48214 48215 48216 48217 48218 48219 48220 48221 48246 48246 48246 48247 48248A 48248A 48248A 48256 48256 48256 48284
Part # Description Qty Price
48210 - SPRING ASSY, REAR RH
48210-60741

FJ75

10枚ﾘｰﾌ

 1
48211 - LEAF, REAR SPRING, NO.1
48211-60741

FJ75

 2
48211 - LEAF, REAR SPRING, NO.1
48211-60741

FJ75

 2
48212 - LEAF, REAR SPRING, NO.2
48212-60741

FJ75

 2
48212 - LEAF, REAR SPRING, NO.2
48212-60741

FJ75

 2
48213 - LEAF, REAR SPRING, NO.3
48213-60741

FJ75

 2
48214 - LEAF, REAR SPRING, NO.4
48214-60741

FJ75

 2
48215 - LEAF, REAR SPRING, NO.5
48215-60741

FJ75

 2
48216 - LEAF, REAR SPRING, NO.6
48202-60741

FJ75

 2
48217 - LEAF, REAR SPRING, NO.7
48217-60741

FJ75

 2
48218 - LEAF, REAR SPRING, NO.8
48203-60741

FJ75

 2
48219 - LEAF, REAR SPRING, NO.9
48219-60741

FJ75

 2
48220 - SPRING ASSY, REAR LH
48210-60741

FJ75

10枚ﾘｰﾌ

 1
48221 - LEAF, REAR SPRING, NO.10
48221-60740

FJ75

 2
48246 - CASE, REAR SPRING CLIP BOLT
48146-60070

FJ75

 6
48246 - CASE, REAR SPRING CLIP BOLT
48146-60070

FJ75

 6
48246 - CASE, REAR SPRING CLIP BOLT
48146-60070

FJ75

 6
48247 - BOLT, REAR SPRING, CENTER
48289-60010

FJ75,HZJ7#,PZJ7#

長さ=120

 2
48256 - BOLT, HEXAGON(FOR REAR SPRING CLIP SET)
48156-37010

FJ75

 6
48256 - BOLT, HEXAGON(FOR REAR SPRING CLIP SET)
48156-37010

FJ75

 6
48256 - BOLT, HEXAGON(FOR REAR SPRING CLIP SET)
48156-37010

FJ75

 6
48284 - NUT, REAR SPRING CENTER BOLT
48284-60062

HZJ73,77..ZX;FJ75,HZJ71,74,75,76,79,PZJ7#

 2
