FJ75-MR3 (1990)

Toyota Land Cruiser S/T,H/T

Production Jun 1990 - Aug 1992
Engine 3F
Transmission MTM
Displacement 2500cc
Power 168 HP (125 kW)

ILLUST NO. 1 OF 2(9001-9908)

Click highlighted areas on diagram

diagram 44610 44610 44696 44730 44758 44785 44785 9017908038 9017908038
Part # Description Qty Price
44610 - BOOSTER ASSY, BRAKE
44610-60680

FJ75

 1
44610 - BOOSTER ASSY, BRAKE
44610-60680

FJ75

 1
44696 - GROMMET, CHECK VALVE
90480-24439

FJ75

 1
44730 - VALVE ASSY, VACUUM CHECK(FOR BRAKE)
44730-20060

FJ75

 1
44758 - BRACKET, VACUUM CHECK VALVE
44758-28020

FJ75

 1
44785 - GASKET, BRAKE BOOSTER
44785-35020

HZJ73,77..ZX;FJ75,HZJ71,74,75,76,79,LJ7#,PZJ7#

 1
44785 - GASKET, BRAKE BOOSTER
44785-35020

HZJ73,77..ZX;FJ75,HZJ71,74,75,76,79,LJ7#,PZJ7#

 1
Common parts
90179-08038

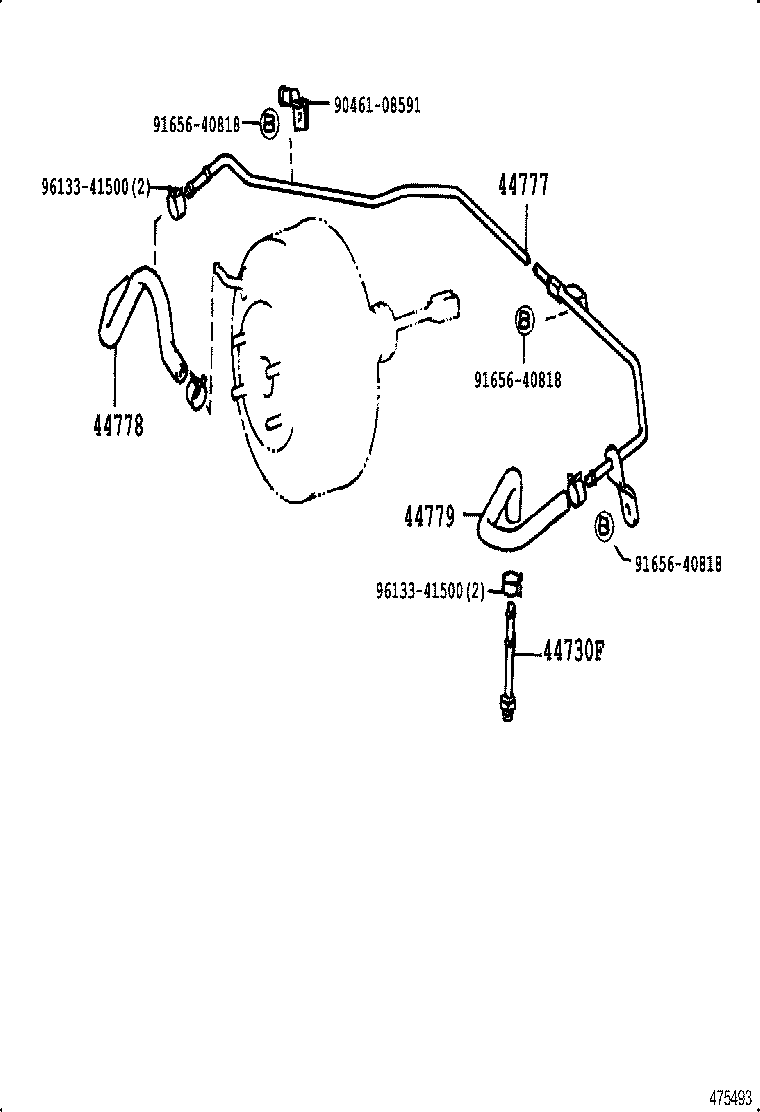

ILLUST NO. 2 OF 2(9006-9208)FJ75

Click highlighted areas on diagram

diagram 44730F 44777 44778 44779 9046108591 9165640818 9165640818 9165640818 9613341500 9613341500
Part # Description Qty Price
44730F - UNION, VACUUM HOSE(FOR MANIFOLD SIDE)
90404-51031

FJ75

 1
44777 - CONNECTOR, VACUUM HOSE, NO.1
44777-60020

FJ75

 1
44778 - HOSE, CONNECTOR TO CHECK VALVE
44778-60010

FJ75

 1
44778-60030

HZJ71,74,75,76,79,PZJ7#..MTM;HZJ73,77,LJ7#..EX,EX5,LX5,SX5,ZX

 1
44779 - HOSE, UNION TO CONNECTOR
44774-60040

FJ75

 1
44774-60130

HZJ73,77..ZX;HZJ71,74,75,76,79,PZJ7#

 1
Common parts
90461-08591
91656-40818
96133-41500
