FJ75-MR3 (1990)

Toyota Land Cruiser S/T,H/T

Production Jun 1990 - Aug 1992
Engine 3F
Transmission MTM
Displacement 2500cc
Power 168 HP (125 kW)

(9006-9208)3F

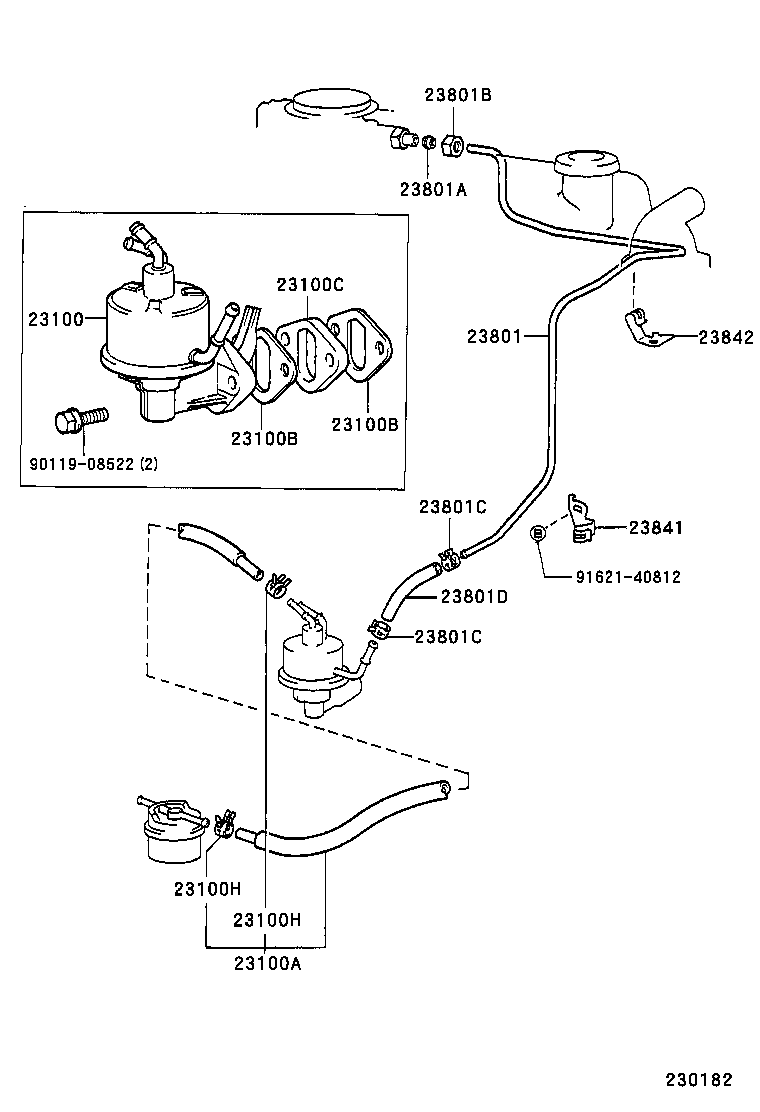

Click highlighted areas on diagram

diagram 23100 23100A 23100B 23100B 23100C 23100H 23100H 23801 23801A 23801B 23801C 23801C 23801D 23841 23842 9011908522 9162140812
Part # Description Qty Price
23100 - PUMP ASSY, FUEL
23100-61101

3F..FJ75

 1
23100A - HOSE, FUEL
77260-60082

3F..FJ75

 1
77260-60081

3F..FJ75

 1
23100B - GASKET, FUEL PUMP
90923-05019

3F..FJ75

 2
23100B - GASKET, FUEL PUMP
90923-05019

3F..FJ75

 2
23100C - INSULATOR, FUEL PUMP
90923-06009

3F..FJ75

 1
23100H - CLIP(FOR FUEL HOSE)
96132-31000

3F..FJ75

 2
23100H - CLIP(FOR FUEL HOSE)
96132-31000

3F..FJ75

 2
23801 - PIPE OR HOSE SUB-ASSY, CARBURETOR FUEL, NO.1
23811-61070

3F..FJ75

 1
23801A - OLIVE(FOR FUEL PIPE)
96395-71400

3F..FJ75

 1
23801B - NUT, UNION(FOR FUEL PIPE)
90402-13041

3F..FJ75

 1
23801C - CLIP(FOR CARBURETOR FUEL HOSE)
96132-30800

3F..FJ75

 2
23801C - CLIP(FOR CARBURETOR FUEL HOSE)
96132-30800

3F..FJ75

 2
23801D - HOSE, FUEL PIPE, NO.1
95333-08020

3F..FJ75

*H,L=130,内径=7.6

 1
23841 - CLAMP, FUEL PIPE(HOSE), NO.1
23841-61030

3F..FJ75

 1
23842 - CLAMP, FUEL PIPE(HOSE), NO.2
23842-61020

3F..FJ75

 1
Common parts
90119-08522
91621-40812
