FJ75-MR3 (1990)

Toyota Land Cruiser S/T,H/T

Production Jun 1990 - Aug 1992
Engine 3F
Transmission MTM
Displacement 2500cc
Power 168 HP (125 kW)

(9006-9208)3F

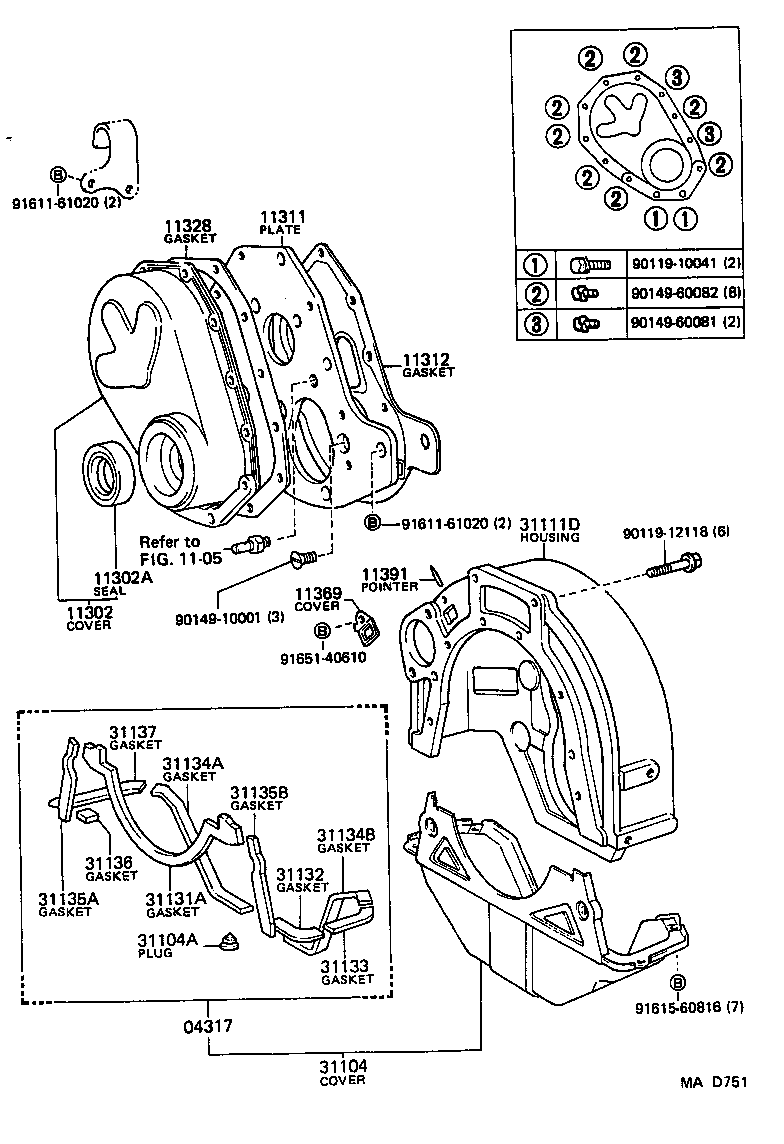

Click highlighted areas on diagram

diagram 04317 1105 11302 11302A 11311 11312 11328 11369 11391 31104 31104A 31111D 31131A 31132 31133 31134A 31134B 31135A 31135B 31136 31137 9011910041 9011912118 9014910001 9014960081 9014960082 9161161020 9161161020 9161560816 9165140610
Part # Description Qty Price
04317 - GASKET KIT, CLUTCH UNDER COVER
04317-60030

FJ75

 1
11302 - COVER SUB-ASSY, TIMING CHAIN OR BELT
11302-61031

3F..FJ75

 1
11302A - SEAL, OIL(FOR TIMING CHAIN OR BELT COVER)
90311-45008

3F..FJ75

 1
11311 - PLATE, FRONT END
11311-61020

3F..FJ75

 1
11312 - GASKET, FRONT END PLATE
11312-61021

3F..FJ75

 1
11328 - GASKET, TIMING GEAR OR CHAIN COVER
11328-61010

3F..FJ75

 1
11369 - COVER, FLYWHEEL HOUSING FRONT
11369-60011

3F..FJ75

 1
11391 - POINTER, TIMING
11391-60010

3F..FJ75

 1
31104 - COVER SUB-ASSY, CLUTCH HOUSING UNDER
31104-60030

FJ75

 1
31104A - PLUG, HOLE(FOR CLUTCH HOUSING UNDER COVER)
90950-01200

FJ75

 1
31111D - HOUSING, CLUTCH
31111-60220

FJ75

 1
31131A - GASKET, CLUTCH HOUSING UNDER COVER, NO.1
31131-60010

FJ75

 1
31132 - GASKET, CLUTCH HOUSING UNDER COVER, NO.2
31132-60020

FJ75

 1
31133 - GASKET, CLUTCH HOUSING UNDER COVER, NO.3
31133-60020

FJ75

 1
31134A - GASKET, CLUTCH HOUSING UNDER COVER, NO.4
31134-60020

FJ75

 1
31134B - GASKET, CLUTCH HOUSING UNDER COVER, NO.4
31134-60030

FJ75

 1
31135A - GASKET, CLUTCH HOUSING UNDER COVER, NO.5
31135-60021

FJ75

 1
31135B - GASKET, CLUTCH HOUSING UNDER COVER, NO.5
31135-60031

FJ75

 1
31136 - GASKET, CLUTCH HOUSING UNDER COVER, NO.6
31136-60010

FJ75

 1
31137 - GASKET, CLUTCH HOUSING UNDER COVER, NO.7
31137-60010

FJ75

 1
Common parts
90119-10041
90119-12118
90149-10001
90149-60081
90149-60082
91611-61020
91615-60816
91651-40610
Linked diagrams
1105
