BJ74V-PNX (1985)

Toyota Land Cruiser S/T,H/T

Production Oct 1985 - Jan 1990
Engine 13BT
Transmission ATM
Displacement 2500cc
Power 168 HP (125 kW)

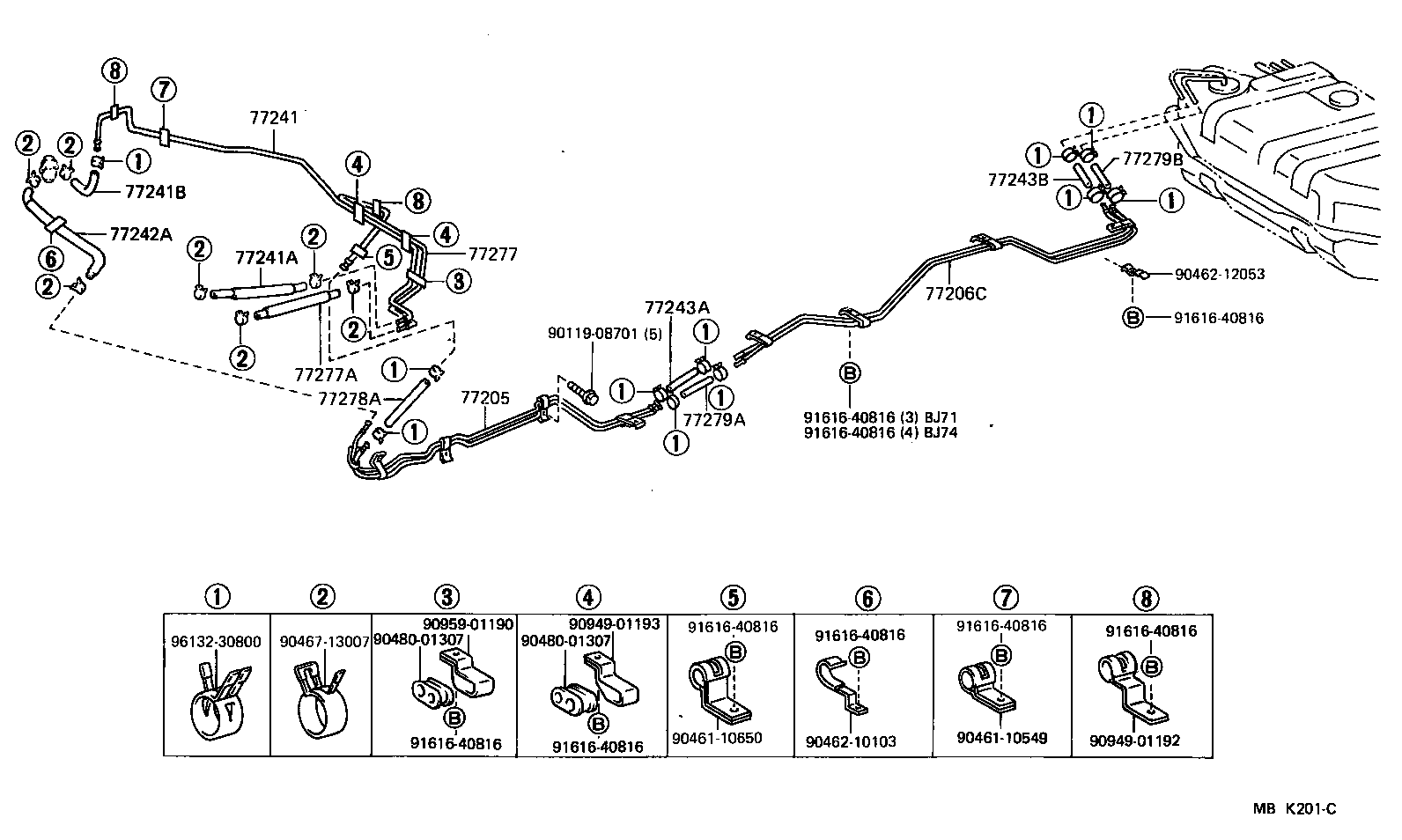

ILLUST NO. 2 OF 2(8510- )BJ71,74

Click highlighted areas on diagram

diagram 77205 77206C 77241 77241A 77241B 77242A 77243A 77243B 77277 77277A 77278A 77279A 77279B 9011908701 9046110549 9046110650 9046210103 9046212053 9046713007 9048001307 9048001307 9094901192 9094901193 9095901190 9161640816 9161640816 9161640816 9161640816 9161640816 9161640816 9161640816 9161640816 9161640816 9613230800
Part # Description Qty Price
77205 - TUBE SUB-ASSY, FUEL MAIN
77205-60300

BJ71,74

 1
77205-60301

BJ71,74

 1
77206C - TUBE SUB-ASSY, FUEL MAIN, NO.2
77205-60320

BJ74

 1
77241 - TUBE, FUEL MAIN, NO.1
77253-60100

BJ7#

 1
77241A - HOSE, FUEL, NO.1 (FOR MAIN TUBE, NO.1)
23271-56040

BJ71,74,LJ71

*H,L=380

 1
77241B - HOSE, FUEL, NO.2 (FOR MAIN TUBE, NO.1)
95332-08040

BJ71,74

長さ=400,内径=7.6

 1
95332-08030

BJ7#

*H,L=220,内径=7.6

 1
77242A - HOSE, FUEL, NO.1 (FOR MAIN TUBE, NO.2)
90447-14026

BJ7#

 1
77243A - HOSE, FUEL, NO.1 (FOR MAIN TUBE, NO.3)
95332-08020

BJ7#,LJ71

*H,L=200,内径=7.6

 1
95333-08020

BJ7#,LJ71

長さ=200,内径=8

 1
77243B - HOSE, FUEL, NO.2 (FOR MAIN TUBE, NO.3)
95333-08020

BJ7#,LJ71

長さ=200,内径=8

 1
95332-08020

BJ7#,LJ71

*H,L=200,内径=7.6

 1
77277 - TUBE, FUEL RETURN, NO.1
77257-60040

BJ71,74

 1
77257-60050

BJ71,74

 1
77277A - HOSE, FUEL, NO.1(FOR RETURN TUBE, NO.1)
23271-56040

BJ71,74

*H,L=380

 1
77278A - HOSE, FUEL, NO.1 (FOR RETURN TUBE, NO.2)
95333-08020

BJ71,74

長さ=200,内径=8

 1
95332-08020

BJ71,74

*H,L=200,内径=7.6

 1
77279A - HOSE, FUEL, NO.1 (FOR RETURN TUBE, NO.3)
95332-08020

BJ71,74

*H,L=200,内径=7.6

 1
95333-08020

BJ71,74

長さ=200,内径=8

 1
77279B - HOSE, FUEL, NO.2 (FOR RETURN TUBE, NO.3)
95333-08020

BJ71,74

長さ=200,内径=8

 1
95332-08020

BJ71,74

*H,L=200,内径=7.6

 1
Common parts
90119-08701
90461-10549
90461-10650
90462-10103
90462-12053
90467-13007
90480-01307
90949-01192
90949-01193
90959-01190
91616-40816
96132-30800
