BJ74V-MNX (1985)
Toyota Land Cruiser S/T,H/T
Production
Oct 1985
-
Jan 1990
Engine
13BT
Transmission
MTM
Displacement
2500cc
Power
168 HP (125 kW)

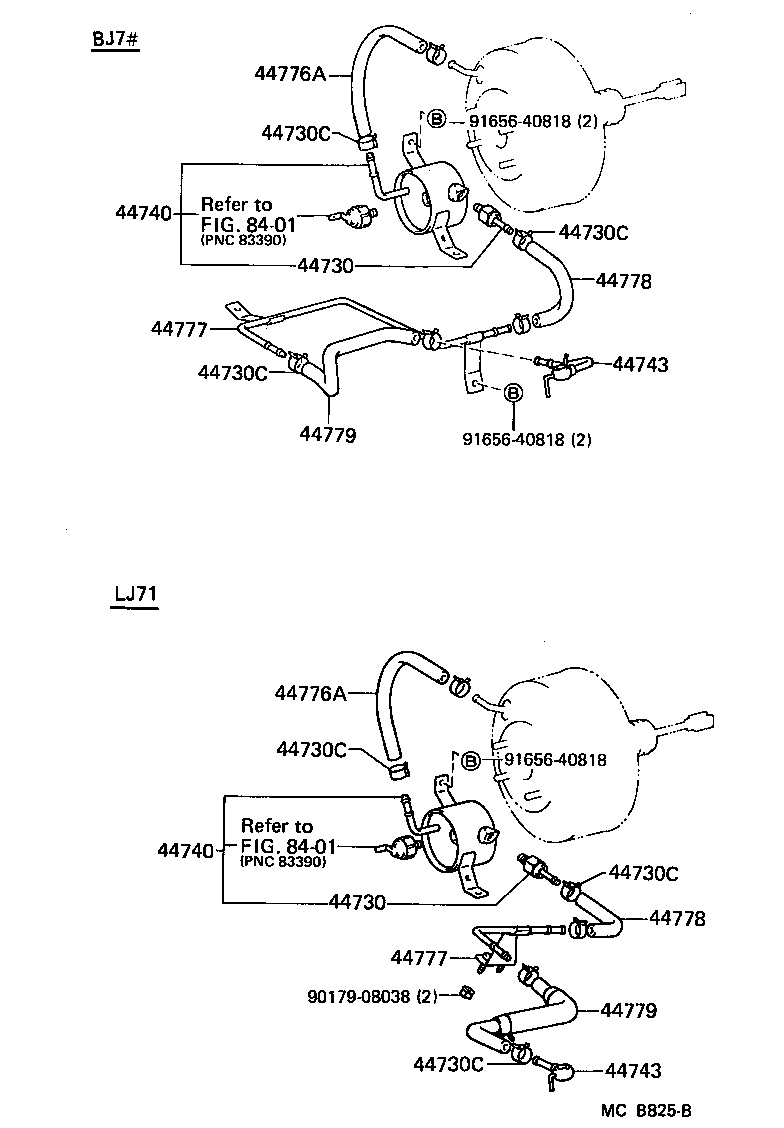

ILLUST NO. 2 OF 2(8411-8808) ; (8808- )BJ71,74,LJ71
Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 44730 - VALVE ASSY, VACUUM CHECK(FOR BRAKE) | ||||
| 44730-60040 |
BJ7#,LJ71 |
1 | ||
| 44730 - VALVE ASSY, VACUUM CHECK(FOR BRAKE) | ||||
| 44730-60040 |
BJ7#,LJ71 |
1 | ||
| 44730C - CLIP(FOR VACUUM HOSE) | ||||
| 90467-16002 |
BJ7#,LJ71 |
9 | ||
| 44730C - CLIP(FOR VACUUM HOSE) | ||||
| 90467-16002 |
BJ7#,LJ71 |
9 | ||
| 44730C - CLIP(FOR VACUUM HOSE) | ||||
| 90467-16002 |
BJ7#,LJ71 |
9 | ||
| 44730C - CLIP(FOR VACUUM HOSE) | ||||
| 90467-16002 |
BJ7#,LJ71 |
9 | ||
| 44730C - CLIP(FOR VACUUM HOSE) | ||||
| 90467-16002 |
BJ7#,LJ71 |
9 | ||
| 44730C - CLIP(FOR VACUUM HOSE) | ||||
| 90467-16002 |
BJ7#,LJ71 |
9 | ||
| 44740 - RESERVOIR ASSY, VACUUM | ||||
| 44740-60090 |
BJ7#,LJ71 |
1 | ||
| 44740-60090 |
BJ7# |
1 | ||
| 44740 - RESERVOIR ASSY, VACUUM | ||||
| 44740-60090 |
BJ7#,LJ71 |
1 | ||
| 44740-60090 |
BJ7# |
1 | ||
| 44743 - UNION(FOR VACUUM PUMP) | ||||
| 90405-09122 |
BJ71,74..MTM |
1 | ||
| 90405-09094 |
BJ7# |
1 | ||
| 44743 - UNION(FOR VACUUM PUMP) | ||||
| 90405-09122 |
BJ71,74..MTM |
1 | ||
| 90405-09094 |
BJ7# |
1 | ||
| 44776A - HOSE, VACUUM RESERVOIR TO BRAKE BOOSTER | ||||
| 95441-09280 |
BJ7#,LJ71 |
1 | ||
| 44776A - HOSE, VACUUM RESERVOIR TO BRAKE BOOSTER | ||||
| 95441-09280 |
BJ7#,LJ71 |
1 | ||
| 44777 - CONNECTOR, VACUUM HOSE, NO.1 | ||||
| 44777-60030 |
BJ7# |
1 | ||
| 44777 - CONNECTOR, VACUUM HOSE, NO.1 | ||||
| 44777-60030 |
BJ7# |
1 | ||
| 44778 - HOSE, CONNECTOR TO CHECK VALVE | ||||
| 44778-60030 |
BJ7#,LJ71 |
1 | ||
| 44778 - HOSE, CONNECTOR TO CHECK VALVE | ||||
| 44778-60030 |
BJ7#,LJ71 |
1 | ||
| 44779 - HOSE, UNION TO CONNECTOR | ||||
| 95444-09240 |
BJ7# |
1 | ||
| 44774-60080 |
BJ71,74 |
1 | ||
| 95444-09240 |
BJ71,74 |
1 | ||
| 44779 - HOSE, UNION TO CONNECTOR | ||||
| 95444-09240 |
BJ7# |
1 | ||
| 44774-60080 |
BJ71,74 |
1 | ||
| 95444-09240 |
BJ71,74 |
1 | ||
| Common parts | ||||
| 90179-08038 | ||||
| 91656-40818 | ||||
| Linked diagrams | ||||
| 8401 | ||||
