BJ73V-MR (1984)

Toyota Land Cruiser S/T,H/T

Production Nov 1984 - Jan 1990
Engine 3B
Transmission MTM
Displacement 2500cc
Power 168 HP (125 kW)

(8411- )

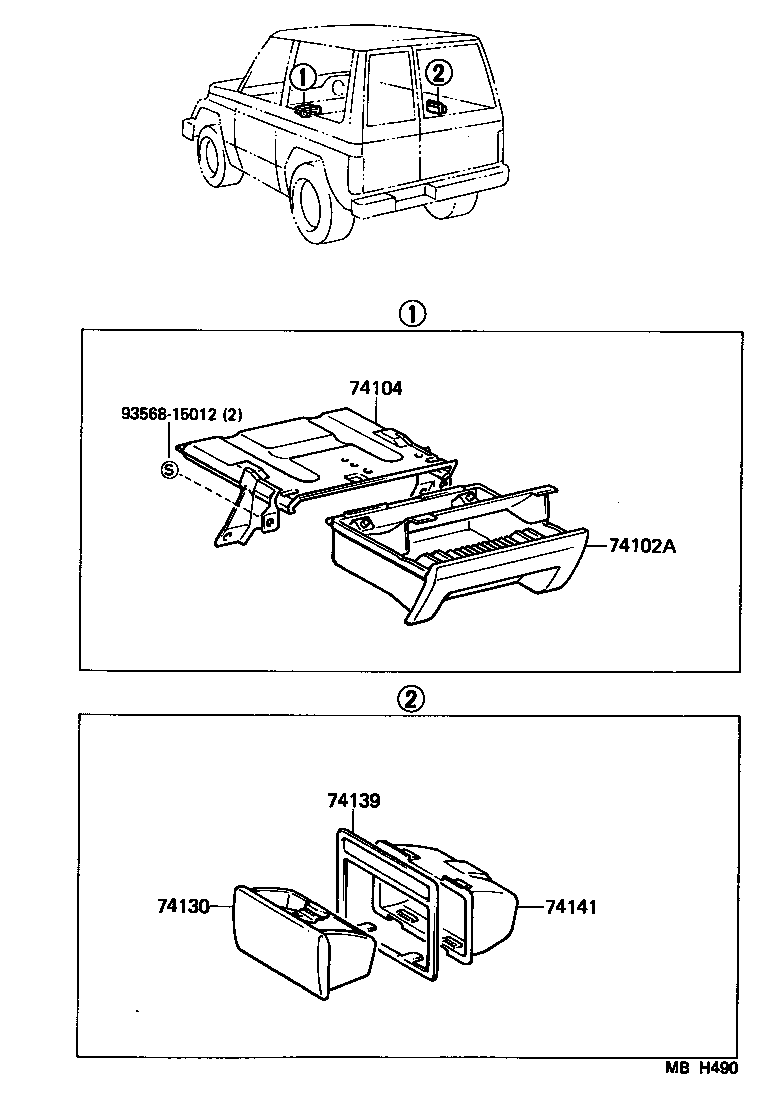

Click highlighted areas on diagram

diagram 74102A 74104 74130 74139 74141 9356815012
Part # Description Qty Price
74102A - RECEPTACLE ASSY, FRONT ASH
74102-90K0005

BJ7#,LJ71

BEIGE,BEIGE

 1
74102-90K0003

BJ7#,LJ71

GRAY,GRAY

 1
74104 - RETAINER SUB-ASSY, ASH RECEPTACLE, NO.1
74104-90K00

BJ7#,LJ71

 1
74130 - RECEPTACLE ASSY, REAR ASH
74105-1001010

BJ73,74,LJ71

BROWN,SEPIA BROWN

 1
74105-1001013

BJ73,74,LJ71

GRAY,GRAY

 1
74139 - RETAINER, REAR ASH RECEPTACLE, OUTER
74135-10030

BJ73,74,LJ71

 1
74141 - RETAINER, REAR ASH RECEPTACLE, INNER
74137-10030

BJ73,74,LJ71

 1
Common parts
93568-15012
