BJ73V-MR (1984)
Toyota Land Cruiser S/T,H/T

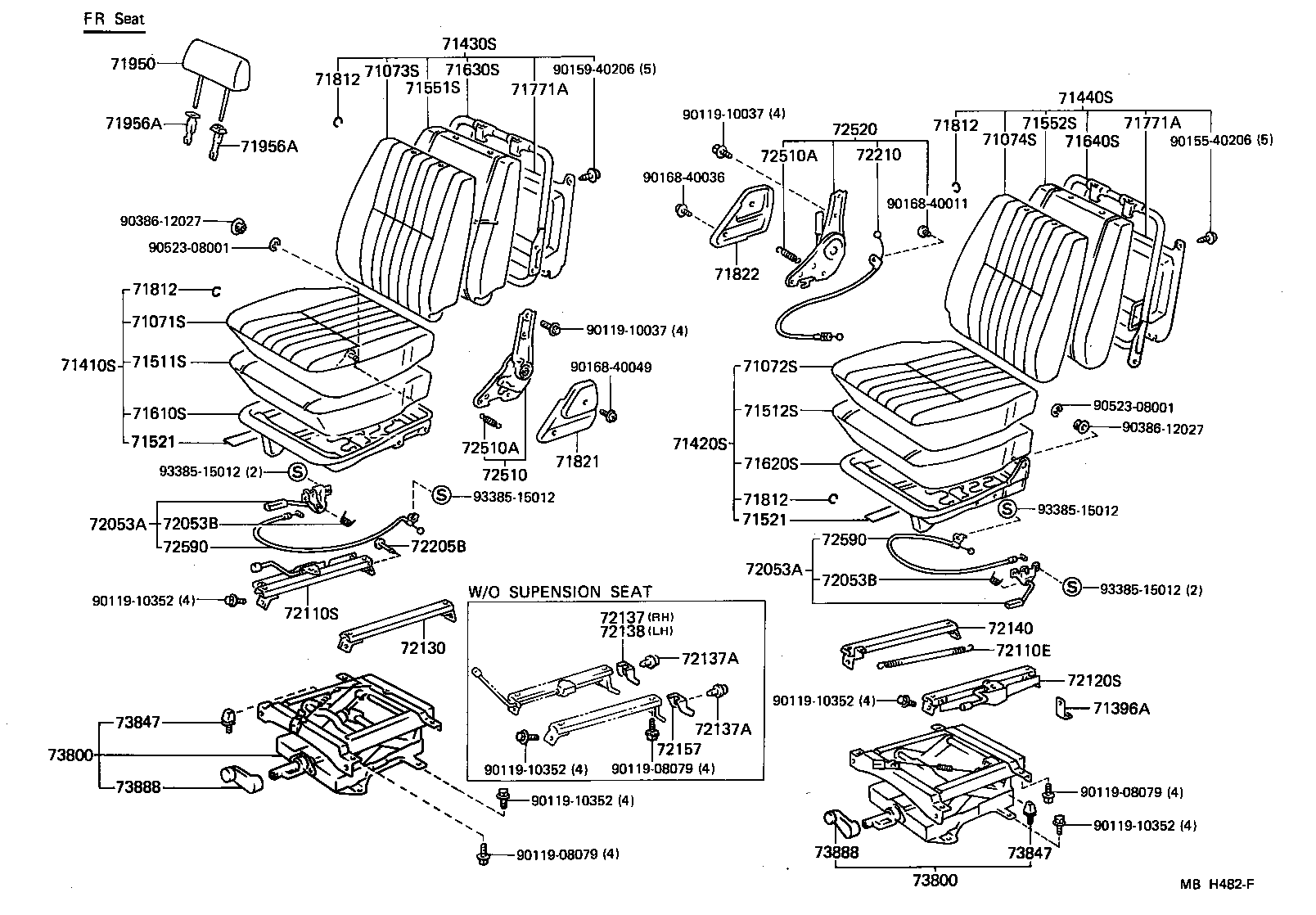

ILLUST NO. 1 OF 2(8411- )LX,LX5,STD
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 71071S - COVER, FRONT SEAT CUSHION, RH(FOR SEPARATE TYPE) | ||||
| 71071-90K0803 |
BJ70,73..STD VL,GRAY,GRAY |
1 | ||
| 71071-90K0805 |
BJ70,73..STD VL,BEIGE,BEIGE |
1 | ||
| 71072S - COVER, FRONT SEAT CUSHION, LH(FOR SEPARATE TYPE) | ||||
| 71072-90K0503 |
BJ70,73..STD VL,GRAY,GRAY |
1 | ||
| 71072-90K0505 |
BJ70,73..STD VL,BEIGE,BEIGE |
1 | ||
| 71073S - COVER, FRONT SEAT BACK, RH(FOR SEPARATE TYPE) | ||||
| 71073-90K1605 |
BJ70,73..STD VL,BEIGE,BEIGE |
1 | ||
| 71073-90K1603 |
BJ70,73..STD VL,GRAY,GRAY |
1 | ||
| 71073-90K4805 |
BJ70,73..STD VL,BEIGE,BEIGE |
1 | ||
| 71073-90K4803 |
BJ70,73..STD VL,GRAY,GRAY |
1 | ||
| 71074S - COVER, FRONT SEAT BACK, LH(FOR SEPARATE TYPE) | ||||
| 71074-90K1205 |
BJ70,73..STD VL,BEIGE,BEIGE |
1 | ||
| 71074-90K1203 |
BJ70,73..STD VL,GRAY,GRAY |
1 | ||
| 71074-90K4403 |
BJ70,73..STD VL,GRAY,GRAY |
1 | ||
| 71074-90K4405 |
BJ70,73..STD VL,BEIGE,BEIGE |
1 | ||
| 71396A - PLATE, REAR SEAT BAND HOOK | ||||
| 71396-90K00 |
BJ7# |
1 | ||
| 71410S - CUSHION ASSY, FRONT SEAT, RH(FOR SEPARATE TYPE) | ||||
| 71410-90K3305 |
BJ70,73..STD VL,BEIGE,BEIGE |
1 | ||
| 71410-90K3303 |
BJ70,73..STD VL,GRAY,GRAY |
1 | ||
| 71420S - CUSHION ASSY, FRONT SEAT, LH (FOR SEPARATE TYPE) | ||||
| 71420-90K1203 |
BJ70,73..STD VL,GRAY,GRAY |
1 | ||
| 71420-90K1205 |
BJ70,73..STD VL,BEIGE,BEIGE |
1 | ||
| 71430S - BACK ASSY, FRONT SEAT, RH(FOR SEPARATE TYPE) | ||||
| 71430-90K1703 |
BJ70,73..STD VL,GRAY,GRAY |
1 | ||
| 71430-90K1705 |
BJ70,73..STD VL,BEIGE,BEIGE |
1 | ||
| 71430-90K5805 |
BJ70,73..STD VL,BEIGE,BEIGE |
1 | ||
| 71430-90K5803 |
BJ70,73..STD VL,GRAY,GRAY |
1 | ||
| 71440S - BACK ASSY, FRONT SEAT, LH(FOR SEPARATE TYPE) | ||||
| 71440-90K7205 |
BJ70,73..STD VL,BEIGE,BEIGE |
1 | ||
| 71440-90K1703 |
BJ70,73..STD VL,GRAY,GRAY |
1 | ||
| 71440-90K7203 |
BJ70,73..STD VL,GRAY,GRAY |
1 | ||
| 71440-90K1705 |
BJ70,73..STD VL,BEIGE,BEIGE |
1 | ||
| 71511S - PAD, FRONT SEAT CUSHION, RH(FOR SEPARATE TYPE) | ||||
| 71501-90K02 |
BJ7#,LJ71..LX,LX5,STD |
1 | ||
| 71512S - PAD, FRONT SEAT CUSHION, LH (FOR SEPARATE TYPE) | ||||
| 71502-90K02 |
BJ7#,LJ71..LX,LX5,STD |
1 | ||
| 71521 - PAD, FRONT SEAT CUSHION SILENCER, A | ||||
| 71521-90K00 |
BJ7#,LJ71 |
4 | ||
| 71521 - PAD, FRONT SEAT CUSHION SILENCER, A | ||||
| 71521-90K00 |
BJ7#,LJ71 |
4 | ||
| 71551S - PAD, FRONT SEAT BACK, RH(FOR SEPARATE TYPE) | ||||
| 71505-90K04 |
BJ7#,LJ71..LX,LX5,STD |
1 | ||
| 71505-90K02 |
BJ7#,LJ71..LX,LX5,STD |
1 | ||
| 71552S - PAD, FRONT SEAT BACK, LH(FOR SEPARATE TYPE) | ||||
| 71506-90K03 |
BJ7#,LJ71..LX,LX5,STD |
1 | ||
| 71506-90K02 |
BJ7#,LJ71..LX,LX5,STD |
1 | ||
| 71610S - SPRING ASSY, FRONT SEAT CUSHION, RH(FOR SEPARATE TYPE) | ||||
| 71610-90K00 |
BJ7#,LJ71 |
1 | ||
| 71620S - SPRING ASSY, FRONT SEAT CUSHION, LH(FOR SEPARATE TYPE) | ||||
| 71620-90K00 |
BJ7#,LJ71 |
1 | ||
| 71630S - SPRING ASSY, FRONT SEAT BACK, RH(FOR SEPARATE TYPE) | ||||
| 71013-90K03 |
BJ7#,LJ71..LX,LX5,STD |
1 | ||
| 71013-90K18 |
BJ7#,LJ71..LX,LX5,STD |
1 | ||
| 71640S - SPRING ASSY, FRONT SEAT BACK, LH(FOR SEPARATE TYPE) | ||||
| 71014-90K03 |
BJ7#,LJ71..LX,LX5,STD |
1 | ||
| 71014-90K18 |
BJ7#,LJ71..LX,LX5,STD |
1 | ||
| 71771A - BOARD, FRONT SEAT BACK | ||||
| 71771-90K00 |
BJ7#,LJ71..LX,LX5,STD |
2 | ||
| 71771-90K03 |
BJ7#,LJ71..LX,LX5,STD |
2 | ||
| 71771A - BOARD, FRONT SEAT BACK | ||||
| 71771-90K00 |
BJ7#,LJ71..LX,LX5,STD |
2 | ||
| 71771-90K03 |
BJ7#,LJ71..LX,LX5,STD |
2 | ||
| 71812 - CLIP (FOR FRONT SEAT CUSHION COVER) | ||||
| 90468-18071 |
BJ7#,LJ71 |
1 | ||
| 71812 - CLIP (FOR FRONT SEAT CUSHION COVER) | ||||
| 90468-18071 |
BJ7#,LJ71 |
1 | ||
| 71812 - CLIP (FOR FRONT SEAT CUSHION COVER) | ||||
| 90468-18071 |
BJ7#,LJ71 |
1 | ||
| 71812 - CLIP (FOR FRONT SEAT CUSHION COVER) | ||||
| 90468-18071 |
BJ7#,LJ71 |
1 | ||
| 71821 - SHIELD, FRONT SEAT SIDE, RH | ||||
| 71811-90K0106 |
BJ7#,LJ71 BROWN,SEPIA BROWN |
1 | ||
| 71811-90K0103 |
BJ7#,LJ71 GRAY,SHADOW GRAY |
1 | ||
| 71822 - SHIELD, FRONT SEAT SIDE, LH | ||||
| 71812-90K0006 |
BJ7#,LJ71 BROWN,SEPIA BROWN |
1 | ||
| 71812-90K0003 |
BJ7#,LJ71 GRAY,SHADOW GRAY |
1 | ||
| 71950 - HEADREST ASSY, FRONT SEAT | ||||
| 71910-90K0003 |
BJ7#,LJ71..LX,LX5,STD GRAY,SHADOW GRAY |
2 | ||
| 71910-90K0006 |
BJ7#,LJ71..LX,LX5,STD BROWN,SEPIA BROWN |
2 | ||
| 71956A - SUPPORT, FRONT SEAT HEADREST | ||||
| 71930-1006033 |
BJ7#,LJ71 ﾛｯｸ付,W/LOCK,GRAY,SHADOW GRAY |
2 | ||
| 71931-1001033 |
BJ7#,LJ71 ﾛｯｸ無,W/O LOCK,GRAY,SHADOW GRAY |
2 | ||
| 71930-1006036 |
BJ7#,LJ71 ﾛｯｸ付,W/LOCK,BROWN,SEPIA BROWN |
2 | ||
| 71931-1001036 |
BJ7#,LJ71 ﾛｯｸ無,W/O LOCK,BROWN,SEPIA BROWN |
2 | ||
| 71956A - SUPPORT, FRONT SEAT HEADREST | ||||
| 71930-1006033 |
BJ7#,LJ71 ﾛｯｸ付,W/LOCK,GRAY,SHADOW GRAY |
2 | ||
| 71931-1001033 |
BJ7#,LJ71 ﾛｯｸ無,W/O LOCK,GRAY,SHADOW GRAY |
2 | ||
| 71930-1006036 |
BJ7#,LJ71 ﾛｯｸ付,W/LOCK,BROWN,SEPIA BROWN |
2 | ||
| 71931-1001036 |
BJ7#,LJ71 ﾛｯｸ無,W/O LOCK,BROWN,SEPIA BROWN |
2 | ||
| 72053A - LEVER SUB-ASSY, RECLINING REMOTE CONTROL | ||||
| 72054-90K0003 |
BJ7#,LJ71 LH,GRAY,SHADOW GRAY |
1 | ||
| 72054-90K0006 |
BJ7#,LJ71 LH,BROWN,SEPIA BROWN |
1 | ||
| 72053-90K0003 |
BJ7#,LJ71 RH,GRAY,SHADOW GRAY |
1 | ||
| 72053-90K0006 |
BJ7#,LJ71 RH,BROWN,SEPIA BROWN |
1 | ||
| 72053A - LEVER SUB-ASSY, RECLINING REMOTE CONTROL | ||||
| 72054-90K0003 |
BJ7#,LJ71 LH,GRAY,SHADOW GRAY |
1 | ||
| 72054-90K0006 |
BJ7#,LJ71 LH,BROWN,SEPIA BROWN |
1 | ||
| 72053-90K0003 |
BJ7#,LJ71 RH,GRAY,SHADOW GRAY |
1 | ||
| 72053-90K0006 |
BJ7#,LJ71 RH,BROWN,SEPIA BROWN |
1 | ||
| 72053B - SPRING(FOR RECLINING REMOTE CONTROL LEVER) | ||||
| 90508-16079 |
BJ7#,LJ71 RH |
1 | ||
| 90508-16080 |
BJ7#,LJ71 LH |
1 | ||
| 72053B - SPRING(FOR RECLINING REMOTE CONTROL LEVER) | ||||
| 90508-16079 |
BJ7#,LJ71 RH |
1 | ||
| 90508-16080 |
BJ7#,LJ71 LH |
1 | ||
| 72110E - SPRING, TENSION, NO.1 (FOR SEAT TRACK) | ||||
| 90506-16053 |
BJ7#,LJ71 |
1 | ||
| 72110S - TRACK ASSY, RH SEAT, OUTER (FOR SEPARATE SEAT) | ||||
| 72110-90K17 |
BJ7# |
1 | ||
| 72110-90K14 |
BJ7# |
1 | ||
| 72120S - TRACK ASSY, LH SEAT, OUTER (FOR SEPARATE SEAT) | ||||
| 72120-90K12 |
BJ7# |
1 | ||
| 72120-90K20 |
BJ7# |
1 | ||
| 72130 - TRACK ASSY, RH SEAT, INNER | ||||
| 72130-90K00 |
BJ7#,LJ71 |
1 | ||
| 72137 - COVER, SEAT TRACK, OUTER RH | ||||
| 72137-90K0203 |
BJ7# GRAY,SHADOW GRAY |
1 | ||
| 72137-90K0206 |
BJ7# BROWN,SEPIA BROWN |
1 | ||
| 72137A - CLIP (FOR SEAT TRACK COVER) | ||||
| 90467-0503113 |
BJ7# GRAY,SHADOW GRAY |
4 | ||
| 90467-0503106 |
BJ7# BROWN,SEPIA BROWN |
4 | ||
| 72137A - CLIP (FOR SEAT TRACK COVER) | ||||
| 90467-0503113 |
BJ7# GRAY,SHADOW GRAY |
4 | ||
| 90467-0503106 |
BJ7# BROWN,SEPIA BROWN |
4 | ||
| 72138 - COVER, SEAT TRACK, OUTER LH | ||||
| 72137-90K0206 |
BJ7# BROWN,SEPIA BROWN |
1 | ||
| 72137-90K0203 |
BJ7# GRAY,SHADOW GRAY |
1 | ||
| 72140 - TRACK ASSY, LH SEAT, INNER | ||||
| 72140-90K02 |
BJ7# |
1 | ||
| 72157 - COVER, SEAT TRACK BRACKET, INNER | ||||
| 72157-90K0003 |
BJ7# GRAY,SHADOW GRAY |
2 | ||
| 72157-90K0006 |
BJ7# BROWN,SEPIA BROWN |
2 | ||
| 72205B - PIN SUB-ASSY, SEAT TRACK OPEN LEVER | ||||
| 72205-90K00 |
BJ7# |
1 | ||
| 72210 - CABLE ASSY, SEAT TRACK CONTROL | ||||
| 72210-90K01 |
BJ7#,LJ71 |
1 | ||
| 72510 - ADJUSTER ASSY, RECLINING SEAT BACK, RH | ||||
| 72510-90K04 |
BJ7# |
1 | ||
| 72510-90K08 |
BJ7# |
1 | ||
| 72510A - SPRING, TENSION, NO.1(FOR RECLINING SEAT ADJUSTER) | ||||
| 90507-16007 |
BJ7#,LJ71 |
2 | ||
| 72510A - SPRING, TENSION, NO.1(FOR RECLINING SEAT ADJUSTER) | ||||
| 90507-16007 |
BJ7#,LJ71 |
2 | ||
| 72520 - ADJUSTER ASSY, RECLINING SEAT BACK, LH | ||||
| 72520-90K09 |
BJ7# BLACK |
1 | ||
| 72520-90K0401 |
BJ7# BLACK,BLACK |
1 | ||
| 72590 - CABLE ASSY, SEAT BACK CONTROL | ||||
| 72580-90K00 |
BJ7#,LJ71 LH |
1 | ||
| 72570-90K00 |
BJ7#,LJ71 RH |
1 | ||
| 72590 - CABLE ASSY, SEAT BACK CONTROL | ||||
| 72580-90K00 |
BJ7#,LJ71 LH |
1 | ||
| 72570-90K00 |
BJ7#,LJ71 RH |
1 | ||
| Common parts | ||||
| 90119-08079 | ||||
| 90119-10037 | ||||
| 90119-10352 | ||||
| 90155-40206 | ||||
| 90159-40206 | ||||
| 90168-40011 | ||||
| 90168-40036 | ||||
| 90168-40049 | ||||
| 90386-12027 | ||||
| 90523-08001 | ||||
| 93385-15012 | ||||
ILLUST NO. 2 OF 2(8411- )BJ73,74
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 58048A - HOOK SUB-ASSY, ROPE, NO.1 | ||||
| 58048-90K00 |
BJ7#,LJ71 |
2 | ||
| 71015 - FRAME SUB-ASSY, REAR SEAT CUSHION | ||||
| 71015-90K01 |
BJ73,74 |
1 | ||
| 71017A - FRAME SUB-ASSY, REAR SEAT BACK | ||||
| 71017-90K01 |
BJ73 |
1 | ||
| 71017-90K16 |
BJ73,74 |
1 | ||
| 71017-90K10 |
BJ73,74 |
1 | ||
| 71075B - COVER, REAR SEAT CUSHION (FOR BENCH TYPE) | ||||
| 71075-90K0205 |
BJ73..STD VL,BEIGE,BEIGE |
1 | ||
| 71075-90K0203 |
BJ73..STD VL,GRAY,GRAY |
1 | ||
| 71075-90K4405 |
BJ73..STD VL,BEIGE,BEIGE |
1 | ||
| 71075-90K4403 |
BJ73..STD VL,GRAY,GRAY |
1 | ||
| 71077B - COVER, REAR SEAT BACK (FOR BENCH TYPE) | ||||
| 71077-90K0805 |
BJ73..STD VL,BEIGE,BEIGE |
1 | ||
| 71077-90K1205 |
BJ73..STD VL,BEIGE,BEIGE |
1 | ||
| 71077-90K0803 |
BJ73..STD VL,GRAY,GRAY |
1 | ||
| 71077-90K1203 |
BJ73..STD VL,GRAY,GRAY |
1 | ||
| 71077-90K4303 |
BJ73..STD VL,GRAY,GRAY |
1 | ||
| 71077-90K4305 |
BJ73..STD VL,BEIGE,BEIGE |
1 | ||
| 71301C - LINK SUB-ASSY, REAR SEAT CUSHION | ||||
| 71301-90K00 |
BJ73,74 |
1 | ||
| 71324A - CUSHION, REAR SEAT | ||||
| 71324-90K02 |
BJ73,74 |
2 | ||
| 71327B - BRACKET, REAR SEAT CUSHION SUPPORT | ||||
| 71327-90K00 |
BJ73,74 |
1 | ||
| 71460B - CUSHION ASSY, REAR SEAT (FOR BENCH TYPE) | ||||
| 71460-90K0203 |
BJ73..STD VL,GRAY,GRAY |
1 | ||
| 71460-90K0205 |
BJ73..STD VL,BEIGE,BEIGE |
1 | ||
| 71460-90K4003 |
BJ73..STD VL,GRAY,GRAY |
1 | ||
| 71460-90K4005 |
BJ73..STD VL,BEIGE,BEIGE |
1 | ||
| 71480B - BACK ASSY, REAR SEAT (FOR BENCH TYPE) | ||||
| 71480-90K0205 |
BJ73..STD VL,BEIGE,BEIGE |
1 | ||
| 71480-90K0203 |
BJ73..STD VL,GRAY,GRAY |
1 | ||
| 71480-90K4505 |
BJ73..STD VL,BEIGE,BEIGE |
1 | ||
| 71480-90K4503 |
BJ73..STD VL,GRAY,GRAY |
1 | ||
| 71611 - PAD, REAR SEAT CUSHION | ||||
| 71611-90K01 |
BJ73,74 |
1 | ||
| 71611-90K06 |
BJ73,74 |
1 | ||
| 71651B - PAD, REAR SEAT BACK(FOR BENCH TYPE) | ||||
| 71507-90K02 |
BJ73 |
1 | ||
| 71507-90K10 |
BJ73,74 |
1 | ||
| 71507-90K15 |
BJ73,74 |
1 | ||
| 71812 - CLIP (FOR FRONT SEAT CUSHION COVER) | ||||
| 90468-18071 |
BJ7#,LJ71 |
1 | ||
| 71812 - CLIP (FOR FRONT SEAT CUSHION COVER) | ||||
| 90468-18071 |
BJ7#,LJ71 |
1 | ||
| 72603 - LOCK SUB-ASSY, REAR SEAT BACK, RH | ||||
| 72603-90K0003 |
BJ7# GRAY,SHADOW GRAY |
1 | ||
| 72603-90K0203 |
BJ7# GRAY,SHADOW GRAY |
1 | ||
| 72603-90K0006 |
BJ7# BROWN,SEPIA BROWN |
1 | ||
| 72603-90K0206 |
BJ7# BROWN,SEPIA BROWN |
1 | ||
| 72604 - LOCK SUB-ASSY, REAR SEAT BACK, LH | ||||
| 72604-90K0003 |
BJ7# GRAY,SHADOW GRAY |
1 | ||
| 72604-90K0203 |
BJ7# GRAY,SHADOW GRAY |
1 | ||
| 72604-90K0006 |
BJ7# BROWN,SEPIA BROWN |
1 | ||
| 72604-90K0206 |
BJ7# BROWN,SEPIA BROWN |
1 | ||
| 72660A - SUPPORT ASSY, REAR SEAT CUSHION | ||||
| 72660-90K01 |
BJ7# |
1 | ||
| 72660E - SPRING(FOR REAR SEAT CUSHION SUPPORT) | ||||
| 90506-08003 |
BJ7# |
1 | ||
| 72665 - COVER, REAR SEAT BACK LOCK, RH | ||||
| 72665-90K00 |
BJ7# |
1 | ||
| 72666 - COVER, REAR SEAT BACK LOCK, LH | ||||
| 72666-90K00 |
BJ7# |
1 | ||
| 72685 - STRIKER, REAR NO.1 SEAT LOCK | ||||
| 72691-90K01 |
BJ7# |
1 | ||
| 72690A - STRAP ASSY, REAR SEAT LOCK RELEASE | ||||
| 72690-90K0003 |
BJ7# GRAY,GRAY |
1 | ||
| 72690-90K0106 |
BJ7# BROWN,SEPIA BROWN |
1 | ||
| 72690-90K0103 |
BJ7# GRAY,GRAY |
1 | ||
| 72690-90K0006 |
BJ7# BROWN,SEPIA BROWN |
1 | ||
| 78910 - CABLE ASSY, FOLD SEAT LOCK CONTROL, NO.1 | ||||
| 78910-90K00 |
BJ7# |
1 | ||
| 78920 - CABLE ASSY, FOLD SEAT LOCK CONTROL, NO.2 | ||||
| 78920-90K01 |
BJ7# |
1 | ||
| 78950 - BAND ASSY, FOLD SEAT STOPPER, NO.1 | ||||
| 78950-90K0606 |
BJ73,74 BROWN,SEPIA BROWN |
1 | ||
| 78950-90K0003 |
BJ73,74 GRAY,GRAY |
1 | ||
| 78950-90K0603 |
BJ73,74 GRAY,SHADOW GRAY |
1 | ||
| 78950-90K0006 |
BJ73,74 BROWN,SEPIA BROWN |
1 | ||
| 79929 - FRAME, FOLD SEAT LEG STOPPER | ||||
| 79929-90K02 |
BJ73,74 |
1 | ||
| Common parts | ||||
| 82711-12120 | ||||
| 90119-08364 | ||||
| 90119-08653 | ||||
| 90119-10037 | ||||
| 90119-10101 | ||||
| 90119-10493 | ||||
| 90168-40011 | ||||
| 90183-08003 | ||||
| 90202-08039 | ||||
| 90249-10102 | ||||
| 90389-09005 | ||||
| 90467-08053 | ||||
| 90541-09040 | ||||
| 91651-60620 | ||||
| 93312-16016 | ||||
| 93316-16014 | ||||
| 96160-00600 | ||||
Part Price Details
Loading price information...
Part Number:
Price:
