BJ73V-MR (1984)

Toyota Land Cruiser S/T,H/T

Production Nov 1984 - Jan 1990
Engine 3B
Transmission MTM
Displacement 2500cc
Power 168 HP (125 kW)

(8411- )BJ73,74

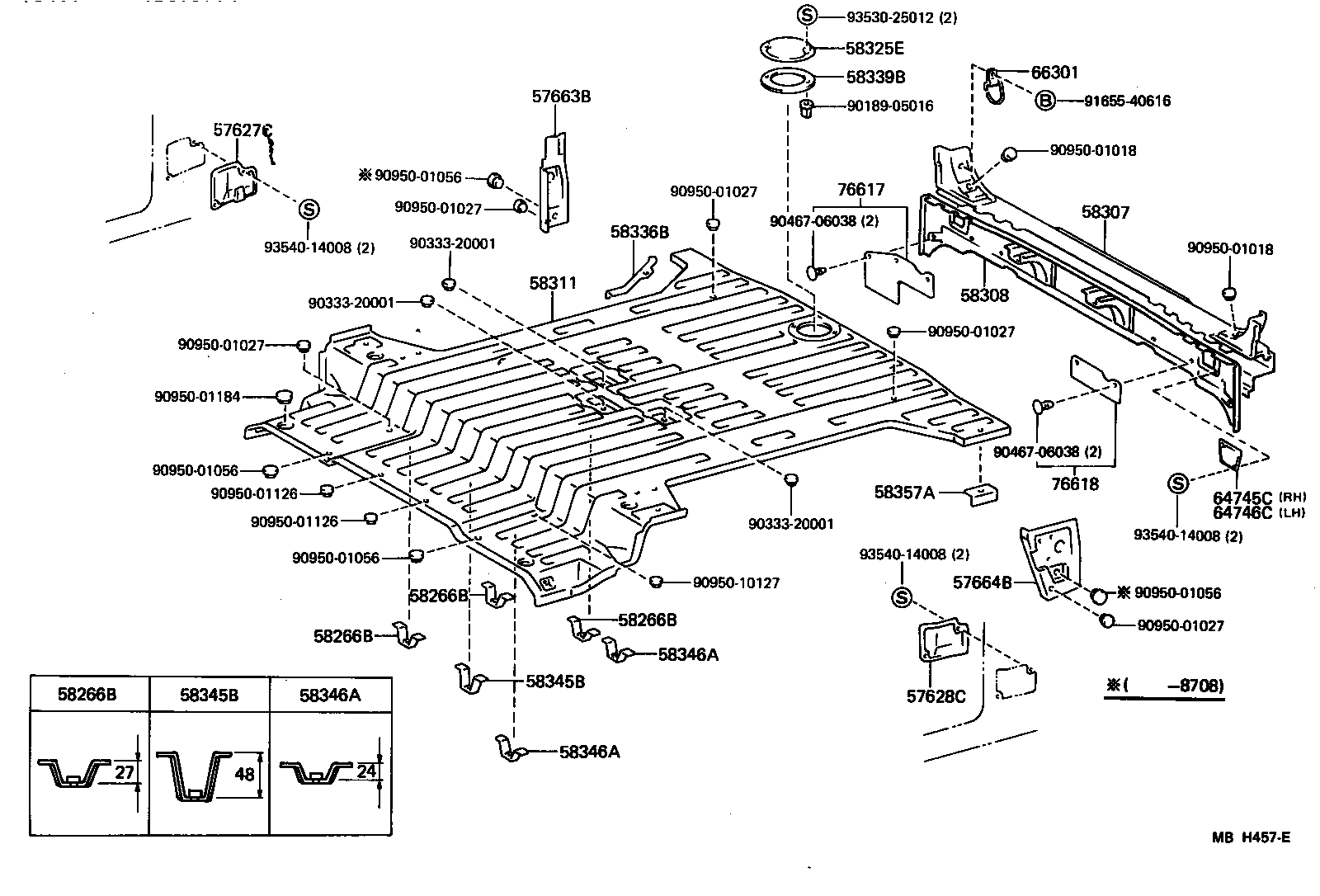

Click highlighted areas on diagram

diagram 57627C 57628C 57663B 57664B 58266B 58266B 58266B 58266B 58307 58308 58311 58325E 58336B 58339B 58345B 58345B 58346A 58346A 58346A 58357A 64745C 64746C 66301 76617 76618 9018905016 9033320001 9033320001 9033320001 9046706038 9046706038 9095001018 9095001018 9095001027 9095001027 9095001027 9095001027 9095001027 9095001056 9095001056 9095001056 9095001056 9095001126 9095001126 9095001184 9095010127 9165540616 9353025012 9354014008 9354014008 9354014008
Part # Description Qty Price
57627C - COVER, REAR FLOOR SIDE MEMBER, RH
57627-90K01

BJ73,74

 1
57628C - COVER, REAR FLOOR SIDE MEMBER, LH
57628-90K01

BJ73,74

 1
57663B - PANEL, REAR FLOOR SIDE, REAR RH
57663-90K00

BJ7#,LJ71

 1
57664B - PANEL, REAR FLOOR SIDE, REAR LH
57664-90K00

BJ7#,LJ71

 1
57664-90K02

BJ7#,LJ71

 1
58266B - BRACKET, FUEL TUBE CLAMP
58266-90K00

BJ7#,LJ71

 3
58266B - BRACKET, FUEL TUBE CLAMP
58266-90K00

BJ7#,LJ71

 3
58266B - BRACKET, FUEL TUBE CLAMP
58266-90K00

BJ7#,LJ71

 3
58266B - BRACKET, FUEL TUBE CLAMP
58266-90K00

BJ7#,LJ71

 3
58307 - PANEL SUB-ASSY, BODY LOWER BACK
58307-90K17

BJ7#,LJ71

 1
58307-90K01

BJ7#

 1
58307-90K01

BJ70,73..STD

 1
58308 - PANEL SUB-ASSY, BODY LOWER BACK, INNER
58308-90K00

BJ7#,LJ71

 1
58311 - PAN, REAR FLOOR
58311-90K03

BJ73,74

 1
58325E - COVER, REAR FLOOR SERVICE HOLE
58325-90K00

BJ7#,LJ71

 1
58336B - REINFORCEMENT, REAR FLOOR PAN
58336-90K00

BJ7#,LJ71

 1
58339B - PACKING, REAR FLOOR SERVICE HOLE
58339-90K00

BJ7#,LJ71

 1
58345B - BRACKET, REAR FLOOR HEAT INSULATOR, NO.1
58345-90K00

BJ73,74

 1
58345B - BRACKET, REAR FLOOR HEAT INSULATOR, NO.1
58345-90K00

BJ73,74

 1
58346A - BRACKET, REAR FLOOR HEAT INSULATOR, NO.2
58346-90K00

BJ7#,LJ71

 3
58346A - BRACKET, REAR FLOOR HEAT INSULATOR, NO.2
58346-90K00

BJ7#,LJ71

 3
58346A - BRACKET, REAR FLOOR HEAT INSULATOR, NO.2
58346-90K00

BJ7#,LJ71

 3
58357A - REINFORCEMENT, JACK CARRIER
58357-90K01

BJ7#,LJ71

 1
58357-90K00

BJ7#,LJ71

 1
64745C - COVER, LOWER BACK SERVICE HOLE, RH
64745-90K00

BJ7#,LJ71

 1
64746C - COVER, LOWER BACK SERVICE HOLE, LH
64746-90K00

BJ7#,LJ71

 1
66301 - HOOK SUB-ASSY, ROPE
66301-90K02

BJ7#,LJ71

 2
76617 - MUDGUARD, LOWER BACK PANEL, FRONT RH
76617-90K01

BJ7#,LJ71

 1
76617-90K00

BJ7#,LJ71

 1
76618 - MUDGUARD, LOWER BACK PANEL, FRONT LH
76618-90K01

BJ7#,LJ71

 1
76618-90K00

BJ7#,LJ71

 1
Common parts
90189-05016
90333-20001
90467-06038
90950-01018
90950-01027
90950-01056
90950-01126
90950-01184
90950-10127
91655-40616
93530-25012
93540-14008
